Lenovo ThinkPad P73 Manuale utente

Setup Guide

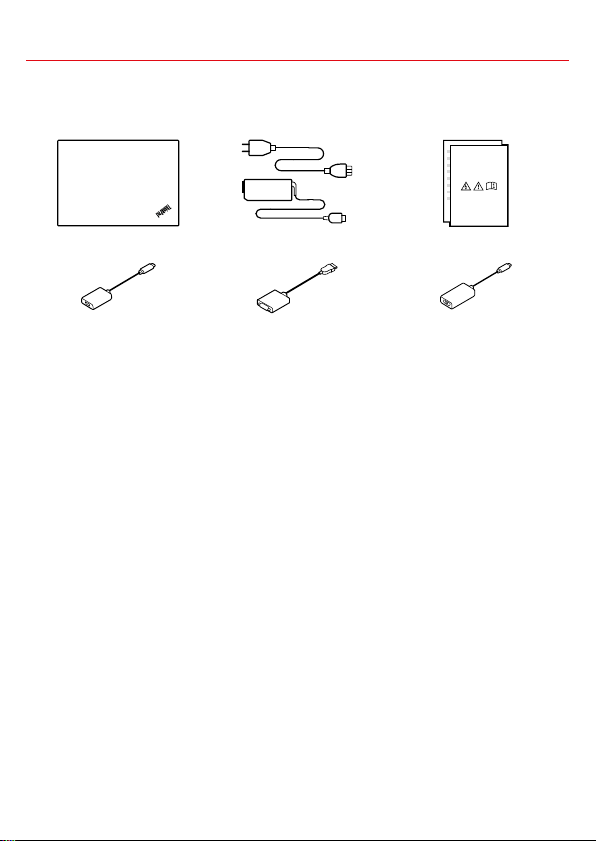

Unpack

* Lenovo USB-C to

DisplayPort Adapter

* Lenovo HDMI to VGA

Adapter

* Lenovo USB-C to VGA

Adapter

* For selected models

Initial Setup

Overview

1314151617181920

314 4

24 25

*1. Infrared LED

*2. Camera with IR function

*3. ThinkShutter

4. Microphones

5. Numeric keypad

6. Power button

7. Security-lock slot

8. Ethernet connector

9. USB-C™ connector

10. SD-card slot

11. USB 3.1 connector Gen 1

12. Audio connector

13. Fingerprint reader

*14. NFC label

15. Power connector

16. Thunderbolt™ 3 connectors

(USB-C)

17. HDMI™ connector

18. USB 3.1 connector Gen 1

19. Trackpad with buttons

20.TrackPoint buttons

*21. Smart-card slot

22. Always on USB 3.1 connector

Gen 1

23. TrackPoint pointing stick

24. Wireless-status indicator

25. Device-access-status indicator

*For selected models

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and

Warranty Guide for accessing the User Guide.

Customer Replacement Units (CRUs)

•ac power adapter

•Bottom cover

*• Hard disk drive

*•Hard disk drive cable

•Keyboard

•Memory module under the bottom

cover

*•M.2 solid-state drive

*•Mylar of M.2 solid-state drive

•Mylar of memory module under the

bottom cover

•Power cord

*•Thermal pad

* for selected models

Refer to the User Guide for CRU definition.

Additional information

European Union — compliance with the

Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that

the radio equipment type ThinkPad P73 is in

compliance with Directive 2014/53/EU.

The full text of the system EU declaration of

conformity and the EU wireless module

declarations are available at the following Internet

addresses:

•For notebook computers:

https://www.lenovo.com/eu-doc-notebooks

•For tablets:

https://www.lenovo.com/eu-doc-tablets

This radio equipment operates with the following

frequency bands and maximum radio-frequency

power:

Technology

Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n/ax

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac/ax

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac/ax

5725 - 5875

< 13.98

dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 20 dBm

NFC 13.56

< -5.31

dBμA/m

@10m

E-manual

First Edition (January 2020)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a

General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to

restrictions set forth in Contract No. GS-35F-05925.

Reduce I Reuse I Recycle

Printed in China

PN: xxxxxxxxxx
