Lenovo THINKPAD X30 Manuale utente
Part Number: 67P4573
Thank you for purchasing the IBM ThinkPad X Series computer. Match the items on this list with the items in the box.
If any item is missing or damaged, please contact your place of purchase.
hComputer hBattery pack Notes:
1. Some models may contain
additional items that are not
listed.
2. Your computer features IBM
Disk-to-Disk recovery.
Everything needed to recover
factory-installed files and
applications is on your hard
disk. Disk-to-Disk recovery
eliminates the need for a
Recovery CD. For more
information, see “Recovering
preinstalled software” in the
Service and Troubleshooting
Guide.
hPower cord hBooks:
vSetup Guide
vService and
Troubleshooting Guide
vManual package for
Microsoft
®
Windows
®
User's Reference
Setup Guide
hAC adapter
© Copyright IBM Corp. 2002 1
Setting up your computer
1. Installing the battery.
a) Align the front of the battery with the front side of the battery compartment
in the computer 1; then gently push the battery into the compartment 2.
b) Slide the battery latch to lock it.
2. Connecting to a power source.
Connect the ac adapter to the computer’s power jack (at the rear of the
computer). Make the connections in the order shown.
2

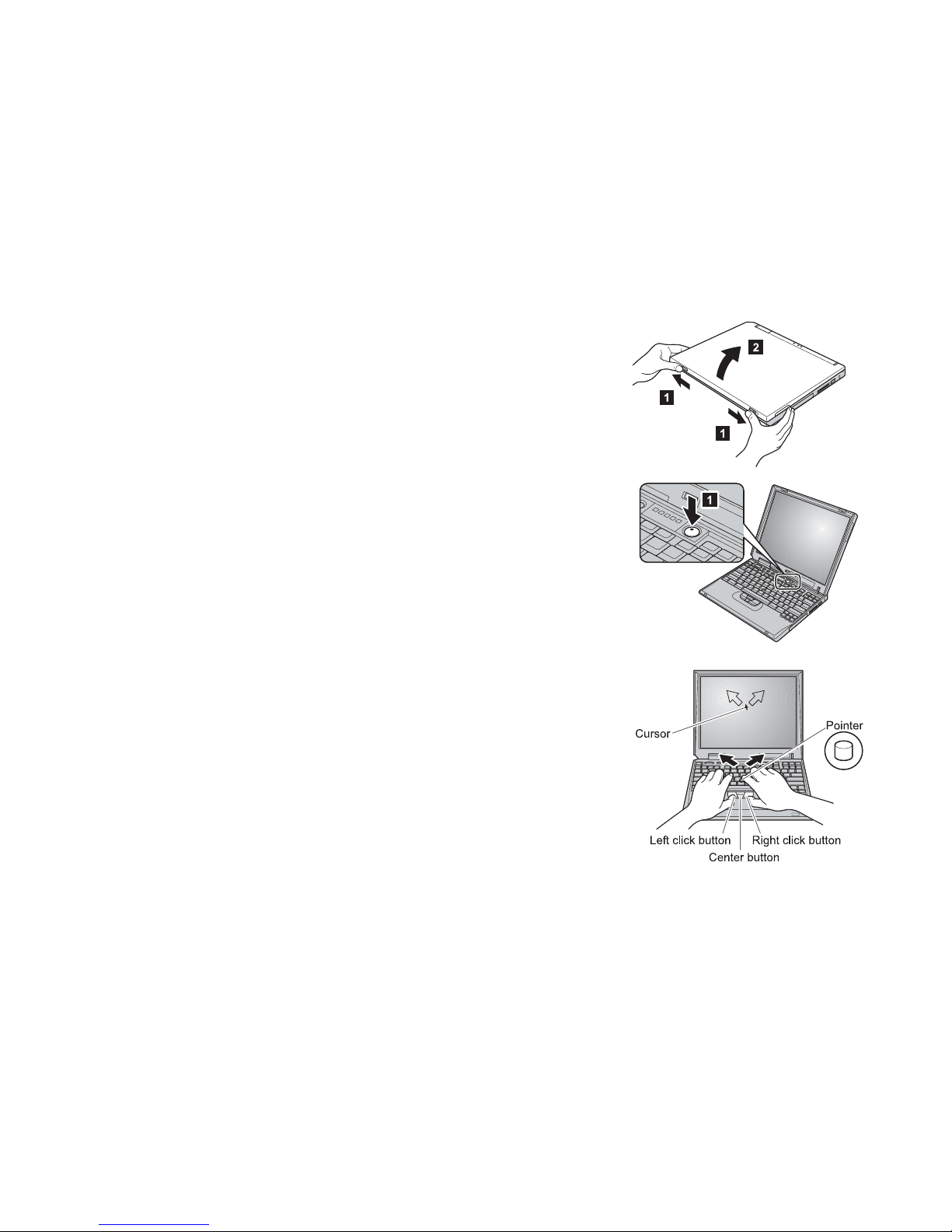

3. Turning on the system.
a) Open the computer display. Press the latches 1 and open the display 2. Then
position the display so that it is convenient for viewing.
b) Press the power switch1.
4. Using the TrackPoint
®
.
The TrackPoint is a unique device for moving the cursor on the screen. Using the
TrackPoint, you can perform all of the operations of a mouse. The left and right
buttons function like the left and right buttons on a mouse.
To move the cursor, use the TrackPoint pointer at the center of the keyboard. Press
gently with your left or right index finger in the direction you want to move the
cursor. To select and drag an object, press and hold one of the buttons with either
thumb, as required by your software.
Click means to press the left button once. Double-click means to press the left
button twice within 1 second.
For more information about the TrackPoint, press the ThinkPad button to open
Access ThinkPad, your on-board help system.
3

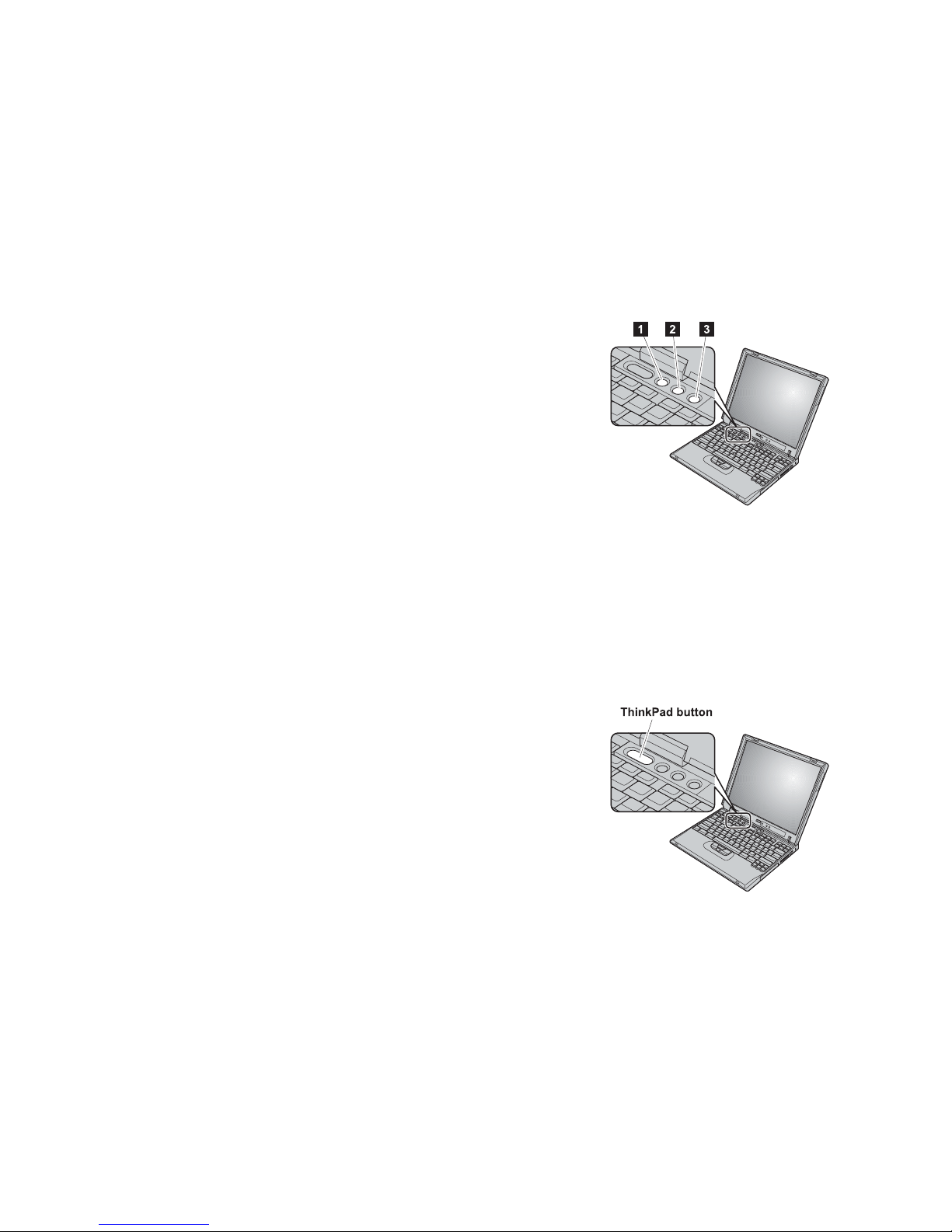

5. Using the volume control.
You can adjust the sound level produced by the built-in speakers by using the
following three buttons:
1 Volume down
2 Volume up
3 Mute
If you mute the sound and then turn off your computer, the sound will
remain muted when you turn on your computer again. To turn on the
sound, press the Volume up or Volume down button.
When you press one of these buttons, the volume indicator appears on the screen
for a few seconds. For more information on volume control, see the on-board help
system, Access ThinkPad.
6. Setting up Windows.
Your computer comes with a Microsoft Windows 2000 or XP operating system.
After turning on your computer, follow the instructions on the screen to set up the
operating system. This procedure takes approximately 30 minutes, and your
computer restarts several times.
7. Using Access ThinkPad.
Whenever you have a question about your computer, or wish to view IBM Web
sites, simply press the ThinkPad button to open Access ThinkPad.
Access ThinkPad is the comprehensive, on-board help and information center for
your computer. It travels with you, eliminating the need to carry reference manuals.
Find information about your ThinkPad computer and its features by using the
search function. For direct access to help and support, tips from other mobile users,
and information about accessories, software, and upgrades, visit the IBM Web site.
4

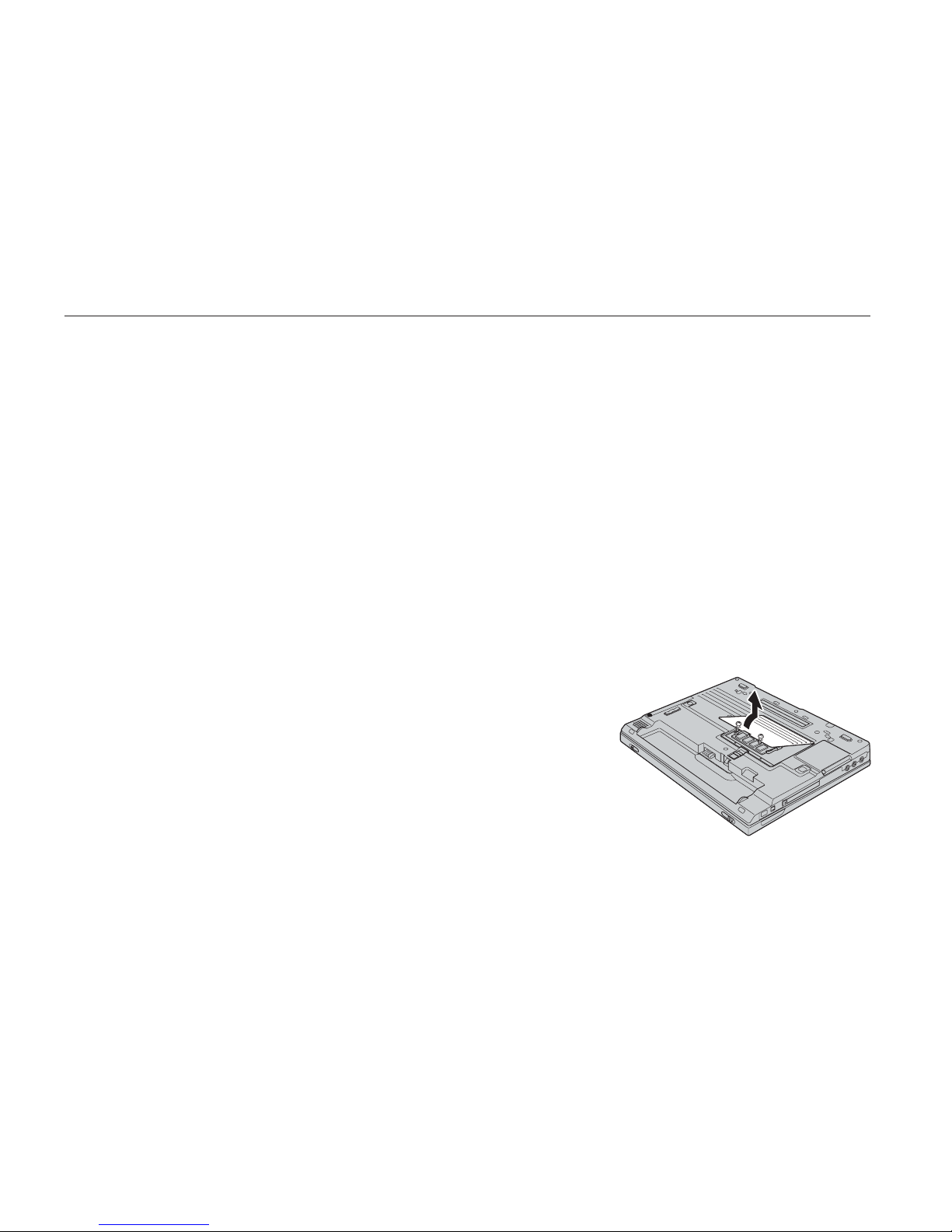

Installing memory
Increasing memory capacity is an effective way to make programs run faster. You can increase the amount of memory in
your computer by installing a PC133 synchronous dynamic random access memory (SDRAM) small outline dual inline
memory module (SO-DIMM), available as an option, in the memory slot on the bottom of the computer. SO-DIMMs with
different capacities are available.
Note: Use only a PC133 SDRAM SO-DIMM in your computer. If you install an SO-DIMM that is not supported by your computer, the
computer beeps, and the system does not start. You can purchase the appropriate memory option from your IBM reseller or IBM
marketing representative.
Attention: Before you start installing a module, touch a metal table or a grounded metal object. This action reduces any static
electricity from your body. The static electricity could damage the SO-DIMM.
To install the SO-DIMM, do the following:
1. Turn off the computer; then disconnect the ac adapter and all cables from the
computer.
2. Close the computer display, and turn it over.
3. Remove the battery.
4. Loosen the screws on the memory slot cover; then remove the cover.
5

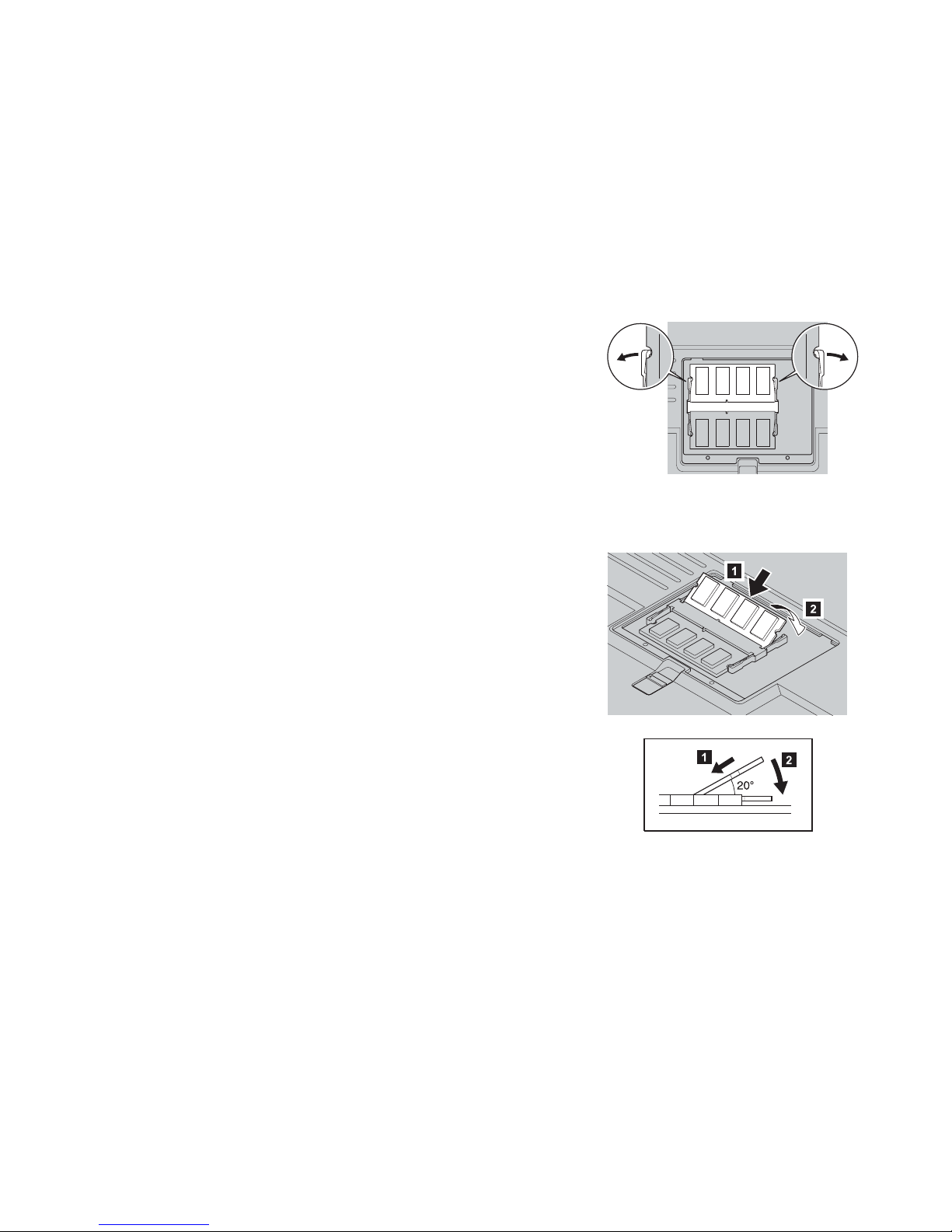

If the SO-DIMM is already in the memory slot, remove it to make room for the new
one by pressing out on the latches on both edges of the socket at the same time. Be
sure to save it for future use.
5. Find the notch on the side of the SO-DIMM you are installing.
Attention: To avoid damaging the SO-DIMM, do not touch its contact edge.
6. With the notched end of the SO-DIMM toward the side of the socket, insert the
SO-DIMM at an angle of about 20 degrees, into the socket 1; then press it in
firmly 2.
7. Pivot the SO-DIMM downward until it snaps into place.
8. Make sure that the SO-DIMM is firmly fixed in the slot and cannot be moved easily.
6
9. Replace the memory slot cover by aligning the back side of the cover first and then
tightening the screws.
Attention: When you have added or upgraded an SO-DIMM, do not use your
computer until you have closed the memory slot cover. Never use the computer
with the cover open.
10. Put the battery back in place, turn the computer over again, and reconnect the
cables.
To make sure that the SO-DIMM is installed correctly, do as follows:
1. Turn the computer on.
2. While the “Press F1 for IBM BIOS Setup Utility” message is displayed at the lower-left
area of the screen, press the F1 key. The IBM BIOS Setup Utility screen appears. The
“Installed memory” item shows the total amount of memory installed in your
computer. For example, if your computer has 128 MB of memory and you install a
128-MB SO-DIMM in it, the quantity shown in “Installed memory” should be 256MB.
7
Your name:
_________________________
Company name:
_________________________
Model number:
_________________________
Serial number:
_________________________
Company or reseller service:
_________________________
IBM service Web site:
_________________________
IBM service number:
_________________________
Trademarks
The following terms are trademarks of the IBM Corporation in the
United States or other countries or both:
IBM
ThinkPad
TrackPoint
Microsoft and Windows are trademarks of Microsoft Corporation
in the United States and/or other countries.
Notes:
8
