Lenovo ThinkVision LT2223pwC Manuale utente

LT2223pwC Flat Panel Monitor

User's Guide

Product numbers

First Edition(December 2012)

©Copyright Lenovo 2012.

All rights reserved.

LENOVO products, data, computer software, and services have been developed exclusively at private expense and are

sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use,

reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered

pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions

set forth in Contract No. GS-35F-05925.

©Copyright Lenovo 2012. i

Safety information

General Safety guidelines

For tips to help you use your computer safety, go to:

http://www.lenovo.com/safety

Before installing this product, read the Safety Information.

© Copyright Lenovo 2012.

íí

í

iii

Chapter 1.Getting started

This User’s Guide contains detailed information on the ThinkVision®

Flat

Panel Monitor. For a quick over view, please see the Setup Poster that was shipped

with your monitor.

Shipping contents

The product package should include the following items:

· Information flyer

· ThinkVision Flat Panel Monitor

· Power Cord

· Analog Signal Cable

· USB Cable

Note: To attach a VESA mount, please see

“Detaching the monitor stand” on page 2-10.

CopyrightLenovo2012. 1-1

©

©

Product overview

This section will provide information on adjusting monitor positions, setting user

controls, and using the cable lock slot.

Types of adjustments

Tilt

Please see the illustration below for an example of the tilt range.

Swivel

With the built-in pedestal, you can tilt and swivel the monitor for the most

comfortable viewing angle.

1-2 Flat Panel Monitor User’s Guide

5°

0°

30°

-45 o

45o

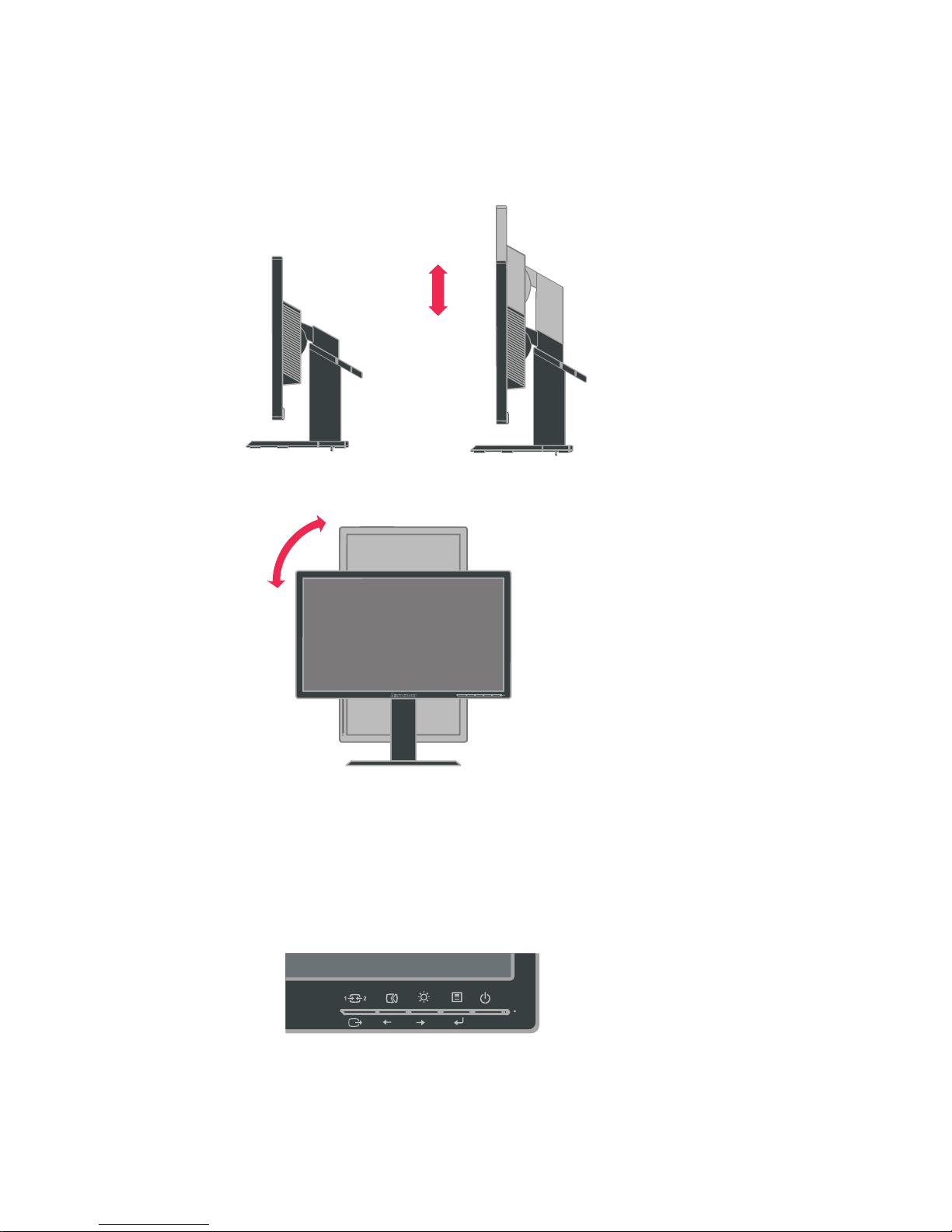

Height Adjustment

Hold the monitor pull up on both sides, adjust the reasonable height of the monitor.

Monitor Pivot

- Adjust height to the top position before rotation the monitor.

- Rotate clockwise until the monitor stops at 90°.

User controls

Your monitor has controls on the front which are used to adjust the display.

For information on how to use these controls, please see

“Adjusting your monitor image” on page 2-3.

Chapter 1. Getting started 1-3

110mm

90°

Cable lock slot

Your monitor is equipped with a cable lock slot located on the rear of your monitor (in

the lower left corner). Please follow the instructions that came with the cable lock to

attach it.

Setting up your monitor

This section provides information to help you set up your monitor.

Connecting and turning on your monitor

N ote:Be sure to read the Safety Information located in the information flyer

before carrying out this procedure.

Power off your computer and all attached devices, and unplug the computer power

cord.

1-4 Flat Panel Monitor User’s Guide

Connect the analog signal cable to the D-SUB connector of the monitor and the

other end on the back of the computer.

Connect one end of the DP cable to the DP connector on the back of the computer, and

the other end to the DP connector on the monitor.

Chapter 1. Getting started 1-5
