Lenovo ThinkVision LT2223zwC Manuale utente

LT2223zwC Flat Panel Monitor

User's Guide

Product numbers

60A2-MAR2-WW

First Edition(December 2012)

©Copyright Lenovo 2012.

LENOVO products, data, computer software, and services have been developed exclusively at private expense and are

sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use,

reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered

pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions

set forth in Contract No. GS-35F-05925.

©Copyright Lenovo 2012. i

Contents

Safety information iii

Chapter 1. Getting started 1-1

Shipping contents 1-1

Product overview 1-2

Types of adjustments 1-2

User controls 1-3

Cable lock slot 1 -4

Setting up your monitor 1 -5

Connecting and turning on your monitor 1

-5

Registering your option 1-9

Chapter 2. Adjusting and using your monitor 2-1

Comfort and accessibility 2-1

Arranging your work area 2-1

Quick tips for healthy work habits 2-2

Accessibility information 2-3

Adjusting your monitor image 2-3

Using the On-Screen Display (OSD) controls 2-3

Selecting a supported display mode 2-7

Understanding power management 2-9

Caring for your monitor 2-9

Detaching the monitor base and stand 2-10

wall Mounting (Optional) 2-10

Chapter 3. Reference information 3-1

Monitor specifications 3-1

Troubleshooting 3-3

Manual image setup 3 -4

Manually installing the monitor driver 3-5

Service information 3-8

Appendix A. Service and Support A-1

Online technical support A-1

Telephone technical support A-1

Appendix B. Notices B-1

Recycling information B-2

Trademarks B-3

Safety information

General Safety guidelines

For tips to help you use your computer safety, go to:

http://www.lenovo.com/safety

Before installing this product, read the Safety Information.

íí

Chapter 1.Getting started

This User’s Guide contains detailed information on the ThinkVision

® Flat

Panel Monitor. For a quick over view, please see the Setup Poster that was shipped

with your monitor.

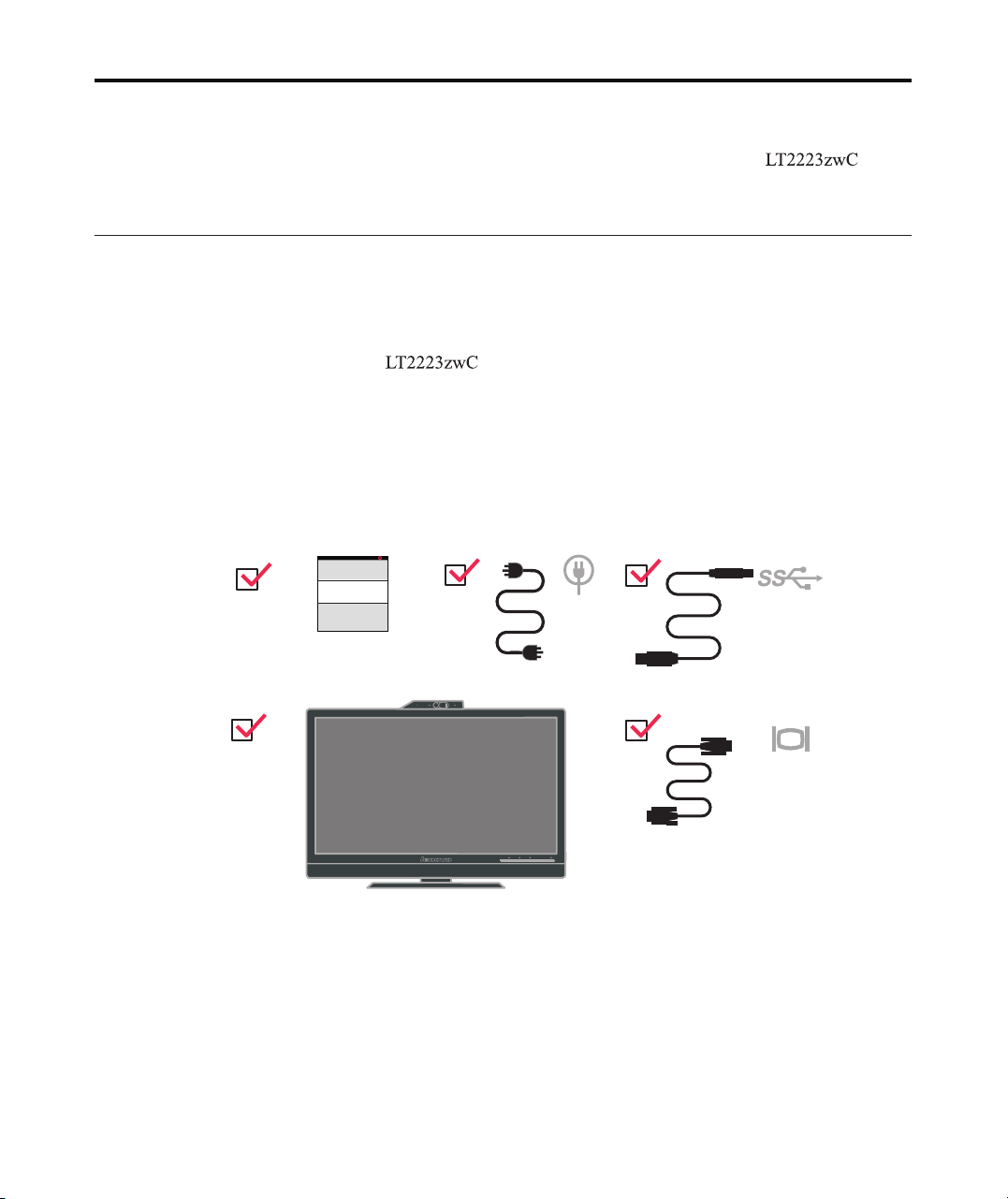

Shipping contents

The product package should include the following items:

· Information flyer

· ThinkVision Flat Panel Monitor

· Power Cord

· Analog Signal Cable

· USB Cable

Note: To attach a VESA mount, please see

“Detaching the monitor stand” on page 2-10.

CopyrightLenovo2012.

Product overview

This section will provide information on adjusting monitor positions, setting user

controls, and using the cable lock slot.

Types of adjustments

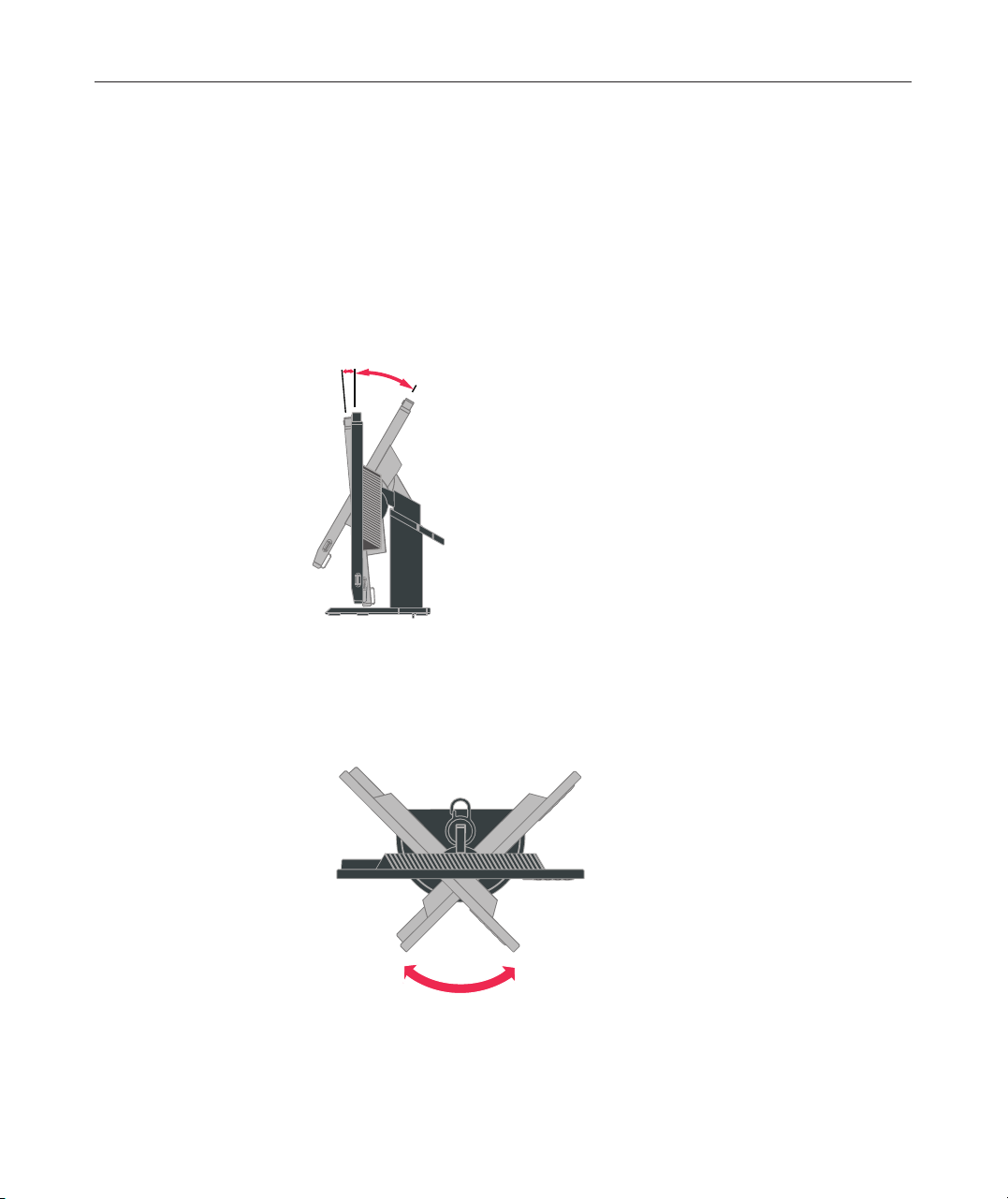

Tilt

Please see the illustration below for an example of the tilt range.

Swivel

With the built-in pedestal, you can tilt and swivel the monitor for the most

comfortable viewing angle.

1-2 LT2223zwC Flat Panel Monitor User’s Guide

5°

0°

30°

-45 o

45o

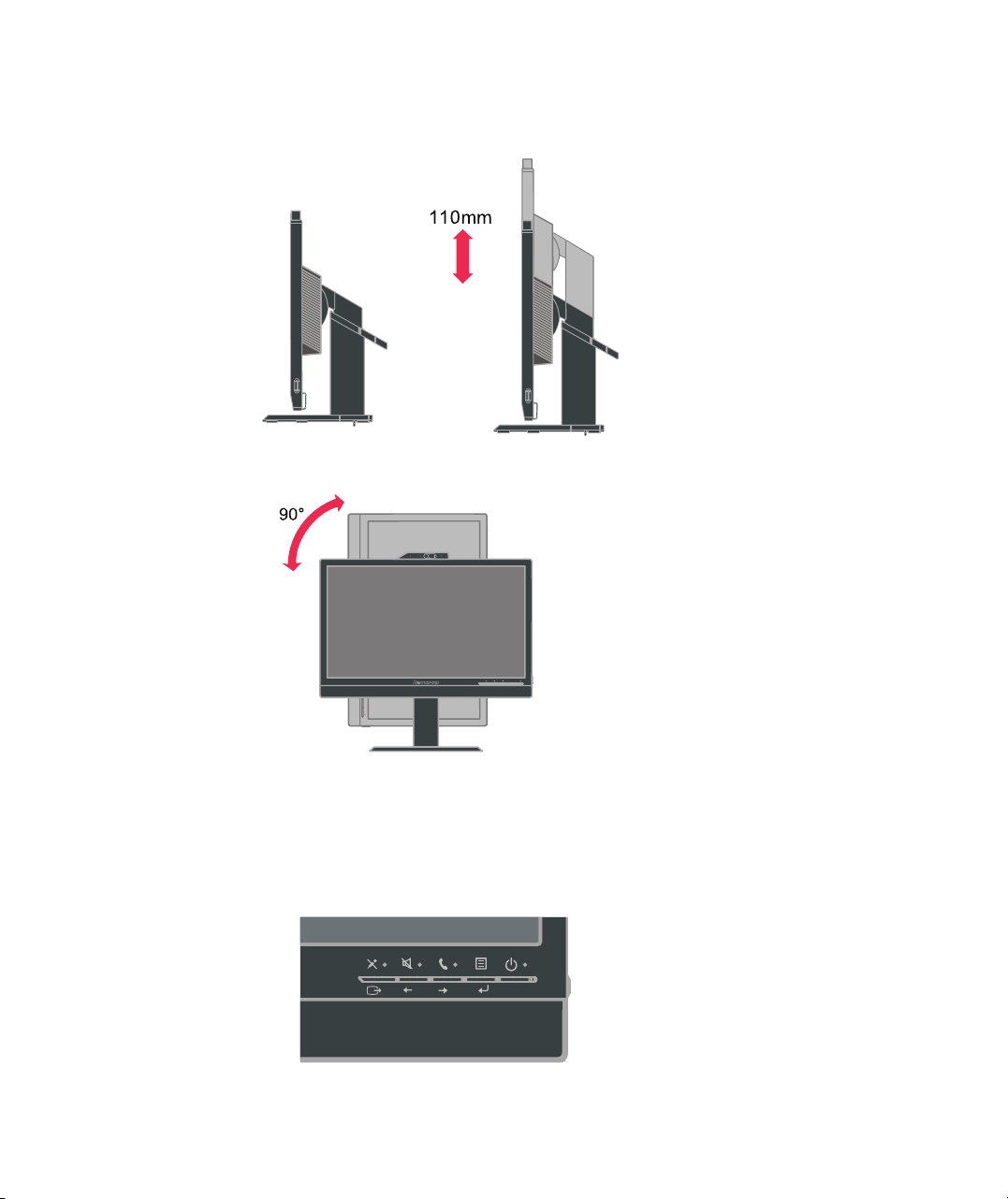

Height Adjustment

Hold the monitor pull up on both sides, adjust the reasonable height of the monitor.

Monitor Pivot

- Adjust height to the top position before rotation the monitor.

- Rotate clockwise until the monitor stops at 90°.

User controls

Your monitor has controls on the front which are used to adjust the display.

For information on how to use these controls, please see

“Adjusting your monitor image” on page 2-3.

Chapter 1. Getting started 1-3

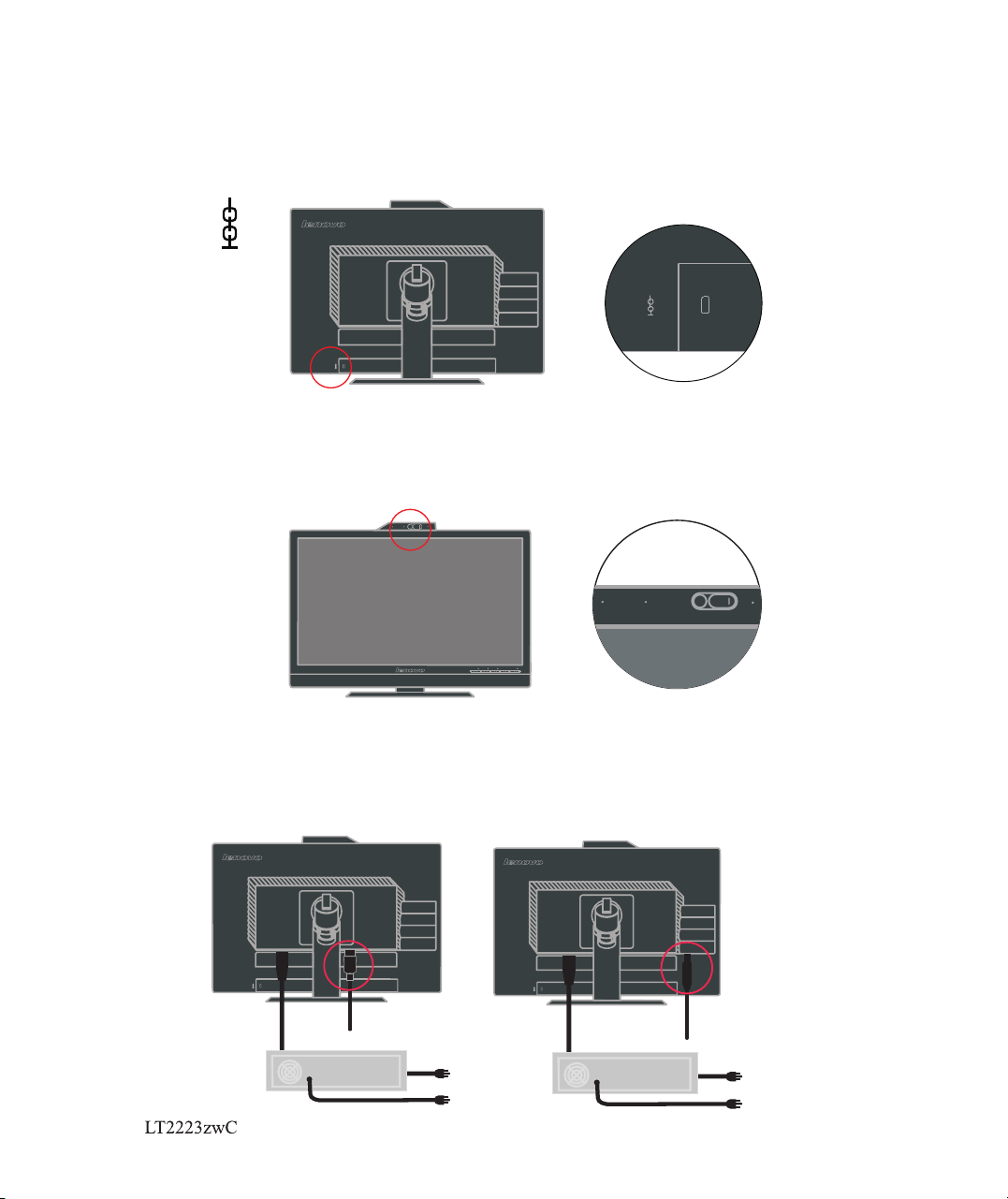

Cable lock slot

Your monitor is equipped with a cable lock slot located on the rear of your monitor (in

the lower left corner). Please follow the instructions that came with the cable lock to

attach it.

Web-Camera

Your monitor has embedded FHD Web-Camera Module, you can use it on living meeting and

other net communication.

Speaker

Your monitor has embedded a pair of speaks with 3W, and it can support DP audio output and USB

audio output. The USB cable need plug in when you use USB audio channel(picture2).

DP audio output doesn't need USB cable but DP cable(picture 1).

(picture 1) (picture 2)

1-4 Flat Panel Monitor User’s Guide

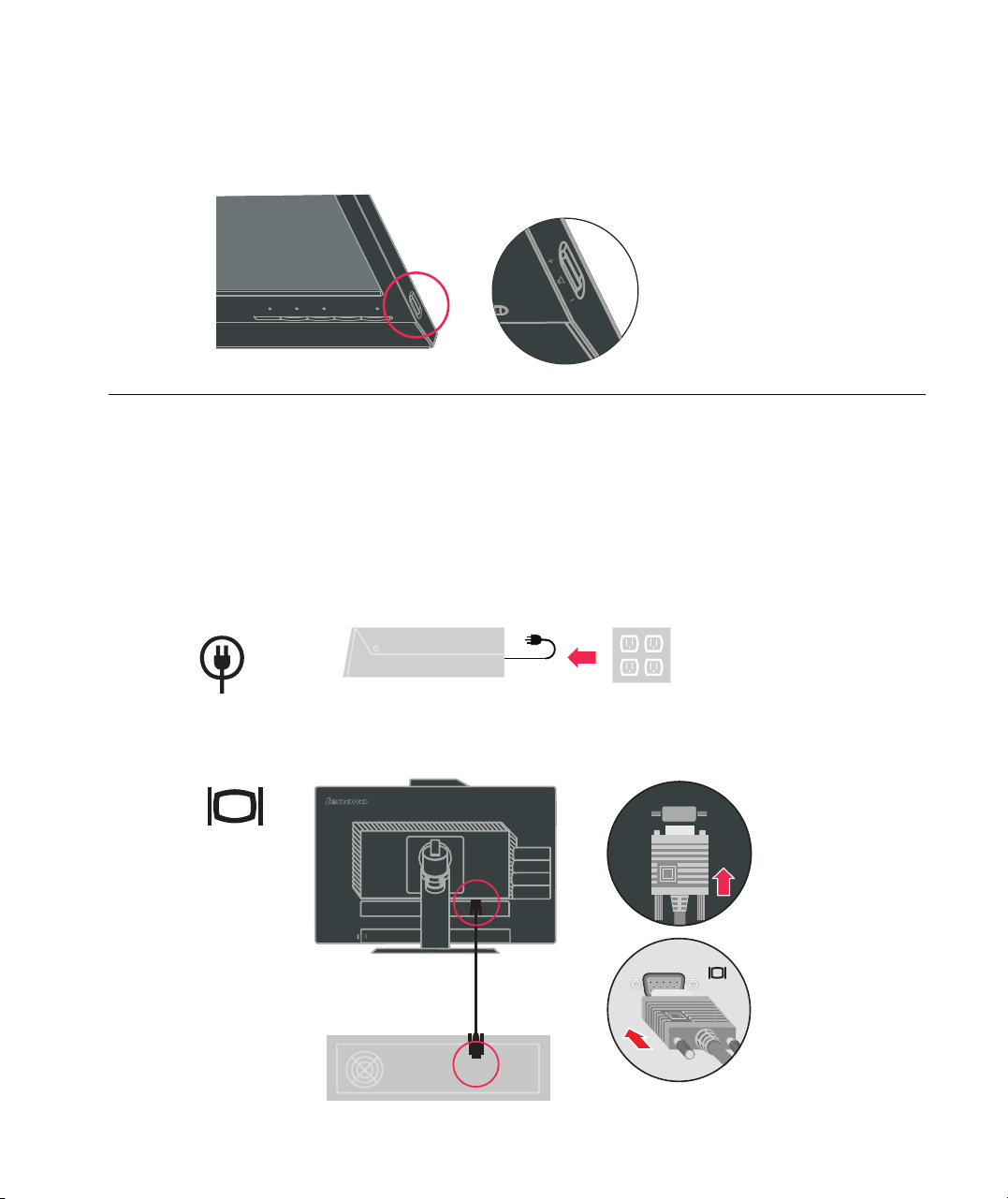

you can push side volume control key to adjust sound of speaker.

Setting up your monitor

This section provides information to help you set up your monitor.

Connecting and turning on your monitor

N ote:Be sure to read the Safety Information located in the information flyer

before carrying out this procedure.

Power off your computer and all attached devices, and unplug the computer power

cord.

Connect the analog signal cable to the D-SUB connector of the monitor and the

other end on the back of the computer.

Chapter 1. Getting started 1-5

Connect one end of the DP cable to the DP connector on the back of the computer, and

the other end to the DP connector on the monitor.

Connect one end of the USB hub cable to the USB connector on the back of the

computer, and the other end to the upstream USB connector on the monitor.

Flat Panel Monitor Users Guide1-6
