Leoxsys Networks LEO-150N-BT Istruzioni operative originali
Wireless 11n Broadband
Storage Router
QUICK INSTALLATION
Package Content
• Wireless 11n Router
• User Manual CD
• Network Cable
• Power Adapter
• QIG
Model No: LEO-150N-BT
A. Unpack router box and arrange like below.
C. Go to browser and open the router with the given ip
address 192.168.7.1 . The following home page will be
displayed
B. Default parameters.
Default Router IP : 192.168.7.1
Default Username : admin
Default Password : password
Default WiFi SSID : leo-150n-bt
Default WiFi SSID Password : leo-150n-bt

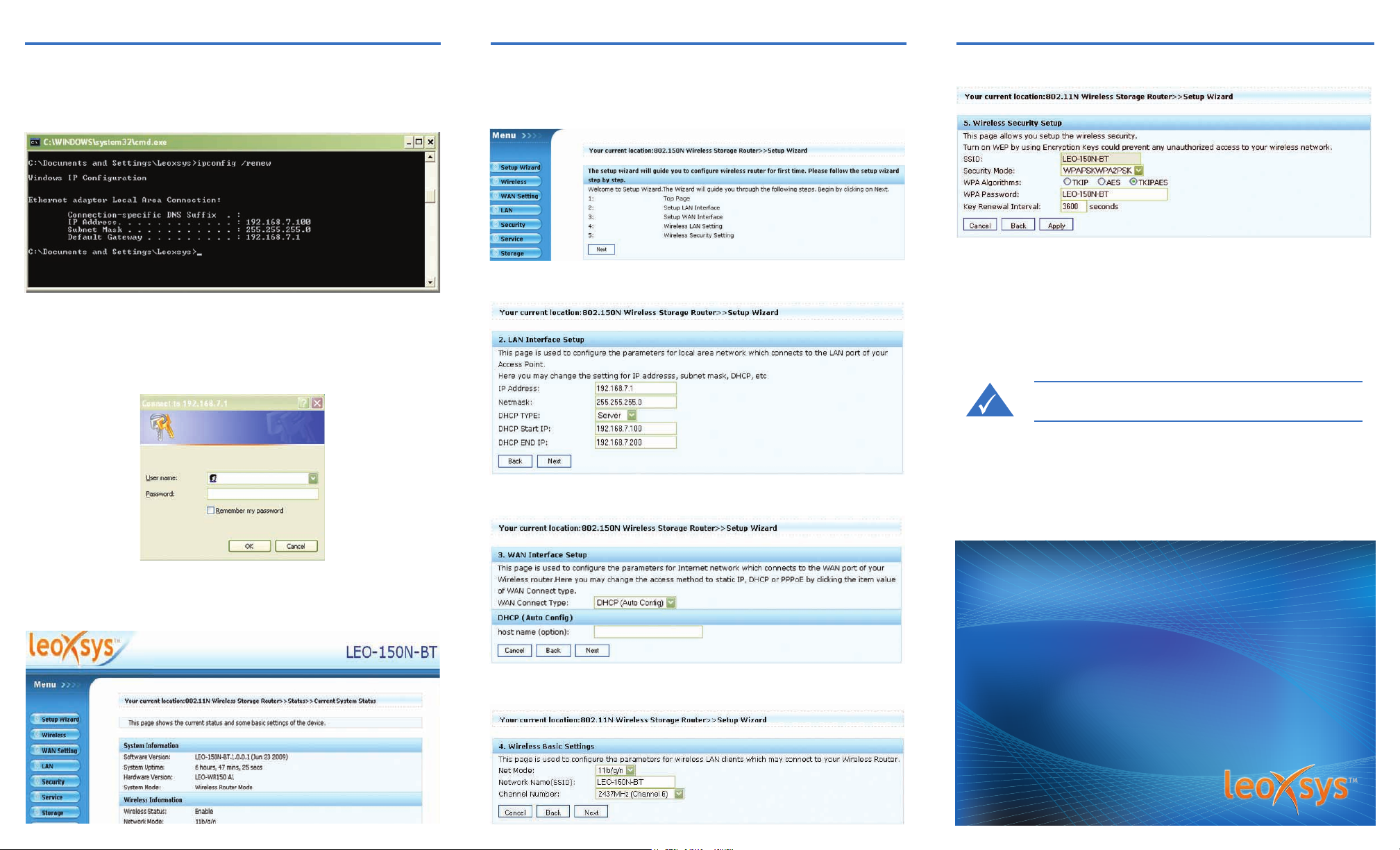

D. If you are not able to get the home page then go to
start menu and select run , the following window
appears. Type cmd or command and enter.
E. The command prompt appears. Check the ip address ,
subnet mask and default gateway using ipconfig. The
Default Gateway should be 192.168.7.1
F. If you are not able to get above parameters, release the
connection using ipconfig /release.
Installation
PC
Digital consumer
electronics etc... PLAYSTATION ®3
LAN
Reset
ADSL Modem
Power
H. When you open it, it will ask for the username and
password then enter the following
Username: admin Password: password
I. This takes you to the home page.
J. Please select Setup wizard, the following will appear.
Please follow step by step to finish router’s initial
installation.
K.
N.
L.
M.
Congratulations setup is completed
NOTE: For more advanced settings and security options,
refer to the User Guide on the CD-ROM.
For additional information or troubleshooting help, refer to User Guide on the
CD-ROM.Additional support is also available by phone or online.
12-Hour Technical Support RMA (Return Merchandise Authorization)
(9 AM - 9 PM ) http://www.leoxsys.com/warranty
+91 97396 00431
Website FTP Site
http://ww.leoxsys.com ftp://ftp.leoxsys.com
Support Sales Information
http://www.leoxsys.com/support.html
+91-80-40903460
Leoxsys Networks Pvt. Ltd.
#2213, Opp. ISRO, 80 Feet Road,
HAL 3rd Stage, Bangalore-560008, India.
G. After releasing the connection, use ipconfig /renew to
get router as default gateway. Now go to the browser
and open the home page.
