INSTALLATION MANUAL

100 Series Submersible Pressure Sensors

Chemical Resistant Industrial Level Sensors + Displays

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

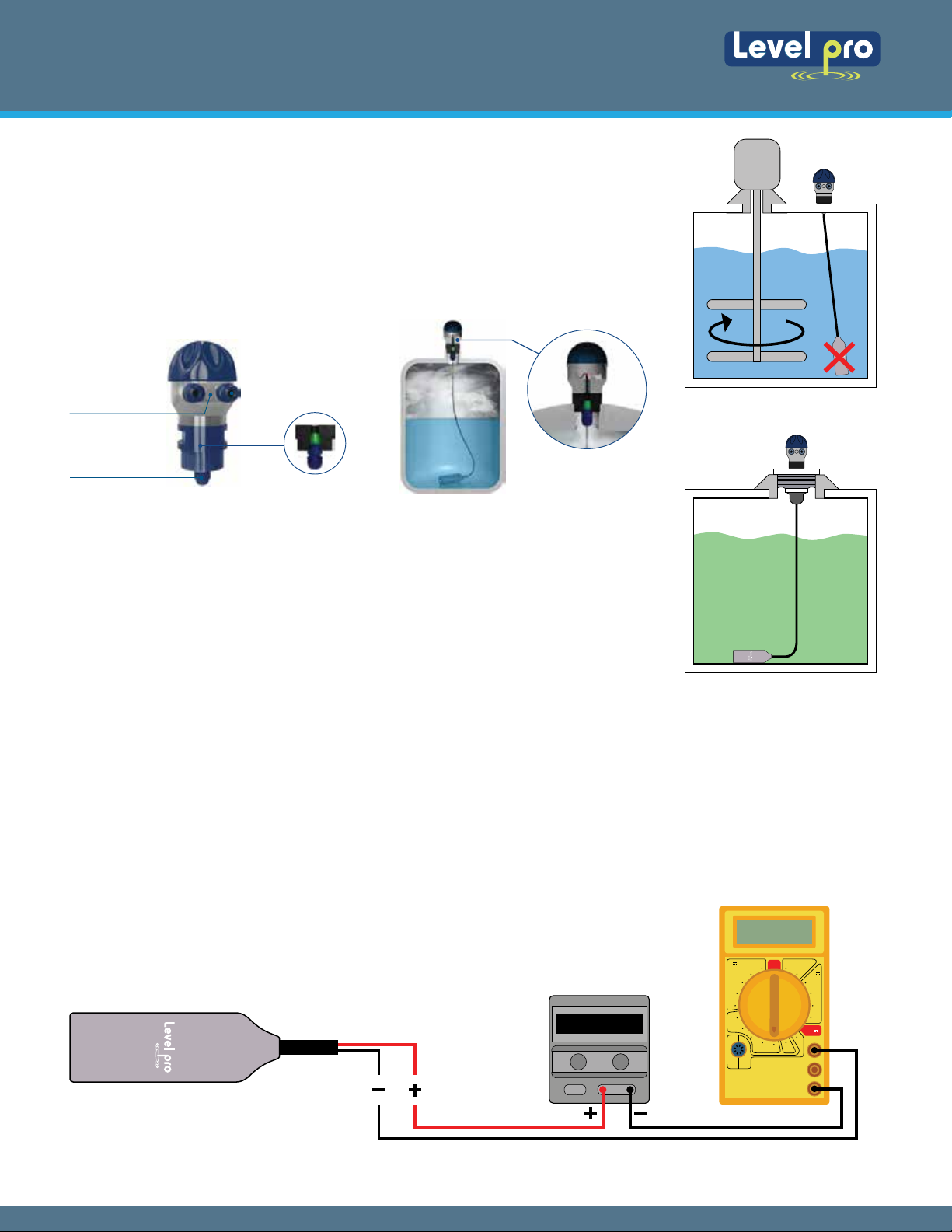

AL R1 R2

ESC

ENTER

TVLSeries

Level Process Display

Controller

INTRODUCTION

Levelpro Submersible Level Transmitters are manufactured for years of trouble free service in tough industrial applications. The 100

Series Levelpro Submersible Level Transmitter measures the height of liquid above the position of the sensing diaphragm of the

transmitter located inside the tank referenced to atmospheric pressure. The transmitter consists of a ceramic piezo-resistive sensing

element, encased in PVC, PVDF, PP, or 316 SS housing.

The Large Diameter flush diaphragm is non-clogging and damage resistant to floating solids.

The 100 Series transmitter is equipped with a high tensile strength FEP (Teflon) shielded and vented cable. and contains an internal

non-wetted weight and utilizes Kalrez O-ring seals The Ventilation tube in the cable automatically compensates for changes in

atmospheric pressure above the tank.

Excellent Chemical Compatibility PVC | PVDF | PP | 316SS

Slim Design for Tight Applications

Large Diameter, Non-Clogging, Damage Resistant, Ceramic Diaphragm

This operating manual contains important information on proper usage of the device. Read this operating manual carefully before

installing and starting up the pressure measuring device.

Adhere to the safety notes and operating instructions which are given in the operating manual. Additionally applicable regulations

regarding occupational safety, accident preven-tion as well as national installation standards and engineer-ing rules must be complied

with!

This operating manual is part of the device, and should be kept nearest its location, always accessible to all employees.

This operating manual is copyrighted. The contents of this operating manual reflect the version available at the time of printing. It has

been issued to our best knowledge. Levelpro is not liable for any incorrect statements and their effects.

By non observance of the operating manual, inappropriate use, modification or damage, no liability is assumed and warranty claims will

be excluded.

1. GENERAL INFORMATION

1.1 Information on the Operating Manual

DANGER! – Dangerous Situation, which may result in death or serious injuries

WARNING! – Potentially Dangerous Situation, which may result in death or serious injuries

CAUTION! – Potentially Dangerous Situation, which may result in minor injuries

CAUTION! – Potentially Dangerous Situation, which may result in physical Damage

1.2 Symbols Used

1.3 Limitation of Liability

The Levelpro Level Sensors have been developed for continuous level measurement. It is the operator's responsibility to check and

verify the suitability of the device for the intended application. If any doubts remain, please contact our technical department in order to

ensure proper usage and compatibility . Levelpro is not liable for any incorrect selections and their effects!

1.4 Intended Use

NOTE : �ps and informa�on to ensure a failure-free opera�on

WARNING! To avoid operator hazards and damages of the device, the following instructions have to be worked out by

qualified technical personnel.

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

Permissible media are liquids (no solids or frozen media), specified in the data sheet. In addition it has to be ensured, that this medium is

compatible with the any wetted parts of the level sensor.

The technical data listed in the current data sheet are engaging and must be complied with. If the data sheet is not available, please

order or download it from our homepage. (http://www.iconprocon.com)

Please verify that all listed parts are undamaged included in the delivery and check for consistency specified in your order:

1.5 Package contents

The device can be identified by its

manufacturing label.

WARNING! – Danger through improper usage!

Probe

Mounting Instructions

2. PRODUCT IDENTIFICATION

3.1 Mounting and safety instructions

3. MECHANICAL INSTALLATION

Fig. 1 Manufacturing Label

Input :

Type:

Code:

SN: 0143693

0 - 10 m WC

Output : 4-20mA 2-wire

Supply:

Vs+: Red

Connector Pinout:

Vs -: Black

Shield: Yellow-Green

12-36 VDC

pressure measurement

www. iconprocon.com

Nominal

Pressure Range

Signal

Supply

Type

Designation

Ordering

Code

Serial

Number

Cable Colours

WARNING! Install the device only when depressurized and not connected to power source!

WARNING!This device may only be installed by qualified technical personnel who has read and under stood the operating

manual!

Handle this high sensitive electronic precision measuring device with care, both in packed and unpacked condition!

There are no modifications/changes to be made on the device.

Do not throw the package/device!

To avoid damaging the diaphragm, remove packaging and protective cap directly before starting assembly.

The delivered protective cap has to be stored!

Place the Protective Cap on the pressure port again immediately after disassembling.

Handle the unprotected diaphragm very carefully - it is very sensitive and may be easily damaged.

Do not use any force when installing the device to prevent damage of the device and the plant!

When placing the device into operation or after mainte nance work, the probe has to be submerged slowly into the medium!

A rough immersion into the medium can damage or destroy the diaphragm.

If there is any danger of damage by lightning or overpressure when the device is installed outdoor, we suggest putting a

sufficiently Sized overpressure protection device between the supply or switch cabinet and the device

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

Carefully remove the pressure measuring device from the package and dispose of the package properly.

Mount the device according to your demands.

If the probe has been delivered without mounting accessories. Please Contact Icon Process Controls(www. iconprocon.com)

for tank connection LP100 Junction Box

3.2 Installation Steps for Probe

For the protection of the diaphragm, some of the probes have a protection device. The device must be removed before installation

3.3 Removing the Protection Cap

If it is necessary for your application to remove the protection cap, this has to be done with utmost care. To prevent damage of

the diaphragm, please follow these instructions.

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

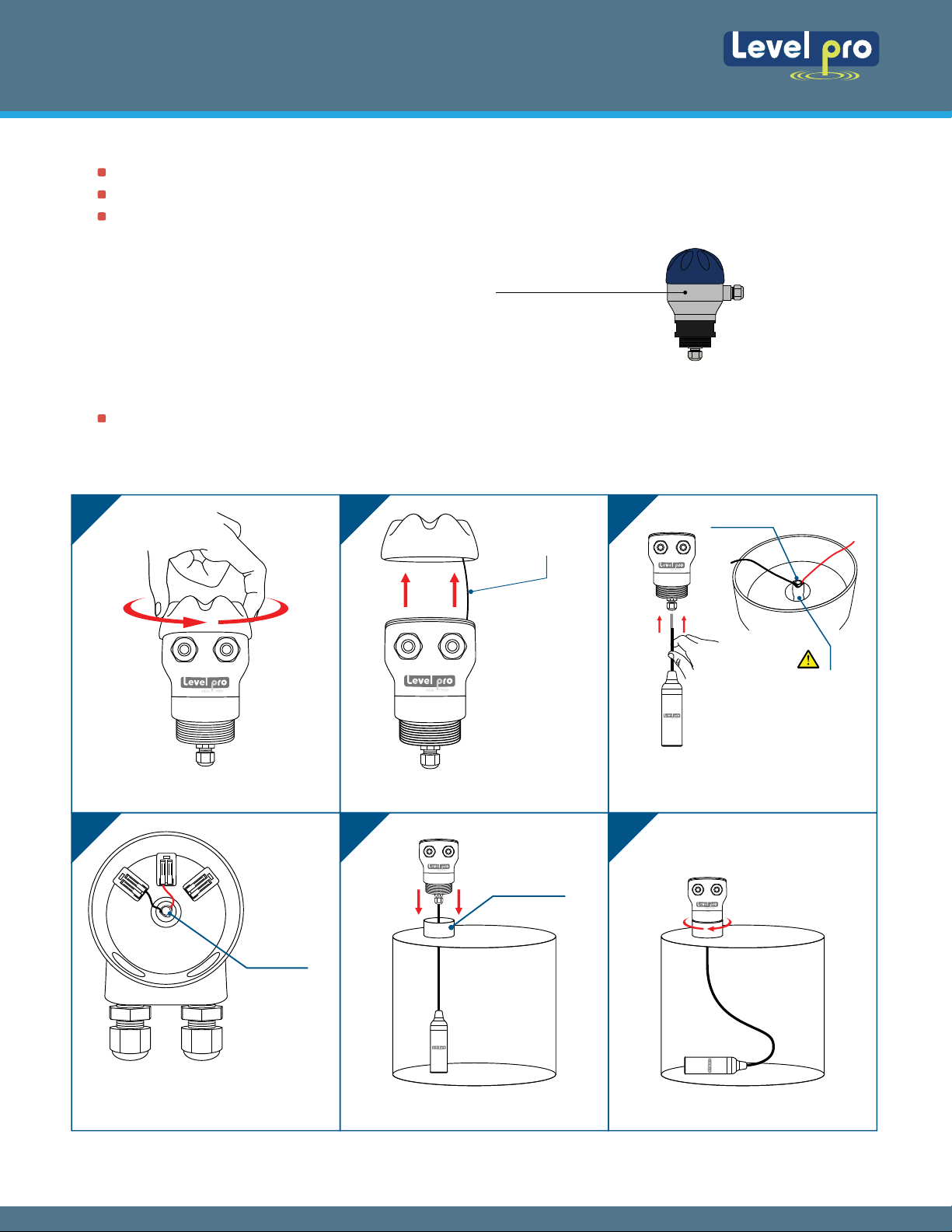

3.4 Installation Procedure - Sensors and Junction Box

1 2 3

4 5 6

Take Junction Box Open Lid

Carefully Lower the 100 Series

2" NPT

Connection

Thread into Fitting

Open Lid

1. Feed 100 Series Wire Redand

Blackin Junction Box

2. Tighten Cord Grip

Connection

100 Series Wire

Red wire 3 Terminals

Black wire 2 Terminals

Do Not Bend

Capillary Reference

Tube

100 Series

Sensor

100 Series

Sensor

Lid is Tethered

3 4

5 6

1/4 Turn

LP100 Junction Box

The default for the Input is 4 mA and this will not change.

Typically will be the tank is empty (example. 000.0 Gallons, 000.0 inches, 000.0 feet etc.).

ypically will be when the tank is full (example: 500.0 Gallons, 120.0 inches, 10.0 feet, etc.)

Shielded cable is recommended for control loop wiring.

Use the Red wire as the (+) and the Black wire as the (-)

Wiring to the Levelpro Series Tank Level Controller

External

Display

4-20

Output

Examples : Pump Shut-Off

High Level Alarm

4. WIRING DIAGRAM

Wiring to a Loop Powered Display :

AL R1 R2

ESC

ENTER

100 Series Level Sensors

1 2

3 4

5 6

AL R1 R2

ESC

ENTER

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Power Supply 120VAC

Terminal 1 & 2

TVL Channel Terminals

TVL Series

Level Process Display | Controller

Jump Wire

3&8

Alarm Pump Magnetic

Contactor Relay

Alarm

ProAlert-1000

Audible / Vesual

Output Relays

Wiring LP 100

Junction Box

ESC

ENTER

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

4.2 Connection Diagram

13141516 12 11 10 09 08 07 06 05 04 03 02 01

Power Supply

120VAC

04 03 02 01

TVF Terminals

Red wire Terminal 8

Black Wire Terminal 11

Junction Box Terminals

Red wire Terminal 6

Black Wire Terminal 1

TVF Terminals

Black Wire Terminal 1

White Wire Terminal 2

Sentinel LTE Telemetry100 Series

120 VAC Power Supply

TVLChannel Terminals

Junction Box Terminals

3 4

5 6

Junction Box Terminals

Green wire Terminal 5

Black Wire Terminal 4

Junction Box Terminals

Red wire Terminal 3

Black Wire Terminal 2

13 12 11 10 09 08 07

3 4

5 6

3 4

5 6

3 4

5 6

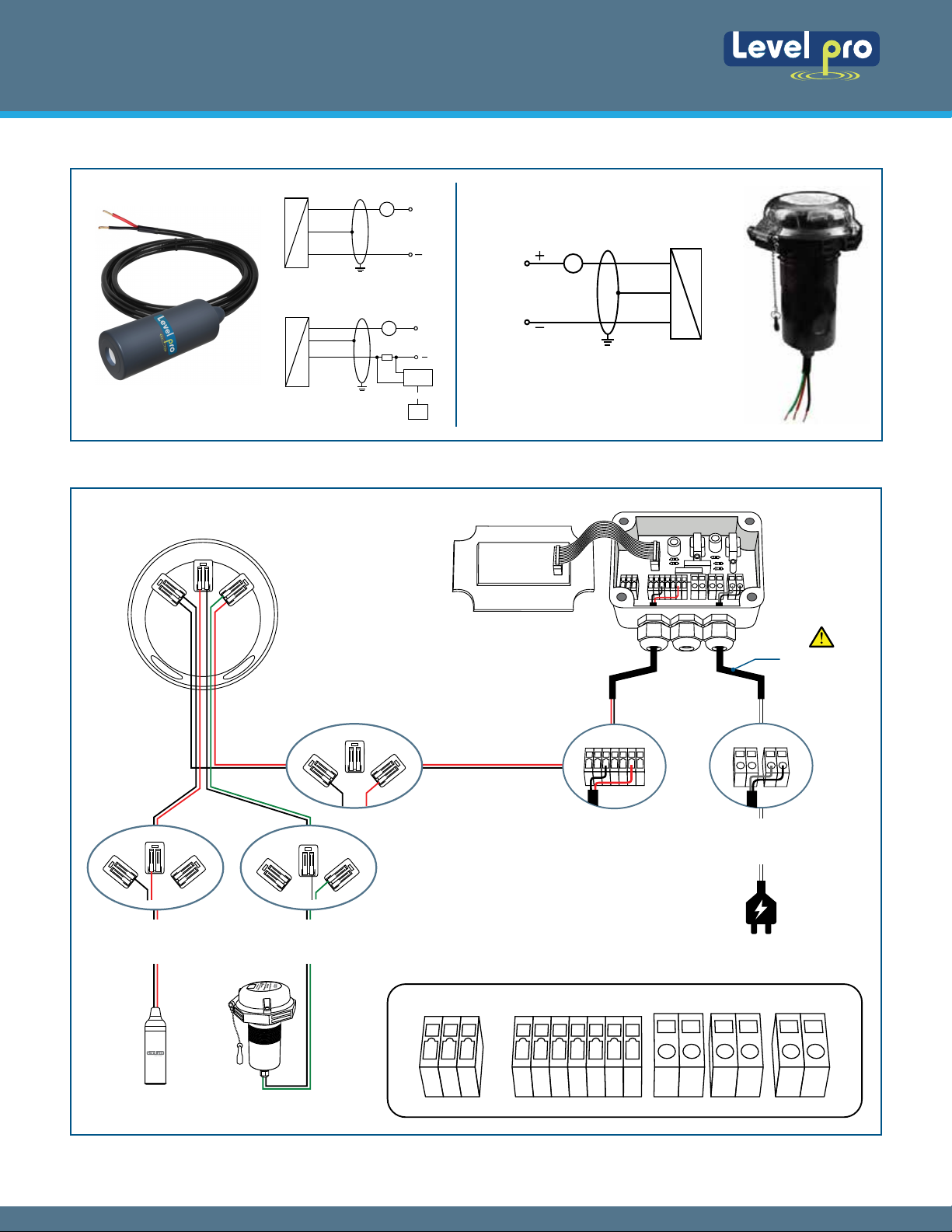

4.1 Wiring Diagram

2-wire-system (current)

Supply + +

Supply -

(Red)

(White)

24VDC

2-wire-system

(current) HART.

Supply +

Supply -

P+

Inferface

HART

24VDC

2-Wire-System | 4-20mA

Sentinel LTE

Telemetry

Supply +

Supply -

Green

Black

100 Series with Sentinel LT Series

100 Series Sentinel LT Series

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

5. SERVICE | REPAIR

5.1 Return

Before every return of your device, whether for recalibration, decalcification, modifications or repair, it has to be cleaned carefully. You

have to enclose a notice of return with detailed defect description when sending the device. If your device came in contact with harmful

substances, a declaration of decontamination is additionally required. Appropriate forms can be downloaded from our homepage

(www.iconprocon.com). Should you dispatch a device without a declaration of decontamination and if there are any doubts in our

service department regarding the used medium, repair will not be started until an acceptable declaration is sent.

The warranty conditions are subject to the legal warranty period of 12 months from the date of delivery. In case of improper use,

modifications of or damages to the device, we do not accept warranty claims. Damaged diaphragms will also not be accepted.

Furthermore, defects due to normal wear are not subject to warranty services.

7. WARRANTY CONDITIONS

The Levelpro pressure transmitter is placed near or on the bottom of the tank. A ceramic pressure diaphragm within the pressure

transmitter is exposed on one side to the application liquid. The other side is exposed to the reference pressure via a small ventilation

tube located inside of the cable. The difference in pressure between liquid and reference pressures will slightly deflect the diaphragm.

The deflection of the diaphragm is measure by a built-in microprocessor located inside the ceramic diaphragm.which is converted into a

4-20mA two wire current signal proportional the height of the liquid. Make sure that Levelpro Transmitter is compatible with the

application liquid media.

TECHNOLOGY

SAFETY PRECAUTIONS

About this Manual : PLEASE READ THE ENTIRE MANUAL PRIOR TO INSTALLING OR USING THIS PRODUCT. This

manual includes information on all versions of the Levelpro Pressure Level Transmitters Please refer to the part number

located on the transmitter label to verify the exact model which you have purchased.

User's Responsibility for Safety : Levelpro offers a wide range of liquid level sensors and technologies. While each of

these technologies are designed to operate in a wide variety of applications, it is the user's responsibility to select a

technology that is appropriate for the application, install it properly, perform tests of the installed system, and maintain all

components. The failure to do so could result in property damage or serious injury.

Proper Installation and Handling : Only properly-trained staff should install and/or repair this product.

Wiring and Electrical : CAUTION - Do not exceed specified supply voltage rating of 30 VDC. Permanent damage not

covered by warranty will result. This device is not designed for 120 or 240 volt AC operation. Use only the specified

voltage found in the specification sections.

Temperature and Pressure : TheLevelpro series are designed for use in the specified application temperatures referred

to in the specification section.

Material Compatibility : Make sure that the model which you have selected is chemically compatible with the application

liquids.

Make a Fail-Safe System : Design a fail-safe system that accommodates the possibility of transmitter failure or battery

power loss. In critical applications, Levelprorecommends the use of redundant backup systems and alarms in addition to

the primary system.

If the device came in contact with hazardous substances, certain precautions have to be complied with for purification!

The device must be disposed according to the European Directives 2002/96/EG and 2003/108/EG (on waste electrical and

electronic equipment) Waste of electrical and electronic equipment may not be disposed by domestic refuse!

6. DISPOSAL

WARNING!Depending on the measuring medium, deposit on the device may cause danger for the user and

the environment. Comply with adequate precau-tions for purification and dispose of it properly.

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

8. GETTING STARTED

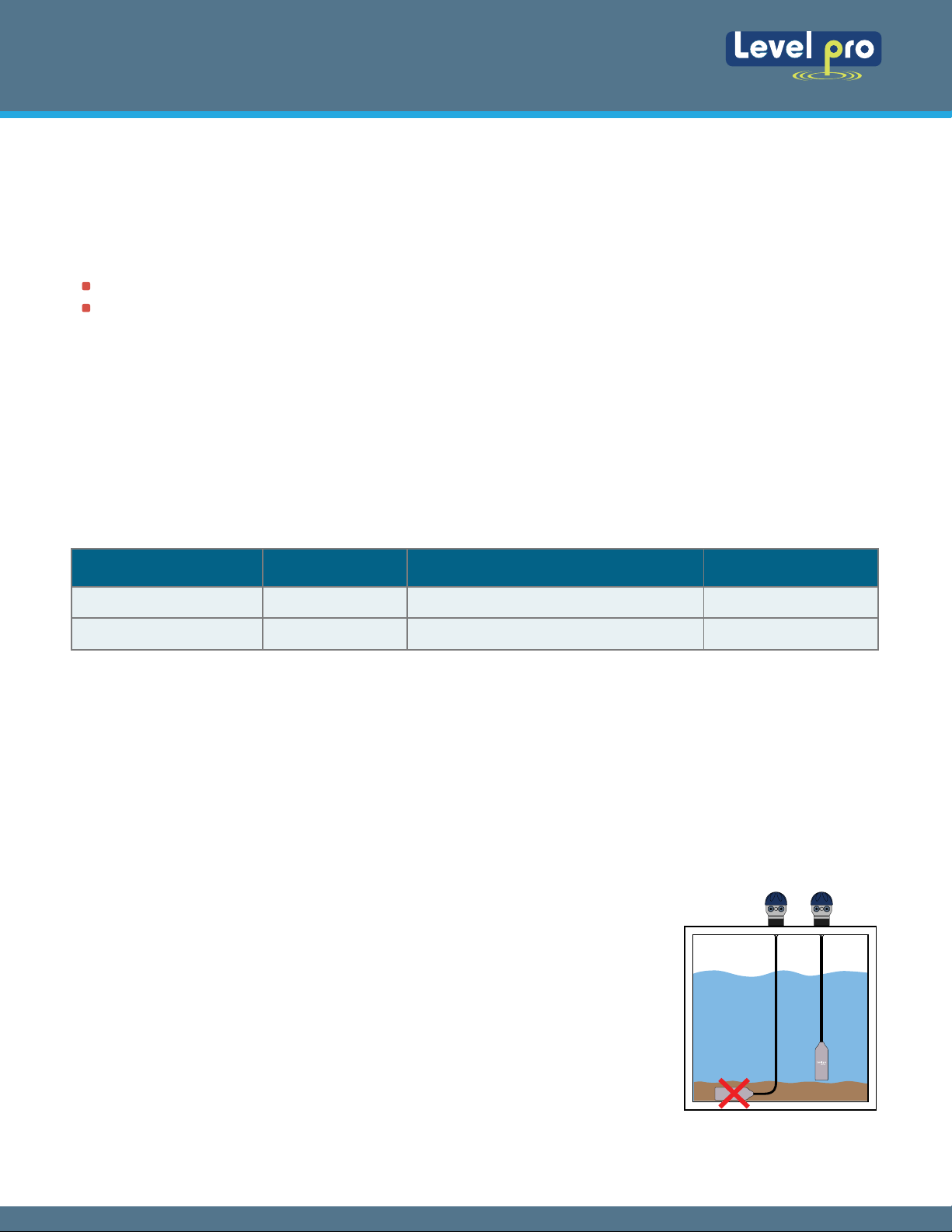

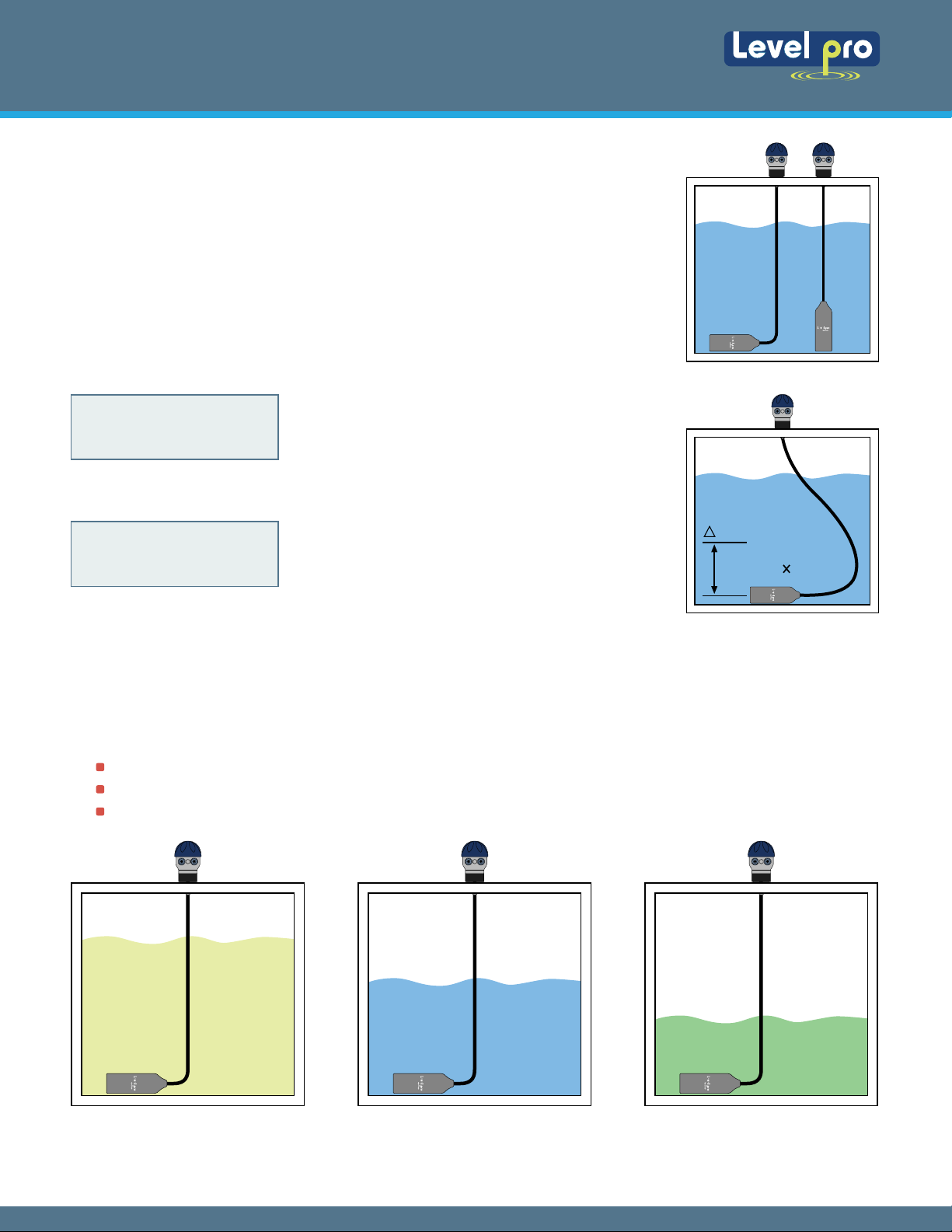

Pressure transmitters are designed to be completely submersed within the application fluid. The

transmitters can either rest along the bottom of the tank or be suspended at any desired level

within the tank. Please note that the physical location of the level transmitter will indicate the

lowest level of measurement within the tank.

For example: mounting the transmitter 2 feet from the bottom of the tank, then the lowest reading

of liquid will be 2 feet from the bottom.

The Specific Gravity (SG) of a liquid will not change the pressure of the transmitter, but will affect how the transmitter reads the liquid

height. Remember, liquids with a SG < 1.0 are lighter than water (Oil) and liquids with a SG > 1.0 are heavier than water. (Sulphuric Acid)

GETTING STARTED (Continued)

How does Specified Gravity affect pressure transmitters?

How to convert Pressure into Liquid Height?

Pressure transmitters are all defined by the pressure range or distance range. To convert pressure

to Liquid Height, use the following ratio:

1 psi = 2.31 feet of water

1 psi = 0.704 meters of water

10 psi x 2.31'/psi = 23.1'

23.1'/2.31 = 10 psi

Therefore, a 10 psi transmitter will have a

Liquid Height = 23.1 feet

With the above ratio, you can always find the Liquid Height or Water Column (wc) of any Levelpro

pressure transmitter

SG = .0 (Water H20) SG = 1.2SG = 0.9

1 psi

2.31 Feet (S.G.)

Water has a SG = 1.0.

A SG <1.0 required more liquid (a taller water column) to equal the same pressure or height as with water.

A SG >1.0 requires less liquid (shorter water column) to equal the same pressure or height as with water.

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

Levelpro sensors are provided in distance measurement ranges i.e. 0-14 ft, 0-20 ft, 0-33 ft etc. To calculate the maximum range or the

liquid that a particular sensor will measure, use the following formula:

Example : 0-14 ft transmitter installed in a liquid with a maximum height of 12 feet and a SG=0.9 will have a Sensor Height with a

range 0-14' = 14 feet /0.9 = 15.5'…so it can measure more liquid than the 14' range due to the SG being below 1 (H20 water)

Example : Compare the Maximum Liquid Height of a liquid with a SG = 1.5.

SG = 1.5 : 0-20' Range transmitter will have a Maximum Sensing Height (Liquid) = 20/1.5 = 15 ft

SG = 1.0 : 0-20' Range transmitter will have a Maximum Sensing Height (Liquid) = 20/1 =20 ft

When the Specific Gravity is less than 1.0, the Maximum Liquid Height of the transmitter will increase. The reverse is true by increasing

the Specific Gravity. With a SG = 1.5, the Maximum Sensing Height (Liquid) = 15' with a Transmitter with a Range of 0-20 ft

Transmitter

Note :Identifying the correct specific gravity for the fluid is critical in understanding the operational range of the pressure transmitter.

Maximum Liquid Height (feet) = Maximum Liquid Height of Liquid / SG

This method works with the Levelpro Series level displays & controllers. These panel meters are configured using the linear SCALE

function. The settings are as follows:

GETTING STARTED (Continued)

Settings Default Represents Typical Setting

Input 1= Empty 4.0 Input Current @ Empty 4.0mA

Input 2 = Full 20.0 Input Current @ Full 20.0mA

How to configure a panel meter when a pressure transmitter is used?

Remember, pressure transmitters are configured so 0 psi/ft = 4 mA and the maximum psi/ft = 20 mA. Levelpro pressure transmitter

applications will not use the full range of the transmitter. Therefore, a full tank will typically have a current less than 20 mA.

Note: The values for empty and full represent what the display will show when the tank is either Empty or Full. Empty and Full

must be the same units (example: Gallons, Inches, percent).

9. INSTALLATION

The Levelpro Series is designed to operate while submerged in the actual application liquid. Avoid

installing the level transmitter along the bottom of the tank if materials such as sludge will build up

and coat/cover the transmitter. This also includes any debris that will settle along the bottom of the

tank. In these applications, it is best to suspend the transmitter above the highest level of

sludge/debris that will occur.

Location : Select a location where the temperature of the transmitter will be within the

specification of the sensor.

Position : The transmitter is not position sensitive.

Mounting : The transmitter can be mounted via several methods. It can be suspended

from the cable, it can be placed resting on the bottom of the tank in either horizontal or

vertical orientation, or it can be attached to a pipe or hardwired using the LP100 conduit

box on the top of the housing.

SLUDGE

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

2 4 . 0V

24VDC POWER SUPPLY

DIGITAL MULTIMETER

100 SERIES SENSORS

Note: Use caution when sealing the cable at the top of the tank. There is a

ventilation/reference tube located within the cable. The purpose of this tube is

provide a comparison between atmospheric pressure and the pressure that is being

exerted on the sensing diaphragm within the tank. The reference tube must be open

and free to allow air to flow back to the pressure diaphragm. Avoid blocking or

bending the ventilation tube by compressing the cable. Always keep the cable

termination clean, dry and free of moisture and prevent liquid from entering the vent

tube. The LP100 Installation Junction Box comes with a Gortex breather to allow for

air to pass but not moisture. It also has the cable grip located at the bottom to

secure the sensor.

Avoid installations where other tank requirements will cause the transmitter to move or swing.

Example: A mixer blade could cause the level transmitter to whip around within the tank. An

alternative would be to move the transmitter to a more stable section of the tank or to install the

Transmitter inside a still well/drop tube. This will minimize the effects created by the mixer.

Termination: The cable for the transmitter is typically terminated at a junction box located on top of

the tank. Since the vent tube is contained within the cable, the pressure within the junction box

must always be the same as the reference (typically atmospheric) pressure for the liquid. The

inside of the function box must be clean, dry and free of moisture. (A descant can be provided)

Add the optional fitting LP 100 to complete the package. The LP 100 features a 2" NPT thread for

mounting and a liquid tight connector to seal the cable interface, and a Gortex breather that allows

for the transfer of air, but not moisture.

After final installation of the Levelpro transmitter and its companion receiver (TruVu), no routine maintenance is required. A periodic check

of system calibration is suggested. Be sure to include a brief description of the problem plus any relevant application notes. Contact

customer service to receive a return goods authorization number before shipping.

Maintenance should consist of inspection to see that the transmitter is free from debris and not coated with any substance, which would

prevent liquid from freely entering and leaving the transmitter. If this occurs, the transmitter should be cleaned.

If transmitter is not functioning properly, isolate the transmitter from

the system and wire as shown below. Be sure to remove the sensor

from the classified area when preforming this test. Multi - Meter

should read 4mA with the transmitter out of liquid.

1. First, verify that the sensor is wired correctly.

2. Next, check if the power supply is providing the required power.

3. Finally confirm that the loop resistance is not exceeding the sensor's specification.

10. MAINTENANCE

Testing the Transmitter:

200

2000k

200k

NPN

PNP

20k

2000 200

hFE

2000

200 200

750

200

2000

200

1000

10A

OFF

4.0

24V

4mA

4-20mA Output

Cable Grip

Gortex Breather

ContinuousSubmersibleLevel Transmitter

Levelpro-Sensors Manual

Vaporbloc ®

Com

Indice

Altri manuali Level Pro Accessori

Level Pro

Level Pro 300 Series Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
