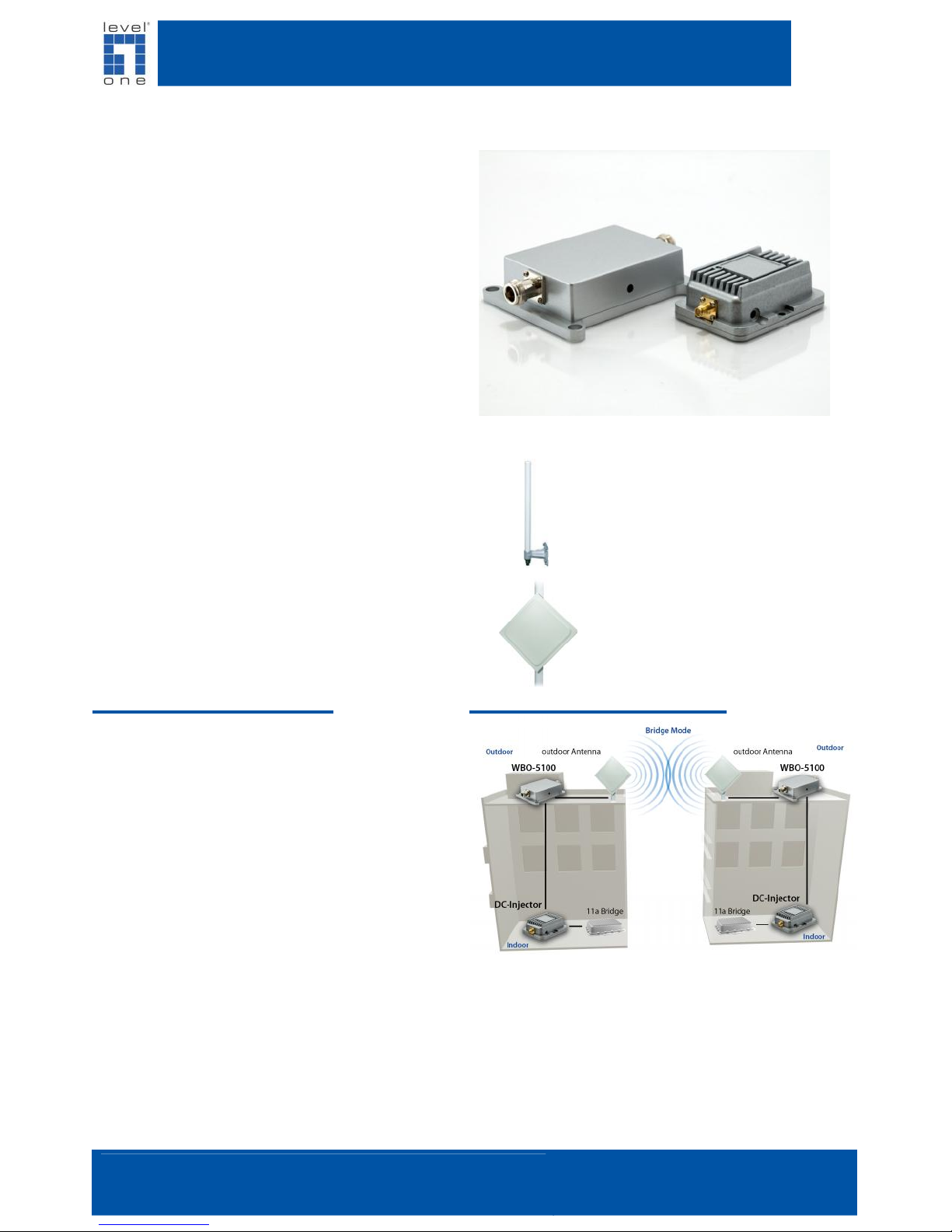

LevelOne WBO-5100 Manuale utente

Outdoor 11a WiFi Signal Booster ( 1W)

Hardware

Version 1.0

WBO-5100

Digital Data Communications GmbH.

Zeche-Norm St. 25, 44319, Dortmund, Germany

All mentioned brand names are registered trademarks and property of their owners.

Technical specifications are subject to change without n otice.

www.level1.com

Related Products

11a(5.500~5.825Ghz) 10dBi Omni -

Direction Antenna Kit

OAN-4100

Looking for a boost?

The new series of WiFi signal boosters give you a huge

increase in distance when building a wireless network.

Whether you’re looking to deploy in AP mode, giving

basic wireless connectivity to devices on the network,

or if you want to deploy a long distance wireless bridge

between 2 buildings, these boosters provide the extra

power needed to maximize your wireless network.

High-power and outdoor use

WBO-5100 provides a massive power boost of 1W.

When combined with high -gain antennas, you can

amplify the signal of a common wireless access point to

create strong wireless signals that can cover many

kilometers.

802.11a spectrum

WBO-5100 is compatible with 11a networks, giving you

stronger signals by operating on the 5GHz spectrum.

11a networks aren’t as crowded as 11b/g, meaning

your wireless traffic isn’t easily affected by outside

interference

Includes DC injector

WBO-5100 includes a DC injector to create a robust

signal to be sent over the wireless network.

11a 23dBi Directional Outdoor

Panel Antenna

WAN-4230

Key Features

Product Diagram

Strengthen radio signal to increase the

effective range and coverage area for

Wi-Fi communication

Save wiring costs, easily build a wireless

infrastructure for home or business use

Give a massive boost in range for a

standard 802.11a wireless signal

The outdoor unit amplifies the signal of

any 802.11a device up to 1 Watt in power

Make broadband wireless application in

possible coverage

Outdoor 11a WiFi Signal Booster ( 1W)

Hardware

Version 1.0

WBO-5100

Digital Data Communications GmbH.

Zeche-Norm St. 25, 44319, Dortmund, Germany

All mentioned brand names are registered trademarks and property of their owners.

Technical specifications are subject to change without n otice.

www.level1.com

Technical Specifications

Standard

IEEE 802.11a

Frequency Range

5150 ~ 5850 MHz

Operating Mode

Bi-Directional, Half -Duplex, Auto-Switching via

Carrier Sensing

Transmit Gain

Up to 24dB

TX Input Power

0 ~ 15dBm

TX Output Power

Max: 1W

Receiver Gain

15dBm typical

Noise Figure

5dB typical

Frequency Response

± 1dB over operating range

Adapter Output Power Consumption

9V, 2.0A

Connector Type

SMA receptacle (50 ohm)

N-type, female ( 50 ohm)

Operating Temp

-20 to +70℃

Operating Humidity

Up to 95% relative humidity

LED Indicator

TX signal LED (Green), Power LED (Yellow)

Material

Cast Aluminum

Outdoor Unit (cm)

11.5 (L) x 6.5 (W) x 4.8 (H)

DC Injector (cm)

11.5 (L) x5.6 (W) x 2.9(H)

Note: The output power of these products may conflict

with the wireless communication regulations in your

country. Please check in advance before purchasing.

Package Contents

[1] WBO-5100

[1] DC Injector

[1] 30cm RP SMA female to

male Cable

[1] SMA female to N-Jack

Connector

[1] Power Adapter

[1] Quick Installation Guide

Ordering Information

WBO-5100, Outdoor 11a WiFi Signal Booster (1W)
