VOI-7010 / VOI-7011
SIP IP Telephone
User Manual
Ver. 1.0 - 0707
ii
iii
Safety
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized change or
modification is made.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
CE Declaration of conformity
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class B for ITE, the essential protection requirement of
Council Directive 89/336/EEC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
iv
Table of Contents
1. INTRODUCTION ............................................................. 1
1.1. FEATURES .................................................................. 2
1.2. PACKING CONTENTS.................................................... 3
1.3. OPTIONAL................................................................... 3
2. HARDWARE DESCRIPTION .......................................... 5
2.1. LCD DISPLAY AND KEYPADS ........................................ 5
2.2. FRONT PANEL............................................................. 6
2.3. CONNECTION DIAGRAM ............................................... 8
2.4. INSTALLATION.............................................................. 9
2.5. DEFAULT SETTING..................................................... 10
2.6. RESET TO DEFAULT................................................... 10
3. WEB CONFIGURATION................................................ 12
3.1. PHONE BOOK............................................................ 14
Speed Dial Setting ......................................................... 16
3.2. PHONE SETTING ....................................................... 18
Call Forward................................................................... 19
SNTP ............................................................................. 21
Volume........................................................................... 22
Ringer ............................................................................ 24
DND (Do Not Disturb) .................................................... 25
Auto Answer................................................................... 26
Dial Plan......................................................................... 28
Flash Time ..................................................................... 33
Call Waiting.................................................................... 34
Soft-key.......................................................................... 35
Hot line........................................................................... 36
Alarm.............................................................................. 37
3.3. NETWORK................................................................. 38
v
Network Status............................................................... 39
WAN Settings................................................................. 40
LAN Settings.................................................................. 42
DDNS Setting................................................................. 43
VLAN Settings................................................................ 45
DMZ............................................................................... 47
Virtual Server ................................................................. 48
PPTP.............................................................................. 50
3.4. SIPSETTINGS .......................................................... 52
Service Domain.............................................................. 54
Codec............................................................................. 58
Codec ID........................................................................ 61
Other Settings................................................................ 62
3.5. OTHERS ................................................................... 63
Auto Config.................................................................... 64
FXO Port........................................................................ 65
MAC Clone..................................................................... 66
Tones ............................................................................. 67
Advanced....................................................................... 68
3.6. USER PASSWORD...................................................... 70
3.7. SAVE CHANGE .......................................................... 70
3.8. UPDATE.................................................................... 71
Update Firmware ........................................................... 72
Auto Update Settings..................................................... 74
Default Setting ............................................................... 75
3.9. REBOOT ................................................................... 76
4. LCD DISPLAY AND KEYPAD....................................... 77
4.1. KEYPAD DESCRIPTIONS............................................. 78
4.2. LCD MENU............................................................... 80
1. Phone Book......................................................... 80
2. Call History.......................................................... 80
3. Call setting .......................................................... 81
4. Network............................................................... 83
vi
5. SIP Settings......................................................... 84
6. NAT Transversal.................................................. 86
7. Administrator....................................................... 86
5. APPLICATION EXAMPLE............................................. 87
5.1. PSTN CALLING......................................................... 88
5.2. SIP-TO-SIPCALLING ................................................ 89
5.3. SIP-TO-PSTN CALLING............................................. 91
5.4. PSTN-TO-SIPCALLING............................................. 93
5.5. 3-WAY CONFERENCE CALLING................................... 95
5.6. DIRECT IPTO DIRECT IPCALLING .............................. 97
5.7. FREEWORLD DIALUP (FWD) ..................................... 98
SIP Settings ................................................................... 99
Codec Setting .............................................................. 100
6. SPECIFICATION.......................................................... 101
7. TROUBLE SHOOTING ............................................... 103
7.1. DO NOT HEAR DIAL TONE?........................................ 103
7.2. CAN NOTACCESS WEB PAGE?.................................. 103
1
1. Introduction
The VOI-7010 / VOI-7011 IP Phone are an LCD VoIP Phone
with SIP Protocols for Voice over IP (VoIP) applications. IP
Phone can make a VoIP call over the ADSL Internet connection,
and it provides one RJ45 WAN port for ADSL Internet
connections plus one RJ45 LAN port for Notebook PC
connection. With the embedded NAT/DHCP server, IP Phone
can be easily configured for different network diagrams by PC
Web browser and telephone keypads. This is very suitable for
ITSP (Internet Telephony Service Providers) and SOHO users
to make VoIP calls.
Moreover, with PPTP VPN client supported, user can create
secured tunnel between central office and IP Phone, make
sure your communication is safe.
VOI-7011 provides one FXO port to connect to traditional
telephone line, it allows forwarding calls from traditional
telephone line to VoIP, or vice versa.
2
1.1. Features
SIP v1 (RFC2543), v2 (RFC3261) with MD5
authentication (RFC2069 and RFC 2617)
RJ45 x 2 for Ethernet WAN and LAN ports
ITU-T G.711, G.723, G.726, G.729A/B, VAD and CNG for
Speech Codec
ITU-T G.165/168 Echo Cancellation
LCD Display for registered IP phone number
Configurations by Web Browser and Telephone Keypads
Embedded NAT/DHCP Server
PPPoE/DHCP Client for Dynamic IP plus NAT, DNS, and
DDNS Clients
Support STUN server for NAT Traversal
Speed Dial, Call Forward/Waiting/Transfer/Hold, and
3-Way Conference Call features
Direct IP/URL Dial without SIP Proxy or Dial number via
SIP server
Phone book stores up to 140 records
VPN PPTP Client embedded
One FXO port to forwarding calls *
* Only VOI-7011 provides FXO port
3
1.2. Packing Contents
Open the shipping cartons of the Switch and carefully unpacks
its contents. The carton should contain the following items:
¡ SIP IP Telephone
¡ Power Adaptor (12VDC/1A)
¡ Cat.5 Cable
¡ CD User Manual
If any item is found missing or damaged, please contact your
local reseller for replacement
1.3. Optional

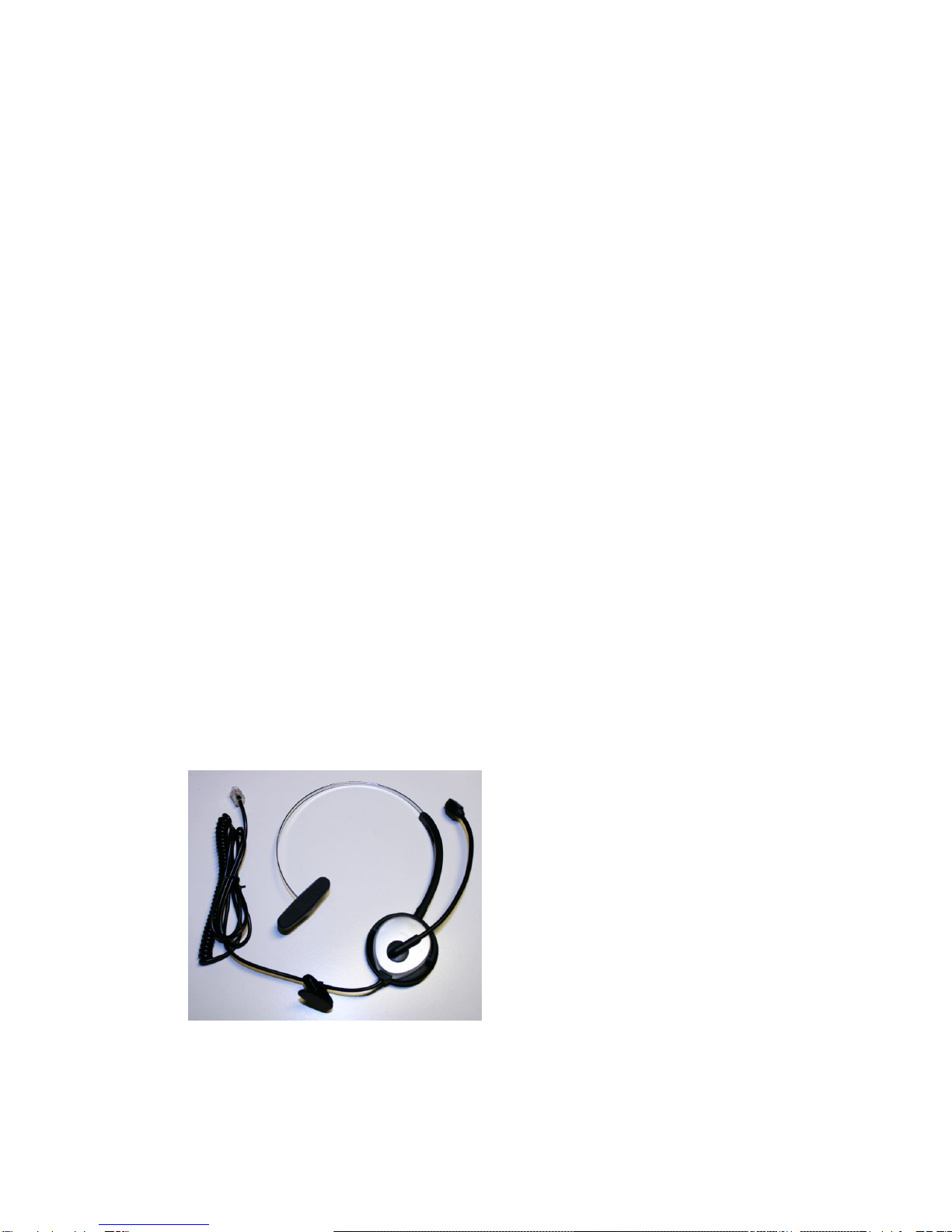

DHM-1000 Lightweight Single Headset with Microphone
4
