LevelOne KVM-0217 Manuale utente

17-inch

Modularized KVM Console KVM-0217

H/W Version: 1

Product Overview

The LevelOne KVM-0217 is a compact and modular

KVM console drawer designed to be used in a

standard 19-inch server rack. It oers connectivity to 8

or 16 computers by depending on the LevelOne KVM

module that is installed (KCM-0831 or 1631). It features

a 17-inch retractable LCD monitor and keyboard with

built-in touchpad. Users can daisy chain up to seven

KVM-0217 together, providing control of up to 128

computers in total. The LevelOne KVM-0217 provides

a double layer password access control ensuring only

authorized users have access to connected computers.

It supports an administrator and 8 user accounts, each

one with a separate and customizable prole.

Advanced Remote Management via optional

modules

LevelOne also oers a unique module for remote

server control. Just slide in the IP Console Module

(ACC-2000) to KCM-0831/1631 to access and manage

the server farm over the Internet using a standard

web browser. It supports a 1600x1200 pixel screen

resolution for high-quality viewing.

Key Features

- Control servers and computers either locally via

control port or remotely via optional modules

through the module expansion slot

- Combo architecture with PC support for PS/2 and

USB interface

- Flexible auto-scan mode for exible PC monitoring

- Locate Cat5 console up to 300 meters away from the

KVM switch.

- Built-in daisy chain port for cascading with

KVM-0831 or KVM-1631 up to 8 units

- Provide ACL (Access Control List) security function -

store up to 8 independent ACLs for controllable PCs

- Support Windows, NetWare, Unix, Linux, Mac OS and

Sun Microsystems

- 19”rackmount 1U size design KVM (Keyboard, video

and mouse) access over IP

KCM-0831

8-port Combo KVM Module

for KVM-0217

Works Well With

1. KCM Moudule Connector

KCM-1631

8-port Combo KVM KVM

Module for KVM-0217

* Features are based on KVM-0217 combined a LevelOne KVM mobule.

www.level1.com

one world_one brand_one level_

KVM Switches/Consoles/Extenders

Switch Ports

PC Port

8-port HDDB15 for PS2/USB

Local Console Port

1 Console port for USB

1 Expansion Slot for optional modules

*ACC-1000 KVM Cat.5 Console Module

*ACC-2000 IP KVM Console Module

Keyboard and Mouse Emulation

PS/2 or USB

VGA Resolution

1920X1440

Daisy Chaining

Support Daisy Chaining up to 8 units

Connector: HDDB 15 pin (Female Type)

Daisy Chain Max. Level

8 units

Max. PC Connection

120 PCs/Servers (cascading 1 KVM-0831 + 7 KVM-1631)

Scan Intervals

5 ~ 99 Sec.

Bandwidth

200 MHz

Switch Management

PC selection

On Screen Display (OSD) Menu, Hot Key, Push Button

Security

Provide ACL (Access Control List) security function, store up to

8 independent controllable PC lists

Hotkey

Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ Alt/

Ctrl/ Win)

Multilingual OSD (On Screen Display) control

8 languages (English, France, Germen, Spanish, Italian, Russian,

Japanese, Simplied Chinese)

Physical Specications

PC LEDs

Housing

Metal

Power Adapter

DC 12V, 4.16A

Operation Temperature

0 ~ 50°C

Storage Temperature

-20 ~ 60°C

Humidity

0~95%, Non-Condensing

Dimension (mm)

445 (L) x 160(W) x 45 (H)

2.0 kg

Technical Specication

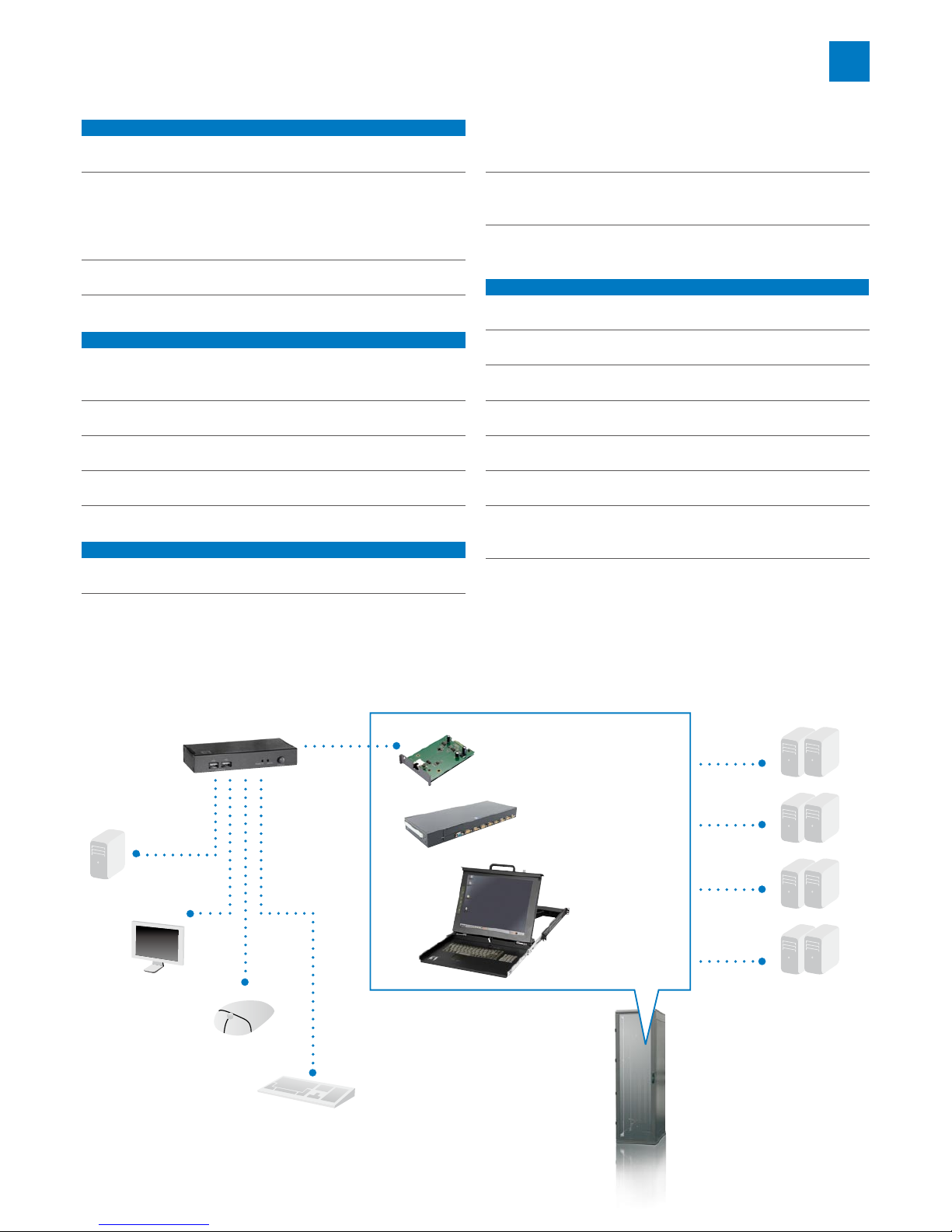

Prodouct Diagram

PCs

Moniter

Mouse

Keyboard

KVM-9007

KVM Console Receiver

ACC-1000

KCM-0831/KCM-1631

KVM-0217

19" Network and Server Cabinet

** Specicutions are based on KVM-0217 + KVM-0831/1631 modules.

Order Information KVM-0217: 17-inch Modularized KVM Console

Package Contents KVM-0217 x 1

Rail with front and rear bracket x 2

Brackets A. (Needed for rack depth 828 ~ 1000 mm) x 2

Brackets B. (Needed for rack depth 504 ~ 614 mm) x 2

Brackets C. (Needed for rack depth 504 ~ 614 mm) x 2

Power Adapter x 1

CD Manual x 1

QIG x 1

Keys x 2

Screws

Option Accessories

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

V1.0

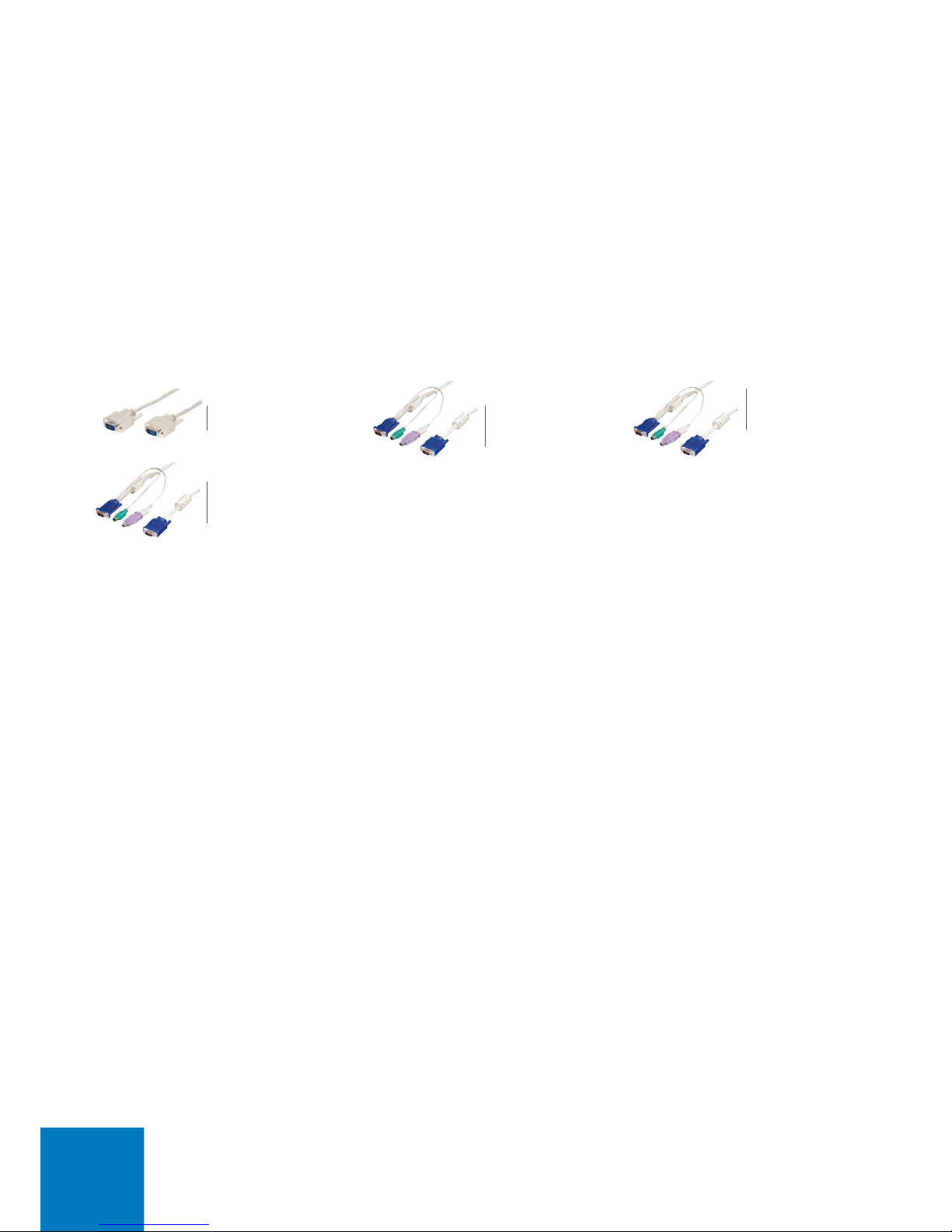

ACC-2109

Daisy Chain Cable 90cm

ACC-2101

PS/2 and USB Cable KVM

1.8m

ACC-2102

PS/2 and USB Cable KVM

3.0m

ACC-2103

PS/2 and USB Cable KVM

5.0m
