LevelOne GSW-0507 Manuale utente

LevelOne

User Manual

GSW-0507 / GSW-0807

5/8-Port Gigabit Ethernet Switch

V1.0.0-0803

FCC Certifications

This Equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any

interference received; including interference that may cause

undesired operation.

CE Marking Warning

This equipment complies with the requirements relating to

electromagnetic compatibility, EN 55022 Class B for ITE, the

essential protection requirement of Council Directive 89/336/EEC on

the approximation of the laws of the Member States relating to

electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it

may be possible that information in this document is not up-to-date.

Please check with your local distributors for the latest information.

No part of this document can be copied or reproduced in any form

without written consent from the company.

Introduction

The GSW-0507/GSW-0807 device are powerful,

high-performance Gigabit Ethernet switch, with all ports

capable of 10, 100 or 1000Mbps auto-negotiation operation

(NWay), which means the switch could automatically

negotiate with the connected partners on the network speed

and duplex mode. It is ideal for micro-segmenting large

networks into smaller, connected subnets for improved

performance, enabling the bandwidth demanding multimedia

and imaging applications. Moreover, the 10/100/1000Mbps

auto-sensing ability provides an easy way to migrate

10/100Mbps to 1000Mbps network with no pain. Compared to

the shared 10Mbps or 100Mbps networks, the switch delivers

a dedicated 10/100/1000Mbps connection to every attached

client with no bandwidth congestion issue. The

GSW-0507/GSW-0807 switch also supports auto MDI / MDI-X

function. Each port could be used to connect to another switch

or hub with no crossover RJ-45 cable.

Store-and-forward switching mode promises the low latency

plus eliminates all the network errors, including runt and CRC

error packets. To work under full-duplex mode, transmission

and reception of the frames can occur simultaneously without

causing collisions as well as double the network bandwidth.

The switch is plug-and-play without any software to configure

and also fully compliant with all kinds of network protocols.

Package Contents

•GSW-0507/GSW-0807

•Power Adapter

•User Manual

•Wall-Mounting Kit

If any of the above items are damaged or missing, please

contact your dealer immediately.

Installation

The setup of the GSW-0507/GSW-0807 Switch can be

performed using the following steps:

1. Install the Switch in a fairly cool and dry place. See

Technical Specification for the acceptable operation

temperature and humidity ranges.

2. Install the Switch in a site free from strong electromagnetic

source, vibration, dust, and direct sunlight.

3. Leave at least 10cm of space at the left and right hand

side of the Switch for ventilation.

4. Visually inspect the DC power jack and make sure that it is

fully secured to the power adapter.

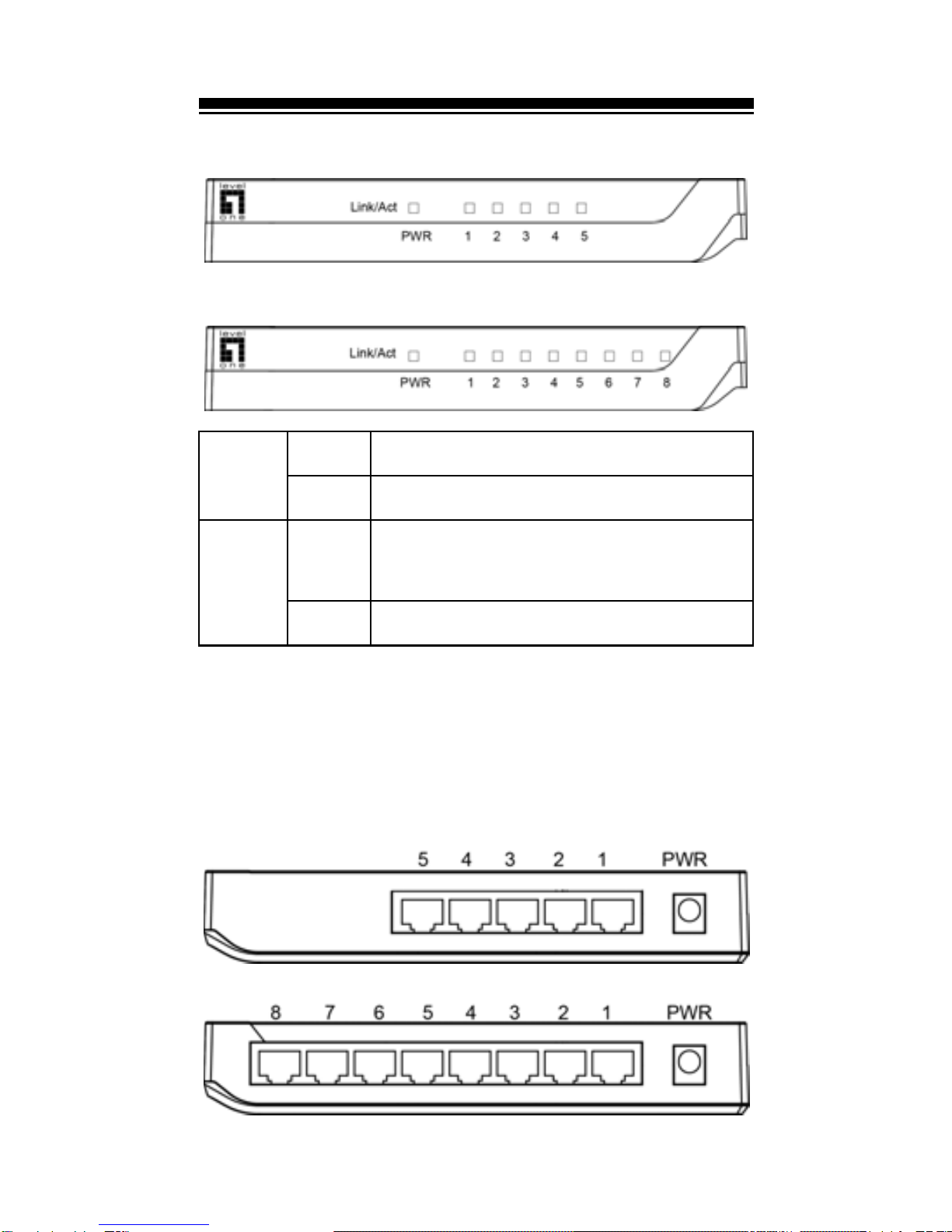

LED Definition

GSW-0507 Front Panel

GSW-0807 Front Panel

PWR On Power is on.

Off Power is off.

Link/Act

(1~5/1~8)

On One LED indicator will light green when a

device is connected to the corresponding port.

Blinking The port is transmitting/receiving data.

Rear Panel

The rear panel of the GSW-0507/GSW-0807 switch consists

of a DC power connector and 5/8 10/100/1000Mbps RJ45

Ports. The following figure shows the rear panel of the Switch.

yGSW-0507

yGSW-0807

Stations Connection

Connect each station to the switch by twisted-pair cable. Plug

one RJ-45 connector into a RJ-45 port of the switch, and plug

the other RJ-45 connector into the station’s network adapter.

Power on the switch and then system is ready.

For cable selection, refer to the following table.

Switches Connection

In making a switch interconnection, you could use any port to

connect another switch with straight or crossover cable. As all

the ports support auto MDI / MDI-X function, using a straight

cable to make a switch-to-switch connection is allowed.

For cable selection, refer to the following table：

Network Speed Cable Type Max. Length

10Mbps Cat. 3, 4, 5 UTP/STP 100 meters

100Mbps Cat. 5 UTP/STP 100 meters

1000Mbps Cat. 5 UTP/STP 100 meters

Specification

Standard yIEEE 802.3 10BASE-T

yIEEE 802.3u 100BASE-TX

yIEEE 802.3ab 1000BASE-T

yIEEE 802.3x Full Duplex Operation & Flow

Control

Interface y5/8 * 10/100/1000Mbps RJ-45 Gigabit Ethernet

Ports (GSW-0507/GSW-0807)

NWay Protocol

Support

y10Mbps: Full/Half duplex

y100Mbps: Full/Half duplex

y1000Mbps: Full duplex only

MAC Address

Table

y1K MAC Address entries (GSW-0507)

y8K MAC Address entries (GSW-0807)

Buffer Memory y832K bits (GSW-0507)

y144KBytes (GSW-0807)

Jumbo Frame y9K Byte (GSW-0507/GSW-0807)

Power Supply y5VDC-1A, External (GSW-0507)

y12VDC-1A, External (GSW-0807)

Temperature yOperating Temperature: 0℃~40℃

yStorage Temperature: -10℃~70℃

Humidity yOperating Humidity: 10%~90% non-condensing

yStorage humidity: 5%~95% non-condensing

EMI yCE and FCC class A

Technical Support

Thank you for selecting LevelOne products. LeveOne’s

website contains the latest user documentation and soft-ware

updates for LevelOne products.

Please contact LevelOne Technical Support through our

website.

World Wide Web

http://www.level1.com
