LevelOne WBR-6002 Manuale utente

LevelOne

WBR-6002

N Wireless Router

Quick Installation Guide

English

Nederlands

Deutsch

Português

Dansk

Svenska

Español



Français



Italiano



Table of Contents

English........................................................................3

Deutsch.....................................................................16

Dansk........................................................................29

Español.....................................................................42

Français....................................................................55

Italiano......................................................................68

Nederlands ...............................................................81

Português .................................................................94

Svenska..................................................................107

 ............................................................120

 .................................................................133

 ..................................................................146

English

Package Contents

WBR-6002 NWireless Router

Power Adapter (12VDC, 1A)

RJ-45 LAN Ethernet Cable

Rubber Feet

CD-ROM with User Manual

Quick Installation Guide

If any of the above items are missing, please contact your retailer

or distributor.

Before You Begin

Please note the default settings listed below.

Default Settings

IP Address

192.168.0.1

User / Password

admin / password

Wireless Mode

Enable

Wireless SSID

WBR-6002

Security

None

This Quick Installation Guide only describes the most basic

situations and settings. Please consult the User Manual on the CD

for more details.

Please have your Internet Service Prov

or other connection details ready.

Installation

3. Connect your broadband internet connection



4. Connect the Computer LAN cable.

2. Attach the included antenna.

1. Please power off your ADSL / Cable modem by unplugging

the power adapter.

Internet

ADSL / Cable

Modem

6. Wait until the Power light remains on.

This means the router is ready for use.

5. Plug in the Power Adapter.

8. Installation is now complete. You can now begin to

configure the device.

7. Power back on your ADSL / Cable modem by plugging in the

power adapter.

Check Your Network Settings

(Windows XP / Vista)

1. Click the Start Button and open Control Panel.

Windows Vista, click

View Network Status and Tasks

then Manage Network Connections

2. Windows XP, double click

Network Connections

Windows XP

Windows Vista

3. Right click on Local Area

Connection and choose

Properties.

Note: The name could be

different due to different

Network Interfaces.

4. Check the Client for Microsoft Networks, File and Printer

Sharing,and Internet Protocol (TCP/IP) is ticked. If not,

please tick them.

6. Select these two options and click [OK].

5. Select Internet Protocol (TCP/IP) and

click [Properties]

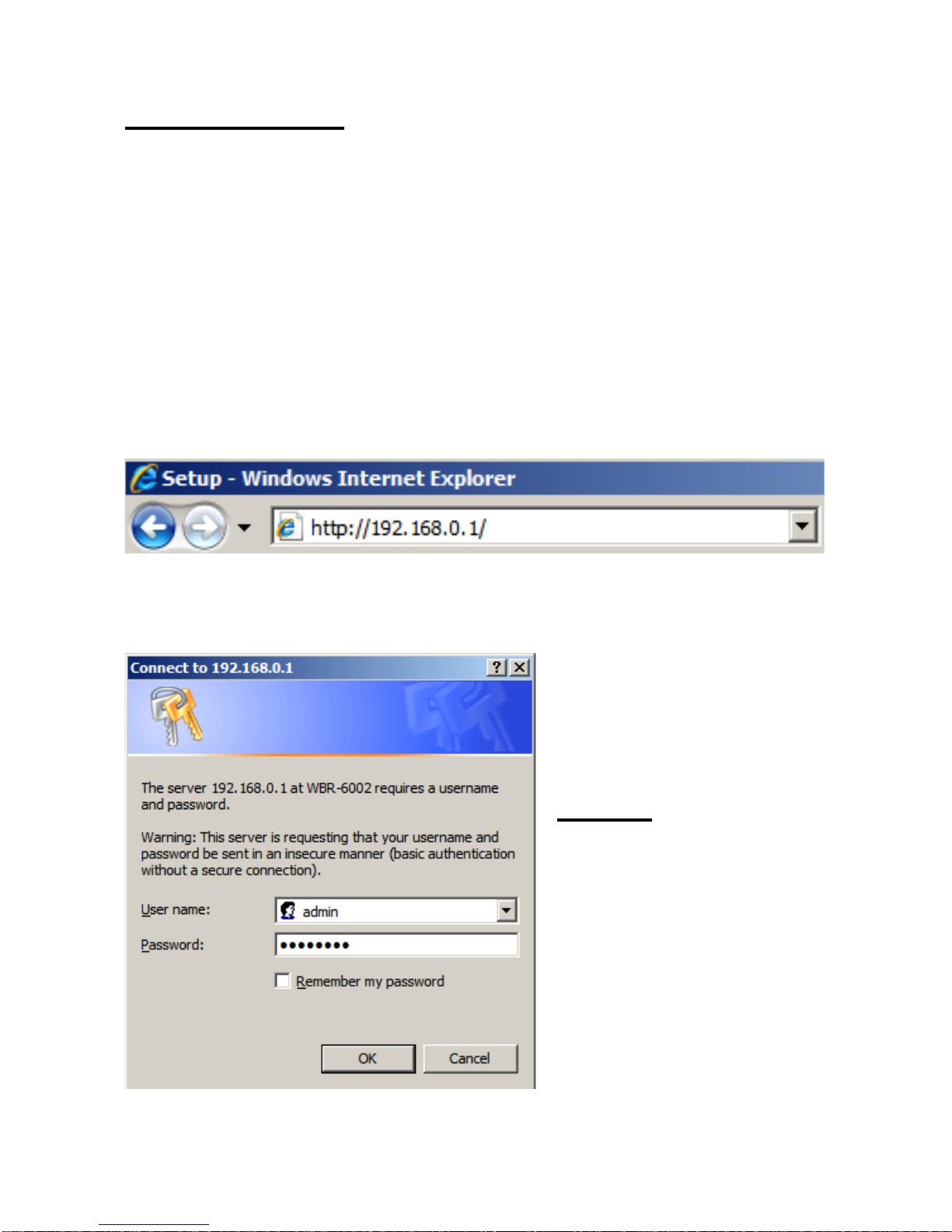

Configuration

1.Shutdown and restart your computer.

2.Once restart is completed, start your WEB browser (Internet

Explorer recommended).

In the Address box, enter the following:

http://192.168.0.1

3. Enter the Username and Password when prompted.

Defaults

Username: admin

Password: password
