Leviton Decora Smart DW4BC Manuale utente

4-BUTTON CONTROLLER

Getting Started Guide

Cat. No. DW4BC

WEB VERSION

See the complete line of My Leviton app compatible

dimmers, switches, plug-ins, and controllers at

leviton.com/decorasmart.

Welcome to the

My LevitonTM Family

WEB VERSION

CALL

1-800-824-3005 (USA)

1-800-405-5320 (Canada)

ONLINE

leviton.com/decorasmart

CHAT

www.leviton.com

dssupport@leviton.com

Welcome

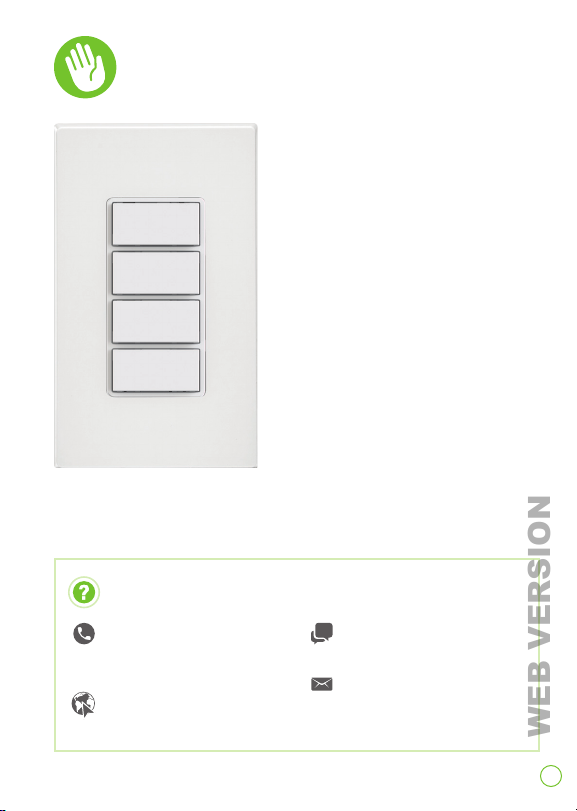

The Decora Smart Wi-Fi 4 Button

Controller provides sophisticated

in-wall control of multiple Decora

Smart Wi-Fi devices, room lighting

scenes and whole house lighting

activities. Using the My Leviton

app, easily create "Movie Time", or

activities such as "Go to Bed" and

run them using your voice, app, or

controller buttons. The custom

lighting scenes can include any

product from the Decora Smart

Wi-Fi family including dimmers,

switches and smart plugs.

We are here to help

WEB VERSION

RATINGS

Power 120VAC, 50/60Hz

Operating Temp 0°C - 40°C (32°F - 104°F)

Operating Humidity 0-90% non-condensing

What you need to make it work



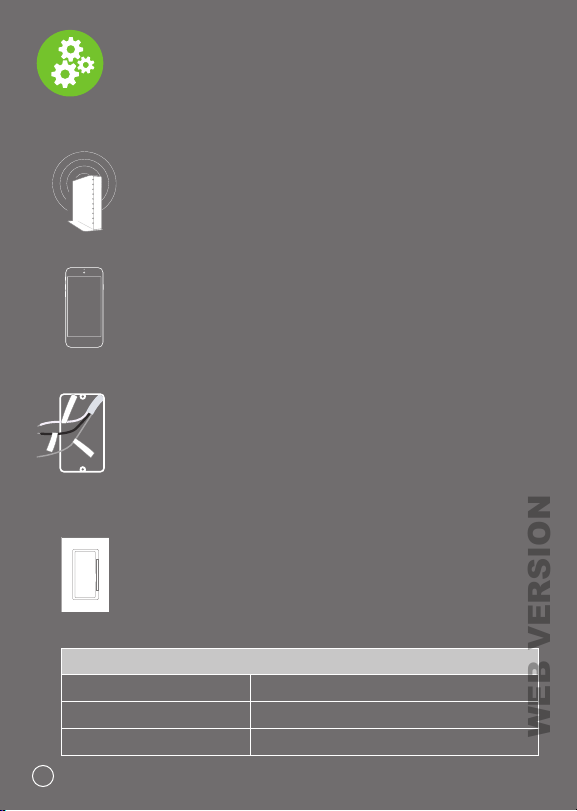

To install and use your 4-button controller:

LINE

GROUND

NEUTRAL

1. A home Wi-Fi network with high speed

internet connection (802.11 a/b/g/n @ 2.4 or

5 GHz and WPA or WPA2).

2. An iOS (11.0 or later) or Android (6.0 or later)

mobile device.

3. An available interior wallbox with a hot,

neutral and ground wire. NOTE: No lighting

loads may be directly wired to your 4 Button

Controller. WARNING: Do not use with

aluminum wire.

4. One or more Decora Smart Wi-Fi products

(i.e., dimmer, switch or plug-in) with ﬁrmware

version 1.5 or higher. NOTE: Use the My

Leviton app to update ﬁrmware.

WEB VERSION

Features

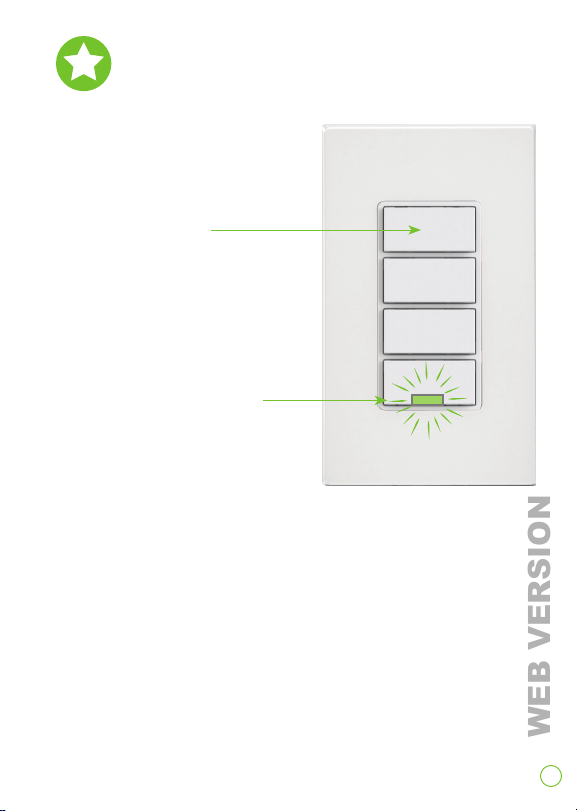

Command buttons

Conﬁgure the buttons via the

My Leviton app to create room

scenes and whole house

lighting activities.

Vanishing feedback light

Each button has a feedback

light that illuminates with

every button press. After the

command is sent, the button will

no longer be lit.

WEB VERSION

The DW4BC is designed for new installation or to be retroﬁtted

by a licensed electrical contractor. A hot, neutral, and ground is

required for proper installation. The DW4BC is designed to send

scene commands to Decora Smart Wi-Fi products; a load is not

directly connected to the DW4BC.

For additional support use the support options in the My Leviton

app or contact technical services (page 4).

NOTE: Before you wire, check to make sure a strong Wi-Fi

signal is present at the location where you want to install your

controller.

WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn o power

at the circuit breaker.

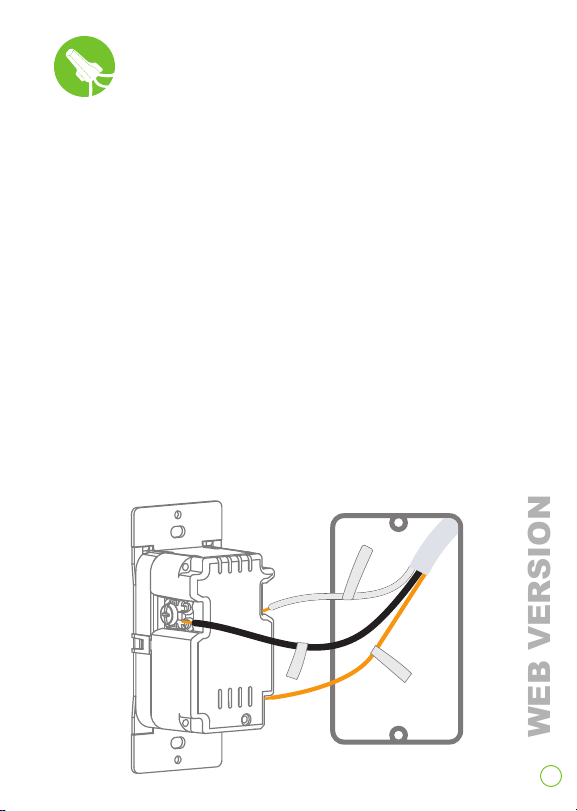

1. Work on only one connection at a time.

2. Connect wires as shown.

NOTE: Neutral connection is required.

Installation

LINE

GROUND

NEUTRAL

WEB VERSION

Test and install

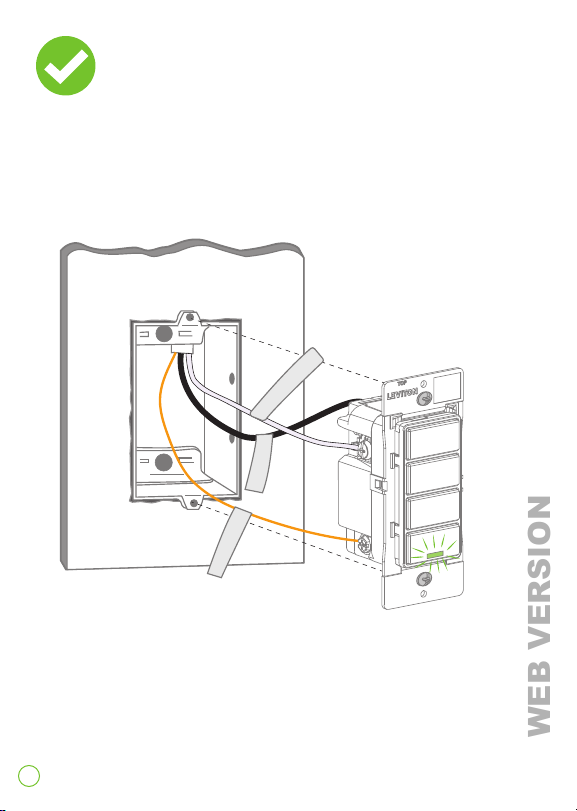

1. Restore power. Status light should ﬂash green indicating

your controller is ready to be added to a network.

LINE

GROUND

NEUTRAL

WEB VERSION

Turn o power at circuit breaker before

completing the controller installation.

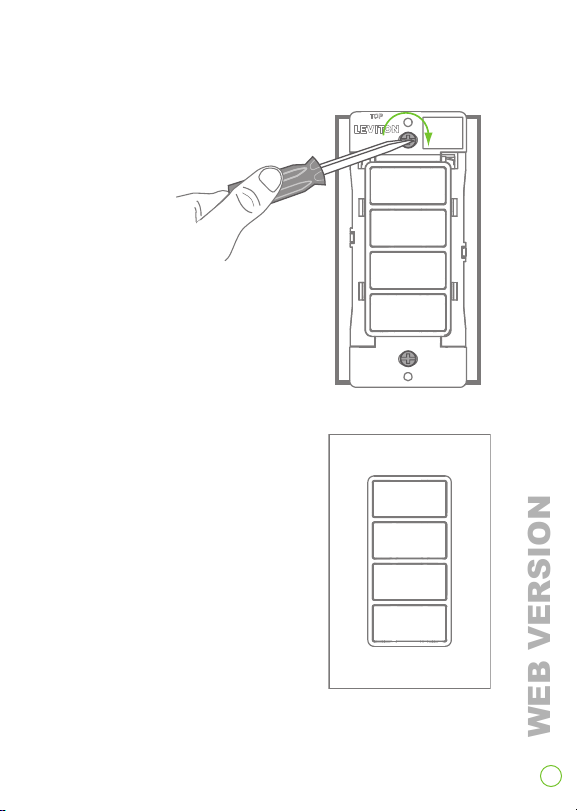

2. Gently push wires

into wall box.

Screw controller

to box.

3. Install wallplate base and

snap on Decora®wallplate.

Restore power.

Congratulations!

Your Decora Smart 4 button controller is ready to control

your Decora Smart Wi-Fi switches and dimmers.

WEB VERSION

Get the app

Visit http://my.leviton.com and select the link

for your smartphone or tablet.
