Leviton smartlockpro GFNT1 Manuale utente
Installing and
Testing a GFCI
Receptacle
Please read this leaet
completely before getting started.
PK-93792-10-00-2H-MobileTest-X0AR1723
Avoid miswiring the GFCI.
See video link for help on wiring.
PRELIMINARY
CAUTION
!
• To prevent severe shock or electrocution
always turn the power OFF at the service
panel before working with wiring.
• Use this GFCI with copper or copper-clad
wire. Do not use it
with aluminum wire.
• Do not install this GFCI receptacle on a
circuit that powers life support equipment
because if the GFCI trips it will shut
down the equipment.
• For installation in damp or wet locations,
the GFCI receptacle must be Listed and
marked as Weather Resistant (WR)
• For installation in wet locations, protect
the GFCI receptacle with a cover plate or
outlet box hood suitable for wet locations
that will keep both the receptacle and
plug face dry.
• Must be installed in accordance with
national and local electric codes.
PRELIMINARY
1. What is a GFCI?
A GFCI receptacle is different from
conventional receptacles. In the event of a
ground fault, a GFCI will trip and quickly stop
the ow of electricity to prevent serious injury.
Denition of a ground fault:
Instead of following its normal safe path,
electricity passes through a person's body to
reach the ground. For example, a defective
appliance can cause a ground fault.
A GFCI receptacle does NOT protect against
circuit overloads, short circuits, or shocks. For
example, you can still be shocked if you touch
bare wires while standing on a non-conducting
surface, such as a wood oor.
NOTE:
GFCI's contain a lockout feature that will prevent
RESET if:
• There is no power being supplied to
the GFCI.
• The GFCI is miswired due to reversal of
the LINE and LOAD connections.
• The GFCI cannot pass its internal test,
indicating that it may not be able to provide
protection in the event of a ground fault.
PRELIMINARY
2. The GFCI's features
RESET
FOLLOW INSTRUCTIONS
TEST MONTHLY
TEST MENSUEL
SUIVEZ INSTRUCTIONS
RESET
TEST
TEST

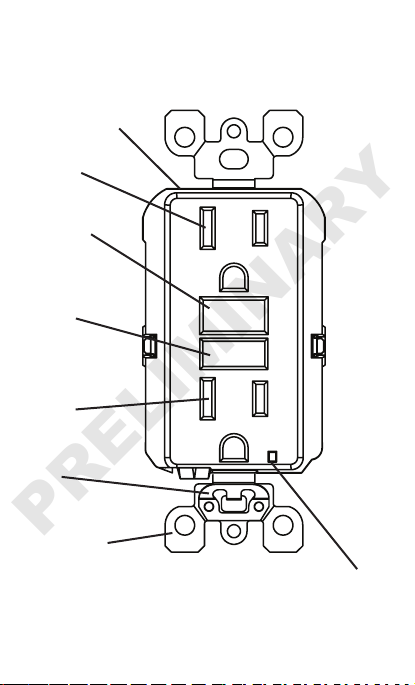

FRONT VIEW
Receptacle
Outlet
TEST
button:
See step 8
Green/Red Status
Indicator Light
RESET
button:
See step 8
Mounting
Bracket
Self-Ground
Clip
Outlet
PRELIMINARY
CHARGE
LOAD
LIGNE
LINE
WHITE WIRE
FIL BLANC
HOT WIRE
FIL ACTIF

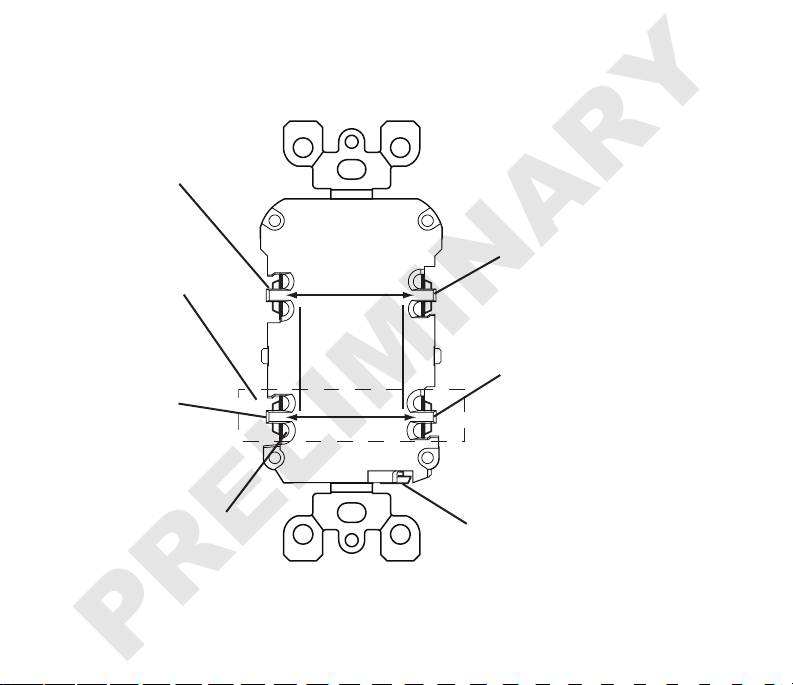

BACK VIEW
Grounding Terminal (Green):
Connection for bare
copper or green wire
LINE
White terminal (Silver):
Connection for the LINE ca-
ble's white wire
LOAD
White terminal (Silver):
Connection for the LOAD
cable's white wire
LINE
Hot terminal (Brass or Black):
Connection for the LINE
cable's black wire
A yellow sticker
covers the LOAD
terminals. Do not
remove the sticker
at this time.
LOAD
Hot terminal
(Brass or Black):
Connection for
the LOAD cable's
black wire
Screw (terminal) colors:
Green = grounding terminal
Silver = WHITE terminals
Brass or Black = HOT terminals
Back wire holes
PRELIMINARY
3. Should you install it?
Installing a GFCI receptacle can be more
complicated than installing a conventional
receptacle.
Make sure that you:
• Understand basic wiring principles and
techniques
• Can interpret wiring diagrams
• Have circuit wiring experience
•
Are prepared to take a few minutes to test
your work, making sure that you have wired
the GFCI receptacle correctly
PRELIMINARY
4. LINE vs. LOAD
A cable consists of 2 or 3 wires.
Cable Wires
LINE cable:
Delivers power from the service panel (breaker
panel or fuse box) to the GFCI. If there is only
one cable entering the electrical box, it is the
LINE cable. This cable should be connected to
the GFCI's LINE terminals only.
LOAD cable:
Delivers power from the GFCI to another
receptacle in the circuit. This cable should be
connected to the GFCI's LOAD terminals only.
The LOAD terminals are under the yellow
sticker. Do NOT remove the sticker at this time.
PRELIMINARY

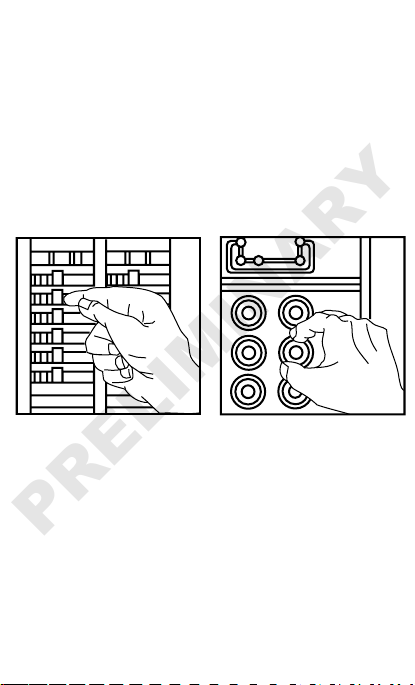

5. Turn the power OFF
Plug an electrical device, such as a lamp or
radio, into the receptacle on which you are
working. Turn the lamp or radio ON. Then, go
to the service panel. Find the breaker or fuse
that protects that receptacle. Place the breaker
in the OFF position or completely remove the
fuse. The lamp or radio must turn OFF.
Next, plug in and turn ON the lamp or radio at
the receptacle's other outlet to make sure the
power is OFF at both outlets. If the power is not
OFF, stop work and call an electrician to
complete the installation.
PRELIMINARY
6. Identify cables/wires
Important:
DO NOT install the GFCI receptacle in an
electrical box containing (a) more than four (4)
wires (not including the grounding wires) or
(b) cables with more than two (2) wires (not
including the grounding wire). Contact a
qualied electrician if either (a) or (b) are true.
If you are replacing an old receptacle, pull it out
of the electrical box without disconnecting the
wires.
•
If you see one cable (2-3 wires), it is the
LINE cable. The receptacle is probably in
position C (see diagram to the right).
Remove the receptacle and go to step 7A.
• If you see two cables (4-6 wires), the
receptacle is probably in position A or B
(see diagram to the right). Follow steps a-e
of the procedure to the right.
PRELIMINARY
Procedure: box with two (2) cables (4-6 wires):
(a) Detach one cable's white wire and hot
wires from the receptacle and cap each
one separately with a wire connector.
Make sure that they are from the same
cable.
(b) Re-install the receptacle in the electrical
box, attach faceplate, then turn the power
ON at the service panel.
(c) Determine if power is owing to the
receptacle. If so, the capped wires are the
LOAD wires. If not, the capped wires are the
LINE wires.
(d) Turn the power OFF at the service panel,
label the LINE and LOAD wires, then
remove the receptacle.
(e) Go to step 7B.
PRELIMINARY
