Levoit LV600S Series Manuale utente
Questions or Concerns?
Please contact us Mon-Fri 9:00AM-5:00PM PST
at (888)726-8520 or email [email protected]
Hybrid Ultrasonic Humidifier
Model: LV600HH
4
1. Nozzle
2. Handle cover
3. Handle
4. Water tank
5. Water tank cap
6. Water level sensor
7. Base
8. Air flume
9. Mist tube
10. Atomization chip
11. Absorption pad
12. Heating element
13. Inner chamber
14. Power cord
15. Aroma box
Main Functions
2
7
14
13
8
5
3
4
6
9
11
15
10
12
1
5
16. LED display
17. On/O button
18. Mist Level button
19. Humidity Level button
20. Timer button
21. Warm Mist button
22. AUTO button
23. Remote control
1. Relative humidity (RH)
level indicator
2. Cool mist humidity level
3. Timer setting
4. Warm mist humidity
level
5. AUTO mode indicator
6. Low water level
7. High temperature
warning
8. Set humidity function
17
18 21
5
6
22
2
4
3
1
7
8
16
19 20
23
6
Set-Up
NOTE:
• The maximum capacity for the water tank is
1.5 gallons (6 liters).
• DO NOT add water through the mist tube;
1. Remove the handle cover and set aside.
Carefully lift the handle to remove water
tank from the base.
2. Flip the tank over and unscrew the
water tank cap.
3. Fill the tank with at least 2 cups (480
mL) of cold or room temperature water.
Replace the cap once you have filled
the tank to your desired level.
7
Operation
NOTE:
• If the relative humidity exceeds 68%, turn o
the humidifier or set it to the low mist setting.
Excess humidity may have a negative eect
on your health.
• It is recommended to adjust the settings on
the humidifier based on your room’s current
relative humidity, room size, and indoor
temperature.
NOTE: For added convenience, the same button
controls can be found on the included remote
control.
NOTE: The default setting when you first turn on
the humidifier is the medium cool mist setting.
Turns on or turns o the
humidifier.
Press the mist level button to
cycle through the humidifier’s
3 cool mist settings.
• Press once for the low mist setting.
• Press twice for the medium setting.
• Press three times for the high mist
setting.
Button Controls
4. Carefully place water tank back onto
the base, making sure that the tank is
properly aligned. Replace the handle
cover.
5. Plug the humidifier into an electrical
outlet. The unit will chime, indicating it is
in standby mode.
doing so will damage the device.
• Only fill the water tank with cold or room
temperature water.
8
Use the Humidity level button to
program the humidifier to work
toward a set humidity level.
Press the Timer button to set
the timer anywhere from 1
to 12 hours. When you have
selected your desired time,
the display will flash three
times before the time is set. The device
will automatically turn o when the timer
is finished counting down. To cancel or
turn o the timer, keep pressing the Timer
button until the display flashes “--.”
1. Press the Humidity Level button once
to activate this function. Keep pressing
the Humidity Level button to select a
custom humidity level between 40%-
80% RH.
2. Once you have selected your desired
humidity, the display will flash 5 times
confirming your selection.
3. The device will start producing mist and
will automatically stop operating once
the programmed humidity level has
been reached.
4. The device will resume operation when
the relative humidity drops 5% below
the set humidity value.
5. To cancel this function, press the
Humidity level button until the screen
flashes “- -”.
NOTE:
• The programmed humidity level can be
changed at anytime by pressing the Humidity
level button.
• The “Set Humidity” icon will turn on while you
are setting your humidity level and will turn o
once your humidity level has been confirmed.
• Once you have programmed your humidity
level, the display will alternate between
the programmed humidity and the current
humidity level during operation.
9
Press the AUTO button
to activate the automatic
humidifying mode. The unit
will automatically diuse
cool mist based on the
surrounding environment and
will maintain environmental
humidity from 55-68% RH (the
unit will run continuously if the
humidity is below 54% RH and
will stop when it reaches 68%
RH). The table below shows
the mist level in correlation to
the relative humidity level for
Auto Mode.
Press the Warm Mist button to
have the humidifier generate
a gentle stream of warm
mist for your living space.
While using this function, the
humidifier heats the water before diusing
it into the air, killing any waterborne
bacteria or germs. There are three settings
for the Warm mist function, which are
noted below. Press the Warm Mist button
four times to turn o this function.
NOTE:
• Use caution when setting the Warm mist
function; the mist being diused is hot.
• The humidifier will default to diusing cool
mist when the warm mist function is not
activated. NOTE:
• Changing either the warm or cool mist levels
while on AUTO mode will cancel the AUTO
mode function.
• The timer can be set while the device is on
AUTO mode.
• Low setting, press once.
• Medium setting, press twice.
• High setting, press
three times.
Relative Humidity Mist Level
< 60% RH Mist level 3
60%-63% RH Mist level 2
64%-67% RH Mist level 1
> 68%RH
Humidifier
automatically shuts
o.
10
Care &
Maintenance
Make sure the humidifier is disconnected
from any power source before cleaning.
1. Unplug the humidifier. Allow the device
and any remaining water to completely
cool before cleaning.
2. Remove the water tank from the base
and pour out any excess water.
3. Remove the air flume and mist tube.
Detach the mist tube from the air flume
by twisting the tube counterclockwise.
Rinse both parts in clean water and dry
thoroughly.
The “Low Water Level” icon
will appear on the display
when more water needs to
be added to the water tank.
When this happens, the
humidifier will automatically shut o and
will turn back on once a sucient amount
of water has been added. The minimum of
amount of water needed for the humidifier
to function is 2 cups (480 mL).
While the humidifier is operating, the
display will automatically dim itself after
30 seconds. If you want to turn o the
display, press and hold the AUTO button
for 3 seconds. To turn the display back on,
press any button (except the power button)
on the control panel.
Turning O the Display
11
4. Remove the green absorption pad inside
of the heating element and rinse under
clean water. Dry the pad with a clean, dry
cloth.
5. Add 1 cup of distilled white vinegar to
the inner chamber. Make sure there is
vinegar on each section of the chamber
including the atomization chip and
heating element. Allow the vinegar to
soak for 20-30 minutes.
6. While the vinegar is soaking in the
chamber, scrub all parts of the inner
chamber with a soft brush or sponge to
remove any scale or buildup.
7. Pour out the excess vinegar and rinse
the inner chamber thoroughly with warm
water. Dry the chamber with a soft, clean
cloth.
9. Rinse out the water tank with warm water
and dry thoroughly with a soft, clean
cloth.
10. Allow all parts to dry completely dry.
Reassemble the humidifier and store it
in a covered space.
8. To remove any scale or buildup in the
water tank, pour 3 cups of distilled white
vinegar along with 3 cups of water.
Evenly coat all sides of the water tank
with the solution and allow it to soak for
20-30 minutes. Scrub o any remaining
buildup with a soft-bristled brush and
discard the excess vinegar.
12

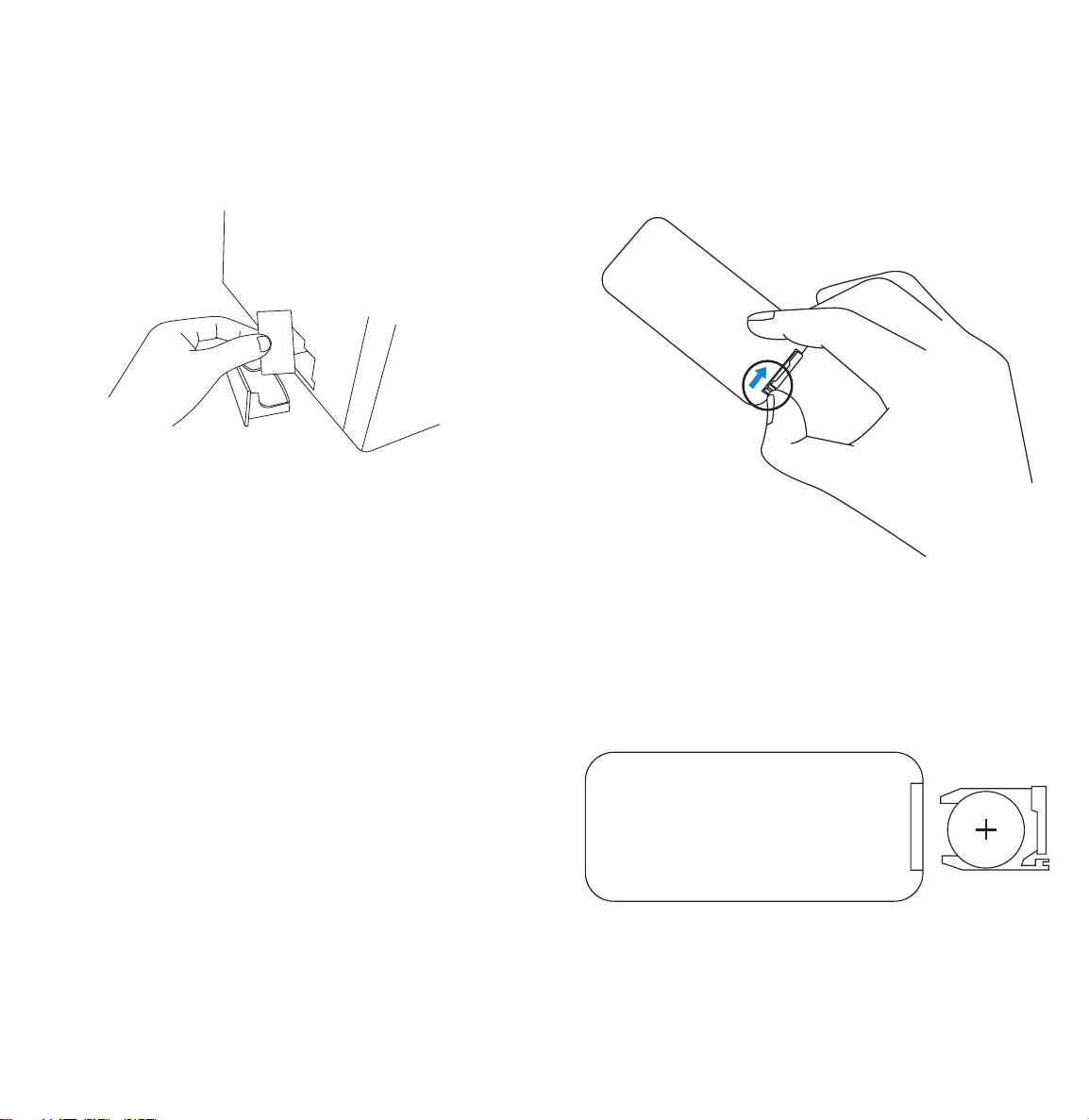

1. To clean the aroma pad, remove it from
the aroma box and rinse under warm
water.
2. Dry the pad with a clean cloth and place
it back into the aroma box.
Cleaning the Aroma Pad
1. Press the locking tab toward the pulling
slot to remove the battery compartment.
2. Properly dispose of the old battery.
3. Place a new CR2025 3V battery into the
battery compartment with the positive
side facing up.
4. Replace the battery compartment into
the remote.
Replacing the Remote
Control Battery
NOTE: You can control the humidifier from up to
The remote-controlled distance is 16 ft. (5 m).
