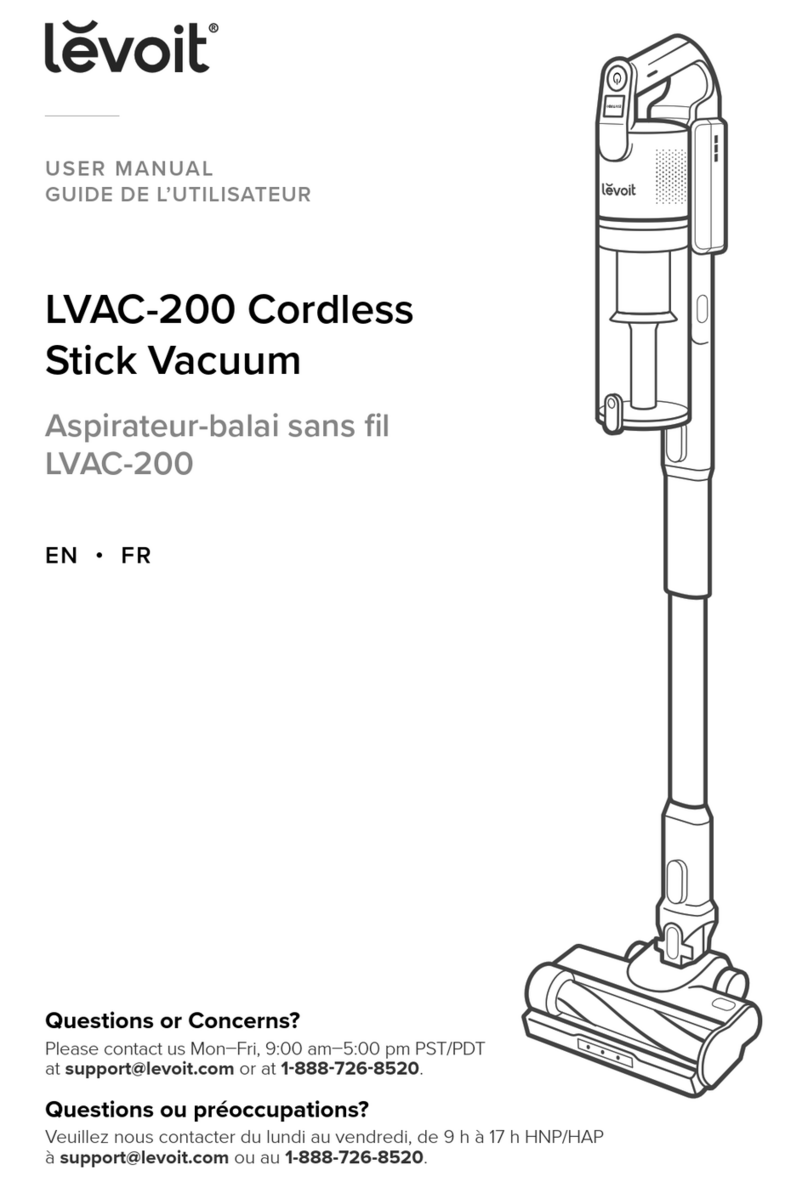

Levoit LVAC-200 Manuale utente
1
LVAC-200 Cordless
Stick Vacuum
Questions or Concerns?
Please contact us MonFri, 9:00 am5:00 pm PST/PDT
USER MANUAL
2
Table of Contents
Package Contents
Package Contents
Specifications
Safety Instructions
Getting to Know Your Vacuum
Controls
Using Your Vacuum
Care & Maintenance
Cleaning
Storage
Troubleshooting
Warranty Information
Customer Support
1 x Vacuum Body
1 x Long Stick
1 x Short Stick
1 x Vacuum Head
1 x 2-in-1 Crevice Tool
1 x 2-in-1 Pet Tool
1 x Wall Mount
2 x Screw
2 x Wall Anchor
1 x Charger
1 x User Manual
*Note: May vary +/- 10%
2
2
3
5
6
6
8
11
14
15
17
19
Specifications
Model LSV-V201-WUS
Battery Input 22.2V 2200mAh
Li-ion battery
Charging Input 100–240V~
50/60Hz 0.5A
Charging Time 4–5 hours
Dimensions 9.8 x 7.7 x 43.3 in /
25.0 x 19.5 x 110.0 cm
Weight (Vacuum
Body + Battery)
3.2 lb / 1.45 kg
Dust Bin Capacity 3.2 cups / 0.75 L (Max)
Runtime Using Vacuum Head
• 40 minutes on
Eco Mode
• 17 minutes on
Turbo Mode
Using Crevice or
Pet Tool
• 60 minutes on
Eco Mode
• 12 minutes on
Turbo Mode
Rated Power 180W*
Suction Power 70AW*
Battery Operating
Conditions
Charging Temperature:
39.2°–104°F / 4°–40°C
Storage Temperature:
32°–77°F / 0°–25°C
Storage Humidity:
65%±20%
3
• CAUTION: Risk of injury. Roller brush may start
unexpectedly. Remove battery pack before
cleaning or servicing.
• Do not leave the vacuum unattended while it
is on. Unplug from outlet when not charging
and before servicing.
• Do not use outdoors or on wet surfaces.
• Children should be supervised to ensure that
they do not play with the vacuum.
• Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
• This vacuum is not to be used by persons
(including children) with reduced physical,
sensory, or mental capacities, or lack of
experience and knowledge, unless they
have been given supervision or instruction
concerning the use of the appliance by a
person responsible for their safety.
• Children should not clean or perform
maintenance on the vacuum without
supervision.
• Only use the vacuum as described in this
manual.
• Use only manufacturer’s recommended
attachments.
• Do not use your vacuum if it is damaged or
not working correctly, or if the charger or plug
is damaged. Do not try to repair it yourself.
Contact Customer Support (see page 19).
• Do not handle the charger or vacuum with
wet hands.
• Do not put any object into any opening. Do
not use the vacuum with any opening blocked.
Keep free of dust, lint, hair, or anything that
may reduce airflow.
WARNING – To reduce the risk of fire, electric shock, or injury:
When using this vacuum, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
IMPORTANT SAFETY
INSTRUCTIONS
• Keep hair, loose clothing, fingers, and all body
parts away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not vacuum the following (or use where
they may be present):
• Sharp objects such as glass shards,
metallic nails, metal paper clips, or pins;
• Ultrafine particles such as lime, cement,
sawdust, gypsum powder, or ashes;
• Hazardous materials or chemicals such
as solvents, drain cleaner, strong acids,
or strong alkalis.
• Always turn the vacuum o before connecting
or disconnecting the stick, nozzles, brushes, or
vacuum head.
• Do not vacuum water or any liquids.
• Do not vacuum anything that is burning or
smoking, such as cigarettes, matches, or hot
ashes.
• Do not use without dust bin and filters in
place.
• Do not point the vacuum at any person or
animal while it is on.
• Store the vacuum on a small stand or flat
surface, or hang it from the wall.
• Do not use the vacuum in temperatures above
104°F (40°C) or below 39.2°F (4°C).
4
SAFETY INSTRUCTIONS (CONT.)
• Do not pull or carry the vacuum by the charging
cable, use the cable as a handle, close a door
on the cable, or pull the cable around sharp
edges or corners. Do not run any appliance
over the cable.
• Prevent unintentional starting. Ensure the switch
is in the o-position before connecting to battery
pack, picking up or carrying the appliance.
Carrying the appliance with your finger on the
switch or energizing appliance that have the
switch on invites accidents.
• Disconnect the battery pack from the appliance
before making any adjustments, changing
accessories, or storing appliance. Such preventive
safety measures reduce the risk of starting the
appliance accidentally.
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord. Turn o all controls
before unplugging.
• Never place the charger or its cable near any
heat source.
• Keep the charging cable out of areas where
people walk often. Place the cable where it will
not be tripped over.
• Do not use the charger to charge other
appliances besides this vacuum.
• Only recharge the vacuum with the charger
specified by Arovast Corporation. A charger that
is suitable for one type of appliance may create
a risk of fire when used with a dierent battery
pack. To request a new SAW15A-260-0500UD
charger, contact Customer Support (see page 19).
• For use only with the SAW15A-260-0500UD
adapter manufactured by Shenzhen Shi Ying
Yuan Electronics Co., Ltd.
Battery & Charger
WARNING: Read all safety warnings and
instructions. Failure to follow the warnings
and instructions may result in electric shock,
fire, and/or serious injury.
• Only use the battery pack specifically designed for
this vacuum. Use of any other battery packs may
create a risk of injury and fire. To request a new
LSV-V201B-WUS battery pack, contact Customer
Support (see page 19).
• For use only with the LSV-V201B-WUS battery pack
manufactured by Suzhou Lishen Energy Science &
Technology Co., Ltd.
• When the battery pack is not in use, keep it
away from other metal objects, like paper clips,
coins, keys, nails, screws, or other small metal
objects that can make a connection from one
terminal to another. Shorting the battery terminals
together may cause burns or a fire.
• Under abusive conditions, liquid may be
ejected from the battery. Avoid contact. If
contact occurs, flush with water. If liquid
contacts eyes, immediately flush with water
and seek medical help. Liquid ejected from the
battery may cause irritation or burns.
• Do not use the battery pack or vacuum if
they are damaged or modified. Damaged or
modified batteries may exhibit unpredictable
behavior resulting in fire, explosions, or risk of
injury.
• Have servicing performed only by a qualified
repair person using identical replacement parts.
This will ensure that the safety of the vacuum is
maintained.
• Do not modify or attempt to repair the vacuum or
the battery pack except as indicated in the manual.
• Do not expose the battery pack or vacuum
to fire or excessive temperatures. The battery
used in this device may present a risk of fire
or chemical burn if mistreated. Do not disassemble,
short contacts, heat above 140°F (60°C), or
incinerate. Exposure to fire or temperatures
above 266°F (130°C) may cause an explosion.
• Follow all charging instructions and do not
charge the battery pack or vacuum outside of the
temperature range specified in the instructions.
Charging improperly or at temperatures outside of
the specified range may damage the battery and
increase the risk of fire.
• WARNING: Do not use with non-rechargeable
batteries.
SAVE THESE INSTRUCTIONS
NOT FOR COMMERCIAL USE
HOUSEHOLD USE ONLY
5
GETTING TO KNOW YOUR VACUUM
A. On/O Button
B. Eco/Turbo Mode Button
C. Vacuum Body
D. Pre-Motor Filters
E. Battery Indicator Lights
F. Battery
G. Battery Release Button
H. Metal Filter
I. Dust Bin
J. Lid Release Button
K. Dust Bin Release Button
L. Vacuum Body Release Button
M. Charger
N. 2-in-1 Crevice Tool
O. 2-in-1 Pet Tool
P. Short Stick
Q. Long Stick
R. Vacuum Head Release Button
S. Vacuum Head
T. LED Lights
U. Roller Brush
V. Roller Brush Release Button
W. Vacuum Handle
X. Charging Port (on the battery)
Y. Post-Motor Filter
Z. Screws
AA. Wall Anchors
BB. Wall Mount
A
W
E
B
D
Z
AA
BB
Y
Q
P
J
N O
S
R
V
U
T
M
I
HK
L
C
FG
X
6
CONTROLS USING YOUR VACUUM
1. Build the vacuum stick by aligning the
dots on the long stick and short stick, then
push together until they lock in place.
[Figure 1.1]
2. Attach the vacuum head or a nozzle
attachment to the bottom of the stick, then
attach the vacuum body to the top of the
stick. [Figure 1.2]
Note: There is a clicking sound when the
parts are properly joined together.
Note: Fully charge the battery before first use.
Battery Indicator Light Chart
(During Use)
Figure 1.1
Figure 1.2
Battery Level Battery Indicators
70–100%
35–70%
10–35%
0–10%
On/O Button
• Turns on/o the vacuum.
Eco/Turbo Mode Button
• Cycles through Eco Mode and Turbo Mode.
• The vacuum will default to Eco Mode. Press
once for Turbo Mode. Press again to switch
back to Eco Mode.
• Eco Mode is suitable for daily cleaning.
• Turbo Mode is suitable for deep cleaning.
Battery Indicator Lights
• Indicate the battery level when you are
using the vacuum.
3. Charge the vacuum (see page 8).
4. Press the On/O Button to turn the vacuum
on. The vacuum will default to Eco Mode.
5. Press the Eco/Turbo Mode Button to adjust
the suction power between Eco Mode and
Turbo Mode.
6. Press the On/O Button to turn the vacuum
o.
7
Nozzle Attachments
Your vacuum comes with nozzle attachments
to help you tackle almost any cleanup job.
2-in-1 Crevice Tool
• Press button to slide bristles up/down
and switch between crevice tool and
dusting brush. [Figure 1.3]
• Use the crevice tool to clean hard-to-
reach places like crevices in furniture
and corners of a room or car.
• Use the dusting brush to clean dust
and hard surfaces like mantels or
baseboards.
2-in-1 Pet Tool
• Use the brush head to clean fur o soft
upholstery or pets.
• Remove the brush head to use the fur
removal tool which loosens hair on
fabric and carpet. [Figure 1.4]
Figure 1.3
Figure 1.4
Note: You can also attach the vacuum body
directly to the vacuum head. [Figure 1.7]
To use a nozzle attachment:
1. Press and hold the Vacuum Body
Release Button and gently pull the
vacuum body from the stick.
2. Slide the nozzle attachment onto the
vacuum body. [Figure 1.5]
Figure 1.5
Figure 1.6
Figure 1.7
3. Optionally, leave the stick attached
to the vacuum body and press the
Vacuum Head Release Button to
remove the vacuum head. Then, attach
the nozzle attachment to the end of the
stick. [Figure 1.6]
8
CARE & MAINTENANCE
Battery Installation
Your vacuum uses a 2,200mAh Li-ion battery.
When using the vacuum head on a full charge,
the battery lasts approximately 40 minutes
on Eco Mode and 17 minutes on Turbo Mode.
When using the crevice or pet tool on a full
charge, the battery lasts approximately 60
minutes on Eco Mode and 12 minutes on Turbo
Mode. Use the included charger to charge the
vacuum.
Charging the Vacuum
Note:
• To maintain the life of the battery, store the
vacuum in a cool, dry place.
• Store the battery in a semi-charged state
(at least 2 battery indicator lights).
Note:
• The wall mount must be high enough on
the wall to allow the vacuum to stand up.
• Make sure that the wall is free of gas
pipes, water pipes, electrical cables, and
wires.
1. Turn the vacuum o. Press the Battery
Release Button and remove the battery.
2. To reinstall, slide the battery into the slot in
the vacuum body. [Figure 2.1] There will
be a clicking sound when the battery is
properly installed.
Figure 2.1
Figure 2.2
Note: Make sure the vacuum is turned o
before charging.
1. Install the wall mount by screwing it into
the wall near a power outlet. [Figure 2.2]
9
Figure 2.4
Figure 2.3
Note: Charging time is about 4–5 hours.
Note: Charging time is about 4–5 hours.
2. Hang the vacuum on the wall mount.
[Figure 2.3]
3. Insert the charger into the charging port on
the battery. [Figure 2.3]
4. Plug the charger into the outlet. The
battery lights will blink while charging.
[Figure 2.3]
5. When the vacuum is fully charged, the 3
battery indicator lights will turn solid for 5
minutes, then turn o.
Alternatively, the battery can be charged
separate from the vacuum body.
1. Press the Battery Release Button to
remove the battery.
2. Insert the charger into the charging port on
the battery. [Figure 2.4]
3. Plug the charger into an outlet. The battery
indicator lights will blink while charging.
CARE & MAINTENANCE (CONT.)
4. When the vacuum is fully charged, the 3
battery indicator lights will turn solid for 5
minutes, then turn o.
10
When dust in the dust bin reaches the MAX
line, empty the dust bin.
Emptying the Dust Bin
Figure 2.5
Warning:
• Only charge the battery with the charger
specified by Levoit.
• If you are not using the battery for an extended
period, store it in a cool, dry place.
• Store the battery in a semi-charged state
(at least 2 battery indicator lights) and maintain
this by charging the battery every 3 months.
• If you need an additional battery,
contact Customer Support (see page 19).
Battery Indicator Light Chart
(While Charging)
Battery Level Battery Indicators
0–35%
35–70%
70–100%
100%
Note: Do not overfill the dust bin. If the dust
bin is too full, it may aect the performance
of the vacuum.
Note: Holding the dust bin inside a trash
can prevents dust from spilling out.
1. Turn the vacuum o. Remove the dust
bin by pressing the Dust Bin Release
Button.
2. Hold the dust bin over a trash can and
press the Lid Release Button. [Figure
2.5] Use caution, as the lid will open
when the release button is pushed.
3. Empty out debris and dirt, then close
the lid.
Alternatively, you can remove the vacuum
body to empty the dust bin.
1. Remove the vacuum body by pressing
the Vacuum Body Release Button.
2. Hold the dust bin over a trash can
and press the Lid Release Button.
[Figure 2.5]
Altri manuali per LVAC-200
2
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Levoit Aspirapolvere
