Qbot Robot Car Kit
User Manual
2
Overview
LewanSoul Qbot is a Smart Robot Car Kit that can
programmable, with Ultrasonic Sensor, Light Sensor,
Line Tracking Sensor, OLED Display, Bluetooth Module,
Infrared Remote Control, Free Mobile APP for Arduino.
Product Parameters:
Net Weight
About 0.308 pounds
Material
fiberglass
Bluetooth module
support
Package Dimensions
9.8 x 6.2 x 2.4 inches
Product list:
Motor driven board
1
Upper plate
1
Ultrasonic sensor
1
Charger
1
lithium battery
2
Infrared remote control
1
Screwdriver
1
Screw and copper pillar kit
1
3
Catalog
Main function introduction.......................................................... 4
Components................................................................................. 5
Assembly......................................................................................7
Introduction of WeMake software.............................................10
1.Install the driver................................................................. 13
2.Install firmware..................................................................16
Infrared remote control.............................................................. 19
Use Mobile phone APP to control the Qbot..............................20
Technical Support...................................................................... 32
4
Main function introduction
Qbot is an educational robot based on graphical programming and
Arduino platform. This robot is perfect for learning STEM and robotic
knowledge. Perfect choice for robot lovers and beginners (Age is better
than 8 years old) to learn robotics, electronics and program.
Qbot has more than 10 sensor modules, highly integrated body makes
assembly very convenient,which helps you save time installing the
sensor module. Compared with many other robot products that need to be
built for a long time, the whole assembly process of Qbot only takes 2
minutes, so that you are no longer bothered by the tedious assembly. The
holes in the robot can be compatible with the LEGO bricks and you can
extend its function yourself, this means that Qbot will have infinite
possibilities.
In order to remote control Qbot more easily,we provide customers with
Android mobile APP. The mobile phone connects to Qbot via Bluetooth
4.0.
Qbot uses Drag and drop visual graphic programming software -
WeMake, which is a software developed based on Scratch 2.0. It allows
us to quickly learn programming and control robots.
5
Components
Name of Component
Quantity
Upper Plate
1
Motor Driven board
1
Ultrasonic sensor
1
Infrared remote controller
1
Copper columns and screws
Several
Lithium battery
2
6
Flat Cable
1
Charger
1
7
Assembly
Assembly steps:
Step 1: We can fix 3 copper pillars onto control board.
8
Step 2:Then use wires to connect two board and put lithium battery onto
the motor board.
Step 3: Use screws to join two board together(control board and motor
board).
9
Step 4: Fix ultrasonic module to the right position. (There are two rows
of serial ports,you need to insert the ultrasonic sensor into the back row)
(You can also refer to the tutorial video)
10
Introduction of WeMake software
1.What’s WeMake Software
WeMake is a graphical programming tool developed based on scratch2.0,
we can use this software to control. Through WeMake programming we
can achieve the interaction between software and the physical world to
make QBot do corresponding response according to the changes in the
environment . WeMake's simple operability makes it possible for
everyone to build their own intelligent robots without having to learn
esoteric electronic knowledge.
2. How to install WeMake on your computer
You can download the installation file of WeMakeor contact the
salesperson for it.
Open installation file and select installation path.
Click “next”

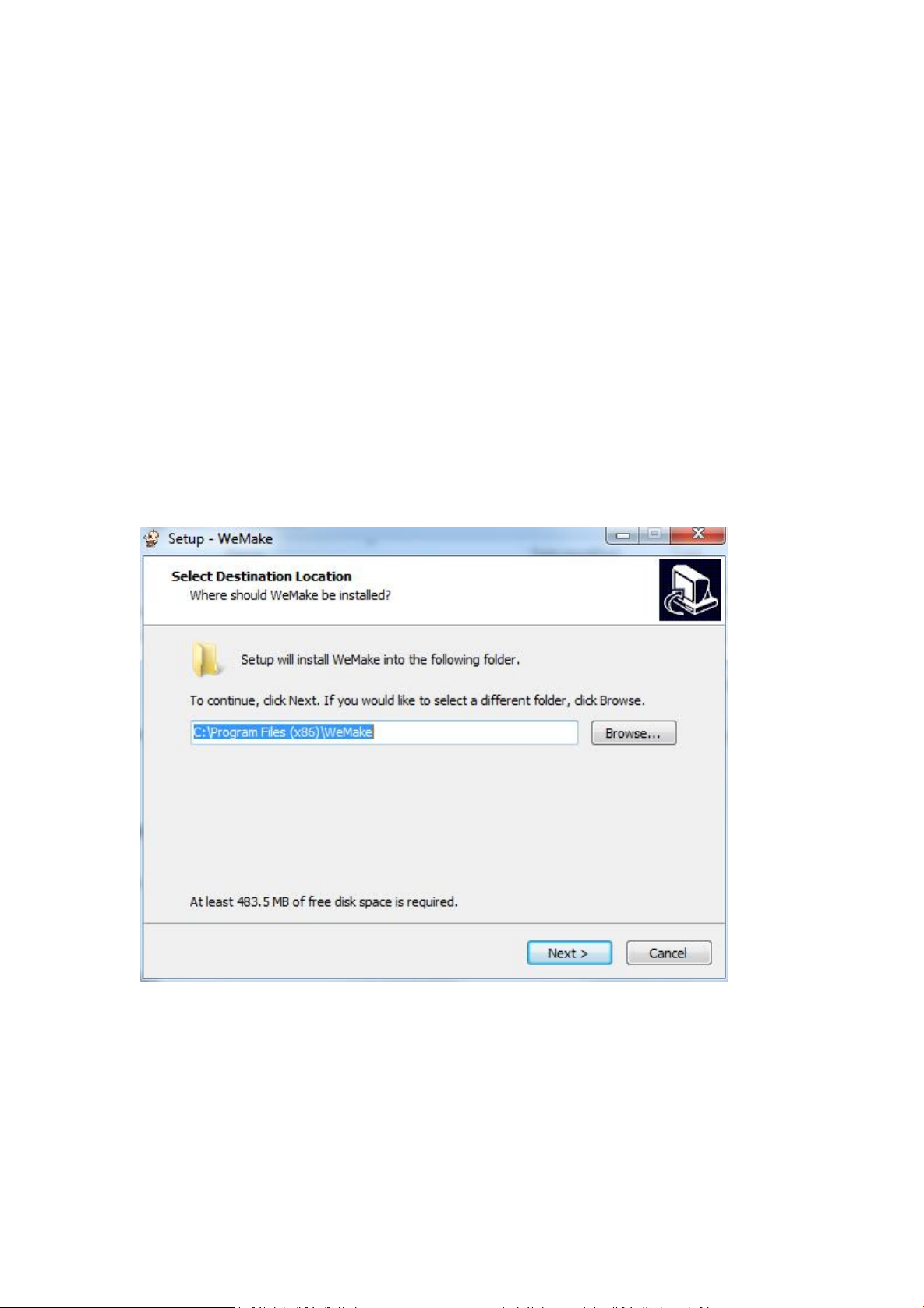

select destination location
The installer will install WeMake into the following folder
Click next to continue, if you want to select other folder ,click”browse”
At least 426.3MB of free disk space is required
