Lexmark X264 Manuale di servizio

X264dn, X363dn, X364dn/dw,

X463de, X464de,

X466de/dte/dwe

Technical Reference

December 2009 www.lexmark.com

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.

All other trademarks are the property of their respective owners.

740 West New Circle Road

Lexington, Kentucky 40550

Edition notice

December 2009

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL,

INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these

changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all countries

in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product, program, or service

may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual property right may be used

instead. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by

the manufacturer, are the user’s responsibility.

For Lexmark technical support, visit support.lexmark.com.

For information on supplies and downloads, visit www.lexmark.com.

If you don't have access to the Internet, you can contact Lexmark by mail:

Lexmark International, Inc.

Bldg 004-2/CSC

740 New Circle Road NW

Lexington, KY 40550

USA

Trademarks

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.

PCL® is a registered trademark of the Hewlett-Packard Company.

All other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RIGHTS

This software and any accompanying documentation provided under this agreement are commercial computer software and documentation

developed exclusively at private expense.

Contents

Edition notice......................................................................................2

Introduction........................................................................................5

Understanding letters after model numbers...............................................................................................................5

Learning about the printer...............................................................6

Finding information about the printer...........................................................................................................................6

Printer Control Language (PCL) page formatting........................7

Printable areas.........................................................................................................................................................................7

Supported paper and envelope dimensions...............................................................................................................8

Printer Job Language (PJL).............................................................10

PJL commands information.............................................................................................................................................10

PostScript (PS) emulation...............................................................11

Paper sizes supported........................................................................................................................................................11

PostScript paper tray support.........................................................................................................................................12

PostScript envelope size support..................................................................................................................................14

PostScript envelope tray support..................................................................................................................................15

Printer specifications......................................................................17

Airflow requirement...........................................................................................................................................................17

Noise emission levels.........................................................................................................................................................17

Electrical specifications.....................................................................................................................................................18

Power requirements...........................................................................................................................................................18

Physical specifications.......................................................................................................................................................19

Clearance requirements....................................................................................................................................................19

Environmental conditions................................................................................................................................................19

Altitude specifications and atmospheric pressure..................................................................................................20

Appendix A: PCL support.................................................................21

PCL emulation commands...............................................................................................................................................21

GL/2 commands...................................................................................................................................................................27

Contents

Appendix B: PJL support.................................................................31

Common variables for both printer languages........................................................................................................31

Printer-unique PJL variables for both printer languages......................................................................................33

Common variables for PCL emulation.........................................................................................................................43

Printer-unique variables for PCL emulation...............................................................................................................43

Common variables for PostScript emulation............................................................................................................44

Printer-unique variables for PostScript emulation..................................................................................................44

Printer-unique LRESOURCE variables...........................................................................................................................44

Status Readback commands...........................................................................................................................................45

USTATUS unsolicited status variables..........................................................................................................................45

PJL messages for auto-continuable conditions........................................................................................................46

PJL messages for attendance conditions....................................................................................................................52

PJL messages for paper handling..................................................................................................................................67

PJL messages for paper jams...........................................................................................................................................70

Service errors.........................................................................................................................................................................76

Device attendance messages..........................................................................................................................................77

Lexmark-unique PJL commands....................................................................................................................................77

File and device protection commands........................................................................................................................78

Appendix C: PostScript support.....................................................79

Supplemental operators...................................................................................................................................................79

Page device parameters....................................................................................................................................................82

User interpreter parameters............................................................................................................................................87

System interpreter parameters.......................................................................................................................................88

Devices supported..............................................................................................................................................................90

Device parameters..............................................................................................................................................................93

PostScript message keys commands.........................................................................................................................102

Index.................................................................................................103

Contents

Introduction

Overview

This edition of the Technical Reference contains information about the following printers:

X264dn

X363dn

X364dn/dw

X463de

X464de

X466dte/dwe

Understanding letters after model numbers

Some Lexmark printers may have one or more letters after the model name to indicate printer features:

Acronym Meaning

dduplex1

ee-Task (electronic task) touch-screen interface

ffinisher/stapler

hhigh-capacity drawer

mmailbox

nnetwork

tadditional tray2

tt tandem tray module

wwireless

1Duplex printing (two-sided printing) accomplished by means of an optional duplex unit or an internal duplex unit based

on the product.

2The additional tray is part of a drawer.

Introduction

Learning about the printer

Finding information about the printer

Setup

information

Description Where to find

The Setup information gives you instructions for setting

up the printer. Follow the set of instructions for local,

network, or wireless, depending on what you need.

You can find the Setup information on the inside of the printer

box or on the Lexmark Web site at www.lexmark.com.

Help

Description Where to find

The Help gives you instructions for using the software. While in any Lexmark software program, click Help, Tips 

Help, or Help Help Topics.

Customer support

Description Where to find (North America) Where to find (rest of world)

Telephone support Call us at

•US: 1-800-332-4120

Monday–Friday (8:00 AM–11:00 PM ET)

Saturday (Noon–6:00 PM ET)

•Canada: 1-800-539-6275

Monday–Friday (8:00 AM–11:00 PM ET)

Saturday (Noon–6:00 PM ET)

•Mexico: 001-888-377-0063

Monday–Friday (8:00 AM–8:00 PM ET)

Note: Telephone numbers and support times

may change without notice. For the most recent

telephone numbers available, see the printed

warranty statement that came with your printer.

Telephone numbers and support hours vary by

country or region.

Visit our Web site at www.lexmark.com. Select

a country or region, and then select the

Customer Support link.

Note: For additional information about

contacting Lexmark, see the printed warranty

that came with your printer.

E-mail support For e-mail support, visit our Web site:

www.lexmark.com.

1Click SUPPORT.

2Click Technical Support.

3Select your printer type.

4Select your printer model.

5From the Support Tools section, click e-Mail

Support.

6Complete the form, and then click Submit

Request.

E-mail support varies by country or region, and

may not be available in some instances.

Visit our Web site at www.lexmark.com. Select

a country or region, and then select the

Customer Support link.

Note: For additional information about

contacting Lexmark, see the printed warranty

that came with your printer.

Learning about the printer

Printer Control Language (PCL) page

formatting

For more information on PCL, refer to the Printer Languages and Interfaces Technical Reference. It contains a complete

listing with descriptions of PCL commands.

To determine which PCL commands your printer supports, see “Appendix A: PCL support” on page 21.

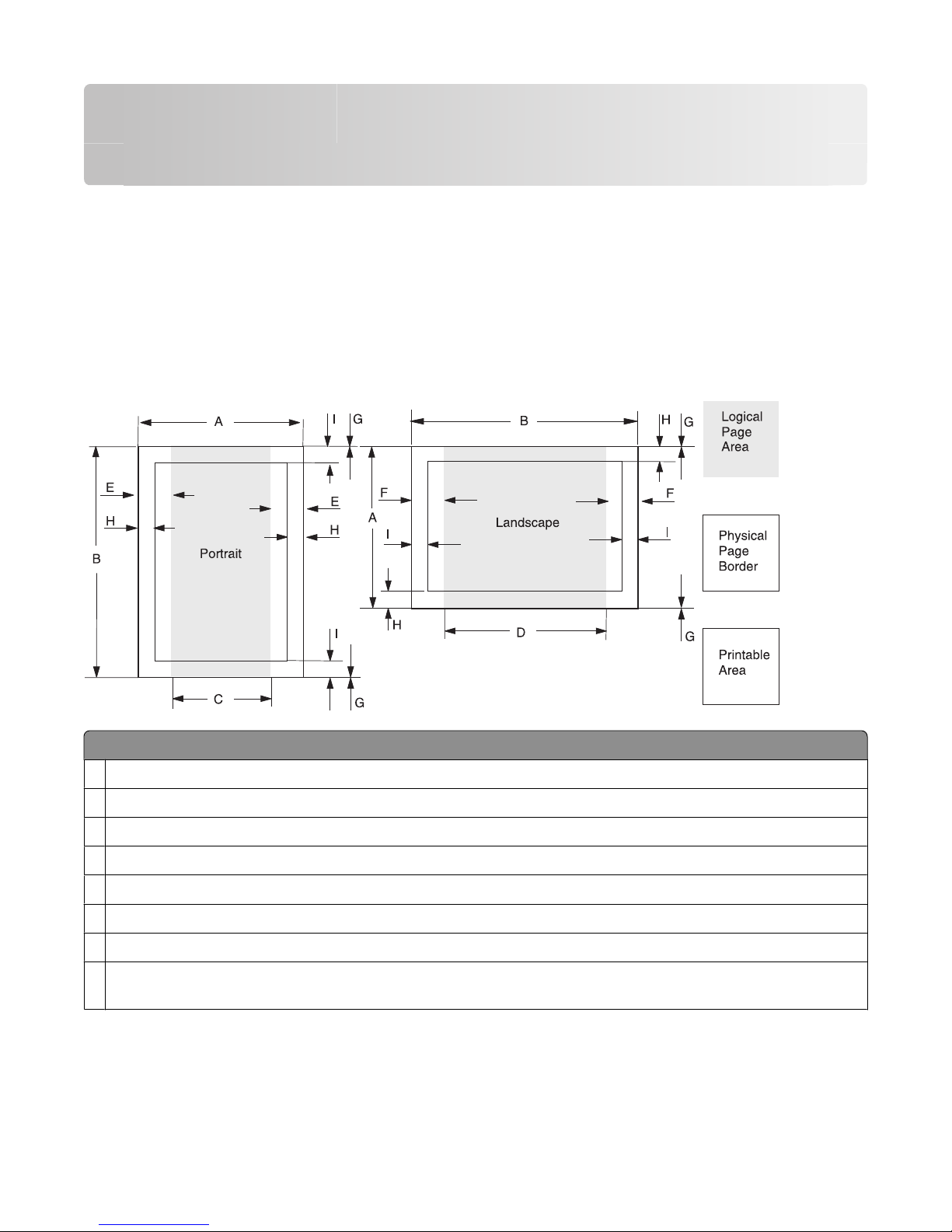

Printable areas

The printable areas and logical pages for PCL emulation (both portrait and landscape orientation) are illustrated

below. See the legend that follows for definitions of areas Athrough I.

Legend:

APortrait physical page width and landscape physical page length

BPortrait physical page length and landscape physical page width

CPortrait logical page width

DLandscape logical page width

EDistance between the side edge of the physical page and the logical page in portrait

FDistance between the side edge of the physical page and the logical page in landscape

GDistance between the top and bottom edge of the physical page and logical page

HDistance between the left and right edge of the physical page and the printable area in portrait, or distance between

the top and bottom edge of the physical page and printable area in landscape

Printer Control Language (PCL) page formatting

Legend:

IDistance between the top andbottom edge of the physical page and the printable area in portrait, or distance between

the left and right edge of the physical page and the printable area in landscape

Note: The tables that follow in this chapter list the page sizes and dimensions of each area labeled on the preceding

diagram for all paper and envelope sizes your printer supports.

Supported paper and envelope dimensions

The following table lists the page sizes and print area dimensions for all supported paper and envelope sizes. For

more information about the printable areas and logical pages for PCL emulation, see “Printable areas” on page 7.

Selection Paper/envelope

dimensions

Dimensions by area (pels)1

Page size

parameters2

Name mm inches A B C D E F G H I

Paper

2,602 Letter 216 x

279

8.5 x 11 5100 6600 4800 6360 150 120 0100 100

3,603 Legal 216 x

356

8.5 x 14 5100 8400 8400 8160 150 120 0100 100

12,45,612 JIS B5 182 x

257

7.2 x 10.1 4300 6070 4000 5830 150 120 0100 100

26,626 A4 (198

mm)3

210 x

297

8.3 x 11.7 4960 7014 4676 6778 142 118 080 100

26,626 A4 (203

mm)3

210 x

297

8.3 x 11.7 4960 7014 4676 6778 142 118 080 100

1,601 Exec 184 x

267

7.25 x 10.5 4350 6300 4050 6060 150 120 0100 100

13,613 A5 148 x

210

5.83 x 8.27 3496 4960 3196 4720 142 118 0100 100

300 Oficio

(Mexico)

216 x

340

8.5 x 13.4 5100 8040 4800 7800 150 120 0100 100

1Pel dimensions are for 600 dpi.

2Page Size Parameters are explained in the Page Control table in the PCL chapter in the Printer Language and Interfaces

Technical Reference.

3The width of the logical page for A4 paper can be changed from the printer control panel or your software application.

4For the Universal paper size, the area dimensions are listed in pel ranges.

5Paper ID 99 will be supported for backward compatibility with other Lexmark printers. Paper ID 99 has the same logical

paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.

Note: The explanation of the printable area assumes the Print Area menu item is set to Normal. For more information,

see “Print Area Menu Item” in the PCL chapter in the Printer Language and Interfaces Technical Reference.

Printer Control Language (PCL) page formatting

Selection Paper/envelope

dimensions

Dimensions by area (pels)1

Page size

parameters2

Name mm inches A B C D E F G H I

4 or 10 Folio 216 x

330

8.5 x 13 5100 7800 4800 7560 150 120 0100 100

15 Statement 139.7 x

215.9

5.5 x 8.5 3300 5100 3000 4860 150 120 0100 100

24 A6 148 x

105

5.8 x 4.1 2480 3496 2199 3260 142 118 0100 100

101 Universal 216 x

356

8.5 x 14 1800-

51004

1800-

85024

1500-

48004

1500-

82624

150 120 0100 100

Envelope

90 DL 220 x

110

8.66 x 4.33 2598 5196 2314 4960 142 118 0100 100

91 C5 229 x

162

9.02 x 6.38 3826 5408 3542 5172 142 118 0100 100

995, 100 B5 Envelope 250 x

176

9.84 x 6.93 4156 5904 3872 5668 142 118 0100 100

600 Other

Envelope

216 x

356

8.5 x 14 5100 8400 4800 8160 150 120 0100 100

89 9 (Com 9) 225 x 98 8.875

x3.875

2324 5324 2024 5084 150 120 0100 100

81 10 (Com 10) 241 x

105

9.5 x 4.125 2474 5700 2174 5460 150 120 0100 100

80 7 3/4

(Monarch)

98 x 191 3.875 x7.5 2324 4500 2024 4260 150 120 0100 100

1Pel dimensions are for 600 dpi.

2Page Size Parameters are explained in the Page Control table in the PCL chapter in the Printer Language and Interfaces

Technical Reference.

3The width of the logical page for A4 paper can be changed from the printer control panel or your software application.

4For the Universal paper size, the area dimensions are listed in pel ranges.

5Paper ID 99 will be supported for backward compatibility with other Lexmark printers. Paper ID 99 has the same logical

paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.

Note: The explanation of the printable area assumes the Print Area menu item is set to Normal. For more information,

see “Print Area Menu Item” in the PCL chapter in the Printer Language and Interfaces Technical Reference.

Printer Control Language (PCL) page formatting

Printer Job Language (PJL)

PJL commands information

Your printer supports complete PJL commands, including certain commands that cause the printer to enter PCL

emulation, PostScript emulation, and Personal Printer Data Stream (PPDS).

For a complete listing with descriptions of PJL commands, see the Printer Languages and Interfaces Technical

Reference.

To determine which commands your printer supports, see “Appendix B: PJL support” on page 31.

Printer Job Language (PJL)

Altri manuali per X264

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Lexmark Stampante tutto in uno

Lexmark

Lexmark CX310 series Manuale utente

Lexmark

Lexmark X4270 Series Manuale utente

Lexmark

Lexmark MX610 Series Manuale tecnico

Lexmark

Lexmark X746 Manuale utente

Lexmark

Lexmark 8300 Series Manuale utente

Lexmark

Lexmark 3100 Series Manuale utente

Lexmark

Lexmark 734de - X Color Laser Manuale utente

Lexmark

Lexmark X548 Family Manuale utente

Lexmark

Lexmark X560n MFP Manuale utente

Lexmark

Lexmark W01 Manuale utente

Lexmark

Lexmark C500N Manuale utente

Lexmark

Lexmark CX410 series Manuale

Lexmark

Lexmark X74 Istruzioni per l’uso

Lexmark

Lexmark X422 Scheda informativa del prodotto

Lexmark

Lexmark 201 Manuale utente

Lexmark

Lexmark X830E Istruzioni per l'installazione e il funzionamento

Lexmark

Lexmark 43J3400 - Optra S 2455 B/W Laser Printer Manuale utente

Lexmark

Lexmark X85 Manuale utente

Lexmark

Lexmark Pro910 Series Manuale utente

Lexmark

Lexmark X5470 Istruzioni di installazione e manutenzione

Lexmark

Lexmark MX610 Series Manuale utente

Lexmark

Lexmark E238 Istruzioni operative e di sicurezza

Lexmark

Lexmark X74 Manuale

Lexmark

Lexmark XM3150 Istruzioni di installazione e manutenzione

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Brother

Brother MFC-9760 Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente

Brother

Brother MFC-9840CDW Manuale utente
