Lexus SC 430 2004 Manuale utente
2004 Lexus SC 430 V8-4.3L (3UZ-FE)
Vehicle > Body and Frame > Roof and Associated Components > Convertible Top > Service and Repair > Procedures
MANUAL CLOSE OPERATION
MANUAL CLOSE OPERATION
NOTE: When operating manually, make sure that the audio set is turned off and the radio antenna is retracted.
1.RELEASE LUGGAGE DOOR LOCK
a.Open the cover of the center console box and turn up the mat.
b.Remove the cover.
c.Pull the luggage door lock release wire to unlock.

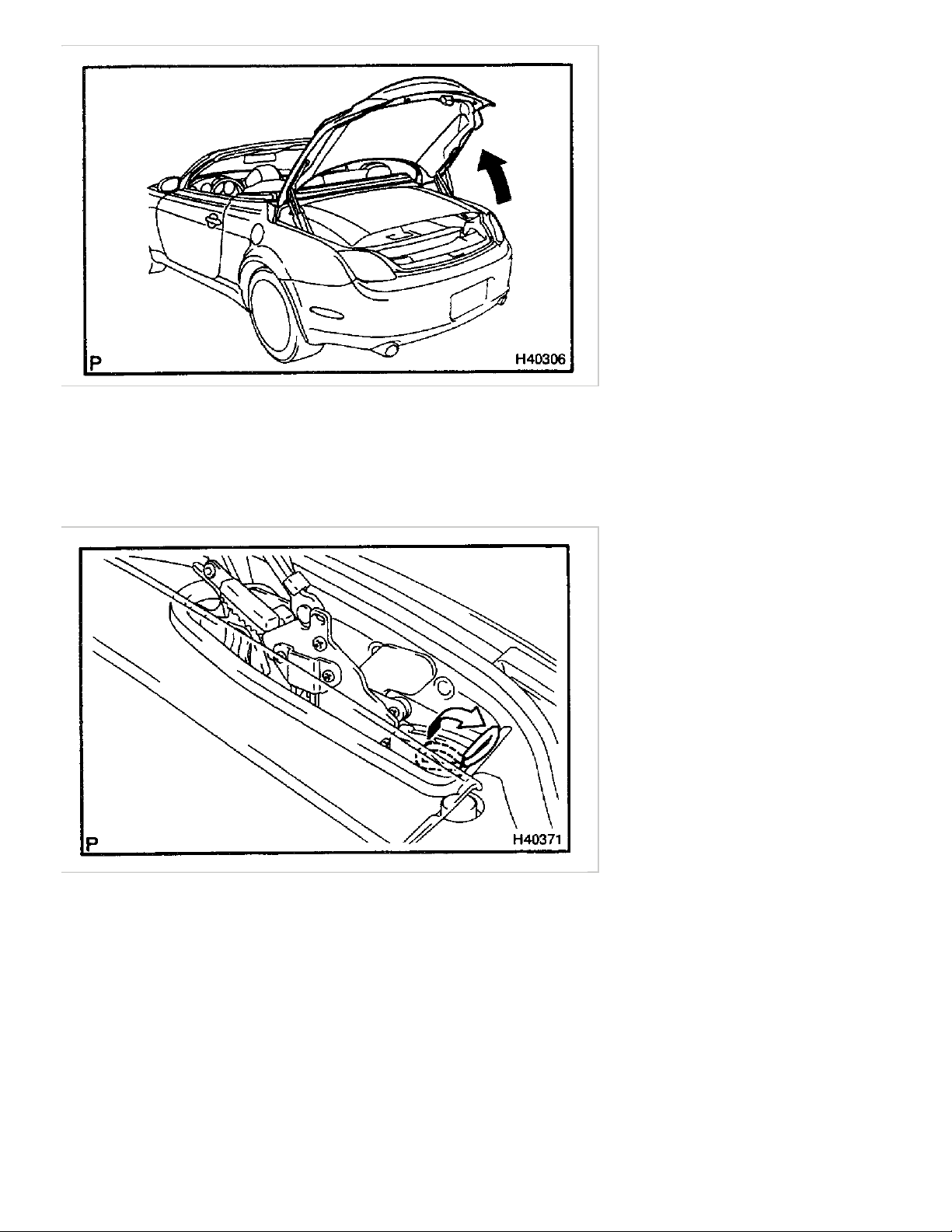

2.FULLY OPEN LUGGAGE COMPARTMENT DOOR
a.Fully open the luggage compartment door.
3.OPEN LUGGAGE COMPARTMENT DOOR FROM FRONT SIDE
a.Pull out the luggage front lock release wire.
b.While pulling the wire, slowly raise the front lower part of the luggage link (shown as part "a").
NOTE:
-The operation should be performed by 2 persons.
-As this operation requires considerable force, gradually apply force to the part.
-Never apply force to any part other than "a" (e.g. luggage, door). Doing so may cause deformation.
-Raise it almost equally on the right and left sides.
HINT: Part "a" is marked with green.
c.Open the luggage compartment door from the front side as illustrated.
NOTE: The operation should be performed by 2 persons.
4.RAISE PACKAGE TRAY TRIM
a.Place both hands under the rear part of the package tray in the positions close to both ends and raise the
package tray gradually at 30 ° to 45 °.
NOTE:
-Place both yours hands on the slide board in the positions close to the both ends.
-Do not apply direct force to the side board as it is operated in connection with the main board.
-Do not place the hands on the edges of the main board.
b.Disconnect the joints of the cables from the package tray trim gear box.
CAUTION: Take cave not to injure your hands when disconnect the joints.
NOTE:
-As the cable is coated with grease, carefully prevent the seat, seat belt or other parts from being contact with
it.
-Be careful to prevent the removed cable from being excessively pressed against the package tray gear box.
c.Raise the package tray gradually until it stops.
NOTE: Do not apply direct force to the side board as it is operated in connection with the main board.
d.Place both your hands on the slide board in the positions close to both ends and push it down.
NOTE: Do not touch the side board.
HINT:
-Push down the slide board until it reaches the same height of the main board.
-If the slide board is lowered, at the same time, the slide board is retracted in connection with the slide board.
5.REMOVE ROOF STOPPER
a.Using a hexagon wrench, remove the 2 bolts
b.Slide the roof stopper and take it off from the hook.
c.Use the same manner described above to the other side.
6.HALF-CLOSE ROOF PANEL
a.Insert your hands at the lower part of the roof and lift the roof upward gradually. At the time, lift the front of the
roof a little.
NOTE: The operation should be performed by 2 persons.
b.Stop the motion when the back window stands upright.
NOTE:
-As this operation requires considerable force, gradually apply force to the part.
-Raise it almost equally on the right and left sides.
7.FOLD DOWN PACKAGE TRAY TRIM
