LF Portfolio 40193 Manuale utente
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5
p.m., EST, Friday.
1
ATTACH YOUR RECEIPT HERE
Portfolio®is a registered trademark
of LF, LLC. All Rights Reserved.
Serial Number _________________________ Purchase Date _________________________
EB15143
ITEM #0013807
LANTERN POST
WITH CROSSBAR
MODEL #40193
Español p. 19
Français p. 10
2
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Lantern Post 1
B Crossbar 1
C Decorative Ball (preassembled to Crossbar (B)) 2
D Photo Eye 1
E Female Connector (preassembled to Photo Eye [D]) 1
F Male Connector (preassembled to Female Connector [E]) 1
G Soft Outlet Gasket (preassembled to Convenience Outlet [H]) 1
H Convenience Outlet 1
HARDWARE CONTENTS (shown actual size)
Mounting Screw
Qty. 2
Self-Tapping Screw
Qty. 2
Wire Connector
Qty. 4
+ 2 extra
AA BB CC
A B C D E
F G H
3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
CodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• This product is for outdoor use only.
• This product is to be connected to a 120-volt, 60Hz power source. Connecting to a different power
source or wiring incorrectly may create a hazard, damage the unit, and will void the warranty.
• This product is suitable for wet locations.
• Do not attempt to open the electrical component housings. They do not contain any serviceable
parts. Install these parts as is.
• Selecting a lantern post or lighting standard for performance and safety requires a full
understanding of various factors or conditions. Professional engineering assistance when selecting
a post is highly recommended. Many factors can affect the performance or safety of your post,
including (but not limited to):
– Totalweightofthextureandalltheaccessoriesthepostmustbear.
– The peak wind load and the effective projected area (EPA) of the mounted apparatus.
– Environmental characteristics such as moisture, salinity, corrosiveness and other soil and air
conditions and their possible effect on the type of post selected.
– The crossbar is not intended to carry load.
WARNING: Ensure the power is turned off at the main power panel or circuit breaker box prior
to installing or replacing components.
CAUTION: The convenience outlet is not intended for ground installation. Do not install the
convenience outlet on a post or pole that would result in a vertical rise of 25 feet or higher.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
PREPARATION
Before you begin the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list above. If any part is missing or damaged, do
not attempt to assemble the product.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Phillips screwdriver, Shovel, Gravel, Supply wire and Concrete
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook, Masking tape, Pencil,
Step ladder and Wire cutters
4
A
ASSEMBLY INSTRUCTIONS
Important: Before you begin this procedure and dig the
necessary holes required to install the item, consult your
local electrical codes.
1. Dig a hole 12 in. to 15 in. in diameter and 18 in. in
depth, allowing extra depth for added gravel (not
included). Save some of the soil for later. Shovel
several inches of gravel in the bottom of the hole for
drainage purposes. Then dig a trench to the required
depth from the post hole to the power source.
12 - 15 in.
Trench
18 in.
1
2. Run the electrical cable (not included) through the
trench from the power supply to the hole created for
the lantern post (A).
3. Place the lantern post (A) on the ground near the
hole. Feed the electrical cable through the 1-1/8
in. hole near the bottom of the lantern post (A) and
out through one of the 1-3/8 in. holes near the top,
allowingsufcientleadforsplicing.Tosimplifythe
wiring process, use masking tape and a pencil
(neither included) to label each wire with the word
“supply”.
3
2
5
A
C
B
ASSEMBLY INSTRUCTIONS
4. Remove the decorative ball (C) from one end of the
crossbar (B). Insert the crossbar (B) through both 3/4
in. diameter holes in the lantern post (A). Re-attach
the decorative balls (C) and position the crossbar (B)
as desired.
5.Routethewiresfromthelightxture(notincluded)
down through the hole in the top of the lantern post
(A) and out through the same hole through which the
supplywireswerefed.Labelthelightxturewires
withtheword“light”.Installthelightxturetothetop
of the lantern post (A) according to the manufacturer’s
instructions.
Light
Fixture
Wires from
Light Fixture
Supply
Wires
A
6. Feed the wires from the convenience outlet (H)
through the soft outlet gasket (G). Then label the
wires from the convenience outlet (H) with the word
“outlet”.
4
5
4
G H
6
6
Red
Black
Black
Black
Black
White
White
White
White
Green/Bare
Green/Bare
Green
Supply
Wires
Female
Connector
Convenience
Outlet
Light
Fixture
ASSEMBLY INSTRUCTIONS

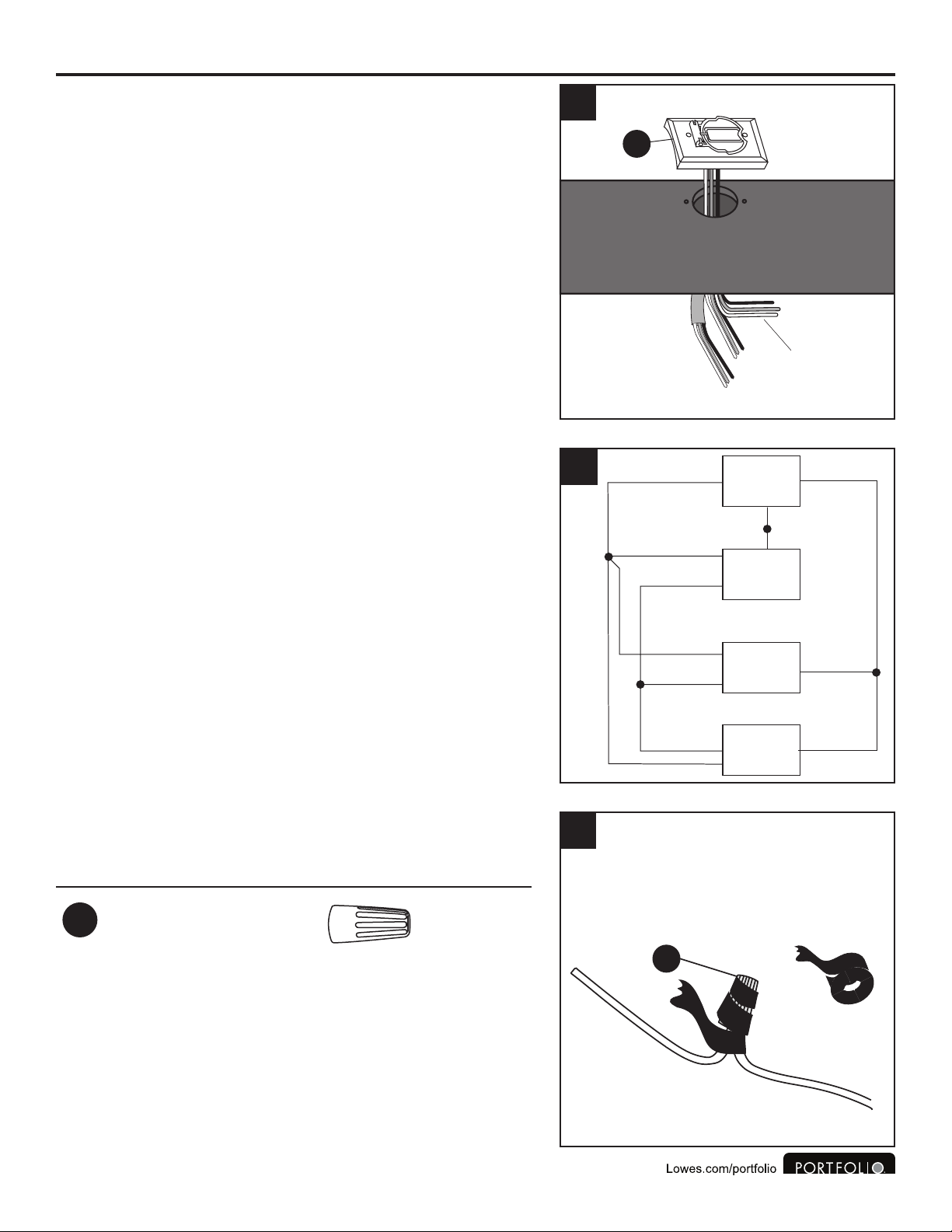

7. Route the wires from the convenience outlet (H)
through the empty hole and out the hole with the
supply and lantern wires.
8.Connectwithsupply,lightxture,convenienceoutlet
(H) and male connector (F) wires according to the
diagram and these steps:
a. Connect the Green wire from the convenience
outlet (H) to the Green/Bare power supply wire and
theGreen/Barewirefromthelightxtureusinga
wire connector (CC).
b. Connect the White wire from the convenience outlet
(H) to the White wire from the male connector (F),
the White power supply wire and the White light
xturewirewithawireconnector(CC).
c. Connect the Black wire from the convenience
outlet (H) to the Black wire from the male connector
(F) and the Black power supply wire using a wire
connector (CC).
d. Connect the Red wire from the male connector (F)
totheBlacklightxturewireusingawireconnector
(CC).
Note:The Black wire is hot power. The White wire
is common. The Green wire is the ground wire. If
wires are different colors than referred to above,
stop immediately. It is recommended a professional
electrician determines the proper wiring.
Hardware Used
CC Wire Connector x 4
9. Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
8
9
H
Wires from
Convenience
Outlet
7
CC
7
ASSEMBLY INSTRUCTIONS
10. Gently push the wires and wire connectors (CC) into
the pole.
Hardware Used
BB Wire Connector x 4
11. Secure the convenience outlet (H) to the lantern post
(A) using the self-tapping screws (BB) and tighten
with a Phillips screwdriver (not included).
Hardware Used
BB Self-Tapping
Screw x 2 A
H
BB
12. Secure the photo eye (D) to the lantern post (A) using
the mounting screws (AA) and tighten with a Phillips
screwdriver.
Hardware Used
AA Mounting
Screw x 2
A
D
AA
12
11
Light
Fixture
10
8
CARE AND MAINTENANCE
Periodically clean with warm water, soap and a non-abrasive cloth.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The light cycles in
the daylight.
The red and black wires may be
reversed.
Ensure the red and black wires are wired
correctly.
The light cycles on
and off at night.
The sensor may be exposed to
a nearby streetlight or other light
source.
Ensure the photo eye is not exposed to a
light source during the evening hours.
The light stays on in
the daylight.
Insufcientlightisreachingthe
photo eye.
• Ensuresufcientlightisreachingthe
photo cell of the control.
• Check for proper wiring.
The light does not
come on at night.
The sensor may be exposed to
a nearby streetlight or other light
source.
Ensure the photo eye is not exposed to a
light source during nighttime hours.
Cement fill line
A
ASSEMBLY INSTRUCTIONS

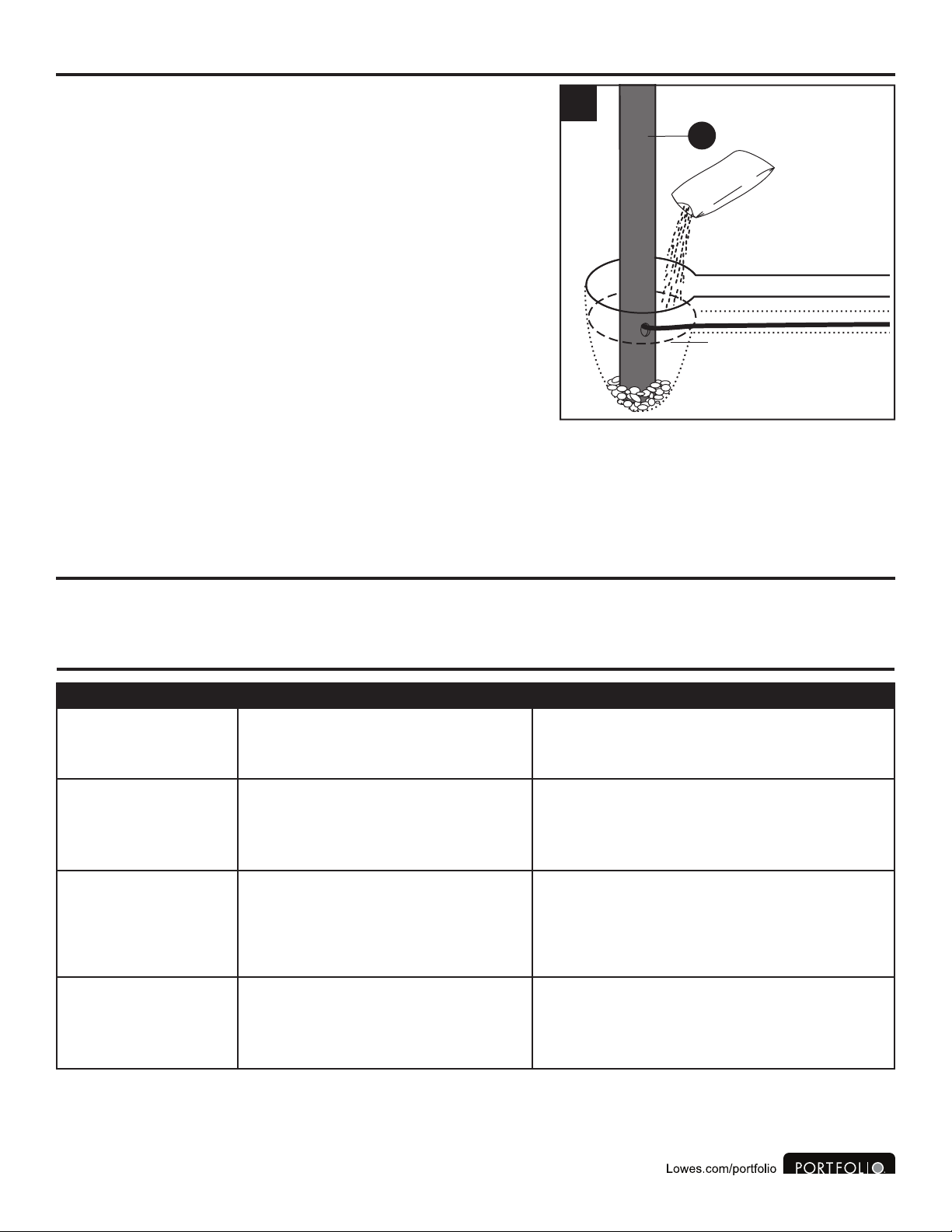

13. Once the lantern post (A) is completely assembled,
secure the lantern post (A) into the hole with concrete
(not included). Note: Ensure the bottom of the lantern
post (A) is embedded in the gravel and is level before
pouring the concrete up to just below the inlet hole.
DO NOT pour concrete up to the ground level.
Continue to hold the lantern post (A) stable until the
concretehardens,thenlltheholeandtrenchwith
soil or sod (not included) to the ground level.
4
13
9
Printed in China
Portfolio®is a registered trademark of
LF, LLC. All Rights Reserved.
LIMITED LIFETIME WARRANTY
Themanufacturerwarrantsallofitslightingxturesagainstdefectsinmaterialsandworkmanshipfor
three (3) years from the date of purchase. If within this period the product is found to be defective,
take a copy of the bill of sale as a proof of purchase and the product in its original carton to the place
of purchase. The manufacturer will, at its option, repair, replace or refund the purchase price to the
consumer.Allcostsofinstallationandremovalofthextureistheresponsibilityoftheconsumer.This
warrantydoesnotcoverxturesbecomingdefectiveduetomisuse,accidentaldamageorimproper
handlingand/orinstallationandspecicallyexcludesliabilityfordirect,incidentalorconsequential
damages. As some states do not allow exclusions of limitations on an implied warranty, the above
exclusionandlimitationmaynotapply.Thiswarrantygivesyouspecicrightsandyoumayalsohave
other rights which may vary from state to state.

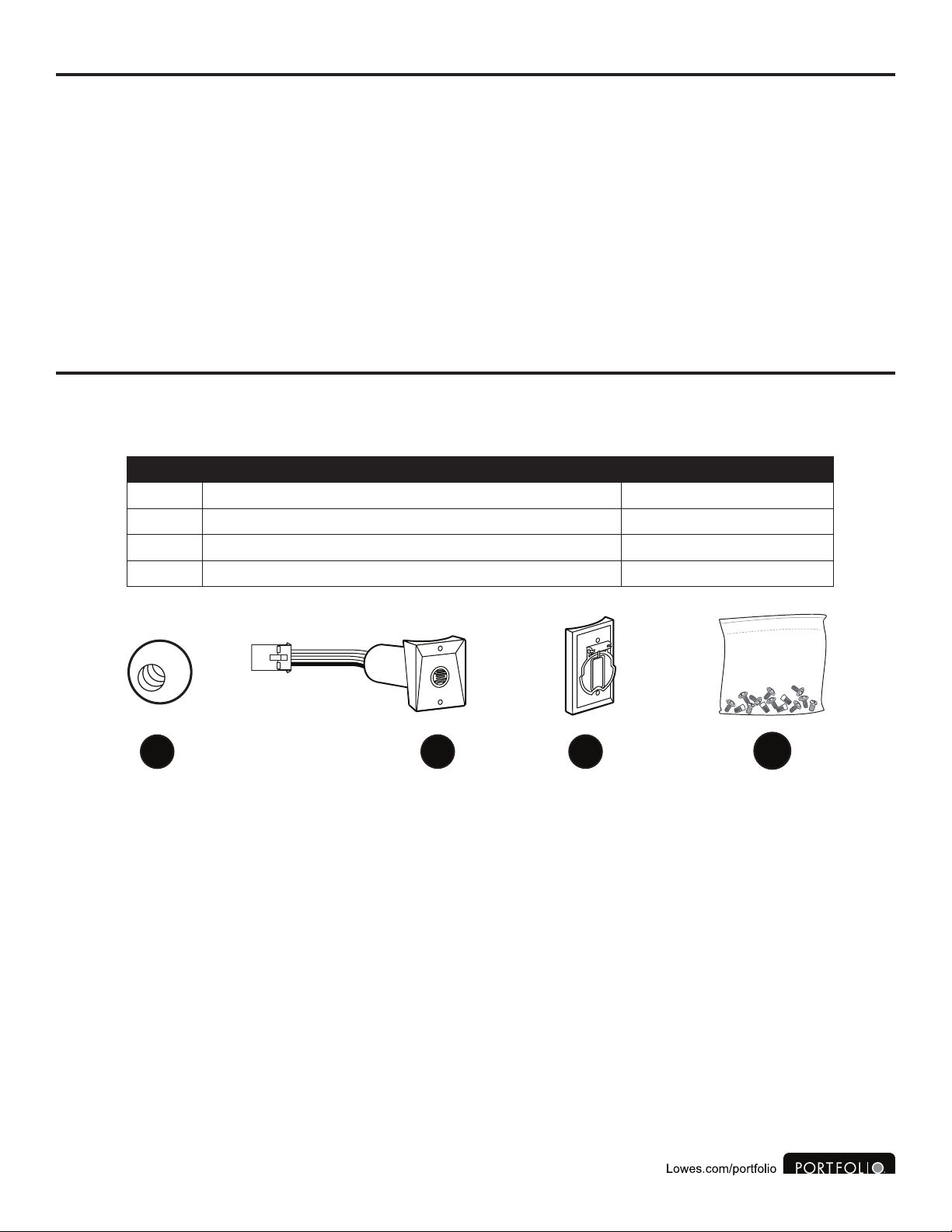

REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION PART #
C Decorative Ball 0013807-C
D Photo Eye 0013807-D
H Convenience Outlet 0013807-H
HW Hardware Kit 0013807-HW
CD H HW
9047•031715
