LG CNS LPT-200AR Manuale utente
User Guide for LPT-200AR
A n d r o i d Ta b l e t P C
All manuals and user guides at all-guides.com
all-guides.com

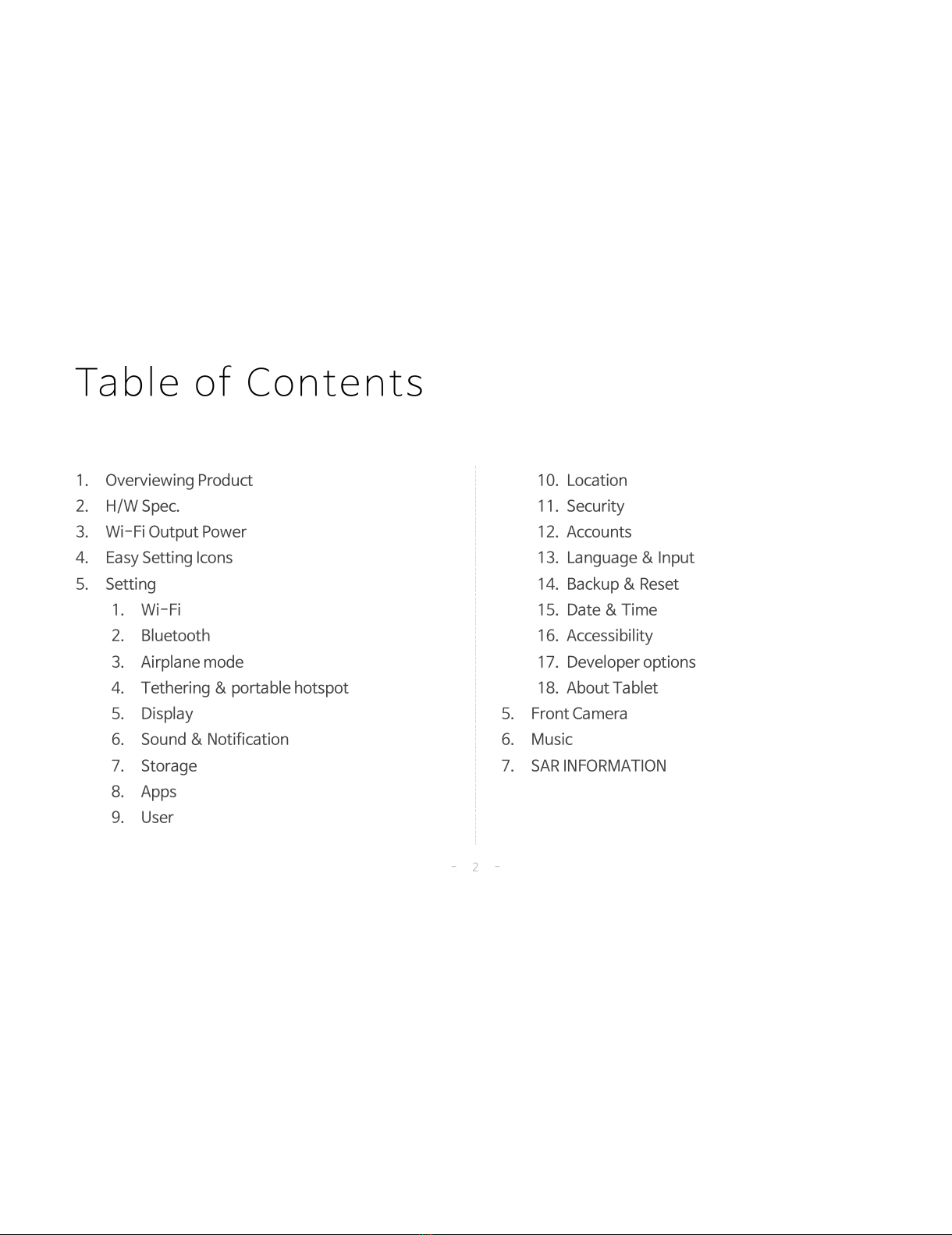

Table of Contents
2
- -
1. Overviewing Product
2. H/W Spec.
3. Wi-Fi Output Power
4. Easy Setting Icons
5. Setting
1. Wi-Fi
2. Bluetooth
3. Airplane mode
4. Tethering & portable hotspot
5. Display
6. Sound & Notification
7. Storage
8. Apps
9. User
10. Location
11. Security
12. Accounts
13. Language & Input
14. Backup & Reset
15. Date & Time
16. Accessibility
17. Developer options
18. About Tablet
5. Front Camera
6. Music
7. SAR INFORMATION
All manuals and user guides at all-guides.com
Overviewing Product
3
- -
2
4
3
5
1
①Illuminance Sensor
②Front Camera
③Mic.
④Micro SD Card Slot
⑤Earjack Port
All manuals and user guides at all-guides.com
Overviewing Product
4
- -
①IMEI Label
②WIFI & BT MAC Address
③Certification Label
④Home Key
⑤Back Key
⑥Recent Key
⑦FCC Waring Label
⑧Micro SD Card Slot
⑨Speaker
1
2
3
9 9
4
5
6
7
8
All manuals and user guides at all-guides.com
H/W Spec.
5
- -
Dimension
246 X 175 X 14.5mm
Weight
620g
Buttons
Home, Back, RECENT
USB
USB 2.0 OTG
Speaker
Channel
Stereo
Frequency Range
20Hz~20,000Hz
Max Output
Left 0.5W+Right 0.5W (With 8Ω )
Display
Inch
10.1"
Resolution
1280 x 800 / MIPI
Panel type
TFT
Touch type
Capacitive
Battery
N/A
CPU
MEDIATEK MT8127A/BA
RAM
1GB (512MB * 2)
All manuals and user guides at all-guides.com
H/W Spec.
6
- -
Flash
eMMC / 16GB
Wi-Fi
IEEE 802.11 b/g/n/a
Camera
Front 2M
3G & LTE Telec Ceritfication Module (Model : LPT-201AR Only)
MIC
Omni
-direction
Bluetooth
v4.0(LE)
Sensor
Light illumination/Acceleration/Gyro/Geomagnetic/NTC
SD Socket
Micro SD Socket
SIM Socket
Nano USIM socket
OS
Android Lollipop 5.1
Media
File format
3GPP, MPEG
-4, ADTS raw AAC, MPEG-TS, MP3
Video codec
H.264 AVC
Audio codec
MPEG
-4 AAC Profile, MPEG-4 HE-AACv1, MPEG-4 HE-AACv2
MPEG
-4 Audio Object Type ER AAC ELD, MP3
All manuals and user guides at all-guides.com
all-guides.com
Wi-Fi Output Power
7
- -
Bandwidth Mode Freq. Data Rate Output Power
20Mhz
b 2.4G 11Mbps 19dBm
g 2.4G 54Mbps 16.5dBm
a5G 54Mbps 17dBm
n
2.4G MCS7 16dBm
5G MCS7 16dBm
40Mhz n
2.4G MCS7 15dBm
5G MCS7 17dBm
All manuals and user guides at all-guides.com
Easy Setting Icons
8
- -
1. Down Scroll from up to down 2. Check Easy-Setting Icons
3
21
①Setting
②Account
③Brightness
④Wi-Fi On/Off
⑤Bluetooth On/Off
⑥Airplane mode On/Off
4 5
6
All manuals and user guides at all-guides.com
Setting –Wi-Fi
9
- -
1. Run by selecting the “Wi-Fi” icon on Settings app. 2. Turn on Wi-Fi by selecting on/off switch button.
All manuals and user guides at all-guides.com
Setting –Wi-Fi
10
- -
3. When the scan is completed,
the screen will appear briefly scanned AP list.
Select the AP you want to connect to.
4. When the AP connection password settings screen
2
1
①enter the password
② and press ‘CONNECT’ button.
All manuals and user guides at all-guides.com
