LG UP48 Manuale utente

P/NO : MFL67855511

INSTALLATION MANUAL

AIR

CONDITIONER

www.lg.com

Please read this installation manual completely before installing the product.

Installation work must be performed in accordance with the national wiring

standards by authorized personnel only.

Please retain this installation manual for future reference after reading it thoroughly.

This product contains Fluorinated Greenhouse Gases. (R410A)

[

Representative

]

LG Electronics Inc. EU Representative : LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

[

Manufacturer

]

LG Electronics Inc. Changwon 2nd factory 84, Wanam-ro, Seongsan-gu, Changwon-si,

Gyeongsangnam-do, KOREA

For more information, Refer to the CD or LG Web site (www.lg.com).

FLOOR STANDING

Original instruction

ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

ΕΛΛΗΝΙΚΆ

ČEŠTINA

NEDERLANDS

POLSKI

LIMBA ROMÂNĂ

• Do not cool excessively indoors. This may be harmful for your health and may consume more

electricity.

• Block sunlight with blinds or curtains while you are operating the air conditioner.

• Keep doors or windows closed tightly while you are operating the air conditioner.

• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.

• Speed up the fan to cool or warm indoor air quickly, in a short period of time.

• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air condi-

tioner is used for many hours.

• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the

air flow or weaken the cooling / dehumidifying functions.

For your records

Staple your receipt to this page in case you need it to prove the date of purchase or for warranty

purposes. Write the model number and the serial number here:

Model number :

Serial number :

You can find them on a label on the side of each unit.

Dealer’s name :

Date of purchase :

Here are some tips that will help you minimize the power consumption when you use the air

conditioner. You can use your air conditioner more efficiently by referring to the instructions

below:

TIPS FOR SAVING ENERGY

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLI-

ANCE.

Always comply with the following precautions to avoid danger-

ous situations and ensure peak performance of your product

WARNING

It can result in serious injury or death when the directions are

ignored

CAUTION

It can result in minor injury or product damage when the direc-

tions are ignored

WARNING

• Installation or repairs made by unqualified persons can result

in hazards to you and others.

• Installation MUST conform with local building codes or, in the

absence of local codes, with the Nation Electrical Code NFPA

70/ANSI C1-1003 or current edition and Canadian Electrical

Code Part1 CSA C.22.1.

• The information contained in the manual is intended for use

by a qualified service technician familiar with safety proce-

dures and equipped with the proper tools and test instru-

ments.

• Failure to carefully read and follow all instructions in this man-

ual can result in equipment malfunction, property damage,

personal injury and/or death.

ENGLISH

Installation

• Always perform grounding.

- Otherwise, it may cause electrical shock.

• Don’t use a power cord, a plug or a loose socket which is

damaged.

- Otherwise, it may cause a fire or electrical shock.

• For installation of the product, always contact the service cen-

ter or a professional installation agency.

- Otherwise, it may cause a fire, electrical shock, explosion or

injury.

• Securely attach the electrical part cover to the indoor unit and

the service panel to the outdoor unit.

- If the electrical part cover of the indoor unit and the service

panel of the outdoor unit are not attached securely, it could

result in a fire or electric shock due to dust, water, etc.

• Always install an air leakage breaker and a dedicated switch-

ing board.

- No installation may cause a fire and electrical shock.

• Do not keep or use flammable gases or combustibles near

the air conditioner.

- Otherwise, it may cause a fire or the failure of product.

• Ensure that an installation frame of the outdoor unit is not

damaged due to use for a long time.

- It may cause injury or an accident.

• Do not disassemble or repair the product randomly.

- It will cause a fire or electrical shock.

• Do not install the product at a place that there is concern of

falling down.

- Otherwise, it may result in personal injury.

• Use caution when unpacking and installing.

- Sharp edges may cause injury.

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

Operation

• Do not share the outlet with other appliances.

- It will cause an electric shock or a fire due to heat genera-

tion.

• Do not use the damaged power cord.

- Otherwise, it may cause a fire or electrical shock.

• Do not modify or extend the power cord randomly.

- Otherwise, it may cause a fire or electrical shock.

• Take care so that the power cord may not be pulled during

operation.

- Otherwise, it may cause a fire or electrical shock.

• Unplug the unit if strange sounds, smell, or smoke comes

from it.

- Otherwise, it may cause electrical shock or a fire.

• Keep the flames away.

- Otherwise, it may cause a fire.

• Take the power plug out if necessary, holding the head of the

plug and do not touch it with wet hands.

- Otherwise, it may cause a fire or electrical shock.

• Do not use the power cord near the heating tools.

- Otherwise, it may cause a fire and electrical shock.

• Do not open the suction inlet of the indoor/outdoor unit during

operation.

- Otherwise, it may electrical shock and failure.

• Do not allow water to run into electrical parts.

- Otherwise, it may cause the failure of machine or electrical

shock.

• Hold the plug by the head when taking it out.

- It may cause electric shock and damage.

• Never touch the metal parts of the unit when removing the fil-

ter.

- They are sharp and may cause injury.

6IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

• Do not step on the indoor/outdoor unit and do not put any-

thing on it.

- It may cause an injury through dropping of the unit or falling

down.

• Do not place a heavy object on the power cord.

- Otherwise, it may cause a fire or electrical shock.

• When the product is submerged into water, always contact

the service center.

- Otherwise, it may cause a fire or electrical shock.

• Take care so that children may not step on the outdoor unit.

- Otherwise, children may be seriously injured due to falling

down.

IMPORTANT SAFETY INSTRUCTIONS 7

ENGLISH

CAUTION

Installation

• Install the drain hose to ensure that drain can be securely

done.

- Otherwise, it may cause water leakage.

• Install the product so that the noise or hot wind from the out-

door unit may not cause any damage to the neighbors.

- Otherwise, it may cause dispute with the neighbors.

• Always inspect gas leakage after the installation and repair of

product.

- Otherwise, it may cause the failure of product.

• Keep level parallel in installing the product.

- Otherwise, it may cause vibration or water leakage.

Operation

• Avoid excessive cooling and perform ventilation sometimes.

- Otherwise, it may do harm to your health.

• Use a soft cloth to clean. Do not use wax, thinner, or a strong

detergent.

- The appearance of the air conditioner may deteriorate,

change color, or develop surface flaws.

• Do not use an appliance for special purposes such as preserv-

ing animals vegetables, precision machine, or art articles.

- Otherwise, it may damage your properties.

• Do not place obstacles around the flow inlet or outlet.

- Otherwise, it may cause the failure of appliance or an acci-

dent.

TABLE OF CONTENTS

ENGLISH

2TIPS FOR SAVING EN-

ERGY

3IMPORTANT SAFETY IN-

STRUCTIONS

9INSTALLATION PLACE

9Select the best Location

9- Indoor unit

10 INSTALLATION

10 Indoor unit installation

11 Precautions in bending

12 WIRING CONNECTION

12 Connecting the cable

12 - Indoor unit

13 LEAKAGE TEST AND

EVALUATION

13 Vacuum drying of the connecting

pipes and the indoor unit

14 FINAL CHECK AND TEST

RUN

TABLE OF CONTENTS

Select the best Location

Indoor unit

- There should not be any heat source or steam near the unit.

- There should not be any obstacles to prevent the air circulation.

- A place where air circulation in the room will be good.

- A place where drainage can be easily obtained.

- A place where noise prevention is taken into consideration.

- Do not install the unit near the door way.

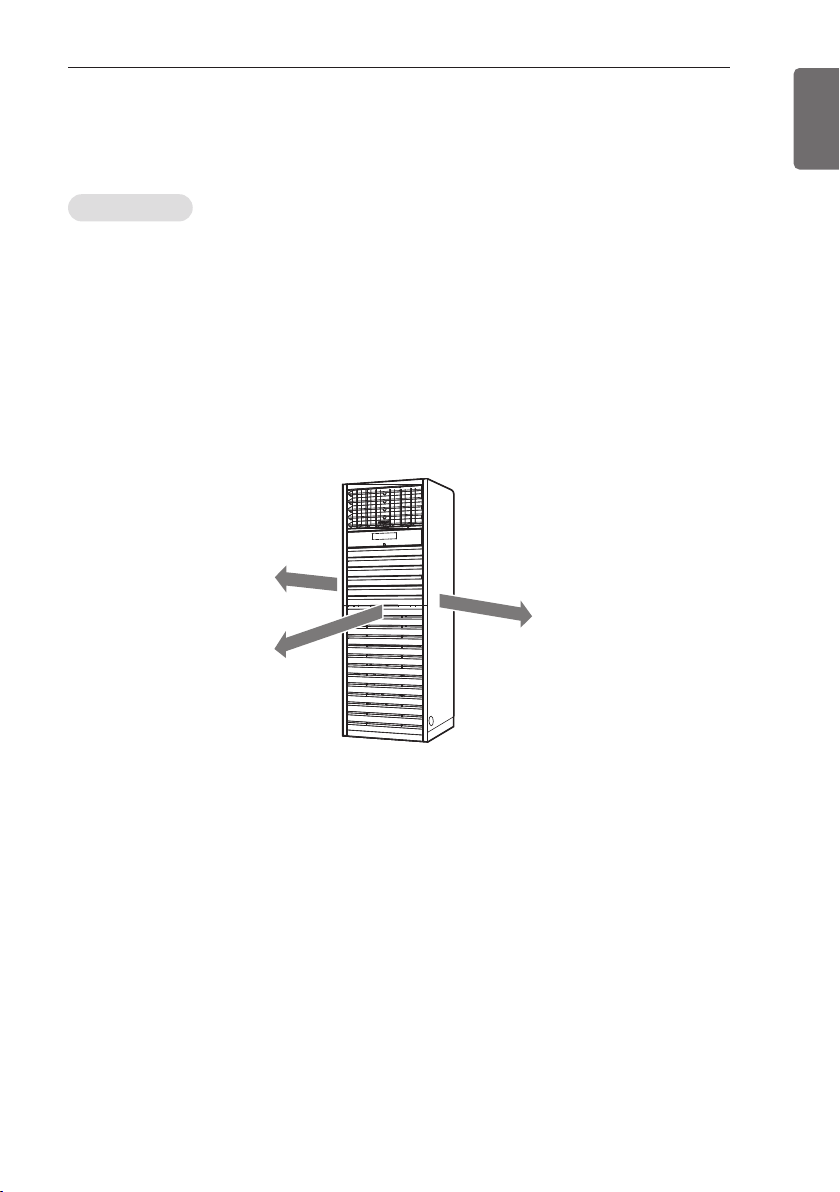

- Ensure the spaces indicated by arrows from the wall, ceiling, or other obstacles.

- The indoor unit must keep the maintenance space.

INSTALLATION PLACE

ENGLISH

300mm 300mm

300mm

10 INSTALLATION

ENGLISH

Indoor unit installation

1The mounting floor should be strong and

solid enough to prevent it from vibration.

2Drill the piping hole with 70mm diameter

hole-core drill at either the right or the left

of indoor unit. The hole should be sightly

slant to the outdoor side.

3Insert the plastic tube through the hole.

4 Cut the extruded outside part of the plastic

tube, if necessary.

- When using knock-out hole to route the pip-

ing, insert the plastic cover in knock-out hole

in order to prevent the piping from damaged

by sharp edge of the hole.

200mm

70mm 70mm

90mm

Wall

Core Drill

Tilt

Cut if

necessary

than 15mm

Wall

Plastic tube

(Bushing)

INSIDE OUTSIDE

INSTALLATION
