LG 505C Manuale utente
LG505C User Guide
- English
Some of the contents in this manual may differ from your phone
depending on the software of the phone or your service provider.
Phone Overview
2

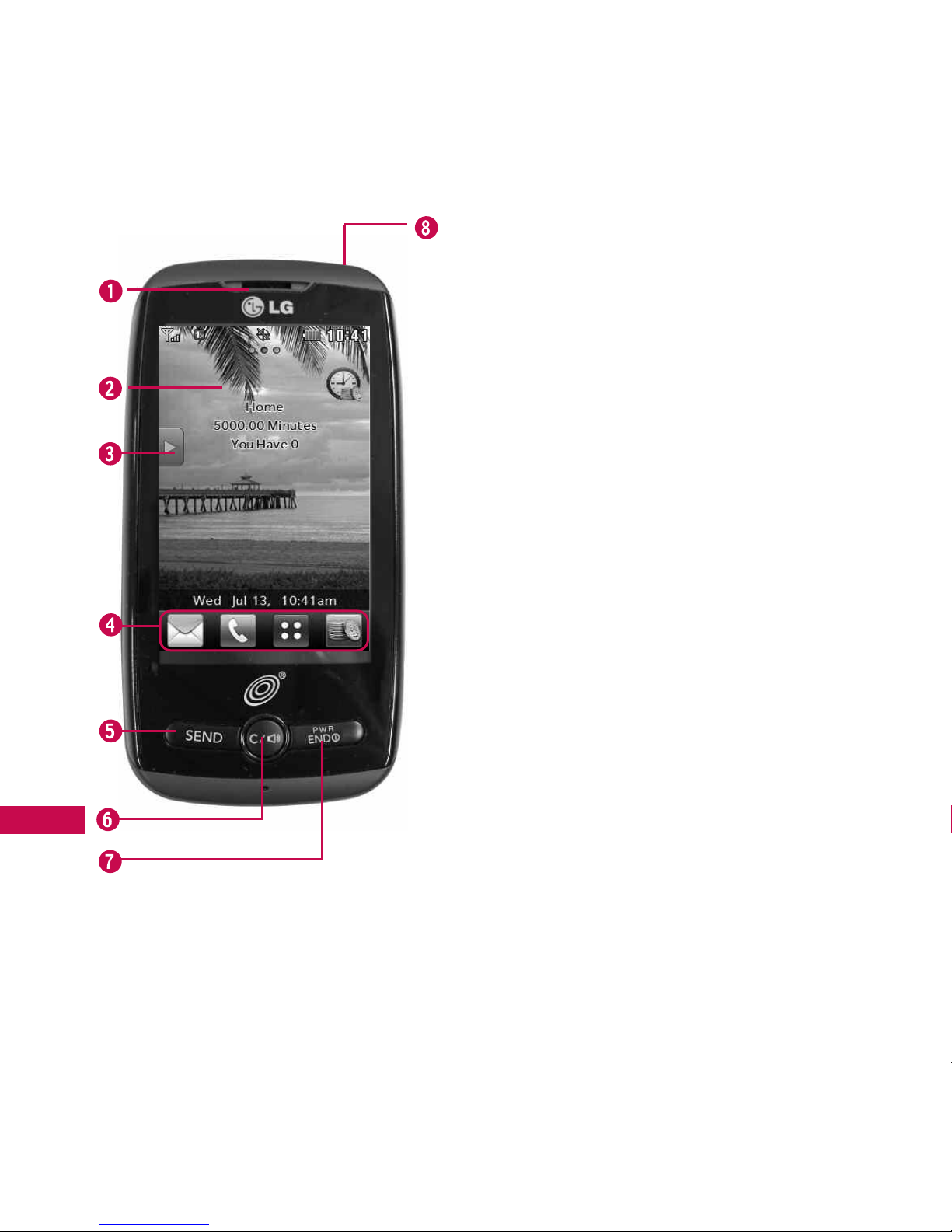

Phone Overview
1.Earpiece Lets you hear the caller.
2.
Touch Screen
Displays incoming calls, messages and
indicator icons as well as a wide variety of content you
select to view.
3.
Shortcuts Key
Allows quick access to a customizable
Shortcut Menu.
4.
Quick Keys
The Quick Keys provide easy access to
Messages, the phone Dialpad, the Main Menu, and
Prepaid which easily activate with the touch of your
fingertip.
5.
Send Key
Use to answer incoming calls and to place
calls from the Dialpad. From Standby mode, pressing
this key will open the All Calls list of your Recent Calls
menu.
6.
Clear Key / Voice Commands Key
Deletes single
spaces or characters. Also backs out of menus, one level
at a time. While in Standbymode, use for quick access
to Voice Commands or press and hold to access Voice
Recorder.
7.
PWR/End Key
Use toturn the power on/off and to end
acall. Also returns to Standby mode.
8.
Earphone Jack
Allowsthe use of a headsetto hear
caller's voice.
3

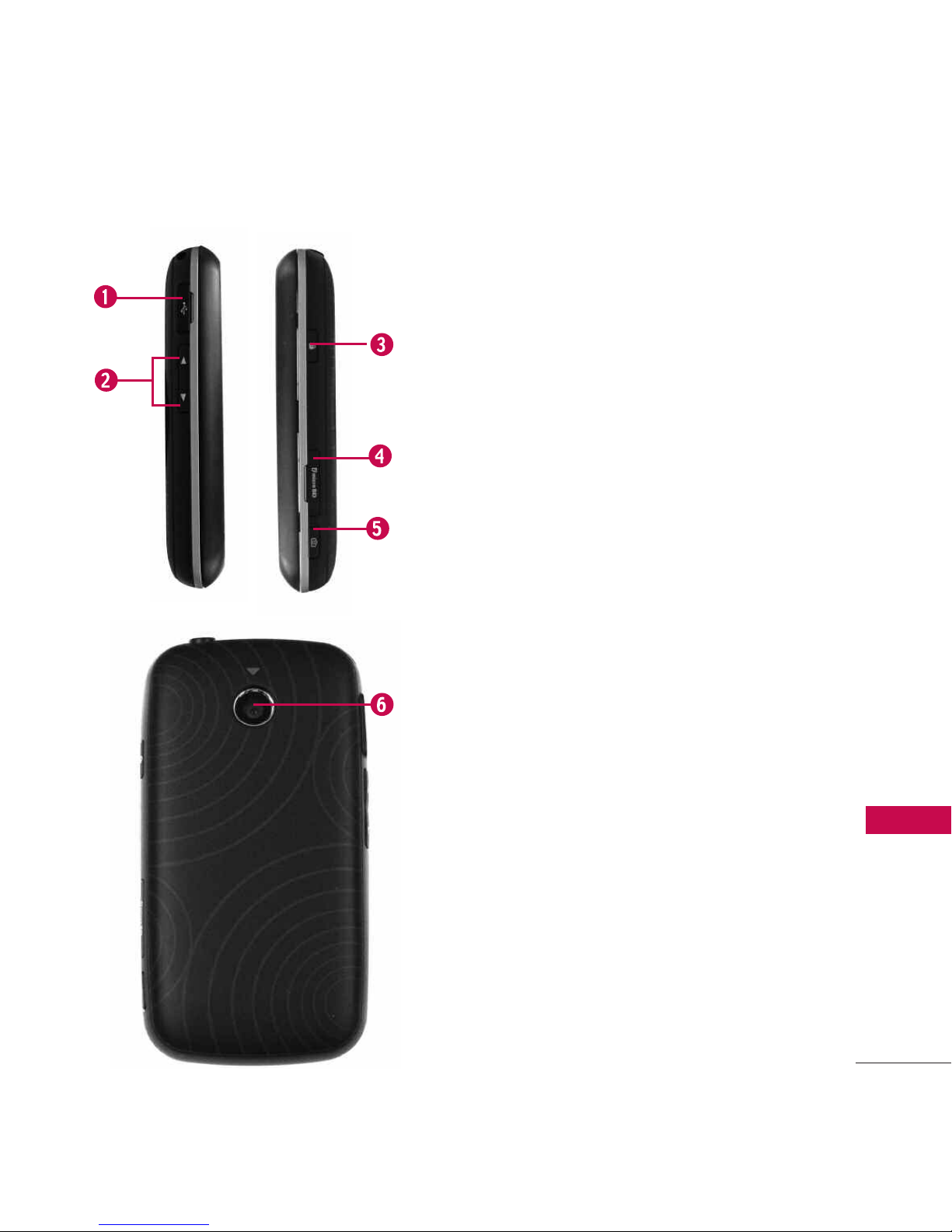

Phone Overview
1.
Accessory Charger Port
Connects the phone to
the battery charger, or other compatible accessories.
2.
Volume Keys
Use to adjust the Master Volume in
Standby mode* and the Earpiece Volume during a
call.
3.
Lock/ Unlock Key
Press to lock or unlock the
touch screen and keys.
4.
microSD™ Slot
Accommodatesoptional
microSD cards up to 16GB.
5.
CameraKey
Press for 3 seconds to access the
Camera function. When pressed short, Multimedia
menu will be available.
6.
Camera Lens
Used for taking pictures. Keep it
clean for optimal photo quality.
Phone Overview
4
Phone Overview

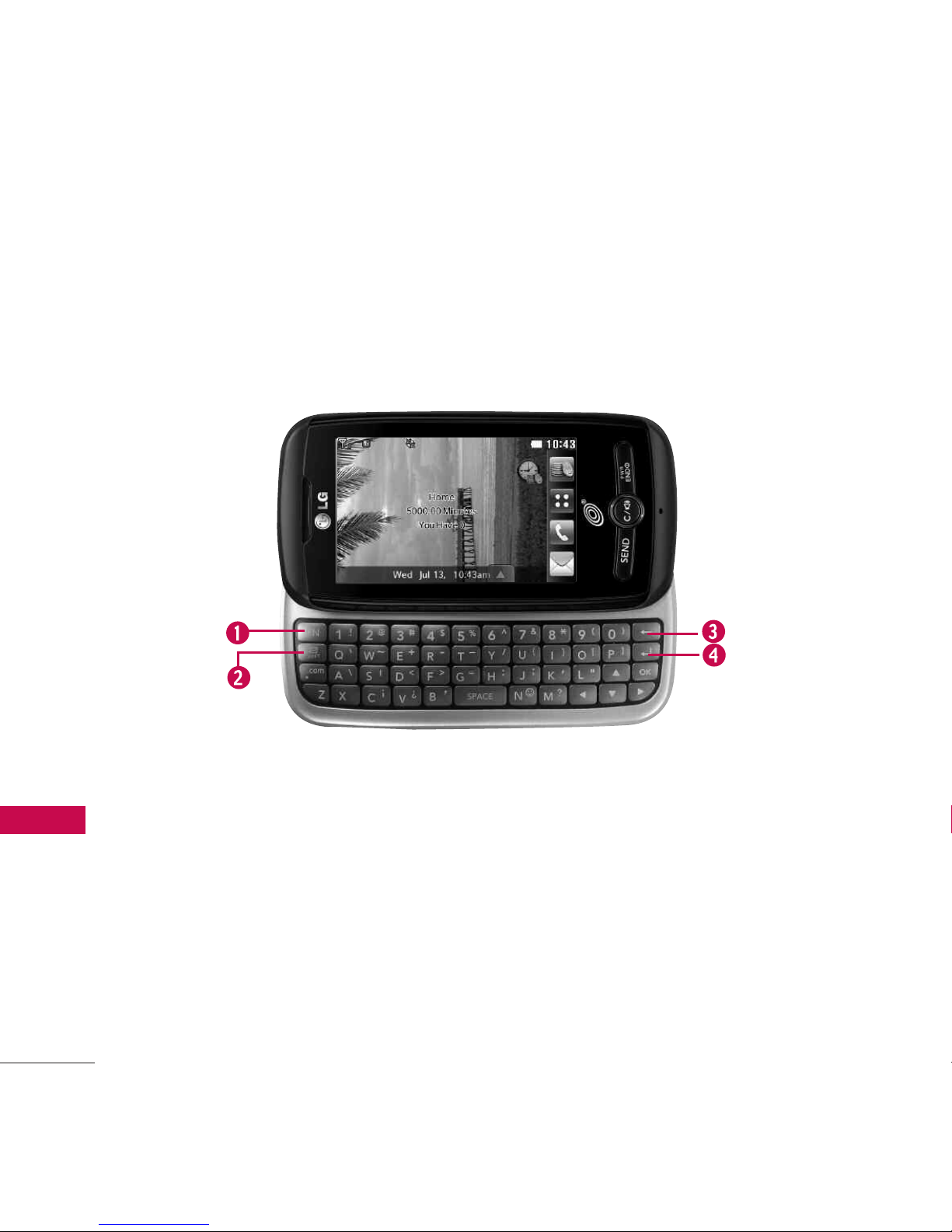

Internal Qwerty Keypad
Your phone features a QWERTY keyboard, specifically designed for
easy and comfortable text entry. The QWERTY keyboard uses a
standard layout.
1. Function Key allows you enter the alternate
character (such as ~for the W key) on the
QWERTY keyboard. To lock the function key
(as when entering a series of numbers or
alternate characters), press twice.
2. SHIFT Key lets you change letter capitalization
when entering text, using the QWERTY
keyboard.
3. CLEAR Key Use todeletealetter, words or
sentences. Also use it to exit the menu and go
back to standby mode.
4. Enter key Use togo to next line editing your
message.
Menus Overview
5
Menus Overview
Prepaid
1. Add Airtime
2. Buy Airtime
3. My Phone Number
4. Airtime Info
5. Airtime Display
6. Serial Number
7. Code Entry Mode
Contacts
1. New Contact
2. Contact List
3. Groups
4. My vCard
5. Speed Dials
Messages
1. New Text Message
2. New Picture
Message
3. Inbox
4. Drafts
5. Outbox
6. Voicemail
7. Templates
8. Delete All
9. Settings
Recent Calls
1. Missed Calls
2. Received Calls
3. Dialed Calls
4. All Calls
5. Call Timer
6. DataCounter
Games
1. BuyGames
2. Let’s Go Bowling
3. UNO
Menu Access
Touch Menu to access the twelve phone menus. There are two
methods of accessing menus and submenus:
Menus Overview
6
Menus Overview
Browser
Multimedia
1. Take Photo
2. Record Voice
3. My Stuff
4. Music
New Text Message
Take Photo
My Schedule
1. Alarm Clock
2. Calendar
3. Notepad
Tools
1. Voice Command
1. Call<Name or
Number>
2. Send Msg to
<Name or
Number or
Group>
3. Check <Item>
4. Contacts
<Name>
5. Play
6. Help
2. Calculator
3. Ez Tip Calculator
4. World Clock
5. Unit Converter
1. Currency
2. Area
3. Lenght
4. Mass
5. Temperature
6. Volume
7. Velocity
6. Drawing Panel
7. Stopwatch
Settings
1. Sound Settings
1. Master Volume
2. Call Sounds
3. Message Alerts
4. Button Sounds
5. Service Alerts
6. Power On/Off
2. Display Settings
1. Display
7
Menus Overview
Backlight
2. Keypad
Backlight
3. Wallpaper
4. Clocks &
Calender
5. Theme
6. Font Settings
7. Dial Font Size
8. Clock Format
9. Name Match for
Dialing
3. Call Settings
1. Answer Options
2. Auto Retry
3. TTY Mode
4. One Touch Dial
5. Voice Privacy
4. Touch Settings
1. Auto Touch Lock
2. Vibrate Type
3. Vibrate Level
4. Tone Type
5. Calibration
5. Phone Settings
1. Airplane Mode
2. Languages
3. Loccation
4. Security
5. System Select
6. Bluetooth
7. USB Connection
8. Memory
1. Phone Memory
2. Card Memory
3. Save Options
8. Phone Info
1. My Number
2. MEID
3. Icon Glossary
4. SW/HW Version
Getting Started with Your Phone
8
Getting Started with Your Phone
The Battery
The phone comes with a
rechargeable battery. The battery
charge level is shown at the top
of the LCD screen.
Installing the Battery
Remove the battery cover. Align
the battery contacts with the
phone terminals at the top of
the battery compartment. Gently
push down on the battery until it
clicks intoplace. Replace the
battery cover.
Removing the Battery
Turn the phone off. Remove the
battery cover. Use the fingertip
cutout near the bottom of the
battery compartment to lift the
battery out.
Charging the Battery
To use the charger provided with
your phone:
Warning! Use only the charger
provided with the phone. Using
any charger other than the one
included with the L
L
G
G
5
5
0
0
5
5
C
C
may
damage your phone or battery.
Note
It is important to fully charge the
battery before initial use of the
phone.
Slot
9
Getting Started with Your Phone
1. Connect the USB data cable
into the wall adapter, as shown
below.
2. Gently uncover the phone's
accessory/ charger port. Then
plug the USB data cable (as
shown in the next image) into
the accessory/ charger port
and the other end into an
electrical outlet. The charge
time varies depending upon
the battery level.
Battery Charge Level
The battery charge level is shown
at the top right of the LCD
screen. When the battery charge
level becomes low, the low
battery sensor alerts you in three
ways: sounding an audible tone,
blinking the battery icon, and
displaying a warning message. If
the battery charge level becomes
exceedingly low, the phone
automatically switches off and
any function in progress is not
saved.
Turning the Phone On and Off
Turning the Phone On
1. Install a charged battery or
connect the phone to an
external power source.
2. Press for about 3
seconds until the LCD screen
lights up.
Notice
Please make sure that the'B' side is facing up
before inserting a charger or data cable into
the charger port of your phone.
Getting Started with Your Phone
10
Getting Started with Your Phone
Turning the Phone Off
1. Press and hold until the
display turns off.
Signal Strength
Call quality depends on the
signal strength in your area. You
can tell how much signal strength
you have by the number of bars
next to the signal strength icon:
the more bars, the stronger the
signal. If you’re having problems
with signal quality, move to an
open area or, when inside a
building, try moving near a
window.
Screen Icons
To see the icon glossary, go to
Menu
->
Settings
->
Phone Info
->
Icon Glossary
on
your phone.
Making Calls
1. Make sure the phone is
turned on. If not, press
for about 3 seconds to turn it
on.
2. Enter the phone number
(include the area code if
needed).
3. Press .
4. Press to end the call.
Correcting Dialing Mistakes
If you make a mistake while
dialing a number, touch the Clear
Key once to erase the last
digit entered, or hold the Clear
Key down to delete all digits.
