5-0016 Small Phillips Screwdriver
5-0019 Plasc Opening Tools
5-0022 Nylon Spudger
5-1370 Fine Tip Curved Tweezers
5-1451 iSesamo Opening Tool
5-1665 Mul-Purpose Heat Gun
LG G3 D851
DISASSEMBLE GUIDE
Page 1 of 7
Recommended Tools
hp://www.fixez.com/
This comprehensive guide walks you through how to completely disassemble the LG G3 smartphone. Following the
step-by-step instrucons we have provided will help you quickly, and safely, replace not only a broken display assembly
(LCD and touch screen digizer), but also any other internal components that may have become damaged. Find high
quality G3 replacement parts, premium tools and DIY repair instrucons at Fixez.com to get your LG handset working,
and looking, like new again.
You can find a full archive of fixez.com disassemble guides and HD repair videos, for numerous makes and models of
smartphones and tablets, by vising hp://www.fixez.com.
LG G3 D851 – Disassemble Guide
Page 2 of 7
hp://www.fixez.com/
Loudspeaker
Baery

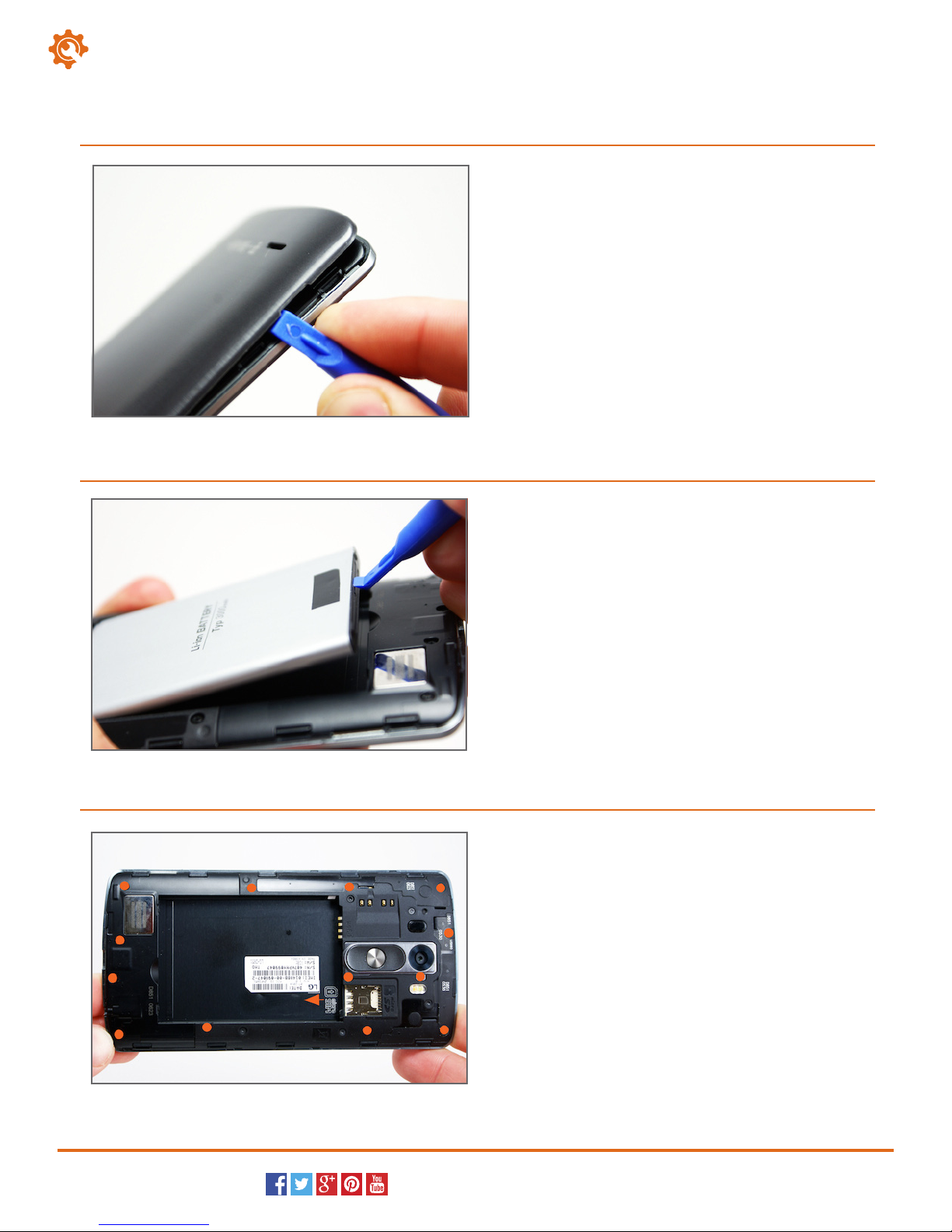

Insert the plastic opening tool or spudger in the notch
that is located on the side of the LG handset. Carefully
work your way around the entire smartphone, gently
freeing the locking clips.
You can now remove the battery door/cover from the
LG G3.
1.
Next, utilize the plastic opening tool or spudger to pry
the battery up and out of its secured location.
2.
Locate and remove the thirteen small Phillips screws
(#00) that secure the rear housing/frame and
loudspeaker to the smartphone (marked with orange
circles).
Then slide the SIM and Micro-SD cards out of their trays
(marked with an orange arrow).
3.
LG G3 D851 – Disassemble Guide
Page 3 of 7
hp://www.fixez.com/

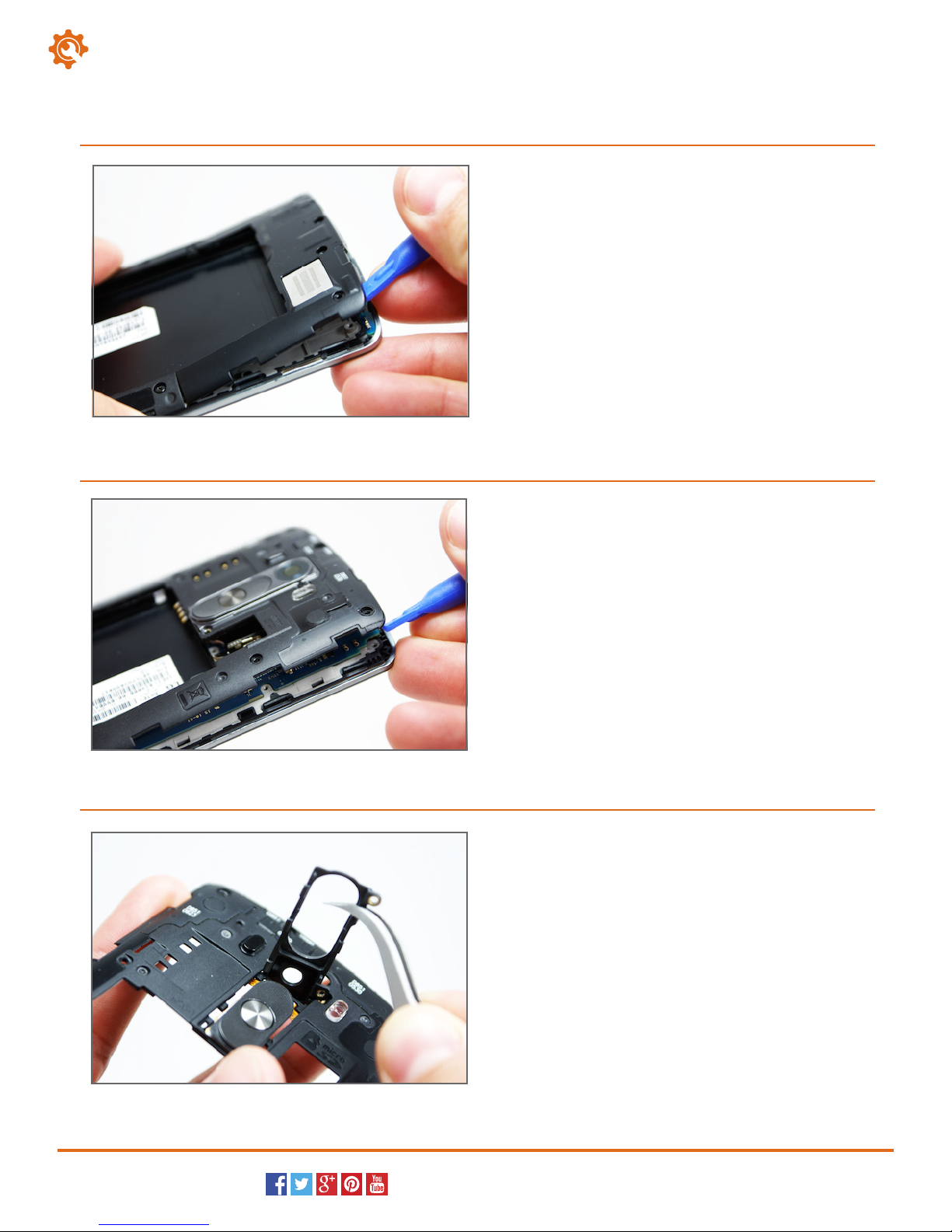

Insert the plastic opening tool in the seam of the
smartphone to create separation between the
loudspeaker and the phone.
You can now carefully remove the loudspeaker from
the LG G3.
4.
Next, use the pry tool or spudger to separate the rear
housing/frame from the smartphone’s display assem-
bly. Work your way around the perimeter of the
handset until all of the clips have been released and
the rear housing/frame is removed from the G3.
5.
Utilize the heat gun or a blow dryer to soften the
adhesive securing the power and volume button
assembly to the rear housing/frame.
Now, use the fine-tip curved tweezers to gently pry the
power and volume button assembly up from the
adhesive and remove it from the LG handset.
6.
Power & Volume Buons
LG G3 D851 – Disassemble Guide
Page 4 of 7
hp://www.fixez.com/

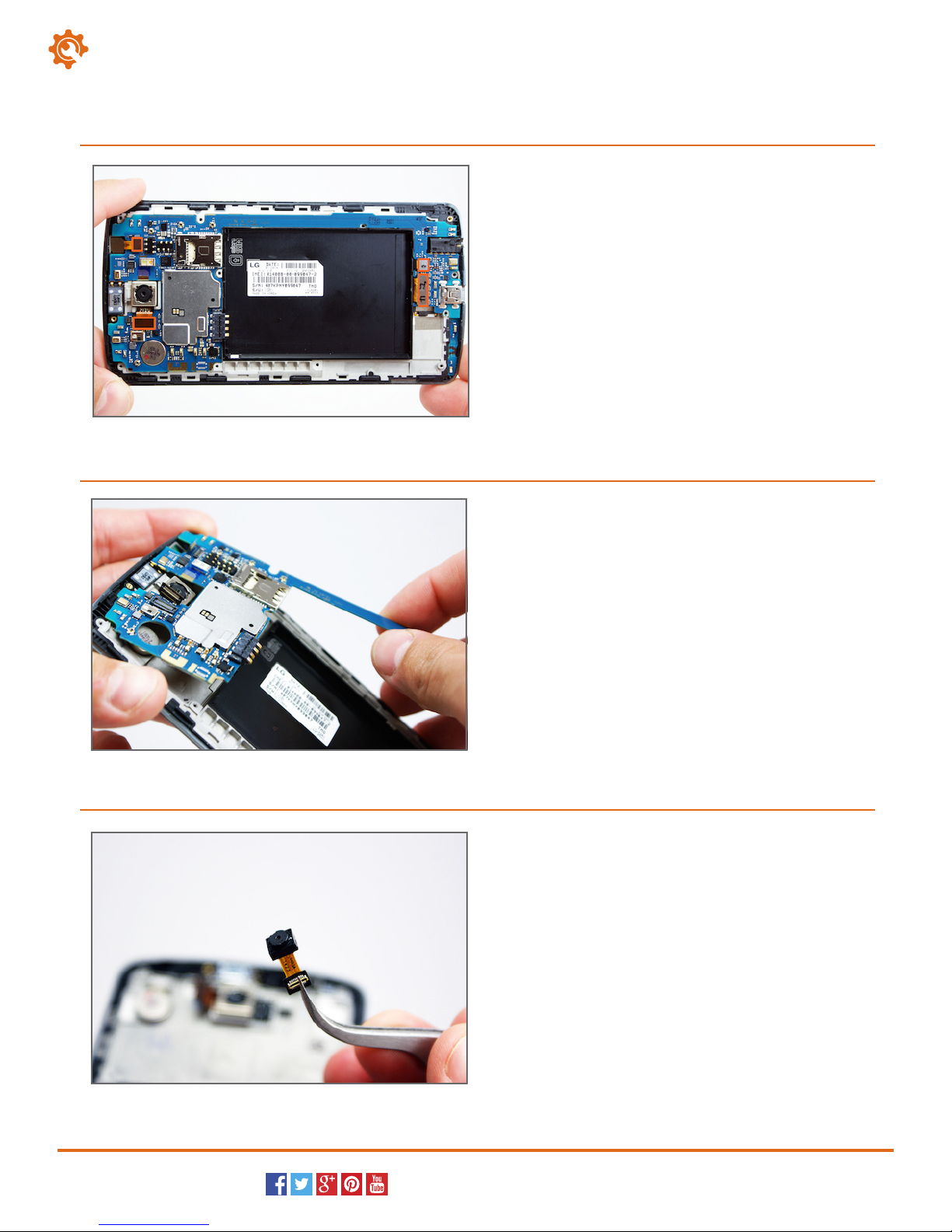

Locate the four wafer connections (marked with
orange rectangles). Use the fine-tip curved tweezers to
release the connections from their sockets.
7.
You can now carefully maneuver the motherboard out
of the LG G3.
8.
The front-facing camera is located in the top corner of
the LG G3. Use the fine-tip curved tweezers to lift the
camera out of its housing and remove it from the LG
handset.
9.
Motherboard
Front-Facing Camera
LG G3 D851 – Disassemble Guide
Page 5 of 7
hp://www.fixez.com/

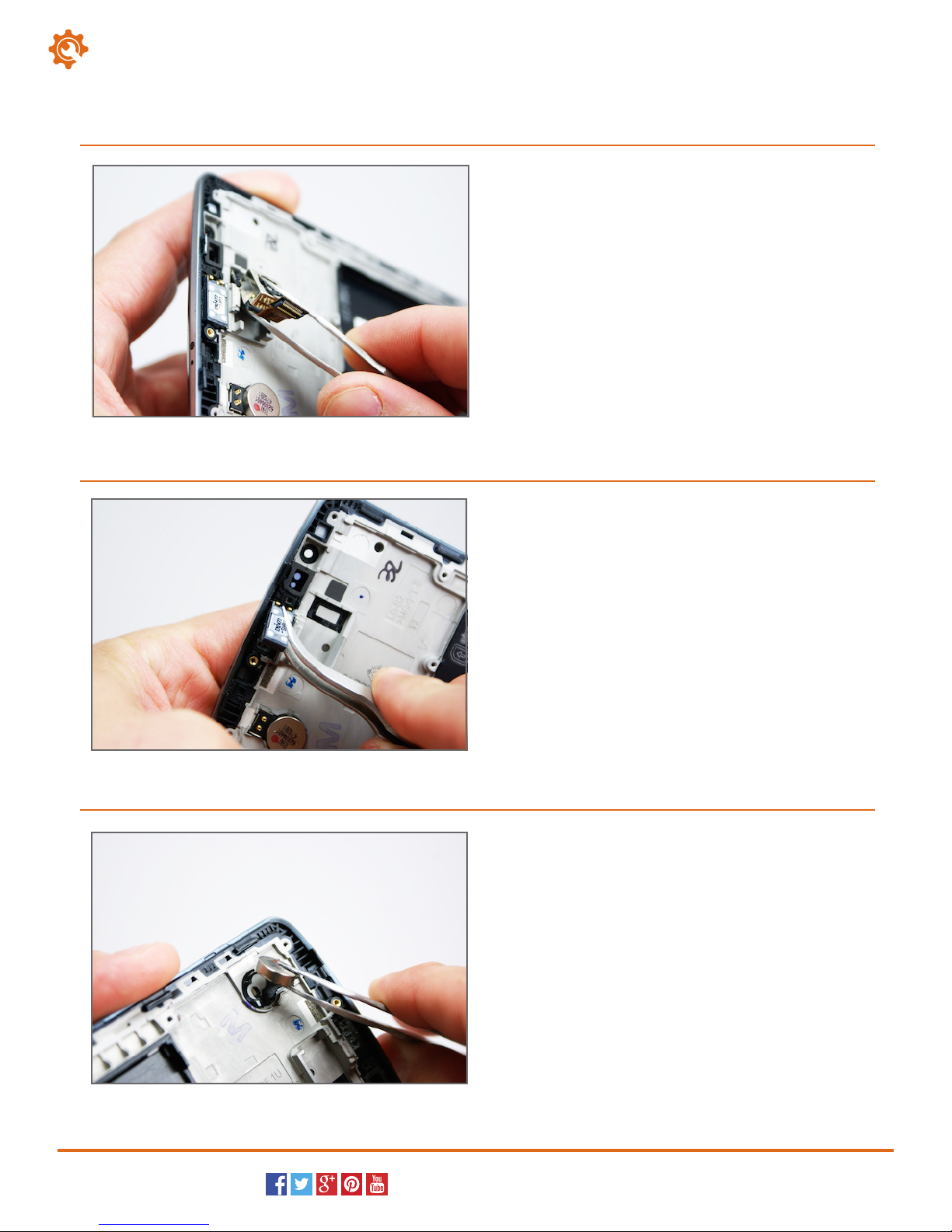

The rear-facing camera is located toward the top of the
handset and is secured in place with a small amount of
adhesive.
Utilize the heat gun or a blow dryer to soften the
adhesive, and then use the fine-tip curved tweezers to
lift the camera out of its housing and remove it from
the G3.
10.
Use the fine-tip curved tweezers to lift up and remove
the earpiece speaker from the LG G3.
11.
Use the fine-tip curved tweezers to lift up and remove
the vibrator from the LG G3.
12.
Vibrator
Rear-Facing Camera
Earpiece Speaker
LG G3 D851 – Disassemble Guide
Page 6 of 7
hp://www.fixez.com/
Display Assembly (LCD & Touch Screen Digizer)
Headphone Jack

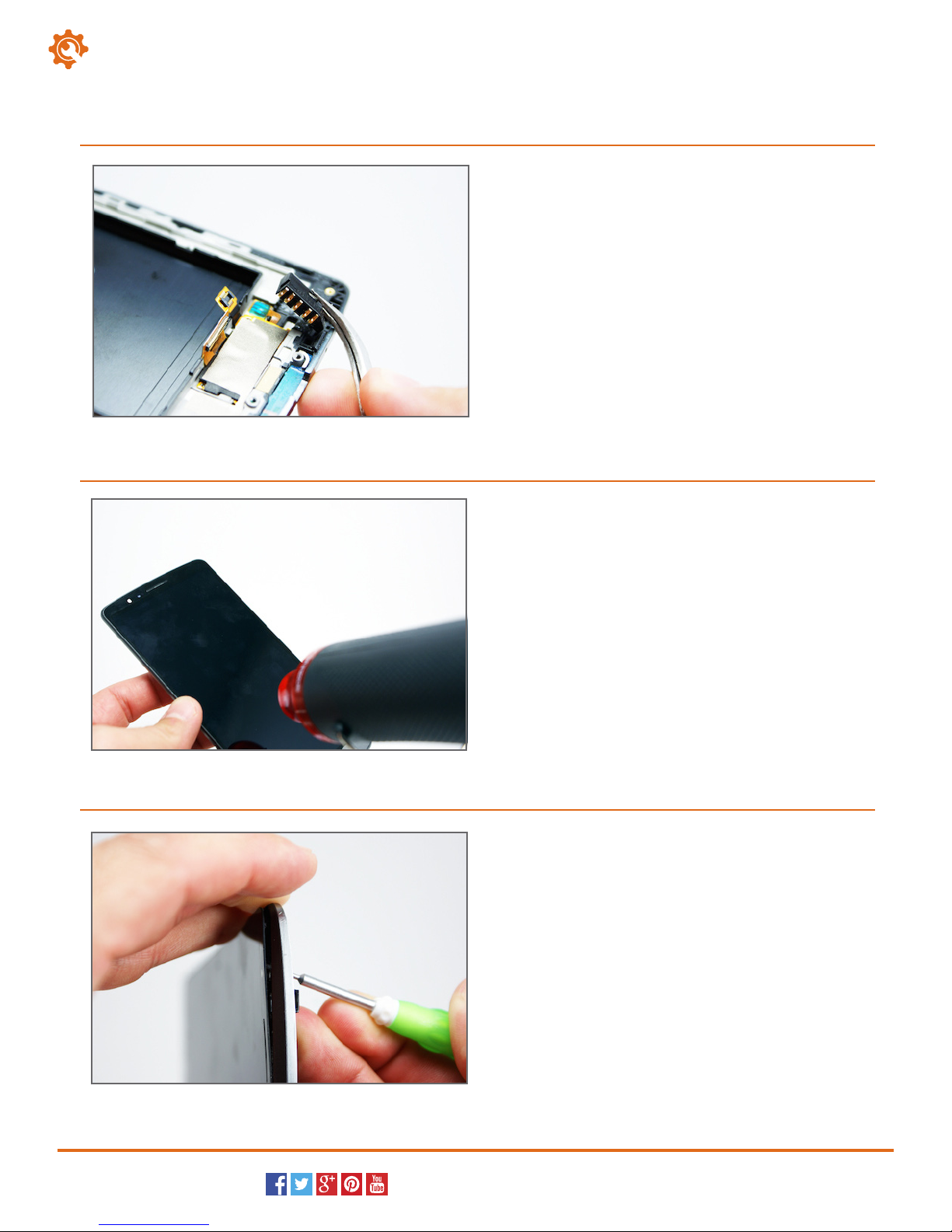

Use the fine-tip curved tweezers to lift/pry up the
headphone jack from its housing and remove it from
the LG smartphone.
13.
The LCD & touch screen/front panel on the LG G3 are
fused together and cannot be separated from the
frame/bezel of the smartphone without the use of heat
and patience. Separating the display assembly from the
frame is only recommended if the G3 has a CRACKED
or DAMAGED screen that needs to be replaced.
Use the heat gun or a blow drier to soften the adhesive
securing the display assembly to the frame/bezel of the
LG G3.
14.
To separate the display assembly from the frame/front
housing, utilize one of the screwdrivers, and through the
front-facing camera hole carefully push the damaged
display assembly away from the LG G3’s frame.
You can now use the plastic opening tool or nylon
spudger to continue working around the entire G3
display assembly slowly separating it from the
frame/front housing.
15.
LG G3 D851 – Disassemble Guide
Page 7 of 7
hp://www.fixez.com/

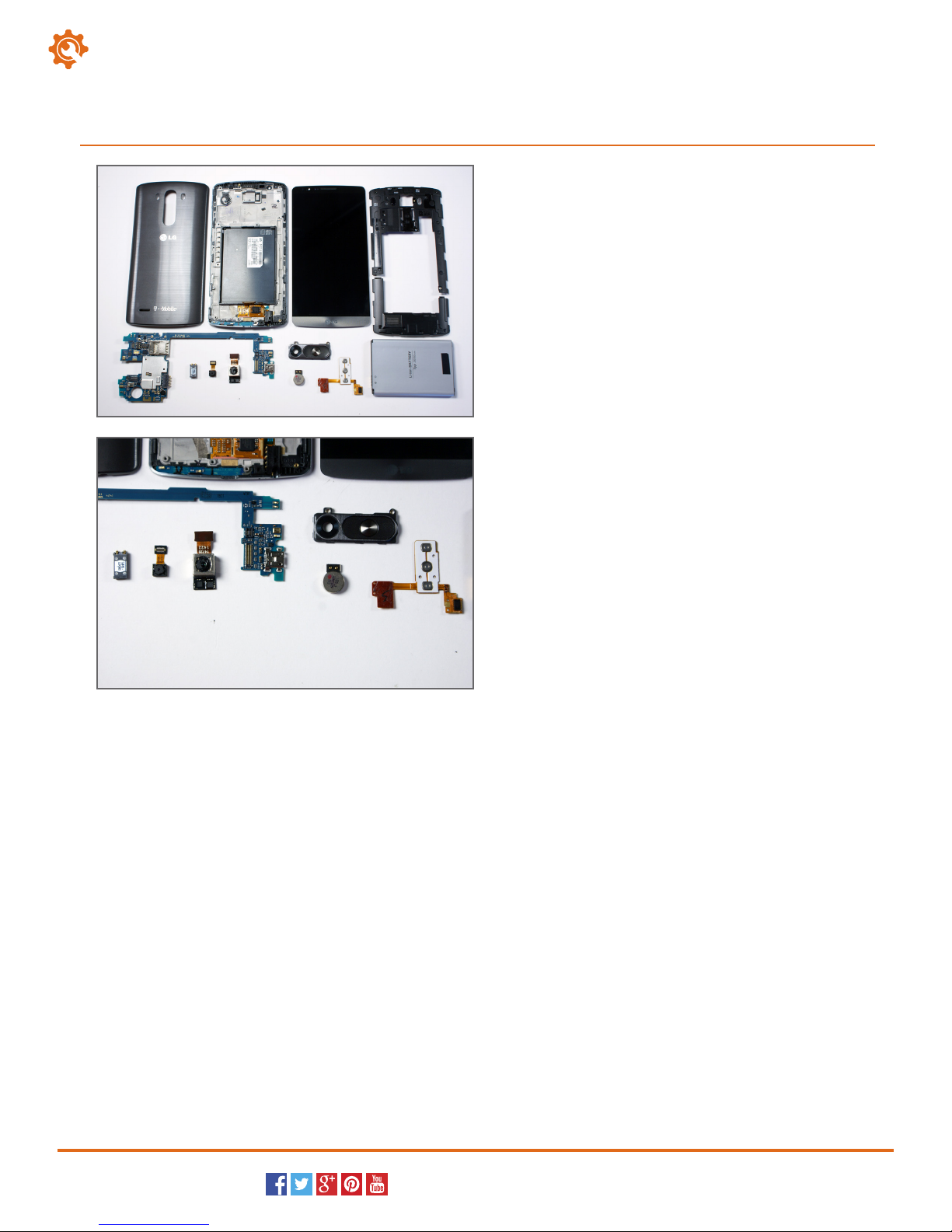

Breakdown
1. LG G3 Rear Cover/Battery Door – Metallic Black
2. LG G3 Front Housing/Frame
3. LG G3 Display Assembly (LCD and Touch Screen)
4. LG G3 Rear Housing/Protective Cover
5. LG G3 Motherboard
6. LG G3 Earpiece Speaker
7. LG G3 Front-Facing Camera
8. LG G3 Rear-Facing Camera
9. LG G3 Power and Volume Buttons/Rear-Facing Camera Lens
10. LG G3 Vibrator
11. LG G3 Power and Volume Button Cable
12. LG G3 Battery
123
5
6
7
89
10 11
12
4
Noce/Warning:
FIXEZ.COM DOES NOT ACCEPT ANY LIABILITY FOR DAMAGE, OR INJURY CAUSED, WHILE YOU ARE
FOLLOWING OUR DISASSEMBLE GUIDES. WE MAKE NO REPRESENTATIONS, WARRANTIES, OR
CONDITIONS OF ANY KIND, EXPRESS OR IMPLIED. UTILIZING THESE GUIDES TO HELP ASSIST YOU IN
REPAIRING YOUR MOBILE DEVICES WILL VOID YOUR WARRANTY. FIXEZ.COM STRICTLY PROHIBITS
ALTERING OR MODIFYING OUR DISASSEMBLE GUIDES FOR COMMERCIAL USE, REPRODUCTION, OR
PUBLICATION.
