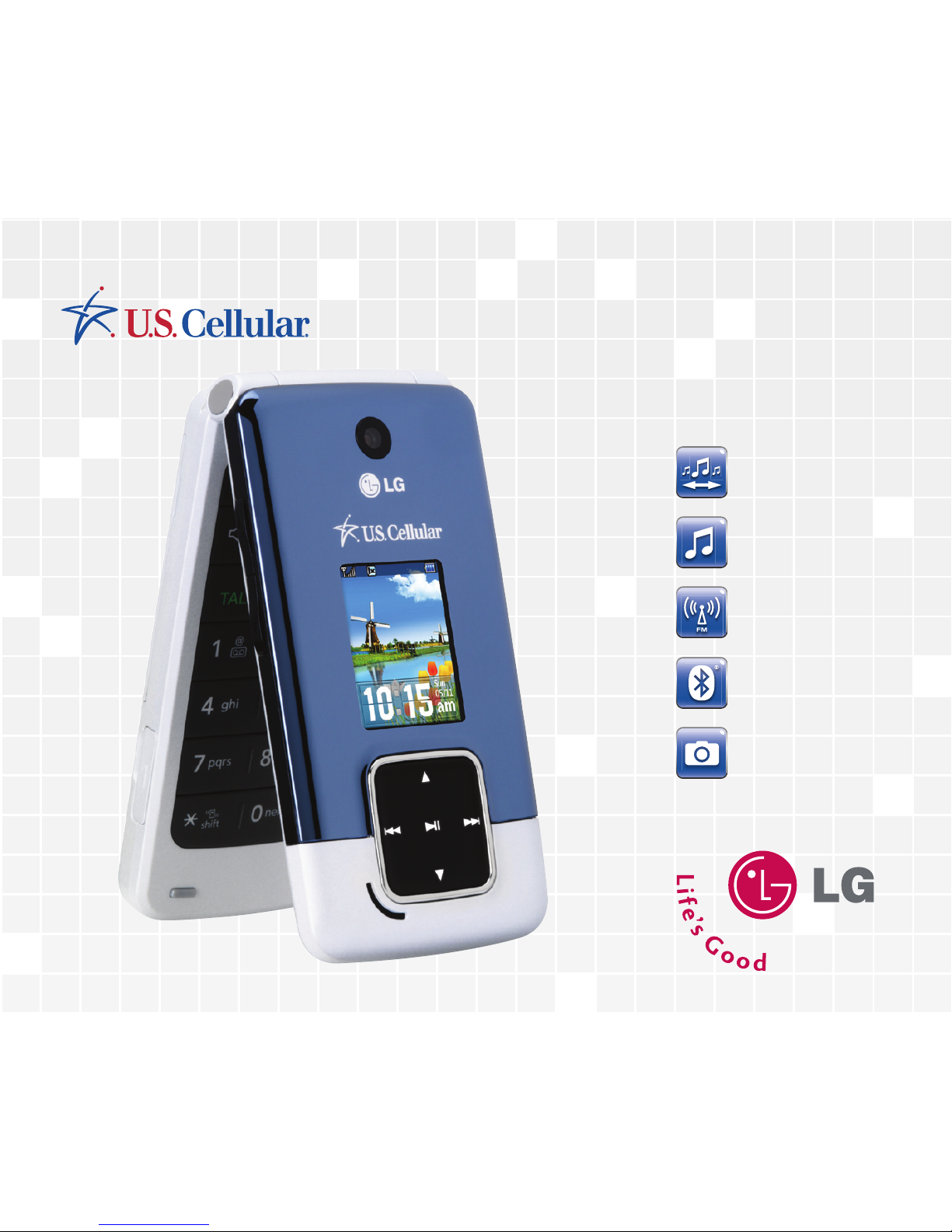

LG U.S. Cellular UX565 Manuale utente
UX565
QUICK START GUIDE
www.LGUSA.com
Transferring
Music
Playing
Music
Transmitting
Music to FM Radio
Bluetooth®
Pairing
Taking a Picture/
Recording a Video
Digital Camera
Bluetooth
microSD
Music Player
QWERTY Keyboard
Digital Camera
Bluetooth
microSD
Music Player
QWERTY Keyboard
Digital Camera
Bluetooth
microSD
Music Player
QWERTY Keyboard
Digital Camera
Bluetooth
microSD
Music Player
QWERTY Keyboard
Getting to Know Your Phone
Camera
Music Touch Keys
Volume
Up/Down
USB/
Charging
Port
Left Soft Key
(Menu)
OK Key
Right Soft Key
(Contacts)
Power/End Key
Talk Key
Clear & Back Key
Microphone
Headset Jack
microSDTM
Port
Speakerphone Key
Voice Command
Key
Music/
Unlock
Key
Camera Key
Transferring Music
Carry your music library with you. With the ability to store up
to approximately 960 songs on your UX565 – with an optional
4GB microSD card – you’ll be rockin’ out in no time!*
1. Insert your microSD card into the memory port
with the gold contacts facing up.
2. The rst time you transfer music, you must format
the card. Press the Left Soft Key for Menu, then select
Settings (9) > Memory (7) > Card Memory (3).
3. Press the Right Soft Key for Format, then select Yes (1).
4. Press , then
BACK
.
5. Select USB Setting (5), then USB Mass Storage (2).
6. Connect a USB cable* from the phone to your PC.
7. The PC will recognize the phone as a Removable Disk
and a screen will appear. Drag and drop music les on your
PC into the My_Music folder.
8. When done, disconnect the phone.
*microSDcardandUSBcablerequired.Soldseparately.
Playing Music
It couldn’t be easier to start listening to your favorite tunes.
With the external Music Touch Keys, music is at your ngertips!*
1. Insert a microSD card containing music.
2. With the ip closed, press and hold the side Music Key
to activate the music player.
3. Tap to begin playing the highlighted song.
4. Tap or to go to the next/previous song.
Tap or to view the song list.
5. Tap to pause/play the music. To exit the music player,
open the ip and press twice.
*microSDcardrequired.Soldseparately.
Note: You can play music in the background while doing other
tasks. Once you have exited the music player with background
music enabled, press the side Music Key from the idle screen
to return to the player.
Transmitting Music to FM Radio
Be your own DJ! The UX565’s built-in FM transmitter lets you
easily broadcast music to your car radio or home stereo system.
1. With a microSD card containing music inserted in your
phone, press the side Music Key.
2. Press to begin playing a highlighted song.
3. Once the song begins, press the Right Soft Key
for Options.
4. Select Music Transmitter (4), then On (1).
5. Set your radio to 88.1 FM (the phone’s default setting)
to listen.
6. To change the transmit frequency, press the Right Soft
Key for Options > Music Transmitter (4) > Change
Channel (3). Then use the Navigation Key to select a
new channel and press .
Bluetooth Pairing
Wireless communication goes to a new level with Bluetooth
technology. Connect your UX565 to headsets, speakers,
and more.
1. Set your Bluetooth accessory into pairing mode.*
2. Press the Left Soft Key for Menu, then select
Bluetooth (7) > Paired Devices (1).
3. Press the Left Soft Key for Search. When prompted
to turn on Bluetooth, press .
4. Press to begin a new search.
5. Once the Bluetooth device has been found, highlight
it and press .
6. Enter the passcode* (typically “0000” – 4 zeroes)
and press .
7. Press to connect with the device.
*RefertoyourBluetoothaccessory’susermanualforinformation
aboutinitiatingpairingmodeandthepasscode.
Taking a Picture/Recording a Video
Stay on top of the action with your UX565. Its 1.3 megapixel
camera and camcorder let you capture moments right as
they happen!
1. To take a picture, press and hold the side Key.
To record a video, quickly press and select
Record Video (2).
2. Press left or right on the Navigation Key to adjust the
brightness and up or down for zoom.* Press the Right
Soft Key to adjust other camera/video options.
3. Press to take the picture or start/stop recording.
4. To send your picture/video, press .
*Camerasettingof1280x960pixelsdoesnotsupport
zoomfunction.
Note: To take self-portraits with the ip closed, press and
hold and use the external Touch Keys to take a photo
or record a video.
Optional Accessories
Maximize your phone with these cutting-edge accessories at www.LGUSA.com.
Bluetooth Stereo Speakers
Portable Stereo Speakers
©2008 LG Electronics, Inc. All rights reserved. All other trademarks are property of their respective owners. All phone images are simulated.
The Bluetooth® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license.
Bluetooth Headset (HBM-755)
Stereo Headset
Bluetooth Headset (HBM-750)
Vehicle Power Charger
UX565QSG/USCC
