LG LD-1415M1 Manuale utente

DISHWASHER

SERVICE MANUAL

BEFORE SERVICING THE UNIT, PLEASE READ THIS MANUAL CAREFULLY

FOR SAFETY AND CORRECT SERVICES.

NOTE

MODEL : LD-1415M1 / LD-1415T1 / LD-1415W1

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지2 001 GateRip_A3

- 3 -

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지3 001 GateRip_A3

- 3 -

1. CAUTION......................................................................................................................... 4

2. SPECIFICATIONS ........................................................................................................... 5

3. PARTS NAME.................................................................................................................. 6

4. FEATURES & TECHNICAL EXPLANATION ................................................................... 7

5. WIRING DIAGRAM...................................................................................................... 14

6. PROGRAM CHART (SCHEMATIC DIAGRAM)............................................................ 15

7. HOW TO DISASSEMBLE ............................................................................................ 19

8. TROUBLE SHOOTING METHODS.............................................................................. 29

A. TROUBLE SHOOTING ACCORDING TO DISPLAYED ERROR MESSAGE.......... 29

B. TROUBLE DIAGNOSES AND REPAIR BY SYMPTOM........................................... 31

9. INSTALLATION INSTRUCTION ................................................................................... 35

10. EXPLODED VIEW .......................................................................................................39

11. REPLACEMENT PART LIST ........................................................................................46

CONTENTS

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지3 001 GateRip_A3

- 4 -

�DISCONNECT POWER CORD BEFORE SERVICING

�RECONNECT ALL GROUNDING DEVICES

IMPORTANT SAFETY NOTICE !

This service information is intended for individuals

possessing adequate backgrounds of electrical,

electronic and mechanical experience.

Any attempt to repair this appliance may result in

personal injury and property damage.

The manufacturer or seller can not be responsible

for the interpretation of this information, nor can it

assume any liability in connection with its use.

CAUTION !

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지4 001 GateRip_A3

- 5 -

2. SPECIFICATION

Rated Voltage / Frequency AC 240V/50Hz

Installation Free Standing

Place Settings 14

Product Dimension(mm) 600(W)×600(D)×850(H)

Product Weight(Kg) 52

Door Color Stainless Steel

Tub Material Stainless Steel

Control Electronic

Rated Power(Watt) 2,210

Heater Power(Watt) 2,100

Programs 5

Upper Rack Adjustable, Nylon Coating

Lower Rack 50% Fold down, Removal Rack, Nylon Coating

Water Consumption(ℓ) 14.8 (Eco 50)

Power Consumption (kWh/year) 281 (Eco 50)

Operating Time (min) 114 (Eco 50)

Fan Dry System Yes

Delay Start Function Yes

Auto-Off Power Switch Yes

Process Monitor Yes

Wash Level 5

Operating Water Pressure (Bar) 0.5 ~ 8

ITEM SPECIFICATION

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지5 001 GateRip_A3

- 6 -

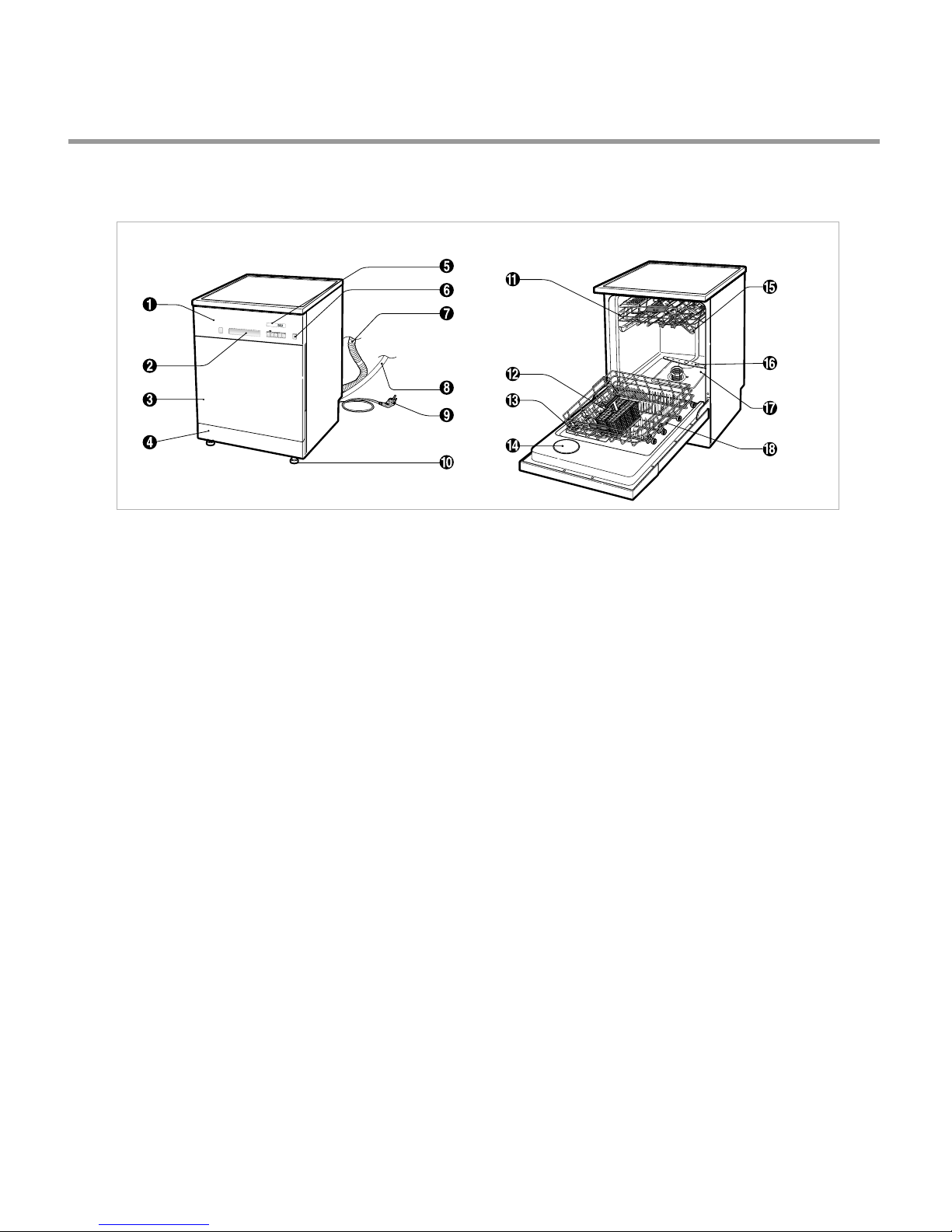

3. PARTS NAME

1. Control Panel

2. Door Handle

3. Front Cover

4. Lower Cover

5. Process Monitor

6. Power Switch

7. Drain Hose

8. Inlet Hose

9. Power Cord

10. Adjust Leg

11. Upper Rack

12. Cutlery Basket

13. Detergent & Rinse Aid Dispenser

14. Vapor Vent Cover

15. Upper Spray Arm

16. Lower Spray Arm

17. Filter ASM

18. Lower Rack

※The appearance and specifications may vary without notice.

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지6 001 GateRip_A3

- 7 -

4. FEATURES & TECHNICAL EXPLANATION

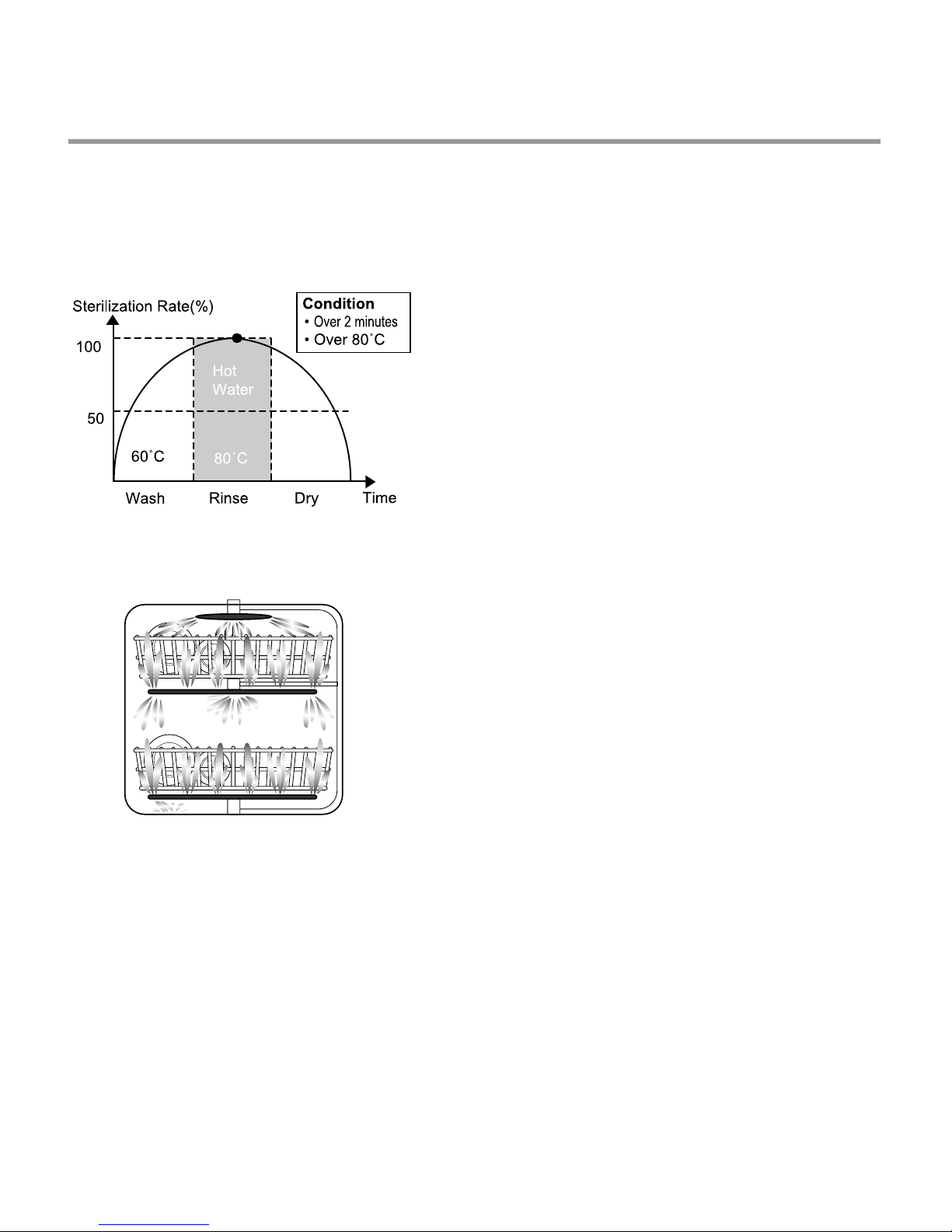

4-1 New Technology Introduction

• During the high temp. Rinse course, water

temperature in an dishwasher reaches 80°C,

considerably higher than the average rinse

temperature in conventional

dishwashers(65°C). This is how Rinse 80°C

can eliminate some bacteria such as

salmonella.

4-1-1. High Temperature Rinsing (Extra Hot function)

• Turbo Spray System is elaborately designed to

achieve a more powerful and efficient wash.

You can see the excellent 3 rotating spray arm

with 5 directional waterjet.

4-1-2. Turbo Spray System

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지7 001 GateRip_A3

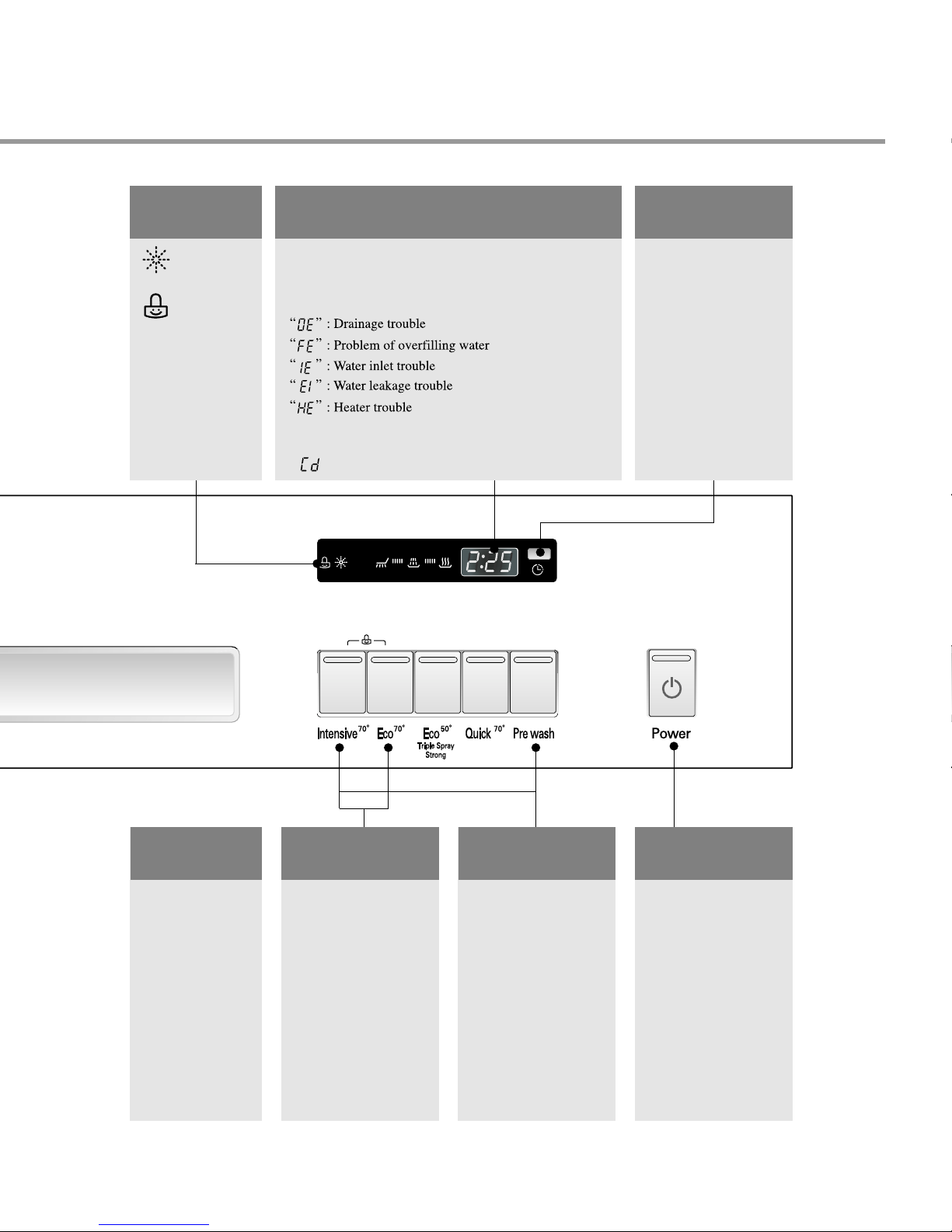

4-2 Display Panel

- 8 -

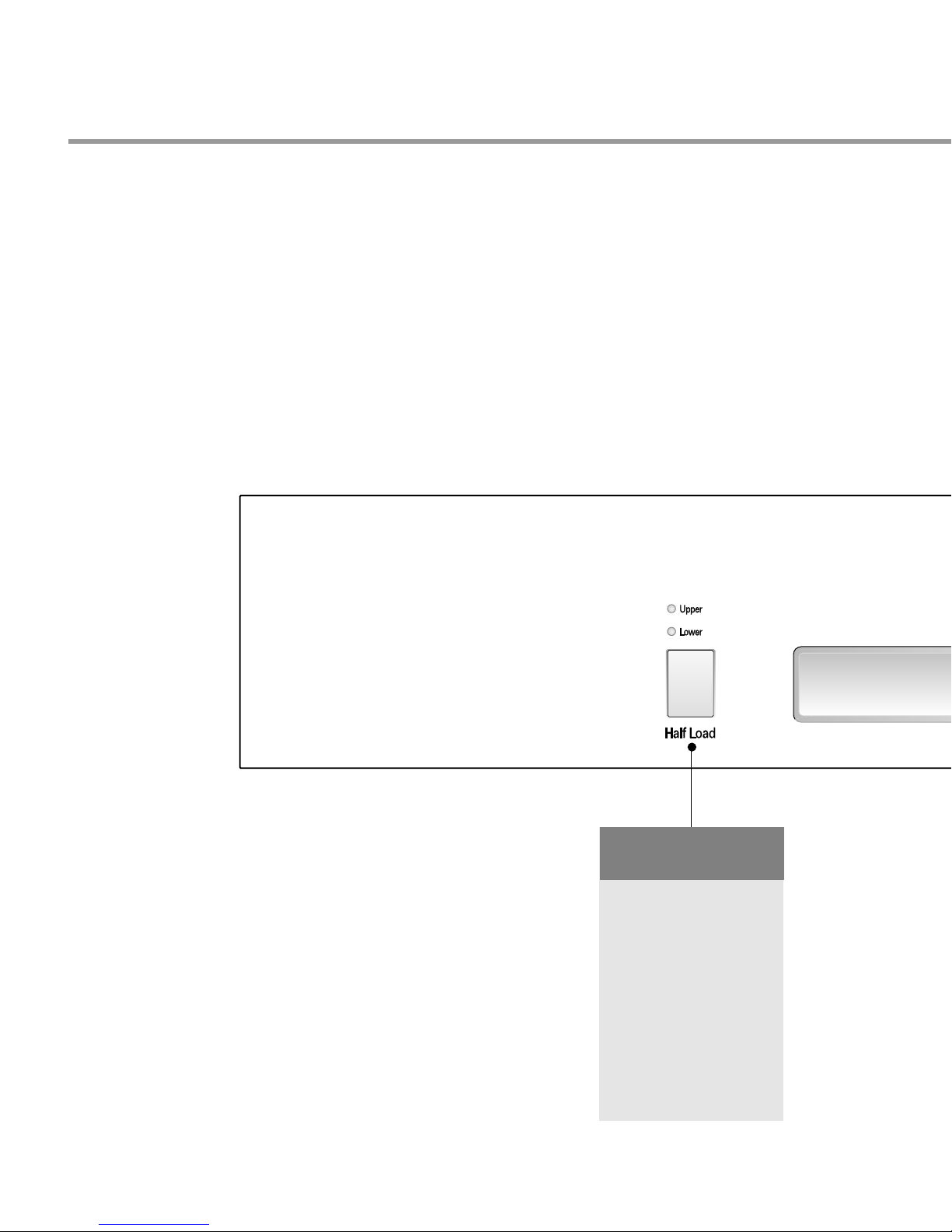

HALF LOAD

• In case of small load, use upper

or lower rack only to save

energy.

• With each press, can select

upper or lower rack only.

• In case you don’t select this

button, the machine always

works vario washing, which

operate upper and lower spray

arm alternately.

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지8 001 GateRip_A3

- 9 -

TIME LEFT

• Before starting, the display window shows the running time of

the selected program.

• After starting, the display window shows the remaining time.

• If the dishwasher has a trouble, the trouble type is displayed.

If this error letters are displayed, please refer to the trouble

shooting guide page 20 and follow the guide.

※“ ” : No error message (See page 17)

DELAY START

• If you want to delay the

start of selected program,

press this button before

pressing program button.

• Pressing this button will

increase time by 1 hour.

• The delay start time can be

adjusted from 1 hour to 19

hours.

POWER

• For operating, press this

button first for power on.

• After operating, this

button automatically

switches off for safety and

energy saving.

• In case of irregular surge

disturbance to the

machine, the power may

be automatically turned off

for safety.

BEEP ON/OFF

• The dishwasher must be

switched on.

• The beep on/off function

can be set by pressing the

Intensive and Pre-wash

button simultaneously for

a few seconds. Then, a

“on” will appear in the

time display.

• The beep on/off function

is automatically canceled

when power failure occur.

CHILD LOCK

• Used to lock or unlock the

control buttons to prevent

all the setting from being

changed by a child.

• This function is

automatically canceled

when power failure occur.

• For locking/ unlocking,

press Intensive and

Eco 70° button for a few

seconds simultaneously.

PROGRAM

• When you want to

select program, press

each button.

INDICATOR

• Refill with

rinse aid

• Child Lock

3828DD3007H(S/M) 2008.2.18 4:25 PM 페이지9 001 GateRip_A3

- 10 -

4.3 TEST MODE

CHECK PROGRAM(START IN THE STATE OF THE CLOSED DOOR)

※

CHECK MODE

BUTTON

BUTTON OPERATION

Intensive +Pre-wash

Eco 50 +Pre-wash

Quick +Pre-wash

Delay start Key +Pre-wash

Buzz On/O

Display Inner Temperature

Display Water Supply Frequency

Display Soil Index

The number of

pushing button DISPLAY Load and hecking points

Micro S/W must be ON to operate HEATER

Quick + Pre-wash

+ POWER S/W

(Hal Load) KEY

Intensive KEY

Eco 70 KEY

Eco 50 KEY

Quick KEY

Pre-wash KEY

Delay start KEY

1 TIME

2 TIME

3 TIME

4 TIME

5 TIME

6 TIME

7 TIME

8 TIME

9 TIME

10 TIME

11 TIME

n : 0H

2 : 22

3 : 33

4 : 44

5 : 55

6 : 66

7 : 77

8 : 88

n : 02

n : 04

Frequency

n : 05

n : 06

Temperature

n : 08

n : 09

n : 0A

n : 0b

All LEDs are lighting

Washing Motor

Drain Pump

Inlet Valve

Dispenser

Heater( or 10 sec.)

Fan Motor

None

Lower Nozzle

Upper Nozzle

Operate C1 mode( or 1 min.) →Drain( or 42 Sec.)

→Supply water →Push Delay start KEY (Auto O )

Extra Hot, Rinse+

Intensive

Eco 70

Eco 50

Quick

Pre-wash

Lower, Child-Lock

Wash, Rinse, Dry
