LG LDF6810WW Manuale utente

P/No. : MFL37554801

DISHWASHER

SERVICE MANUAL

BEFORE SERVICING THE UNIT, PLEASE REA THIS MANUAL CAREFULLY

FOR SAFETY AN CORRECT SERVICES.

NOTE

MODEL : LDF6810(WW,BB,ST), LDF7810(WW,BB,ST)

MODEL : LDF7811(WW,BB,ST), LDS5811(WW,BB,ST), LDF8812(WW,BB,ST)

MODEL : LDF6810(WW,BB,ST) / 01, LDF7810(WW,BB,ST) / 01

MODEL : LDF7811(WW,BB,ST) / 01, LDS5811(WW,BB,ST) / 01

- 3 -

1. CAUTION......................................................................................................................... 4

2. SPECIFICATIONS ........................................................................................................... 5

3. WIRING IAGRAM........................................................................................................ 6

4. FEATURES & TECHNICAL EXPLANATION ................................................................... 7

5. PARTS NAME ................................................................................................................ 16

6. PROGRAM CHART ..................................................................................................... 19

7. HOW TO ISASSEMBLE ............................................................................................ 21

8. TROUBLE SHOOTING METHO S.............................................................................. 30

A. TROUBLE SHOOTING ACCOR ING TO ISPLAYE ERROR MESSAGE...........30

B. TROUBLE IAGNOSES AN REPAIR BY SYMPTOM........................................... 32

9. INSTALLATION INSTRUCTION ................................................................................... 36

10. EXPLO E VIEW .......................................................................................................43

11. REPLACEMENT PART LIST ........................................................................................52

CONTENTS

- 4 -

DISCONNECT POWER CORD BEFORE SERVICING

RECONNECT ALL GROUNDING DEVICES

IMPORTANT SAFETY NOTICE !

This service information is intended for individuals

possessing adequate backgrounds of electrical,

electronic and mechanical experience.

Any attempt to repair this appliance may result in

personal injury and property damage.

The manufacturer or seller can not be responsible

for the interpretation of this information, nor can it

assume any liability in connection with its use.

CAUTION !

- 5 -

2. SPECIFICATION

Rated Voltage / Frequency AC 120V/60Hz

Installation Built-In

Place Settings 16

Product imension(in) 23 7/8 x 25 x 33 7/8

Product Weight(lbs) 7811, 7810, 8812 series : 115lbs, 5811/ 6810 series : 110lbs

oor Color White, Black, Stainless

Tub Material Stainless Steel

Control Electronic

Rated Power(Watt) 1,350

Heater Power(Watt) 1,200

Programs 7811, 7810, 5811, 8812 series : 6, 6810 series : 5

Upper Rack Position 7811, 7810, 8812 series : Adjustable, 6810 series : manual

Lower Rack 50% Fold down

Water Consumption 7811,7810 , 6810, 5811 series : 21-30 (Normal)

8812, 7811/ 01, 7810 /01, 6810/ 01, 5811/ 01 series : 10-26 (Normal)

Power Consumption(kWh/year) 7811/ 7810 / 6810 / 5811 series : 352-370

8812, 7811/ 01, 7810 / 01, 6810/ 01, 5811/ 01 series : 285-310

Operating Time (min) 101-135 (Normal)

Fan ry System Yes

elay Start Function Yes

Auto-Off Power Switch Yes

Process Monitor Yes

Wash Level 5

Racks Nylon Coating

Operating Water Pressure (Bar) 20-120 (140-830kPa)

ITEM SPECIFICATION

- 6 -

1. 7811 / 7810 / 6810 serise

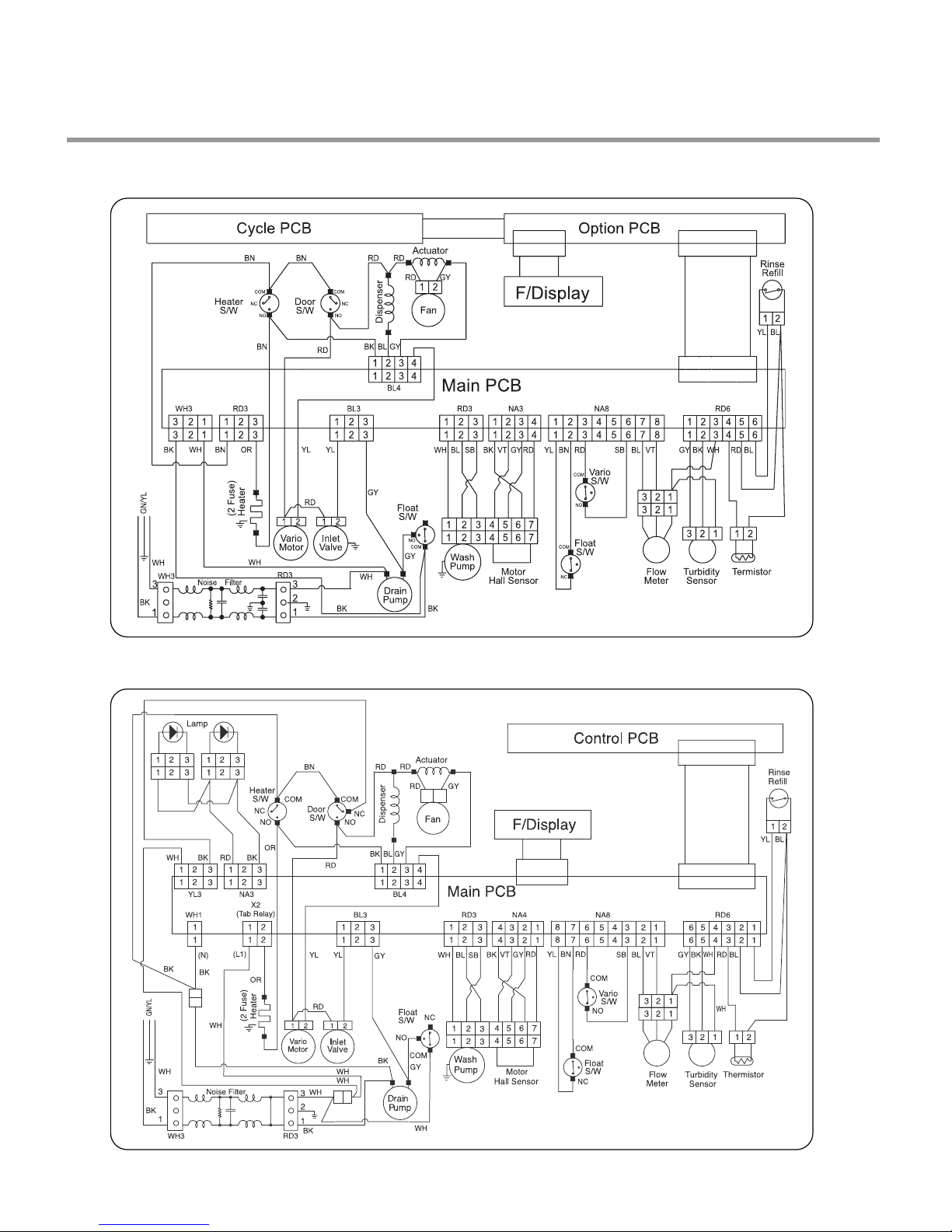

3. WIRING DIAGRAM

2. 8812 serise

- 7 -

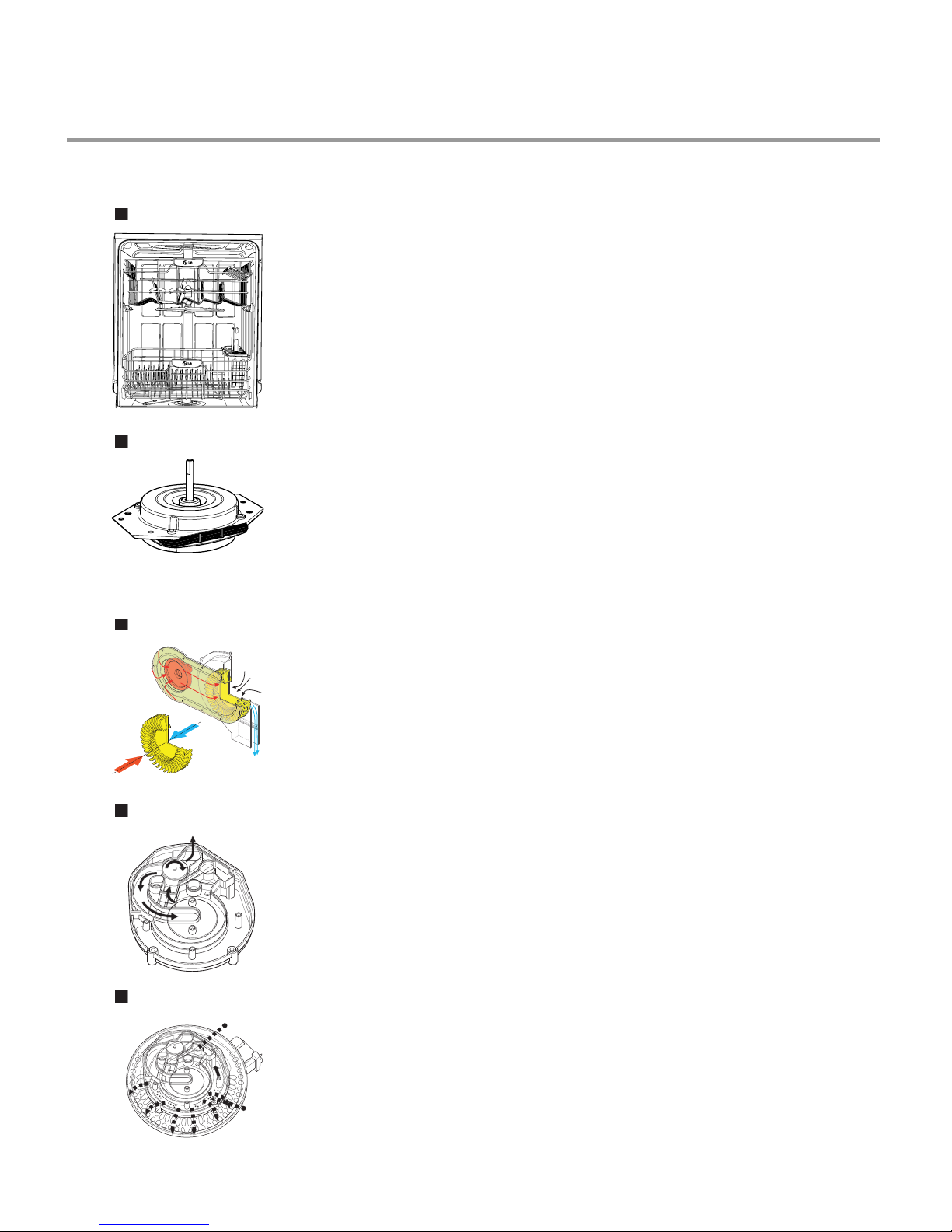

4. FEATURES & TECHNICAL EXPLANATION

4-1. Product Features

If you raise the Upper Rack, you can load large dishes in the Lower Rack.

(Max. 14 in.)

The tall tub provides large dishes loading as well as large capacity.

LG dishwashers let you load oversized items in the Lower and Upper Rack.

Newly introduced Slim irect Inverter motor is inverter-controlled. Speed is

controlled based on program selection. It also offers high energy efficiency to

minimize energy loss.

This is one of the best performance solutions for drying dishes because it

minimizes venting humid air to the outside of the dishwasher. In addition, this

system ensures better drying results compared to the condensing drying

system.

Because of alternating water spray between the Upper and Lower

Rack, the water pressure allows superior performance and reduced

consumption of water and electricity.

For best wash results, the self-cleaning filter system continuously cleans the

water as it circulates. Your LG dishwasher has a self-cleaning filter that grinds

food into small particles before it goes down the drain.

Ultra Big Capacity

Slim Direct MotorTM

Hybrid Drying System

Vario Spray System

Self Cleaning Filter

Moist

Air

Dry

Air

Mixed

Air

Upper

Arm

Lower

Arm

Soil Sensor

Fine Mesh

to Drain

- 8 -

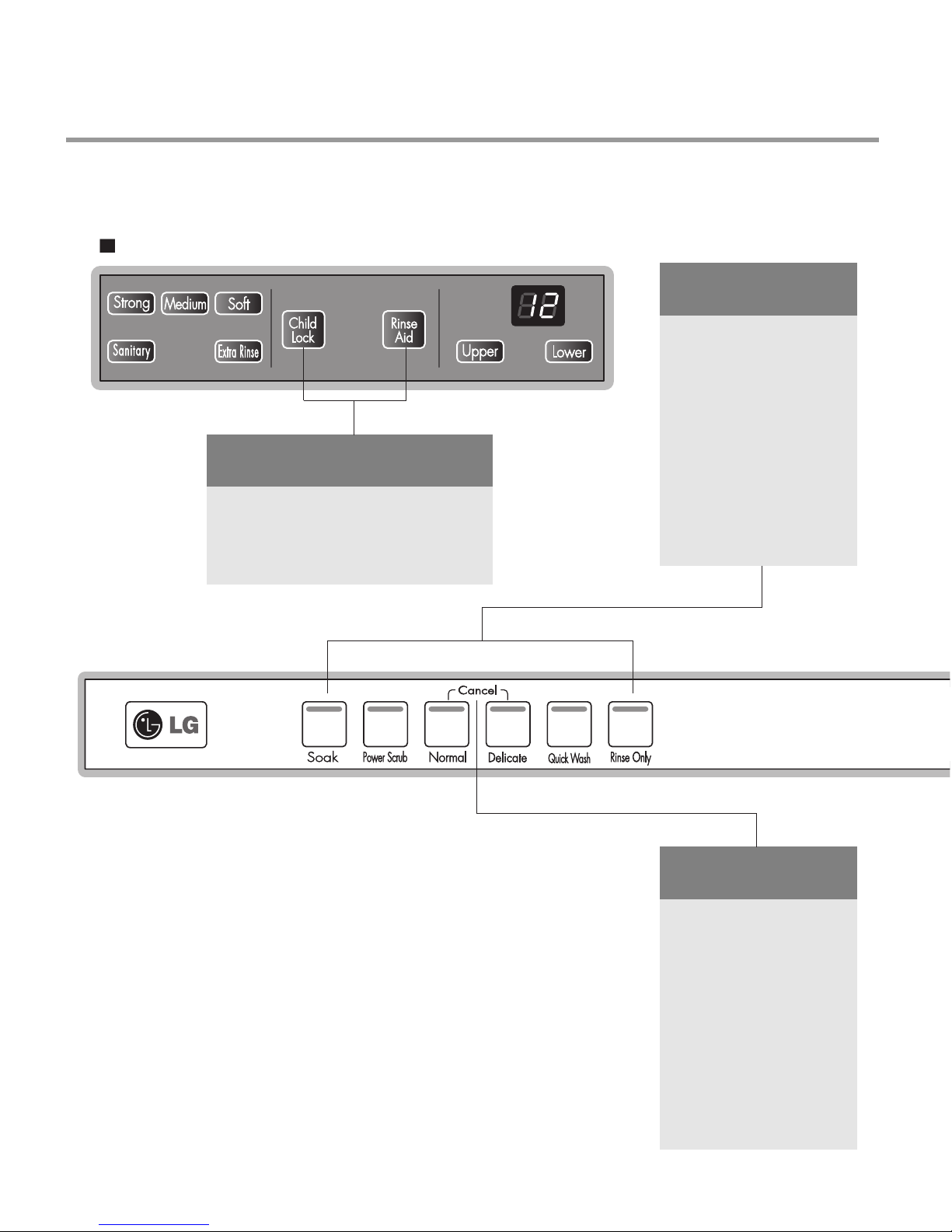

4-2. Display Panel

4-2-1. LDF 7811/7810 Series

PROGRAM

• Press the program that

corresponds to your

desired wash cycle.

CANCEL

• To cancel a running

program, open the door,

then press and hold the

Normal and Delicate

buttons for 3 seconds.

INDICATOR

• Child lock: Lamp will turn on

when Child Lock setting is on.

• inse Aid: efill with inse aid

when Lamp turns on.

This program is for very heavily soiled loads including pots,

pans and casserole dishes which may have dry food residue.

This program is for very heavily soiled loads

This program is for normally soiled everyday loads.

This program is for washing delicate items like glasses.

This program is for that quick wash of lightly soiled recently

used dishes and cutlery.

This program is for very lightly soiled loads.

Soak

Normal

Quick Wash

Rinse Only

Delicate

Power Scrub

Control panel may vary on some models.

- 9 -

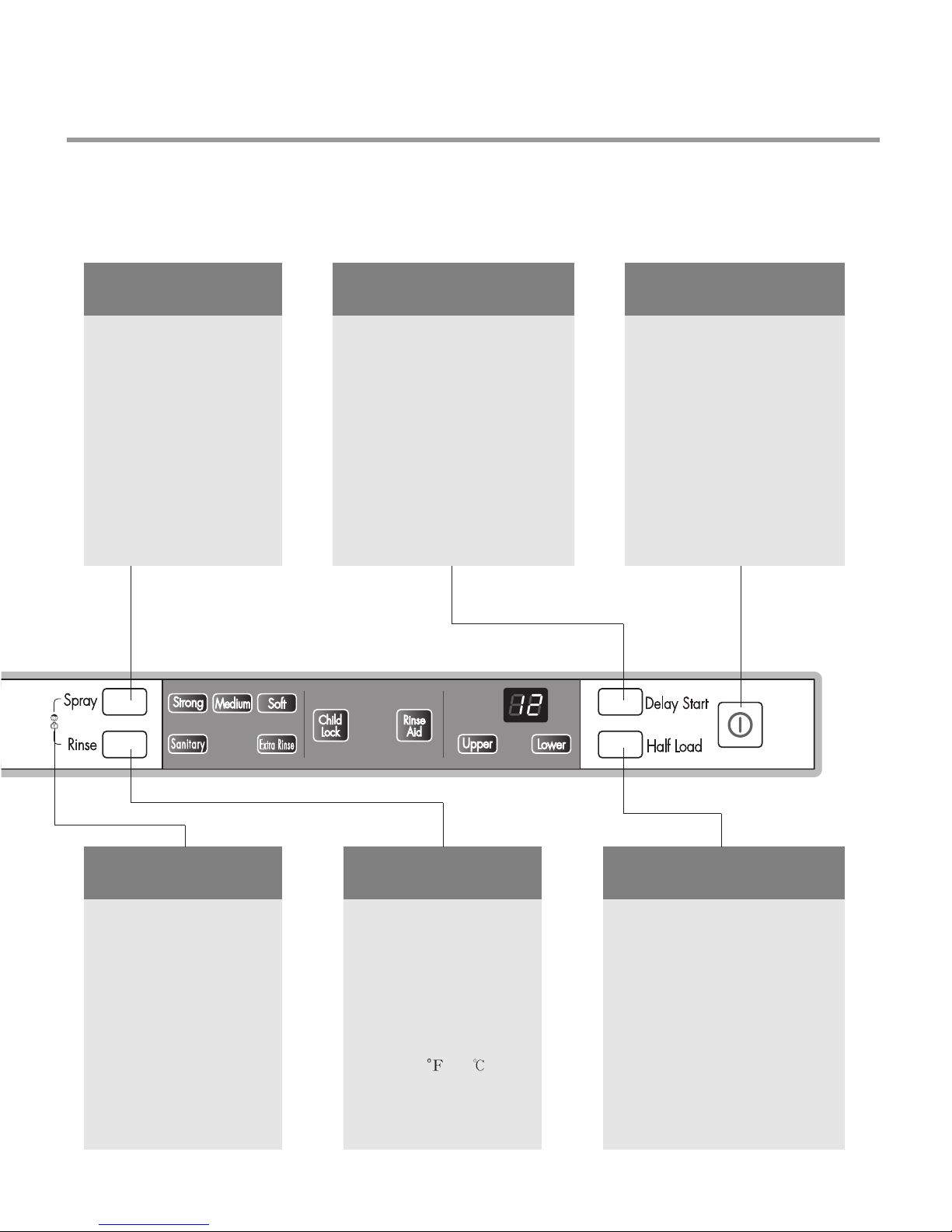

SPRAY

(INTENSITY)

• epeated pressing of the

Spray button will select

Strong, Medium or

Soft.

DELAY START

• If you want to delay the start of

a selected program, press the

Delay Start button.

• Each press of Delay Start will

delay the start of the cycle by

one hour.

• The delay start time can be

adjusted from 1 to 24 hours in

one-hour increment.

HALF LOAD

• In case of a small load, use the

upper or lower rack only to save

energy.

• Each press of the Half Load

button cycles between upper

rack only and lower rack only.

• If you don't press Half Load,

the dishwasher runs normally,

i.e, operation of upper and

lower spray arm alternating

periodically.

POWER

• For operating, press this

button first for power on.

• After operating, the power

automatically switches off

for safety and economy.

• In case of an unusual Power

surge or disturbance, the

power may be automatically

turned off for safety.

CHILD LOCK

• Lock the control buttons

to prevent the settings

from being changed.

• To lock/unlock, press

Spray and Rinse

buttons simultaneously

for 3 seconds with door

open.

SANITARY/

EXTRA RINSE

• epeated pressing of the

inse button will select

Sanitary, Extra Rinse

or both.

• If you select the Sanitary

function, the temperature

of Heating inse can

reach 161 (72 ).

• When you select Extra

Rinse, an additional

rinse cycle is added.

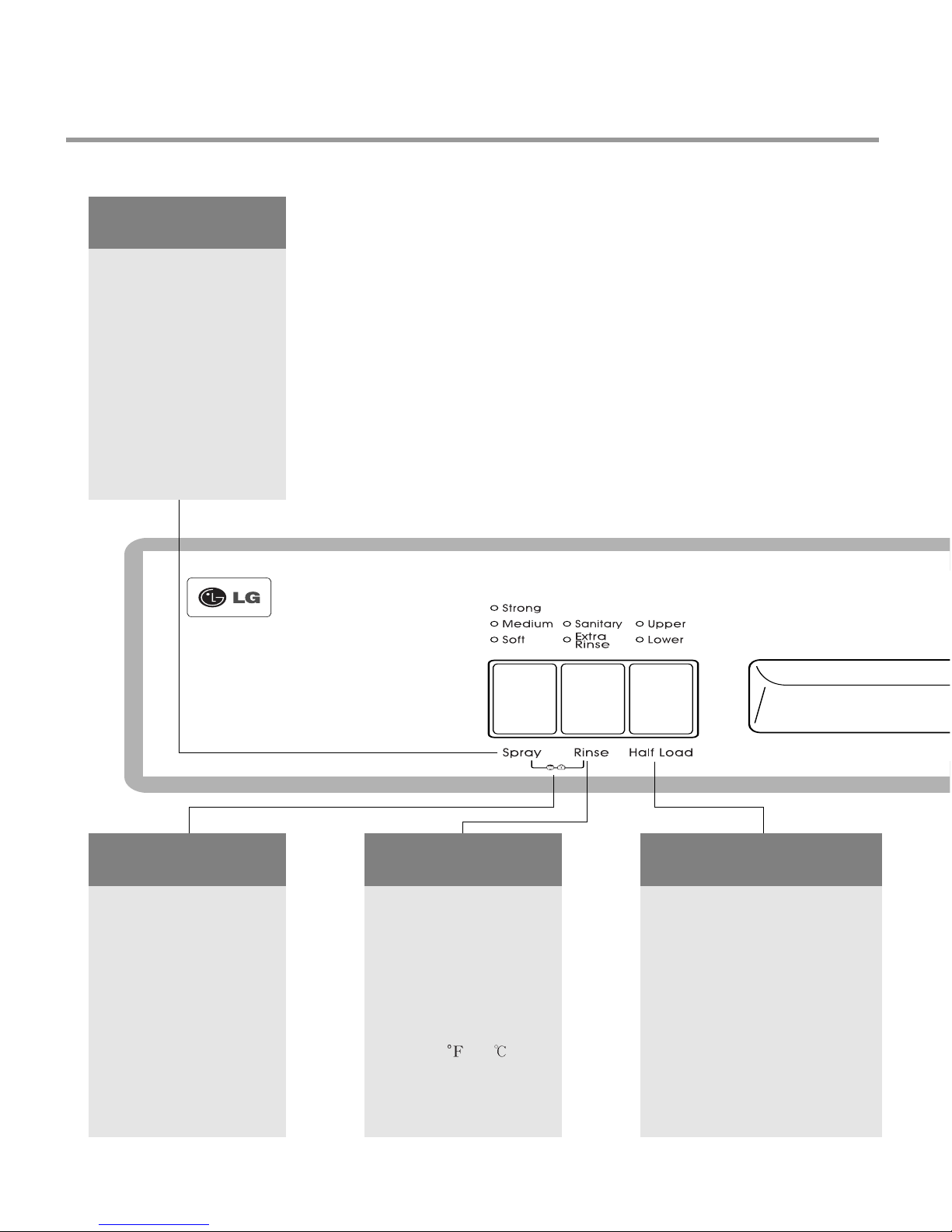

- 10 -

SPRAY

(INTENSITY)

• epeated pressing of the

Spray button will select

Strong, Medium or

Soft.

CHILD LOCK

• Lock the control buttons

to prevent the settings

from being changed.

• To lock/unlock, press

Spray and Rinse buttons

simultaneously for 3

seconds.

SANITARY/

EXTRA RINSE

• epeated pressing of the

inse button will select

Sanitary, Extra Rinse

or both.

• If you select the Sanitary

function, the temperature

of Heating inse can

reach 161 (72 ).

• When you select Extra

Rinse, an additional

rinse cycle is added.

HALF LOAD

• In case of a small load, use the

upper or lower rack only to save

energy.

• Each press of the Half Load

button cycles between upper

rack only and lower rack only.

• If you don't press Half Load,

the dishwasher runs normally,

i.e, operation of upper and

lower spray arm alternating

periodically.

4-2-2. LDF 5811 Series
