LG 22MA53D Manuale utente
www.lg.com
OWNER’S MANUAL
LED TV
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating the your TV and
retain it for future reference.
ENGLISH
22MA53D 22MA53V 22MA53S
23MA53D 23MA53V 23MA53S
24MA53D 24MA53V 24MA53S
27MA53D 27MA53V 27MA53S
2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
8 Parts and buttons
10 Lifting and moving the TV
11 Setting up the TV
11 - Attaching the Stand
13 - Mounting on a table
14 - Tidying cables
15 - Detaching the Stand
16 - Mounting on a wall
18 WATCHING TV
18 Turning the TV on for the first time
20 MAKING CONNECTIONS
20 Connecting an antenna
21 Satellite connection
22 Connecting to a HD receiver, DVD, VCR
player or Gaming device
22 - HDMI connection
23 - HDMI to DVI connection
24 - Component connection
25 - Composite connection
26 - Euro Scart connection
27 Connecting to an audio system
27 - Headphone connection
28 Connecting to a USB
28 Connecting to a CI Module
29 MHL connection
30 Connecting to a wired network
31 Connecting to a PC
32 - HDMI connection
33 - HDMI to DVI connection
34 - RGB connection
35 REMOTE CONTROL
37 CUSTOMIZING SETTINGS
37 Accessing main menus
38 USING THE USER GUIDE
38 Accessing User Guide menu.
38 - Using the TV menu
38 - Using the Remote Control
39 MAINTENANCE
39 Cleaning Your TV
39 Screen and frame
39 Cabinet and stand
39 Power cord
40 Preventing “Image burn” or “Burn-in” on
your TV screen
41 TROUBLESHOOTING
41 General
42 SPECIFICATIONS
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
ENGLISH
4INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV.
3 Connect an external device to the TV.
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking

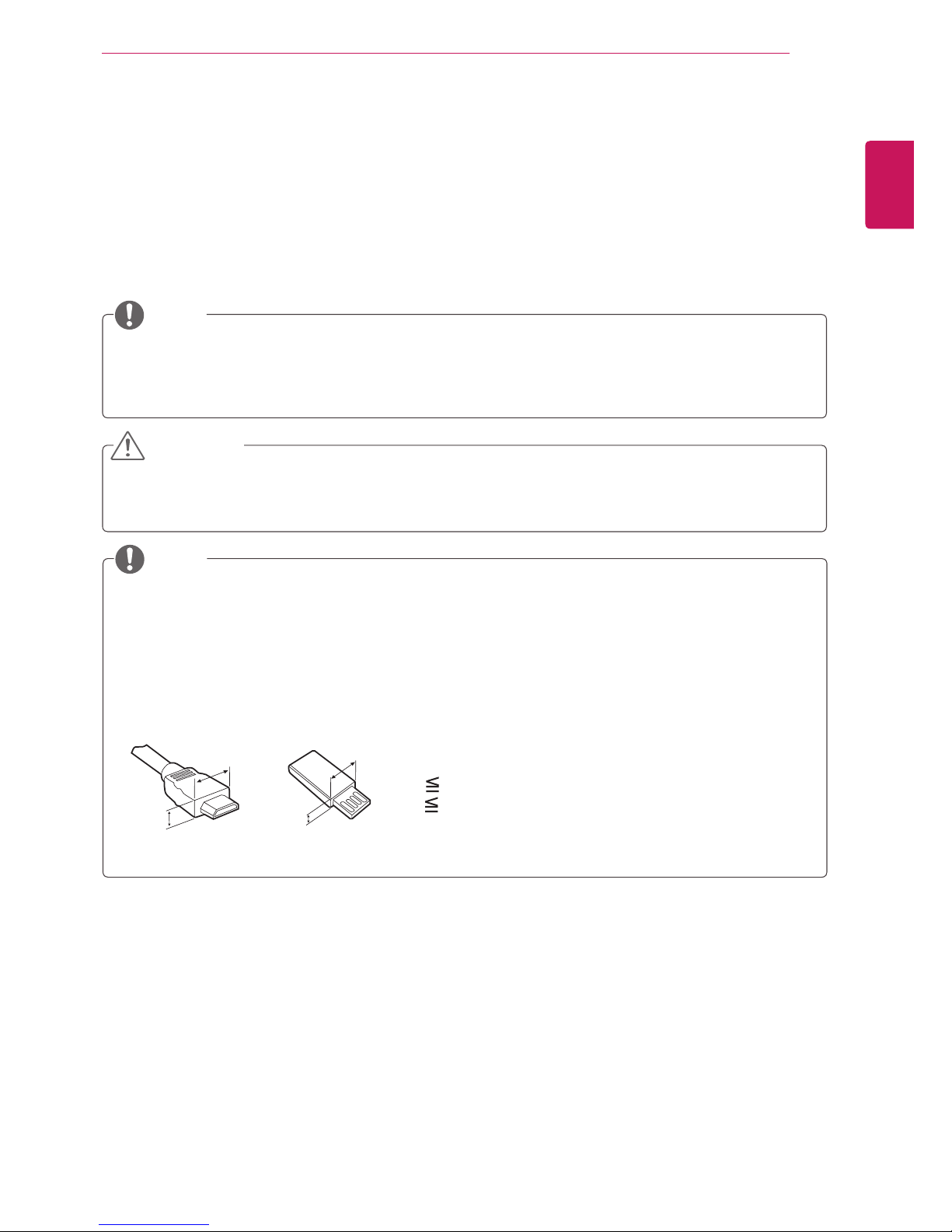

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
NOTE
*A 10 mm
*B 18 mm
A
B
A
B
ENGLISH
6ASSEMBLING AND PREPARING

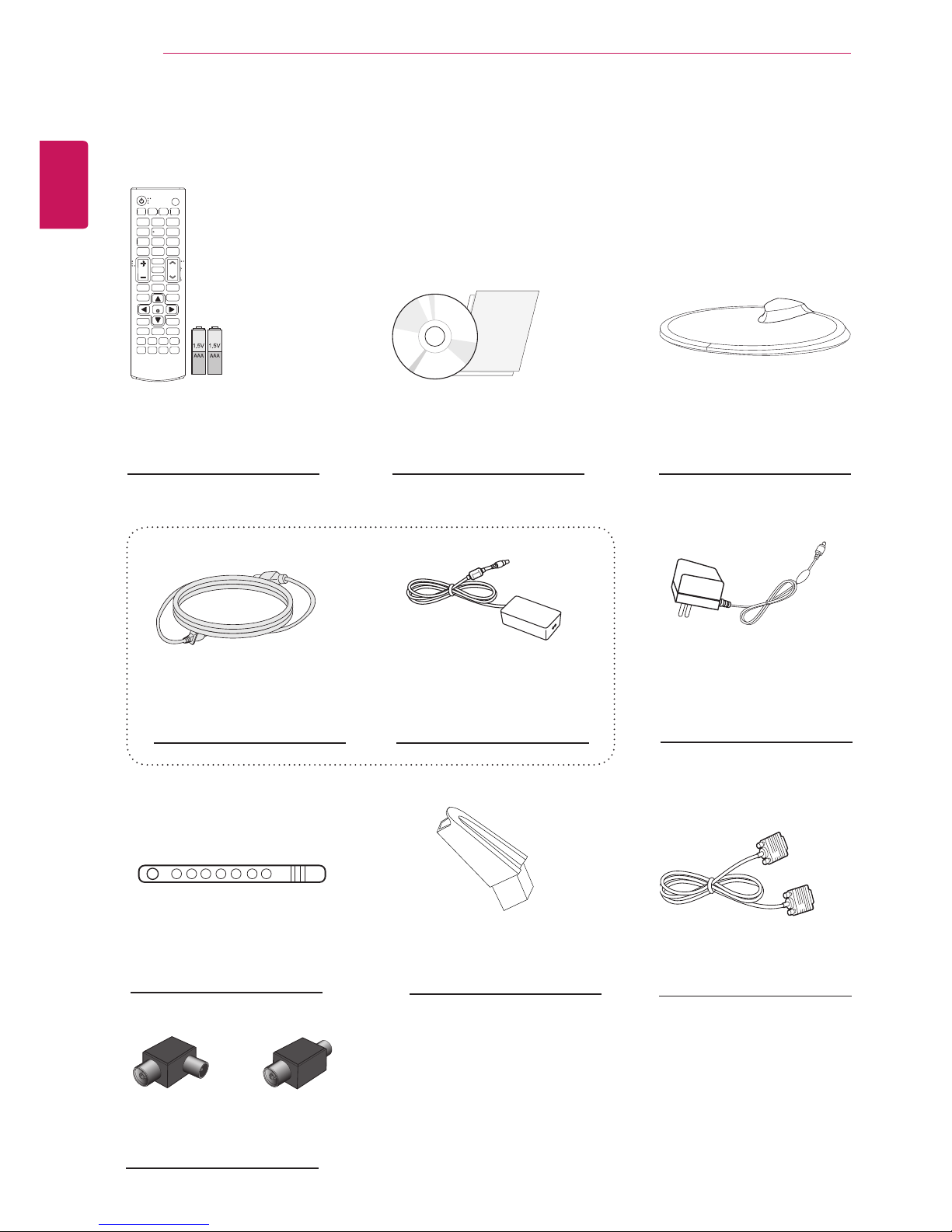

Remote control.
Batteries (AAA).
Power Cord.
Stand Base.
CD (Owner's Manual).
Cards.
(See p.35, See p.36)
(See p.13)
(See p.11, See p.15)
Cable Tie.
(See p.14)
AC-DC Adapter.
or
(See p.13)
AC-DC Adapter.
(Depending on the country)
(See p.13)
(Depending on the country)
(Depending on the country)
Isolator
or
(See p.11, See p.15)
RGB Cable.Stand Body.
(See p.34)
ENGLISH
7
ASSEMBLING AND PREPARING
NOTE

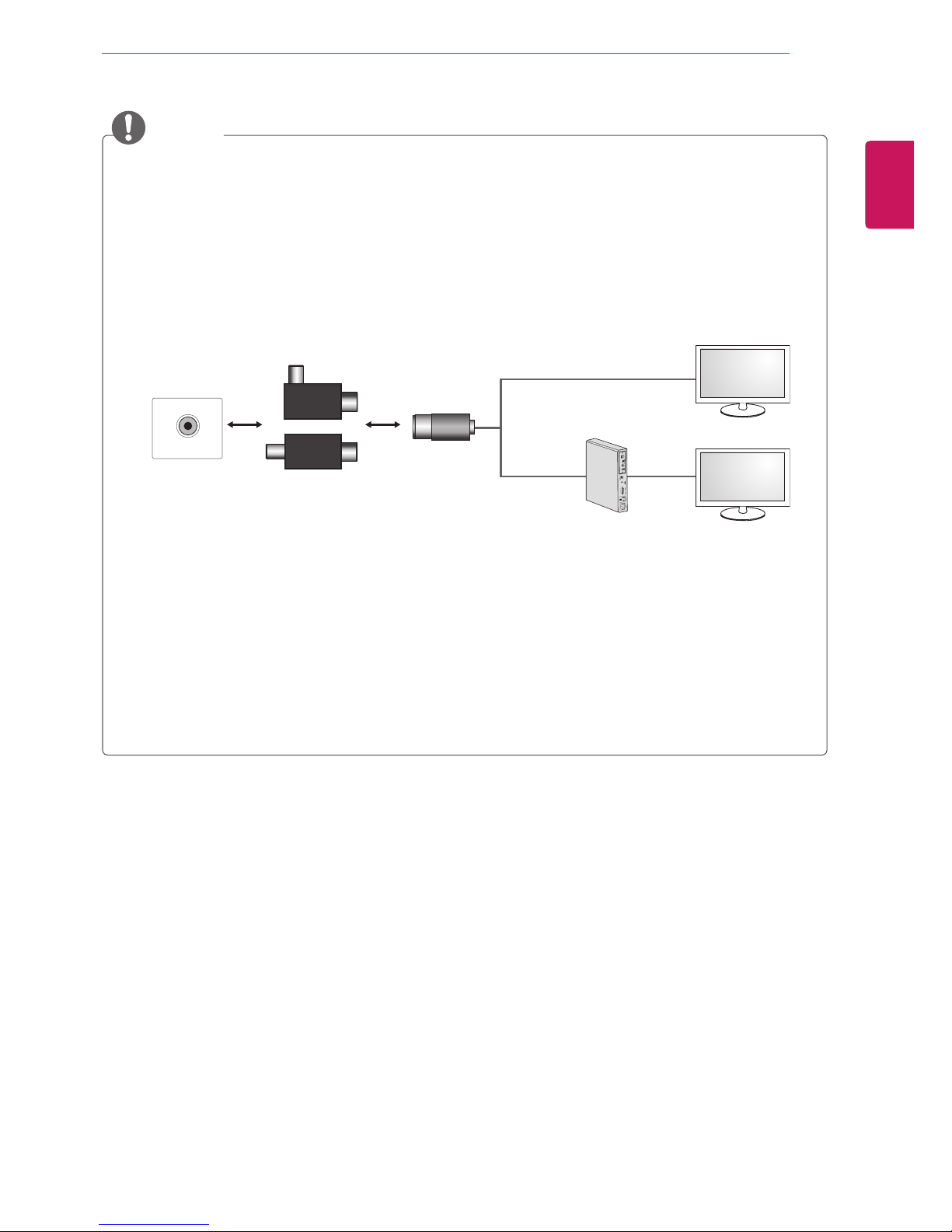

Antenna Isolator Installation Guide
-Use this to install TV in a place where there is a voltage difference between TV Set and GND of
antenna signal.
»If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact
might be heated and excessive heat might cause an accident.
-You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall,
mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
-Before starting, be sure that the TV antenna is connected.
ANTENNA/
CABLE IN
Cable / Antenna
Wall
Isolator
1. Connect to TV.
2. Connect to Set-Top box.
or
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains
connection or through other equipment with a connection to protective earthing - and to a cable
distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to
a cable distribution system has therefore to be provided through a device providing electrical isolation
below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
ENGLISH
8ASSEMBLING AND PREPARING

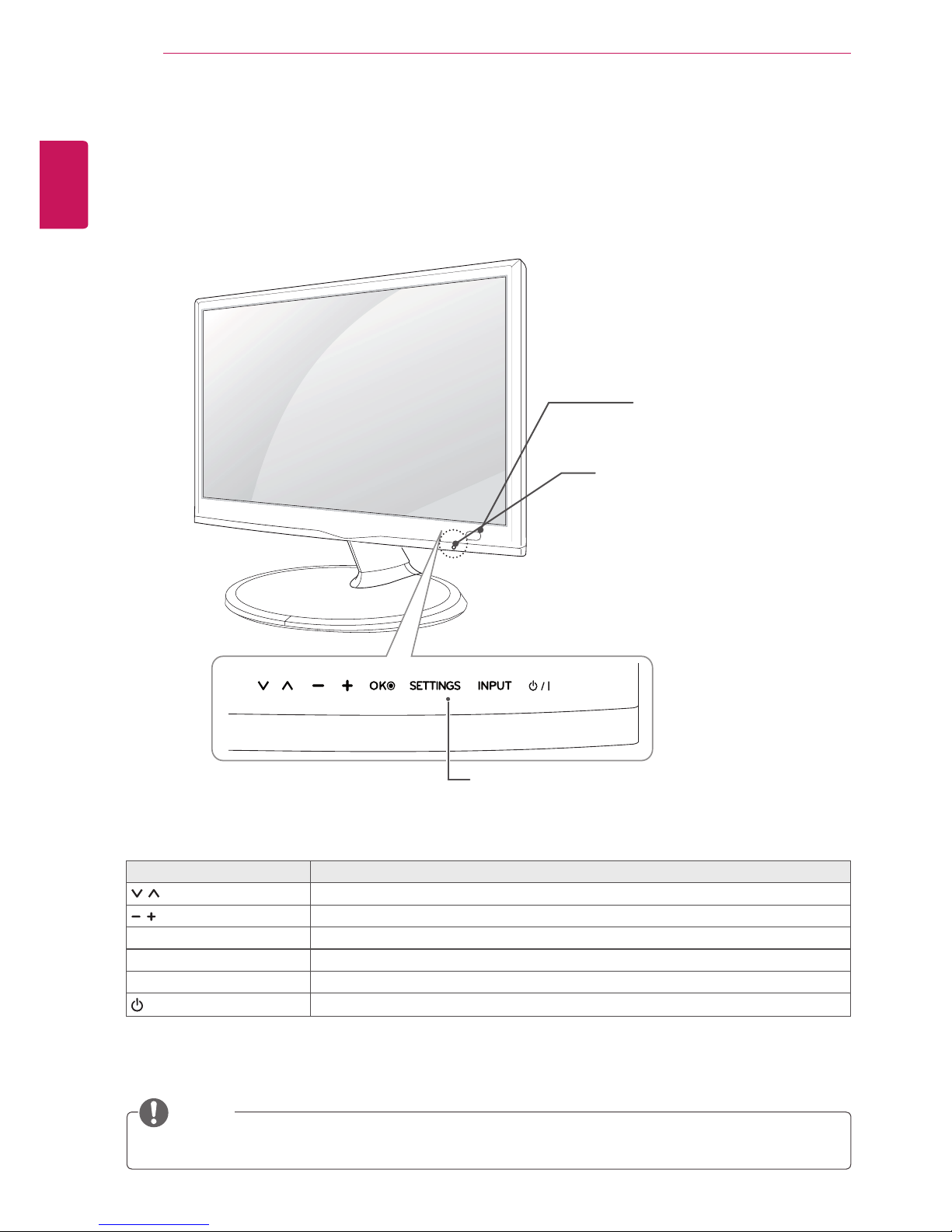

Parts and buttons
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ ITurns the power on or off.
Remote Control Sensor
Touch Buttons
Standby Light
Lighting On: When Power is turend off
Lighting Off: When Power is turned on
ENGLISH
9
ASSEMBLING AND PREPARING

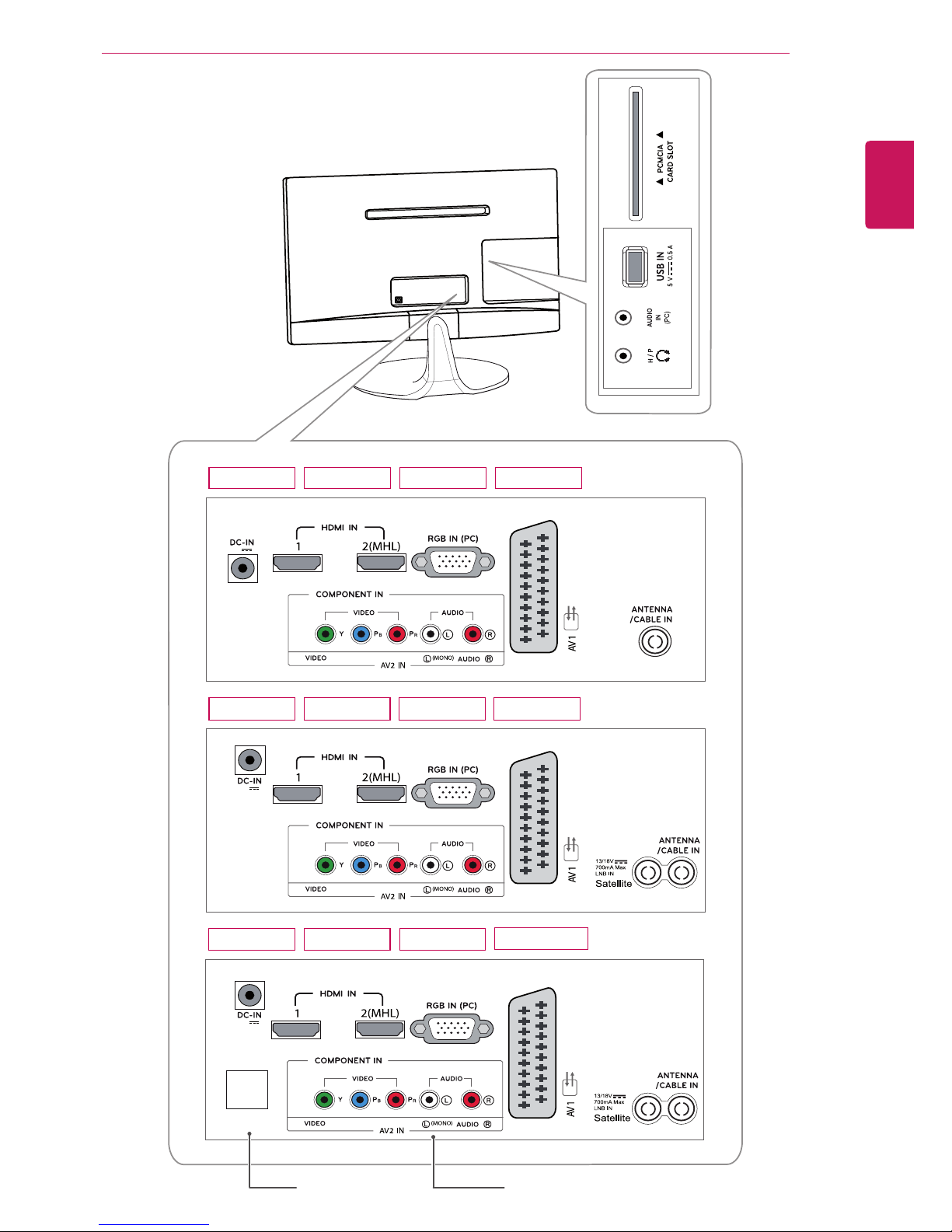

LAN
(19V )
(19V )
(19V )
22MA53S 24MA53S23MA53S 27MA53S
23MA53V 22MA53V 24MA53V 27MA53V
24MA53D 27MA53D
23MA53D22MA53D
Connection panel (See p.20)
Only UK
ENGLISH
10 ASSEMBLING AND PREPARING
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
