OWNER’S MANUAL

LED TV

Please read this manual carefully before operating the your TV and

retain it for future reference.

LG LED TV applies LCD screen with LED backlights.

ENGLISH

19MN43D 22MN43D 24MN43D 27MA43D

22MN43T 24MN43T 27MA43T

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking

9 Parts and buttons

11 Lifting and moving the TV

12 Setting up the TV

12 - Attaching the Stand

16 - Mounting on a table

17 - Tidying cables

18 - Detaching the Stand

20 - Mounting on a wall

22 WATCHING TV

22 Turning the TV on for the first time

24 MAKING CONNECTIONS

24 Connecting an antenna

25 Connecting to a HD receiver, DVD, VCR

player or Gaming device

25 - HDMI connection

26 - HDMI to DVI connection

27 - Component connection

28 - Composite connection

29 - Euro Scart connection

30 Connecting to a USB

30 Connecting to a CI Module

31 Connecting to a wired network

32 Connecting to a PC

33 - HDMI connection

34 - HDMI to DVI connection

35 - RGB connection

36 REMOTE CONTROL

38 CUSTOMIZING SETTINGS

38 Accessing main menus

39 USING THE USER GUIDE

39 Accessing User Guide menu.

39 - Using the TV menu

39 - Using the Remote Control

40 MAINTENANCE

40 Cleaning Your TV

40 Screen and frame

40 Cabinet and stand

40 Power cord

41 Preventing “Image burn” or “Burn-in” on

your TV screen

42 TROUBLESHOOTING

42 General

43 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. Dolby and the

double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device

setup menu. Go to vod.divx.com for more information on how to complete

your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

ENGLISH

4INSTALLATION PROCEDURE

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.

2 Attach the stand to the TV.

3 Connect an external device to the TV.

 Image shown may differ from your TV.

 Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

 The available menus and options may differ from the input source or product model that you are

using.

 New features may be added to this TV in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual

product and accessories.

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

NOTE

 Do not use any pirated items to ensure the safety and product life span.

 Any damages or injuries by using pirated items are not covered by the warranty.

CAUTION

 The items supplied with your product may vary depending on the model.

 Product specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.

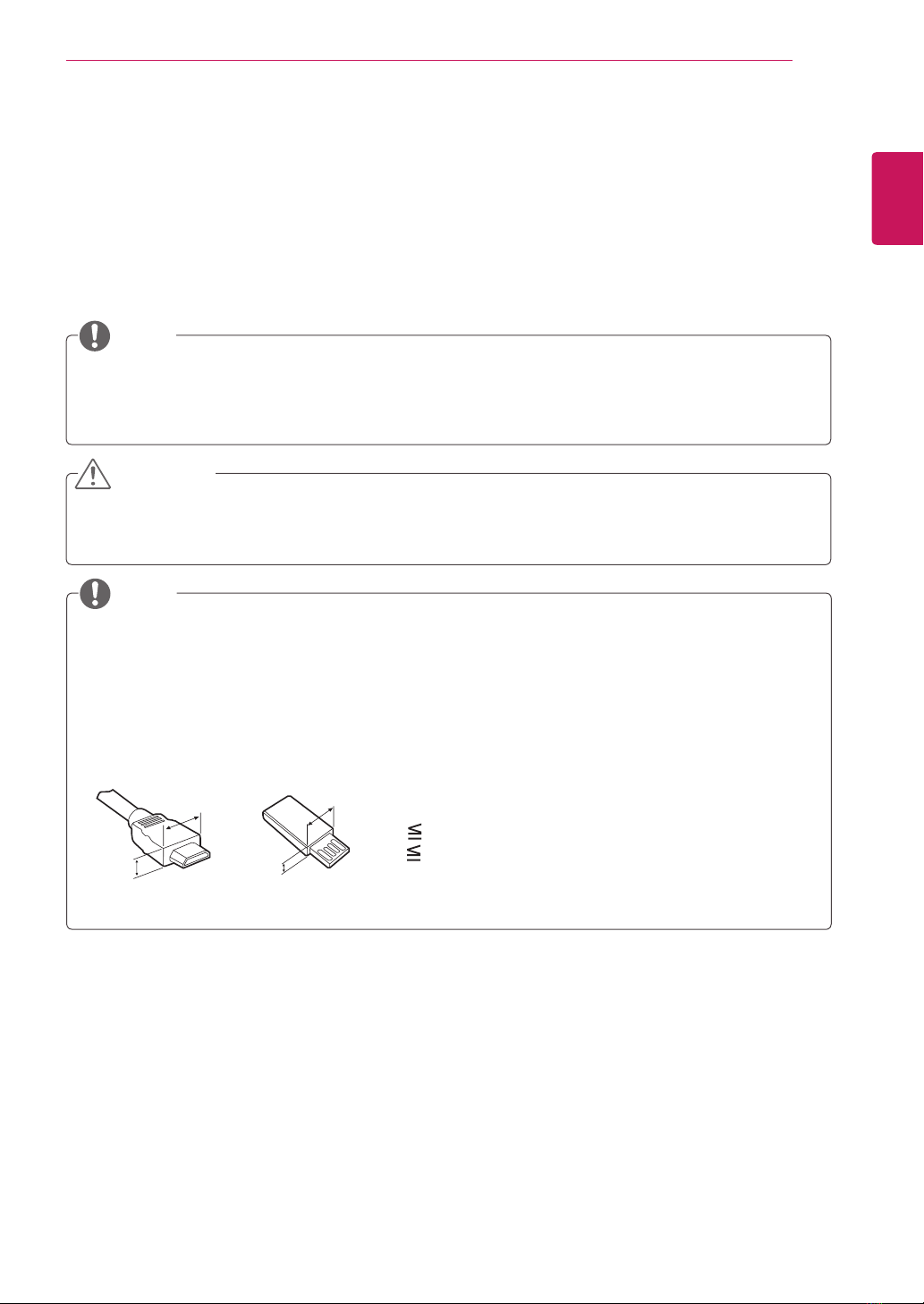

 For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

NOTE

*A 10 mm

*B 18 mm

ENGLISH

6ASSEMBLING AND PREPARING

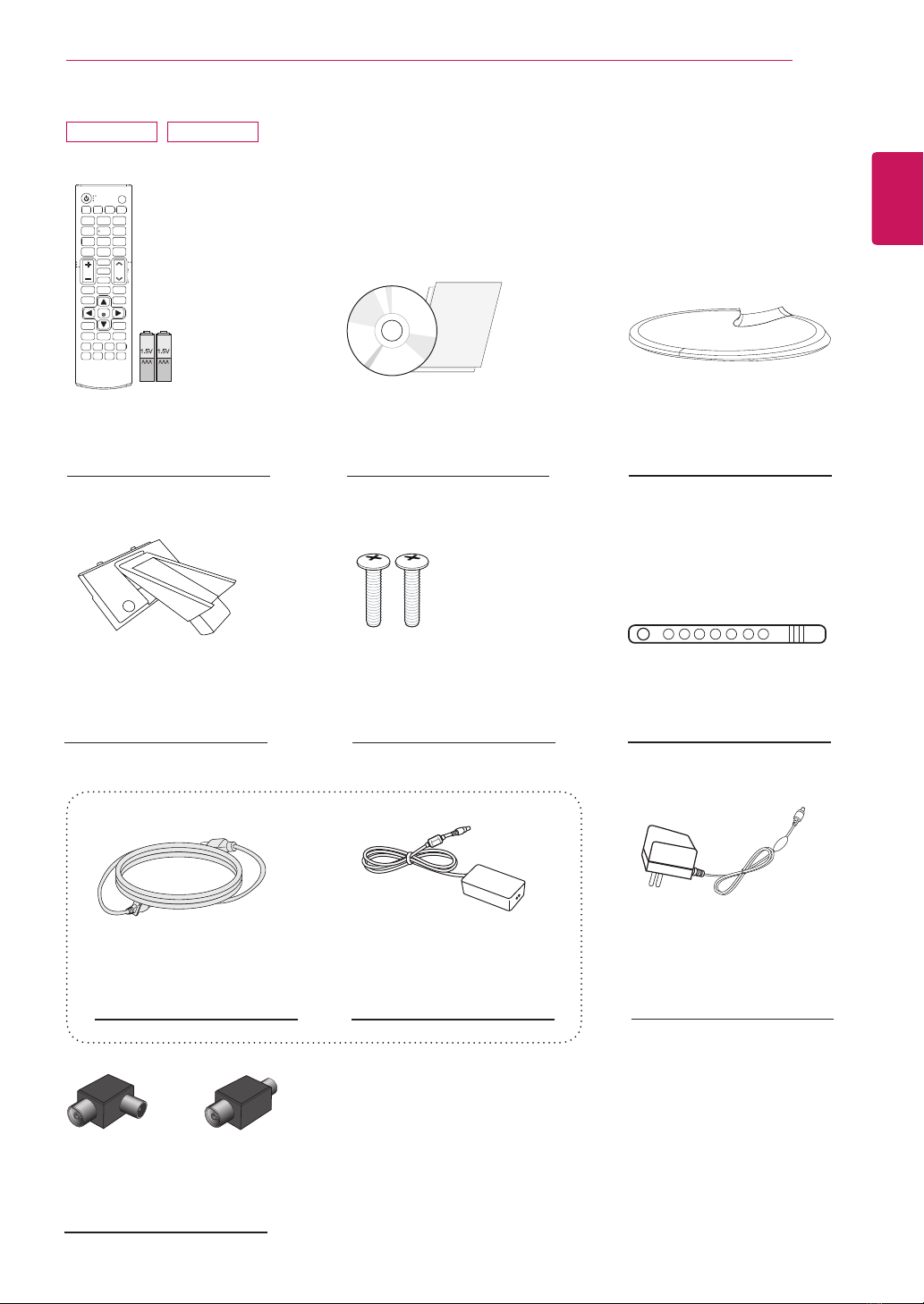

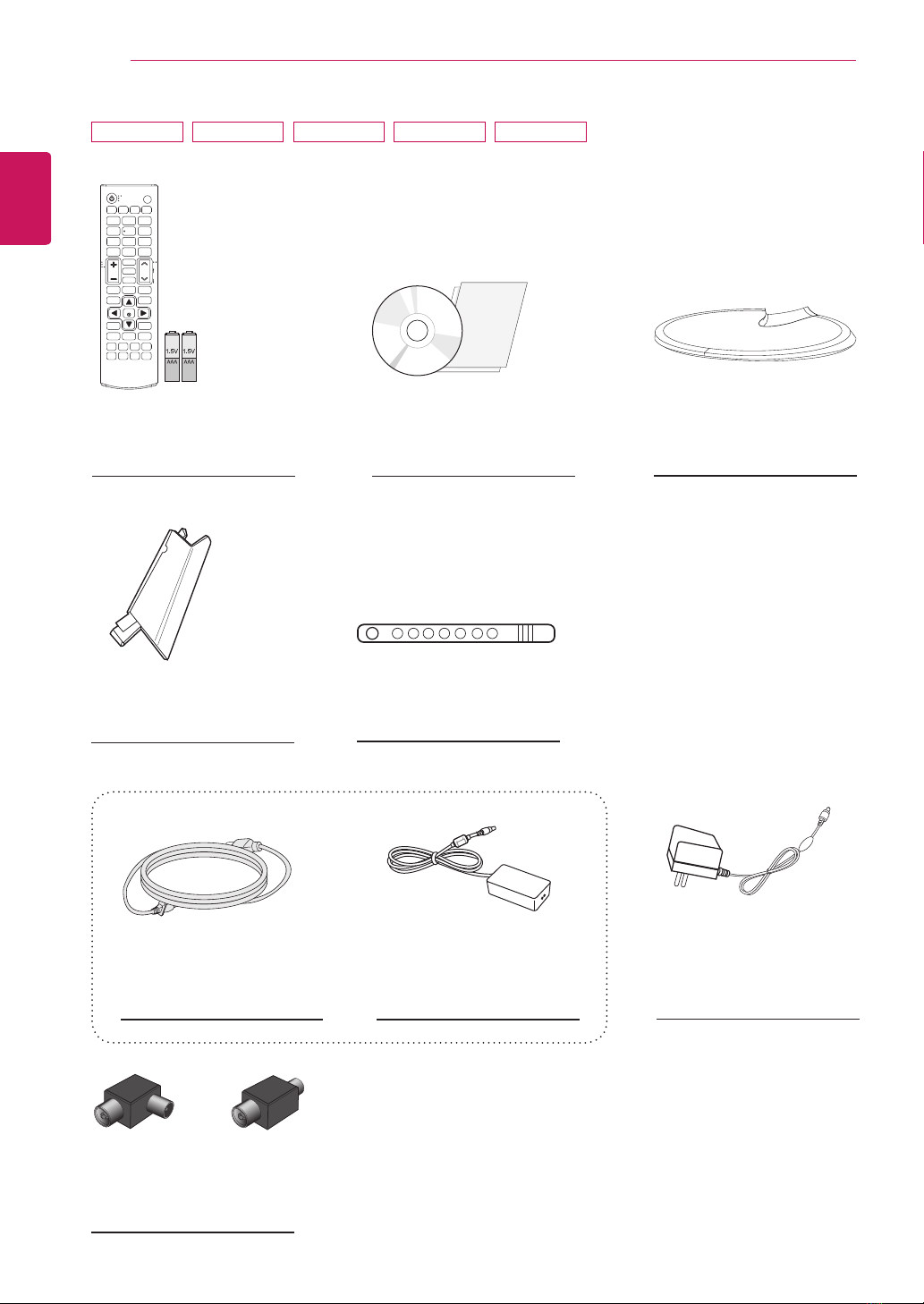

Remote control

Batteries (AAA)

Power Cord.

Stand BaseCD (Owner's Manual)

Cards

Stand Body

Cable Tie.

(See p.36, See p.37)

(See p.16)

(See p.12, See p. 18)

(See p.12, See p. 18) (See p.17)

24MN43T 24MN43D 22MN43T 22MN43D

19MN43D

AC-DC Adapter.

(See p.16)

AC-DC Adapter.

(Depending on the country)

(See p.16)

(Depending on the country)

Isolator

ENGLISH

ASSEMBLING AND PREPARING

Remote control

Batteries (AAA)

Power Cord.

Stand BaseCD (Owner's Manual)

Cards

Cable Tie.

(See p.36, See p.37)

(See p.16)

(See p. 14, See p. 19)

(See p. 14, See p. 19) (See p.17)

27MA43T

27MA43D

Screws for Assembly

2 EA

(See p. 14, See p. 19)

Stand Body

AC-DC Adapter.

(See p.16)

AC-DC Adapter.

(Depending on the country)

(See p.16)

(Depending on the country)

Isolator

ENGLISH

8ASSEMBLING AND PREPARING

NOTE

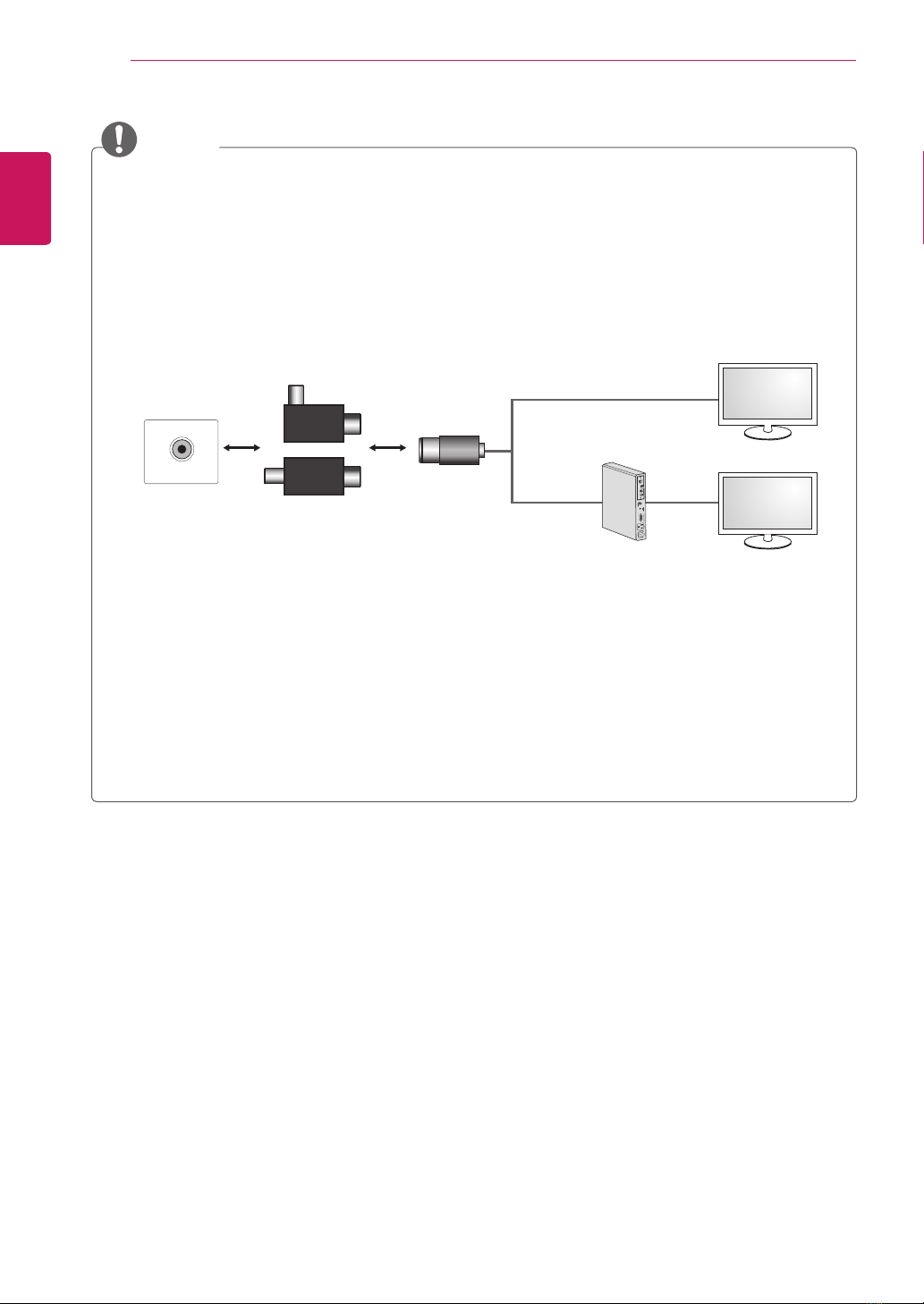

Antenna Isolator Installation Guide

-Use this to install TV in a place where there is a voltage difference between TV Set and GND of

antenna signal.

»If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact

might be heated and excessive heat might cause an accident.

-You can improve the safety when watching TV by efficiently removing power voltage from TV

antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall,

mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

-Before starting, be sure that the TV antenna is connected.

ANTENNA/

CABLE IN

Cable / Antenna

Wall

Isolator

1. Connect to TV.

2. Connect to Set-Top box.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

“Equipment connected to the protective earthing of the building installation through the mains

connection or through other equipment with a connection to protective earthing - and to a cable

distribution system using coaxial cable, may in some circumstances create a ﬁre hazard. Connection to

a cable distribution system has therefore to be provided through a device providing electrical isolation

below a certain frequency range (galvanic isolator, see EN 60728-11)”

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

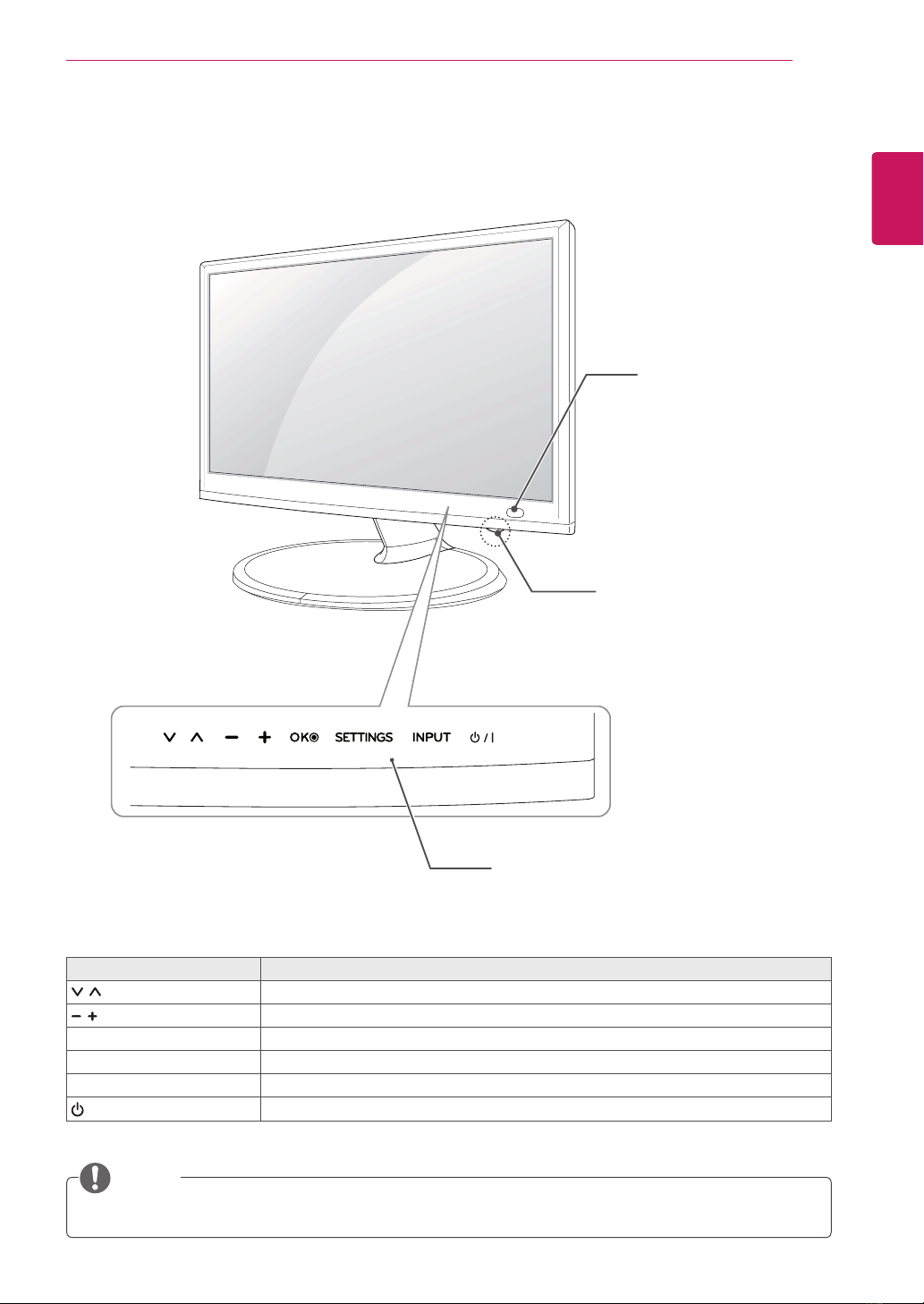

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ ITurns the power on or off.

Remote Control Sensor

Standby Light

 Lighting On:

When Power is turned off

 Lighting Off:

When Power is turned on

Touch Buttons

ENGLISH

10 ASSEMBLING AND PREPARING

LAN

24MN43T

24MN43D 22MN43D

22MN43T 27MA43T

19MN43D 27MA43D

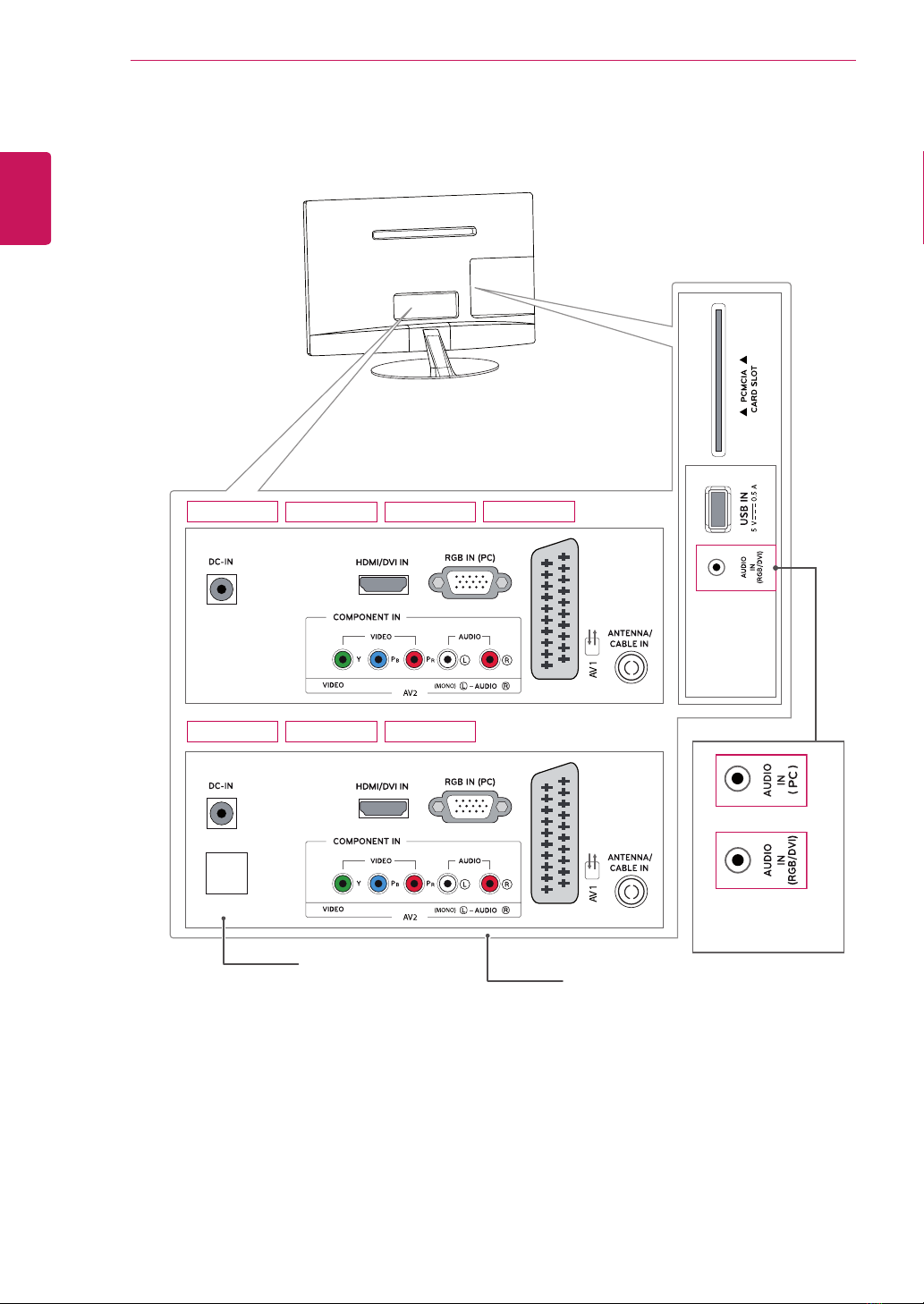

Connection panel (See p.24)

Only UK

(Depending on the

model)
