OWNER’S MANUAL

LED TV*

(CINEMA 3D TV)

23MD53D

27MD53D

*LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your TV and

retain it for future reference.

ENGLISH

TABLE OF CONTENTS

3LICENSES

4INSTALLATION PROCEDURE

5ASSEMBLING AND PREPARING

5 Unpacking

7 - Separate purchase

9 Parts and buttons

10 Lifting and moving the TV

11 Setting up the TV

11 - Attaching the Stand

15 - Mounting on a table

16 - Tidying cables

16 - Using the Kensington security system

17 - Detaching the Stand

19 - Mounting on a wall

21 WATCHING TV

21 Turning the TV on for the first time

23 MAKING CONNECTIONS

23 Connecting an antenna

24 Connecting to a HD receiver, DVD, VCR

player or Gaming device

24 - HDMI connection

25 - HDMI to DVI connection

26 - Component connection

27 - Composite connection

28 - Euro Scart connection

29 Connecting to an audio system

29 - Headphone connection

30 Connecting to a USB

30 Connecting to a CI Module

31 Connecting to a PC

32 - HDMI connection

33 - HDMI to DVI connection

34 - RGB connection

35 REMOTE CONTROL

37 CUSTOMIZING SETTINGS

37 Accessing main menus

38 USING THE USER GUIDE

38 Accessing User Guide menu.

38 - Using the TV menu

39 3D IMAGING

39 3D Technology

40 MAINTENANCE

40 Cleaning Your TV

40 Screen and frame

40 Cabinet and stand

40 Power cord

41 Preventing “Image burn” or “Burn-in” on

your TV screen

42 IF THE QUALITY OF THE 3D

IMAGE IS NOT ACCEPTABLE,

CHECK THE FOLLOWING

43 VIEWING 3D IMAGING

45 TROUBLESHOOTING

45 General

45 Using 3D mode

46 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. Dolby and the

double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device

setup menu. Go to vod.divx.com for more information on how to complete

your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

ENGLISH

4INSTALLATION PROCEDURE

INSTALLATION PROCEDURE

1Open the package and make sure all the accessories are included.

2Attach the stand to the TV.

3Connect an external device to the TV.

yImage shown may differ from your TV.

yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

yThe available menus and options may differ from the input source or product model that you are

using.

yNew features may be added to this TV in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual

product and accessories.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

NOTE

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe items supplied with your product may vary depending on the model.

yProduct specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.

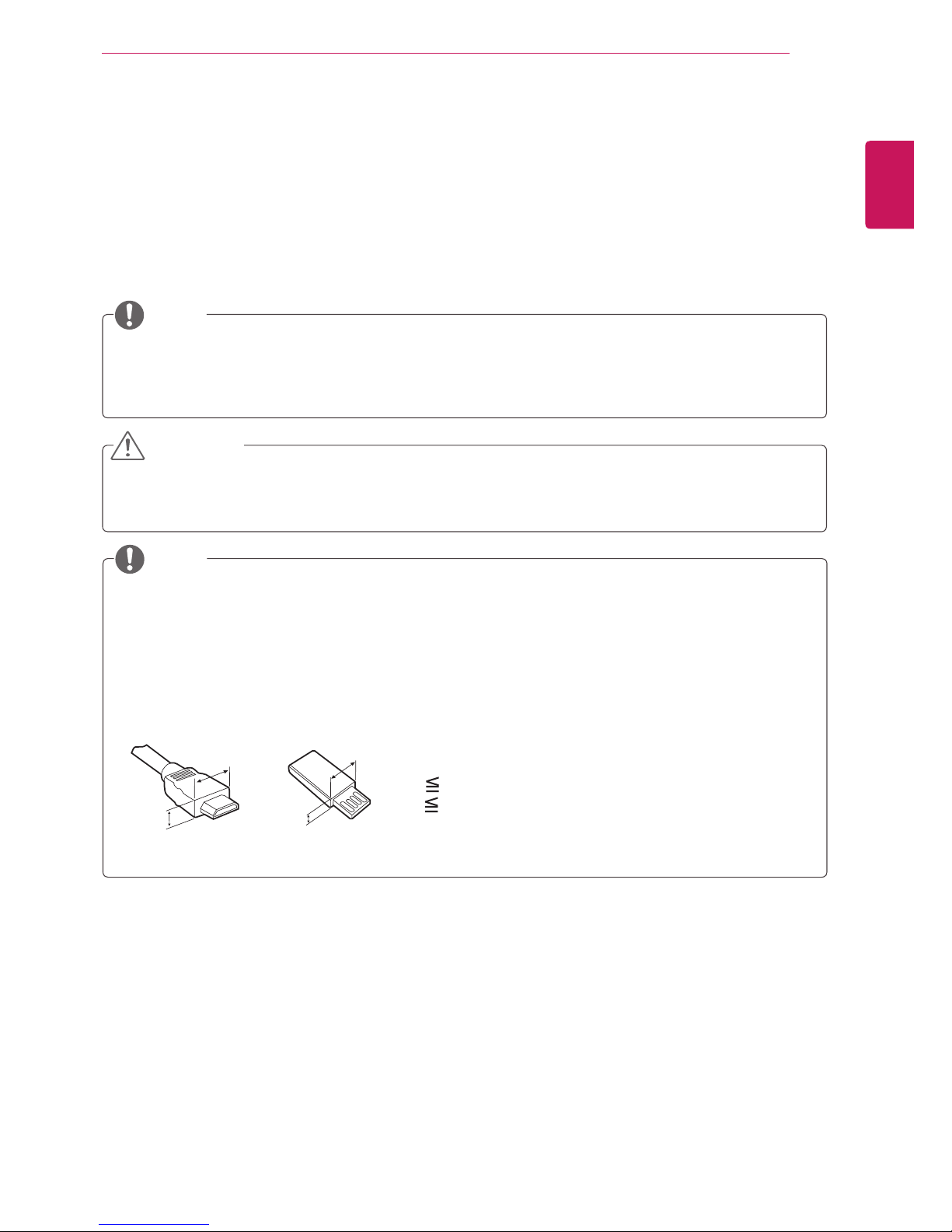

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

NOTE

*A 10 mm

*B 18 mm

ENGLISH

6ASSEMBLING AND PREPARING

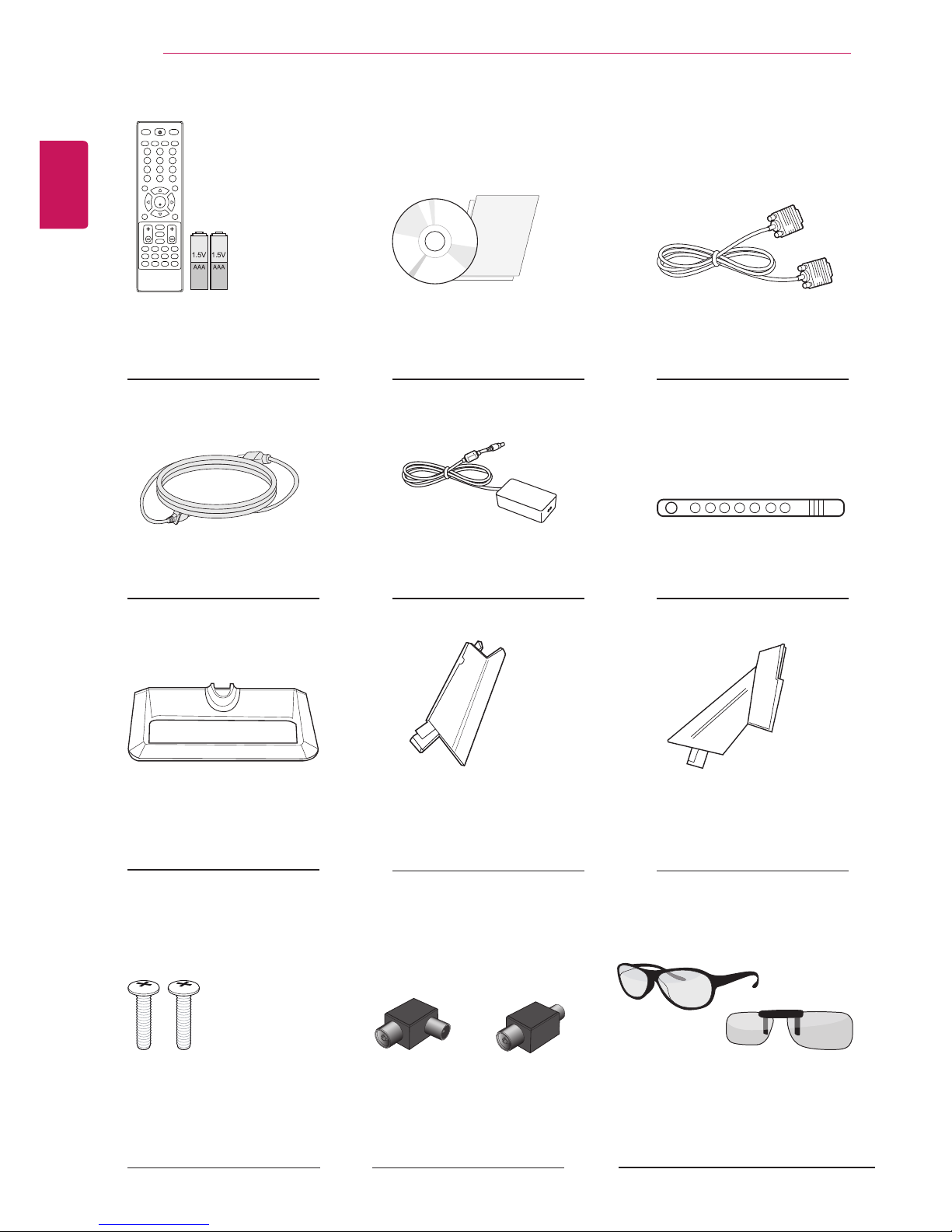

Remote control

Batteries (AAA)

Power Cord

Stand Base

CD (Owner's Manual)

Cards

AC-DC Adapter

RGB Cable

Cable Tie

Screws for Assembly

2 EA

(Only 27MD53D model)

Isolator

(Depending on the country)

(See p.35, See p.36)

(See p.15) (See p.15)

(See p.34)

(See p.16)

(See p.13, See p.18)

3D Glasses(Normal type / Clip type)

- The number of 3D glasses may differ

depending on the model or country.

- Image shown may differ from your TV.

Stand Body

(Only 23MD53D model)

(See p.11, See p.17)

(23MD53D: See p.11, See p.17

27MD53D: See p.13, See p.18)

Stand Body

(Only 27MD53D model)

(See p.13, See p.18)

ENGLISH

ASSEMBLING AND PREPARING

Separate purchase

Dual play glasses

AG-F2**DP, AG-F3**DP

yThe illustrations in this manual may differ from the actual product and accessories.

ySeparate purchase items can be changed or modified for quality improvement without any

notification.

yContact your dealer to buying these items.

yThe model name or design may be changed depending on the upgrade of product

functions,manufacturer’s circumstances or policies.

NOTE

ENGLISH

8ASSEMBLING AND PREPARING

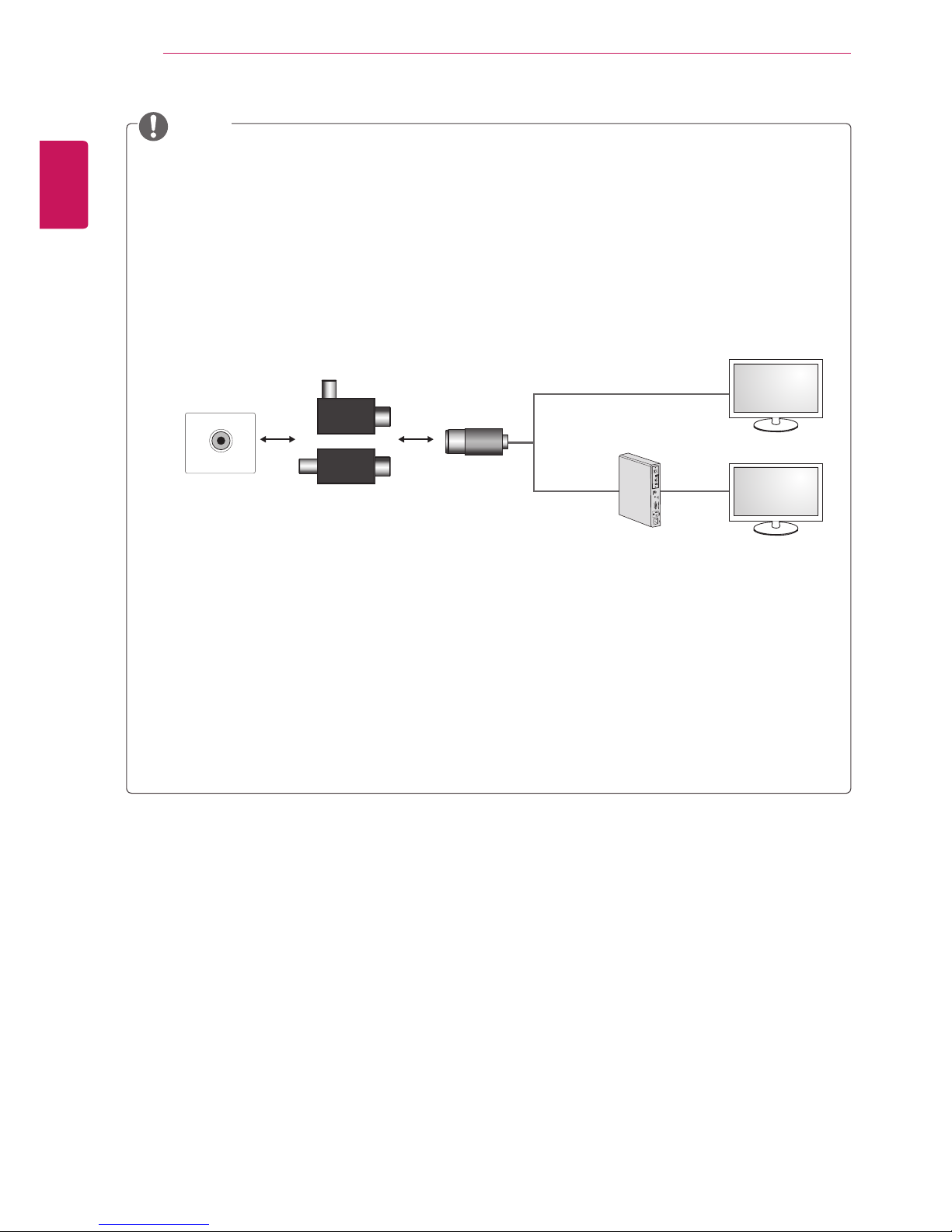

yAntenna Isolator Installation Guide

-Use this to install TV in a place where there is a voltage difference between TV Set and GND

of antenna signal.

»If there is a voltage difference between TV Set and GND of antenna signal, the antenna

contact might be heated and excessive heat might cause an accident.

-You can improve the safety when watching TV by efficiently removing power voltage from TV

antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the

wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

-Before starting, be sure that the TV antenna is connected.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

“Equipment connected to the protective earthing of the building installation through the mains

connection or through other equipment with a connection to protective earthing - and to a

cable distribution system using coaxial cable, may in some circumstances create a ﬁre hazard.

Connection to a cable distribution system has therefore to be provided through a device providing

electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

NOTE

ANTENNA/

CABLE IN

Cable / Antenna

Wall

Isolator

1. Connect to TV.

2. Connect to Set-Top box.

ENGLISH

ASSEMBLING AND PREPARING

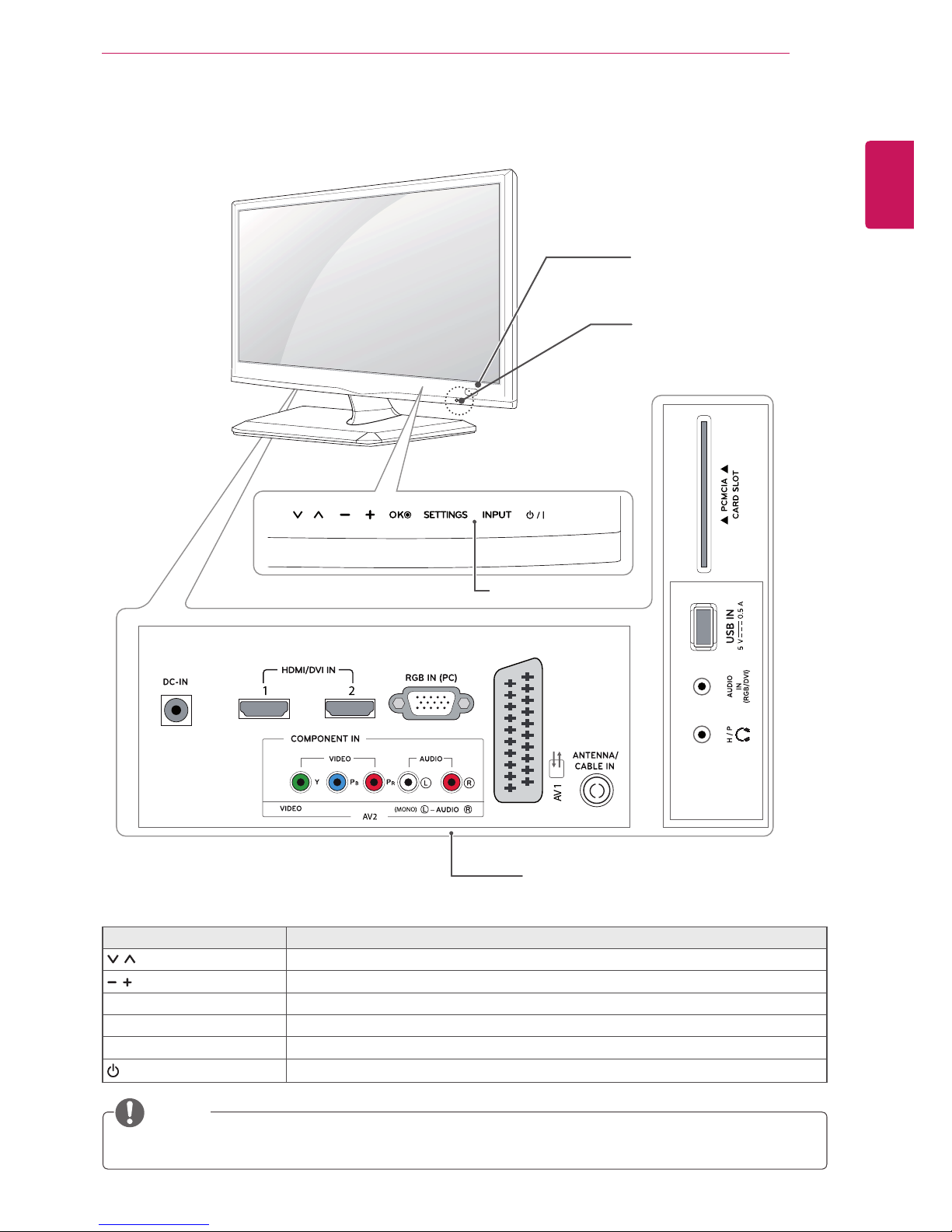

Parts and buttons

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ITurns the power on or off.

Remote Control Sensor

Standby Light

yLighting On: When Power

is turned off

yLighting Off: When

Power is turned on

Connection panel (See p.23)

Touch Buttons

ENGLISH

10 ASSEMBLING AND PREPARING

yWhen holding the TV, the screen should face

away from you to prevent the screen from

scratches.

yWhen transporting the TV, do not expose the

TV to jolts or excessive vibration.

yWhen transporting the TV, keep the TV

upright, never turn the TV on its side, or tilt

towards the left or right.

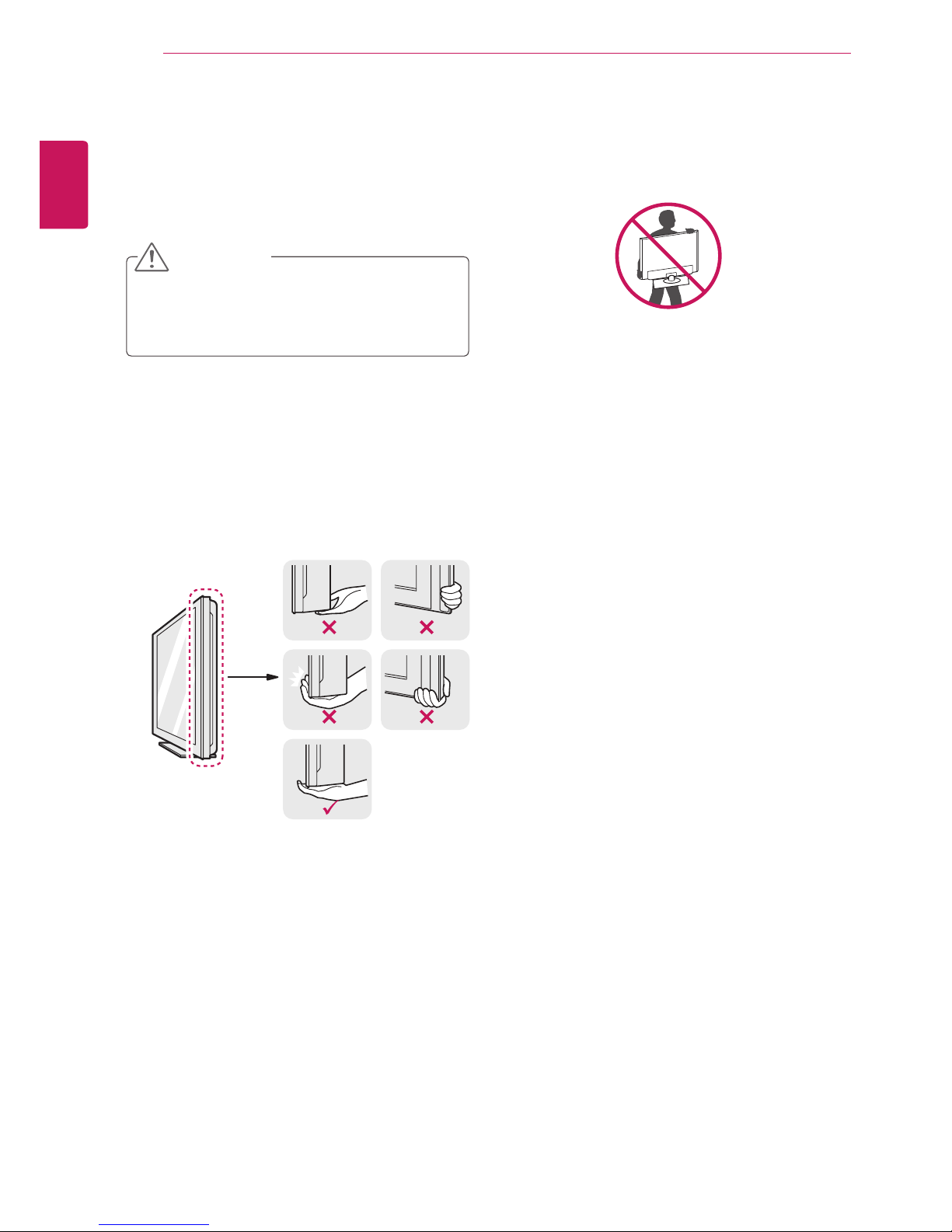

Lifting and moving the TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for save transportation regardless of

its type and size.

Avoid touching the screen at all times, as

this may result in damage to the screen or

some of the pixels used to create images.

CAUTION

yIt is recommended to move the TV in the

box or packing material that the TV originally

came in.

yBefore moving or lifting the TV, disconnect

the power cord and all cables.

yHold the top and bottom of the TV frame

firmly. Make sure not to hold the transparent

part, speaker, or speaker grill area.
