LG 49UB850V.AEE Manuale utente

Please read this manual carefully before operating your set

and retain it for future reference.

OWNER S MANUAL

LED TV*

Click! User Guide

P/NO : MFL68066603 (1411-REV05)

Printed in Korea

*MFL68066603* www.lg.com

* LG LED TVs are LCD TVs with

LED backlighting.

UB85** UB98** UG88**

UB93** UC97**

UB95** UC9*

A-2 TABLE OF CONTENTS

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-9 Tidying cables

A-11 Assembling the AV cover

A-12 MAKING CONNECTIONS

A-12 Antenna Connection

A-13 Satellite dish Connection

A-14 HDMI Connection

A-15 - ARC (Audio Return Channel)

A-15 DVI to HDMI Connection

A-16 Component Connection

A-17 Composite Connection

A-18 MHL Connection

A-19 Audio Connection

A-20 - Digital optical audio Connection

A-20 Headphone Connection

A-21 USB Connection

A-22 CI module Connection

A-23 Euro Scart Connection

LANGUAGE LIST

English

Italiano

B-1 SPECIFICATIONS

COMMON

LANGUAGE

A-3

SETTING UP THE TV

Image shown may differ from your TV.

Attaching the stand

Stand Base

Stand Body (R)

Stand Body (L)

M4 x L20

4EA

UB85**-ZA, UB93**, UB95**-ZA

yBe sure to check the Stand Body (L), (R), when

installing on the stand base.

NOTE

1 Attach the stand to the TV using the upper mounting

hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.

M4 x L20

4EA

A-4 SETTING UP THE TV

1 Attach the stand to the TV using the upper mounting

hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.

M4 x L20

4EA

UB85**-ZD, UB95**-ZB

yBe sure to check the Stand Body (L), (R), when

installing on the stand base.

NOTE

Stand Body (L)

Stand Body (R)

Stand Base

4EA

M4 x L10

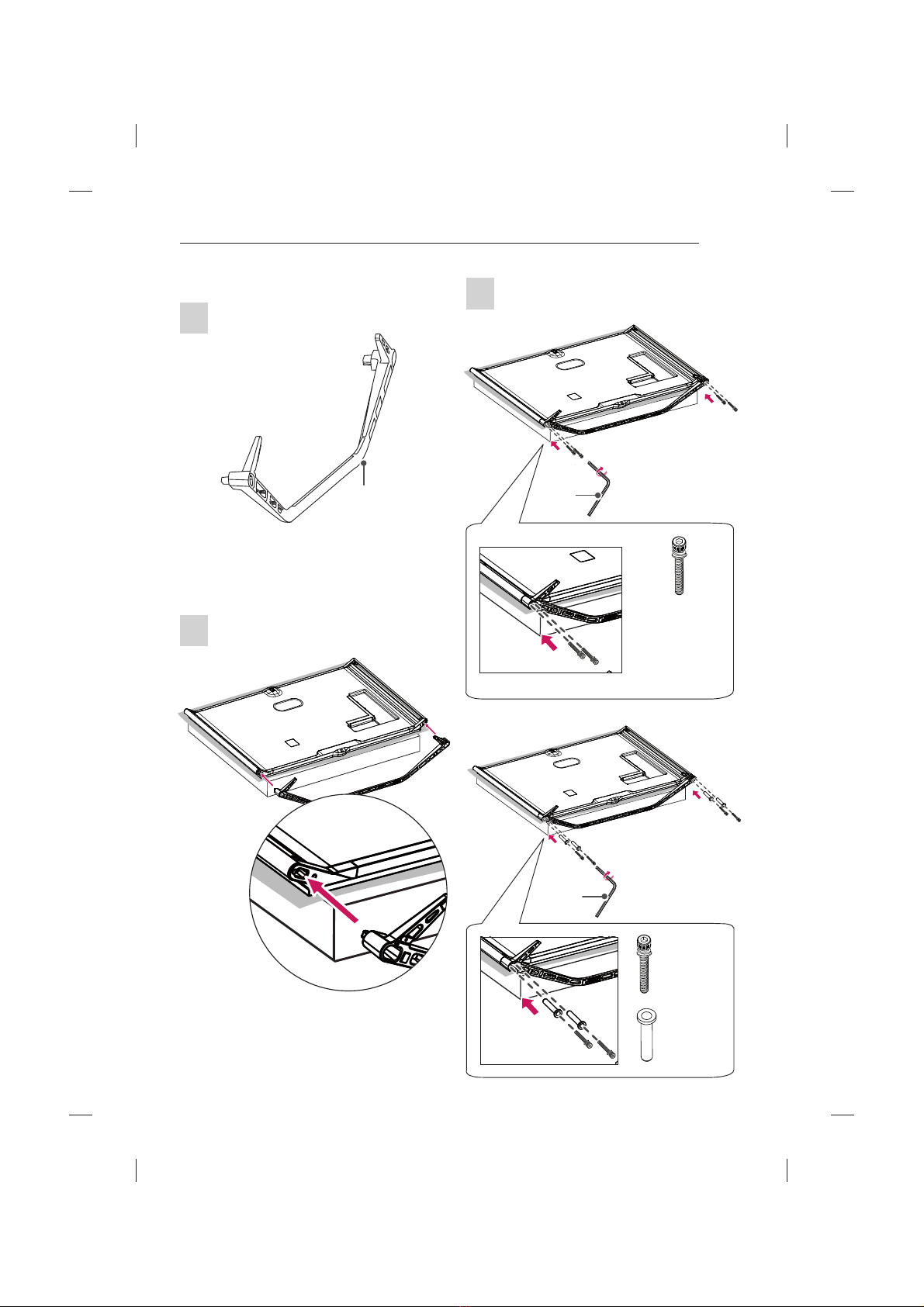

A-5

SETTING UP THE TV

Stand Base

65/79/84UB98**

(Only 65/79UB98**)

Wrench

14EA

(Insulation

Holder)

(Only 84UB98**)

4EA

M6 x L47

(Only 65UB98**)

M6 x L52

(Only 79UB98**)

4EA

M6 x L52

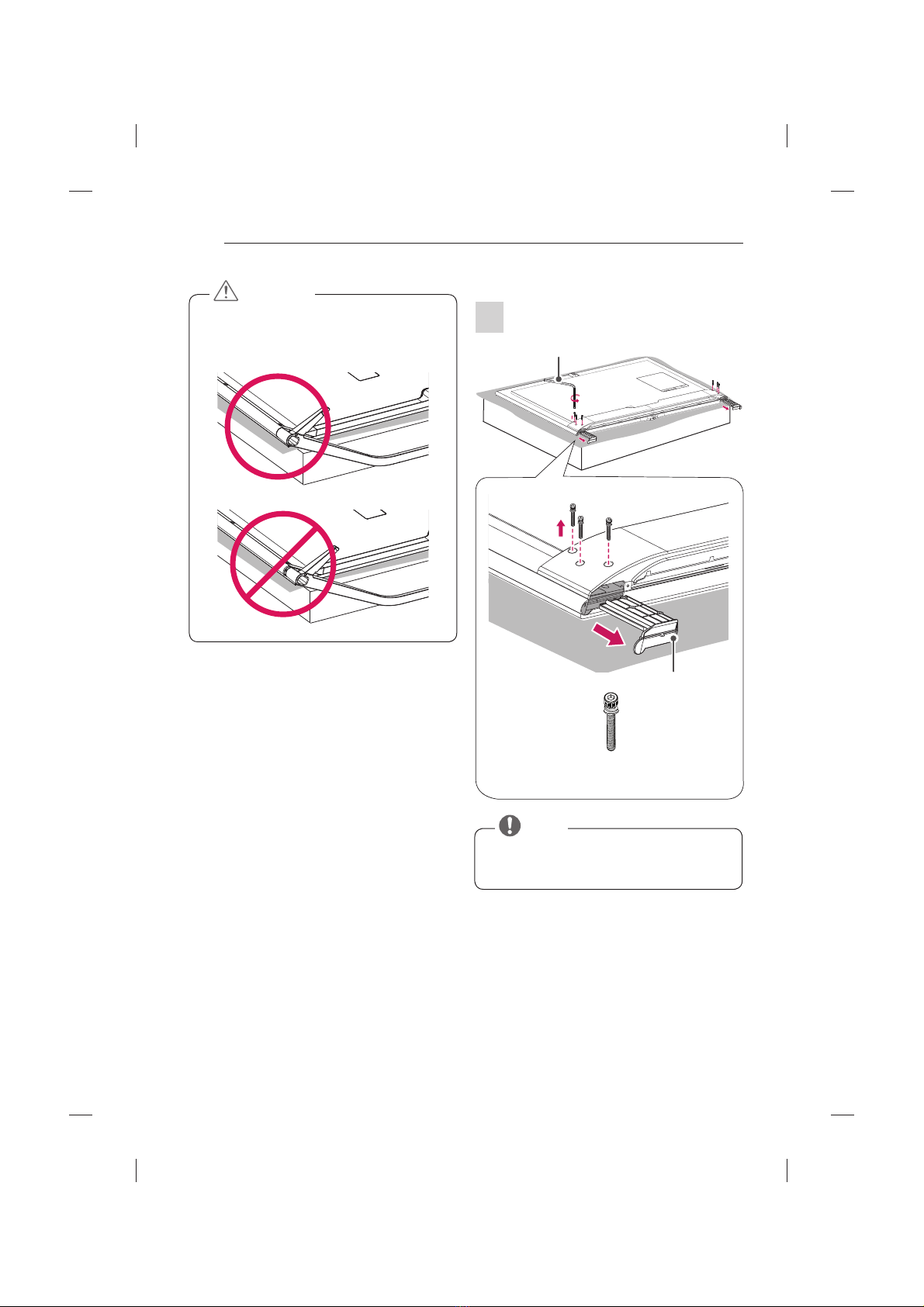

A-6 SETTING UP THE TV

yMake sure that the screws are inserted correctly

and fastened securely. (If they are not fastened

securely enough, the TV may tilt forward after

being installed.)

CAUTION

98UB98**

M6 x L47

6EA

Mold

Wrench

yThe stand screws are already attached at the

back of the TV. Please use these attached screw

to assemble the TV and stand. (Only 98UB98**)

NOTE

A-7

SETTING UP THE TV

Stand Base

UC97**



Stand Body (L)

Stand Body (R)

Stand Base

M4 x L10

4EA

1 When assembling the stand, lay the front screen

protective package included in the product box on

a table or flat surface and then place the TV screen

face down on the protective package.

2 Attach the stand to the TV using the upper mounting

hole on the back of the TV.

3 Attach the stand to the TV using the lower connection

on the back of the TV.

Wrench

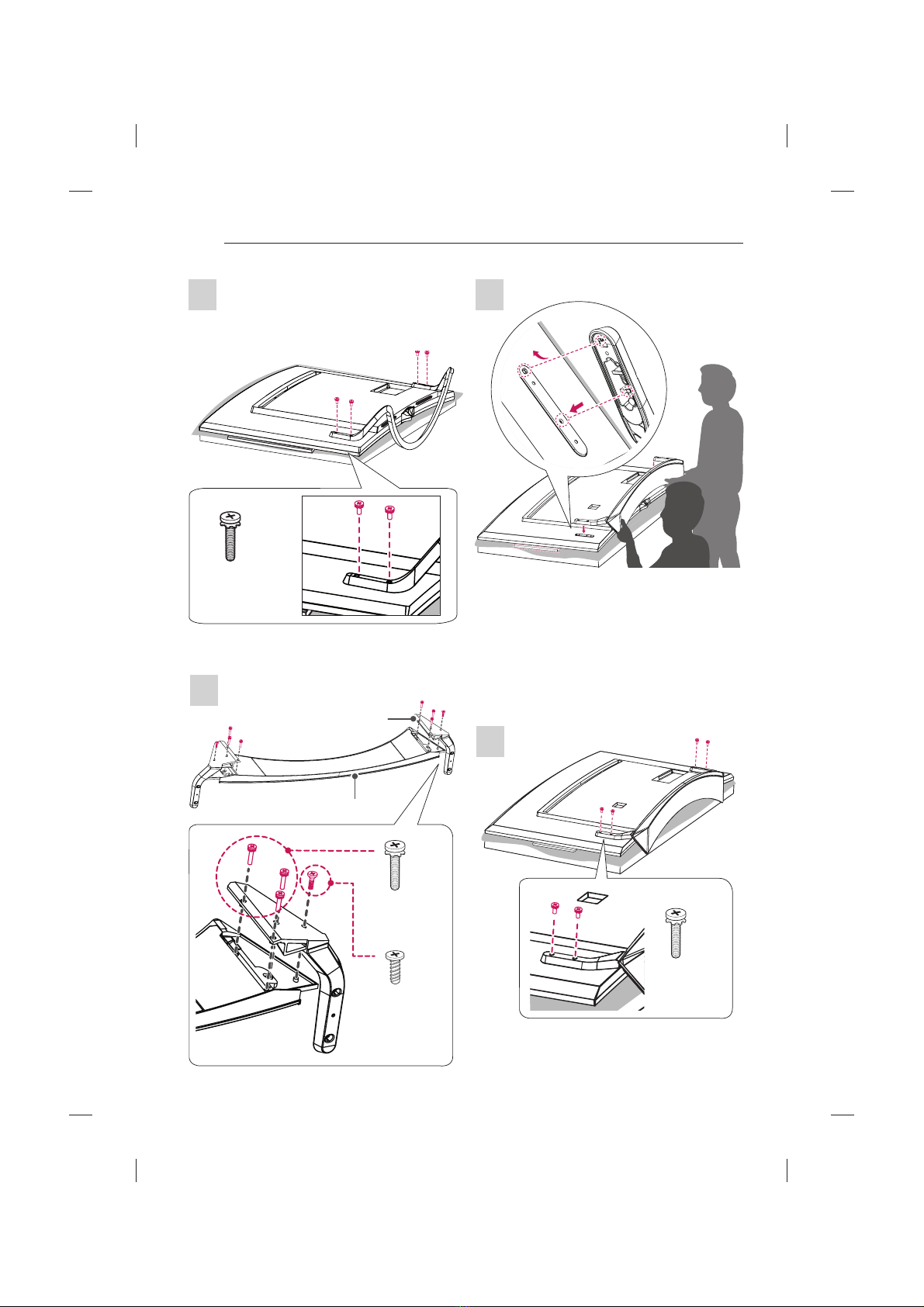

A-8 SETTING UP THE TV



M4 x L20

4EA

UG88**

Stand Base

Stand Body (R)

Stand Body (L)

M4 x L14

6EA

M4 x L10

2EA

1 When assembling the stand, lay the front screen

protective package included in the product box on

a table or flat surface and then place the TV screen

face down on the protective package.

2 Attach the stand to the TV using the upper mounting

hole on the back of the TV.

3 Attach the stand to the TV using the lower

connection on the back of the TV.

M4 x L14

4EA

* Use at least two people to attach the stand to the TV.

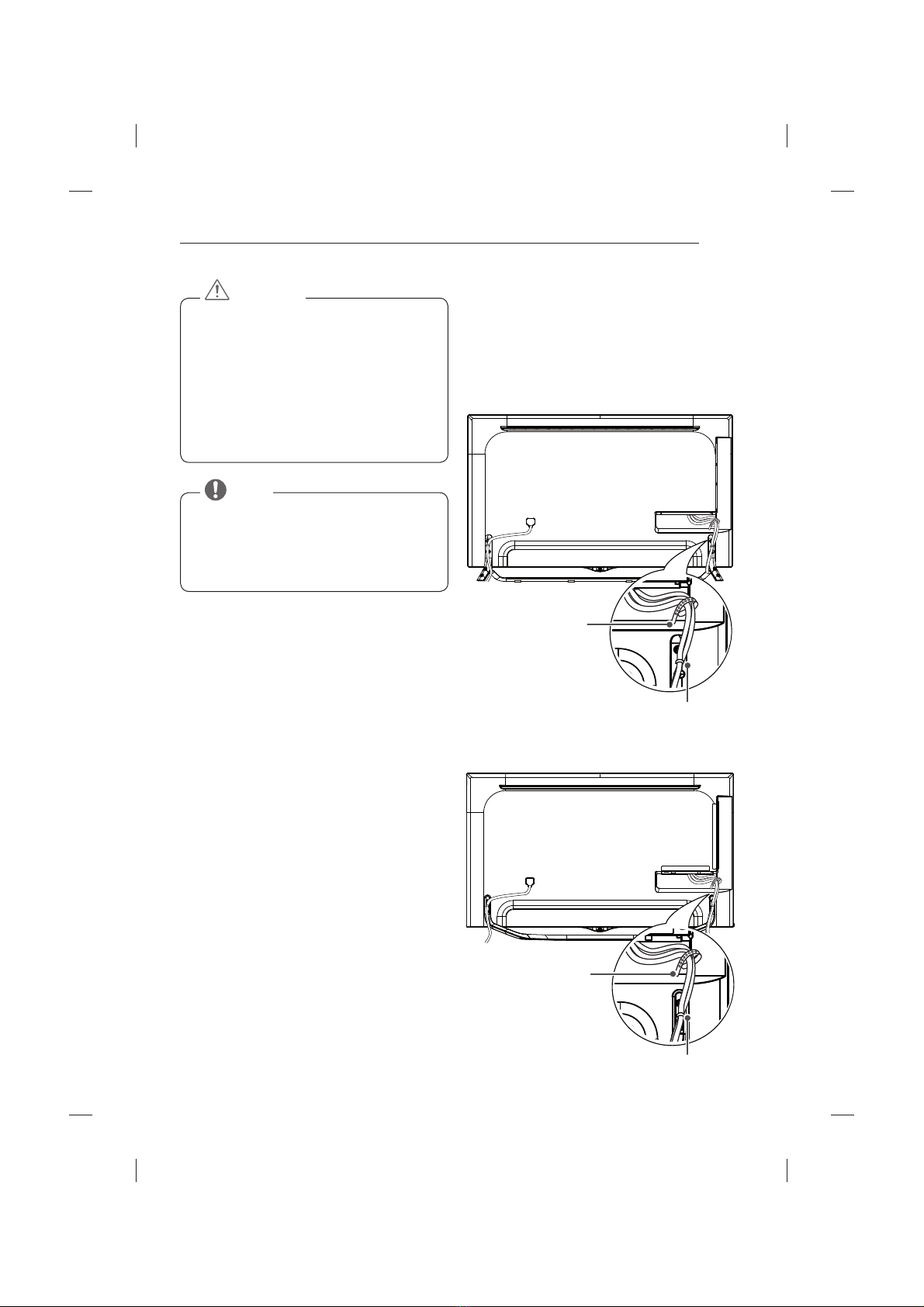

A-9

SETTING UP THE TV

Tidying cables

Image shown may differ from your TV.

1 Gather and bind the cables with the Cable Holder

and the Cable Management.

2 Fix the Cable Management firmly to the TV.

(Only UB85**-ZA, UB93**, UB95**-ZA)

Cable Holder

Cable Management

(Only UB85**-ZD, UB95**-ZB)

Cable Holder

Cable Management

yWhen attaching the stand to the TV set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

(Only UB85**, UB93**, UB95**, UB98**)

yMake sure that the screws are inserted correctly

and fastened securely. (If they are not fastened

securely enough, the TV may tilt forward after

being installed.)

Do not use too much force and over tighten the

screws; otherwise screw may be damaged and

not tighten correctly.

CAUTION

yRemove the stand before installing the TV on a

wall mount by performing the stand attachment in

reverse.

yRemove the protective film from the stand base

and then attach the stand body to the stand base.

(Only UC97**)

NOTE

A-10 SETTING UP THE TV

(Only 65/79/84UB98**)

Cable Holder

1 Gather and bind the cables with the Cable Holder.

(Only UC97**)

Cable Holder

Cable Management

(Only 98UB98**)

Cable

Holder

Cable Management

Cable

management

(Only UG88**)

Cable Holder
