LG 20MP38H Manuale utente

www.lg.com

IPS LED MONITOR MODEL

Please read this manual carefully before operating

your set and retain it for future reference.

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

20MP38A

20MP38H

20MP38HQ

22MP48A

22MP48D

22MP48HQ

23MP48D

23MP48HQ

20MP48A 24MP48HQ 27MP48HQ

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

6 Parts and buttons

7 Parts and buttons

8 Parts and buttons

9 Moving and Lifting the Monitor

10 Setting up the Monitor set

10 - Attaching the Stand Base

11 - Mounting on a table

12 - Using the cable holder

15 - Mounting on a wall

16 USING THE MONITOR SET

16 Connecting to a PC

16 - D-SUB connection

16 - DVI-D connection

17 - HDMI connection

17 Connecting to AV Devices

17 - HDMI connection

18 Connecting to External Devices

18 - Peripheral device connection

19 CUSTOMIZING SETTINGS

21 Customizing Settings

21 - Menu Settings

23 -Picture

24 -Color

25 -Display

25 -Audio

26 -Others

27 READER Setting

28 FUNC. Setting

28 -SMART ENERGY SAVING

29 -Picture Mode

30 -Color Weakness

31 TROUBLESHOOTING

33 SPECIFICATIONS

43 Factory Support Mode

(Preset Mode, D-SUB/DVI/HDMI PC)

44 HDMI Timing(Video)

44 Indicator

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc. in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjust-

ment to display.

*To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

20MP38H 20MP38HQ 22MP48HQ 23MP48HQ 24MP48HQ 27MP48HQ

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

CD(Owner's Manual) /

Card

( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter

AC-DC Adapter

D-SUB Cable

( This cable is not included in all

countries. )

HDMI Cable

Stand Body Stand Base

( This cable is not included in all

countries. )

DVI-D Cable

( This cable is not included in all

countries. )

Stand Body Stand Body

Stand Base Stand Base

Cable holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

HDMI IN

READER

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.16~18)

Button (See p.19~20)

(Power Button)

yThe button is located at the bottom of the monitor.

NOTE

22MP48A

22MP48D

22MP48HQ

23MP48D

23MP48HQ

ENG

ENGLISH

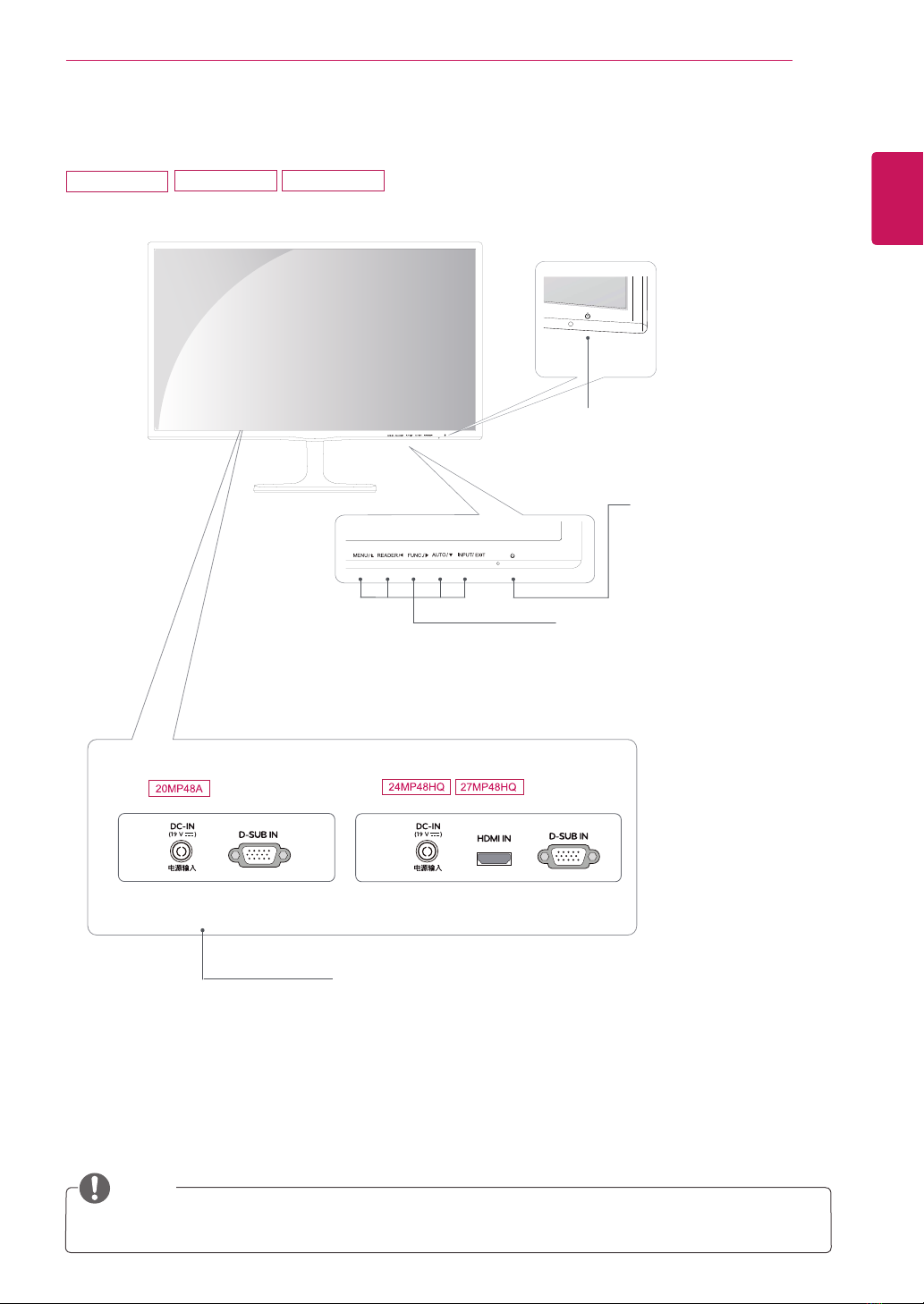

ASSEMBLING AND PREPARING

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Button (See p.19~20)

(Power Button)

Parts and buttons

Connection panel (See p.16~18)

yThe button is located at the bottom of the monitor.

NOTE

20MP48A 24MP48HQ 27MP48HQ

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

20MP38A 20MP38H 20MP38HQ

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

(Power Button)

Button (See p.19~20)

Connection panel (See p.16~18)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Attach the Stand Body to the monitor set.

Attach the Stand Base.

Tighten the screw to the right with a coin.

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Stand Base

Stand Body

22MP48A

22MP48D

22MP48HQ

23MP48D

23MP48HQ

20MP38A 20MP38HQ20MP38H

Stand Base

Stand Body

Stand Base

Stand Body

Insert the Cable Holder.

Attach the Stand Body to the monitor set.

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

yYou can disassemble the stand in the

reverse order of the assembly.

NOTE
