LG 21HQ513D-B.ATR Manuale utente

www.lg.com

* LG LED Monitor applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

21HQ513D

IPS LED Monitor

(LED Monitor*)

OWNER’S MANUAL

ENGLISH

CONTENTS

ON CLEANING .......................................3

LICENSE...............................................4

OPEN SOURCE SOFTWARE NOTICE

INFORMATION......................................4

ASSEMBLY AND PREPARING ...................5

USING THE MONITOR...........................23

USER SETTINGS ..................................25

TROUBLESHOOTING ............................36

PRODUCT SPECIFICATIONS ...................37

ENGLISH

Please note that this information is for proper use and safety of the equipment. The following symbols may

indicate a hazardous situation in which, if not heeded, may result in serious injury or even death to the user or

others, or damage to the equipment.

WARNING

• Indicates warning and safety instructions. If not adhered to, it could result in death or serious injury to the

user or others.

CAUTION

• Indicates a hazardous situation which, if not heeded, may result in minor or moderate injury to the user or

others, or damage to the equipment.

ON CLEANING

Recommended Cleaning Chemicals

• Isopropanol 70%

• Ethanol 70%

• 0.9% NaCl solution

• Biospot 500 ppm

How to Use Cleaner

• Prior to cleaning, turn off the monitor and remove the power cable.

• Soak a soft cloth in a recommended cleaner, then lightly rub the screen with no more than 1N of force.

• The cleaner could cause serious damage if it leaks inside the monitor while cleaning.

• The display could be damaged, so only clean the parts of the monitor other than the screen's LCD panel.

• Do not use benzene, thinner, acids or alkaline cleaners or other such solvents.

• Cleaning guidelines for displays must only be carried out by medical professionals (Doctors or Nurses) and

must not be handled by patients.

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

"DICOM®is the registered trademark of the National Electrical Manufacturers Association for its Standards

publications relating to digital communications of medical information."

OPEN SOURCE SOFTWARE NOTICE

INFORMATION

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this

product, please visit https://opensource.lge.com. In addition to the source code, all referred license terms,

warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open

source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the

cost of media, shipping, and handling) upon email request to opensourc[email protected]. This offer is valid for a

period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this

information.

ENGLISH

ASSEMBLY AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the product. Note that the product and related

components may look different from those shown here.

Owner's Manual/Regulatory Manual/Cards Power Cord AC/DC Adaptor Cable Holder

DisplayPort Cable USB 3.0 Cable DVI-D Cable Stand Body/Stand Base

ENGLISH

CAUTION

• Always use genuine LG components to ensure safety and product performance.

• The product warranty will not cover damage or injury caused by the use of unauthorised components.

• It is recommend to use the supplied components.

• If you use generic cables not certified by LG, the screen may not display or there may be image noises.

NOTE

• The components may look different from those illustrated here.

• Without prior notice, all product information and specifications contained in this manual are subject to

change to improve the performance of the product.

• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer

from which you purchased the product.

• The power cord provided may differ depending upon the region.

ENGLISH

Supported Software

Drivers and Software Installation Priority

LG Calibration Studio Medical / PerfectLum Recommended

Optional

• The [PerfectLum Serial Number] can be found in [General] > [Information].

• LG Calibration Studio Medical / PerfectLum calibrate the color output of the monitor using Hardware

Calibration.The program supports USB communication, so connect your PC and monitor using a USB cable

and launch the LG Calibration Studio Medical / PerfectLum program.

• Required and Recommended:You can download and install the latest version from the enclosed CD or from

the LGE website (www.lg.com).

• Optional: You can download and install the latest version from the LGE website (www.lg.com).

ENGLISH

Product and Button Description

Front

Joystick Button

Power LED

-On Mode: Light up

-Sleep Mode(Standby Mode): Blinking

-Off Mode: Off

Power Switch

ENGLISH

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/

down with your finger.

(Power on): Press the joystick button once with your finger to turn on the monitor.

(Power off): Press and hold the joystick button once more than 5 seconds with your finger to turn off the

monitor.

: Not functional

(Show Information): Displays the information on the current input.

NOTE

• The joystick button and power switch are located at the bottom of the monitor.

• Power switch: Turns the power on/off.

How to Use the Button

• : This allows you to have light on your desk in a dark environment.

• : This allows you to have light on the wall at the back of your monitor in a dark environment.

• : If there is not anyone for 5 minutes in the front of the monitor, it will automatically

turn the screen off.

• : This activates a rectangle screen on display with the max brightness to see a classic

radiological film, and also you can select the duration of this rectangle.

• : Toggle the items to [Text], [Mono], [DICOM] and [Calibration 1] in circular.

ENGLISH

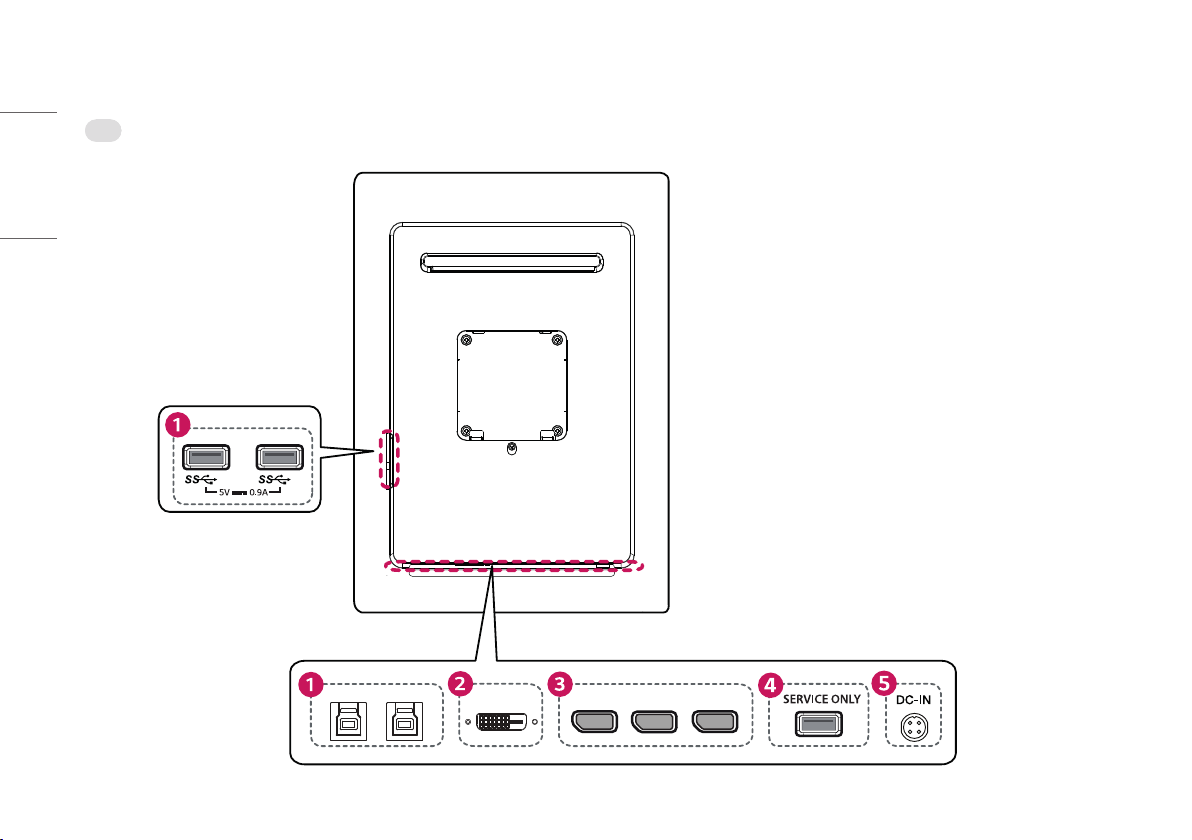

Connectors

Back

USB UP 1 USB UP 2 DP IN 1 DP IN 2DP OUT

DVI IN
