OWNER’S MANUAL

LED LCD Monitor

(LED Monitor*)

22BK55WV

24BK55WV

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODEL

ENGLISH

ENG

ENGLISH

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand Base

6 - Detaching the stand base

7 - Detaching the stand body

7 - Using the cable holder

7 - Mounting on a table

8 - Adjusting the angle

9 - Adjusting the stand height

9 - Using the Kensington locking device

10 - Swivel stand

10 - Using the Pivot function

11 - Mounting on a wall

12 USING THE MONITOR SET

12 Connecting to a PC

12 - D-SUB connection

12 - DVI-D connection

13 - HDMI connection

14 - Peripheral device connection

15 CUSTOMIZING SETTINGS

16 Customizing Settings

16 - Menu Settings

19 TROUBLESHOOTING

21 SPECIFICATIONS

21 22BK55WV

22 24BK55WV

23 Preset Modes (Resolution)

24 Indicator

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to

display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

Stand Base

CD / Card

D-SUB Cable

(This cable is not included in all

countries.)

HDMI Cable

( This cable is not included

in all countries. )

( Depending on the country )

Power Cord

DVI-D Cable

(This cable is not included in all

countries.)

One Screw Cable Holder

Audio Cable

ENG

ENGLISH

Parts and buttons

(Power Button)

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Side Buttons

ENG

ENGLISH

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

Stand Base

Stand Body

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

Stand Base

yIllustrations in this document represent typi-

cal procedures, so they may look different

from the actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result

in personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage to

it.

yDo not apply foreign substances (oils, lubri-

cants, etc.) to the screw parts when assem-

bling the product. (Doing so may damage the

product.)

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be cov-

ered by the product warranty.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

ENG

ENGLISH

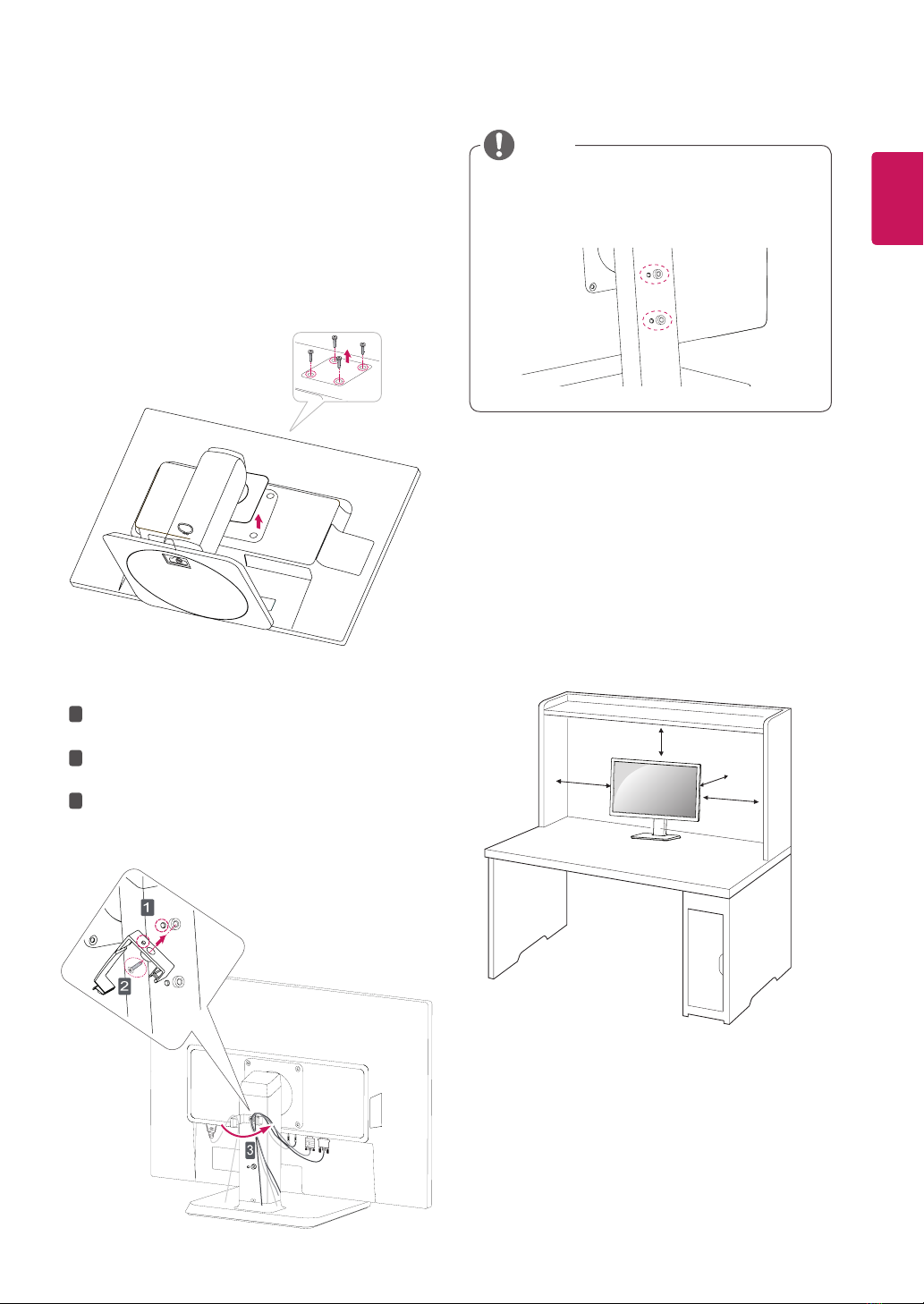

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 100 mm away from the wall to

ensure sufficient ventilation.

100 mm

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

Using the cable holder

Fix the Knob (Cable holder) to the

Hole(Hingebody).

Use one screw to fix the Cable Holder and

monitor set.

Close the Cable holder.

NOTE

yThe holes are used for wall mount bracket.

yVaries depending upon your country or

model.

ENG

ENGLISH

3Press the (Power) button on the front of the

monitor to turn on the monitor.

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

(Before connect please check the “ON/OFF”

knob in “O” state).

Press the “ON/OFF” knob in “ ” state

(Open the power).



Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 35° backwards for a comfortable viewing

experience.

Front SideRear Side

ENG

ENGLISH

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

CAUTION

WARNING

3The height can be adjusted up to 130 mm.

130.0mm

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

Tape

Locking Pin

Stand Body

ENG

ENGLISH

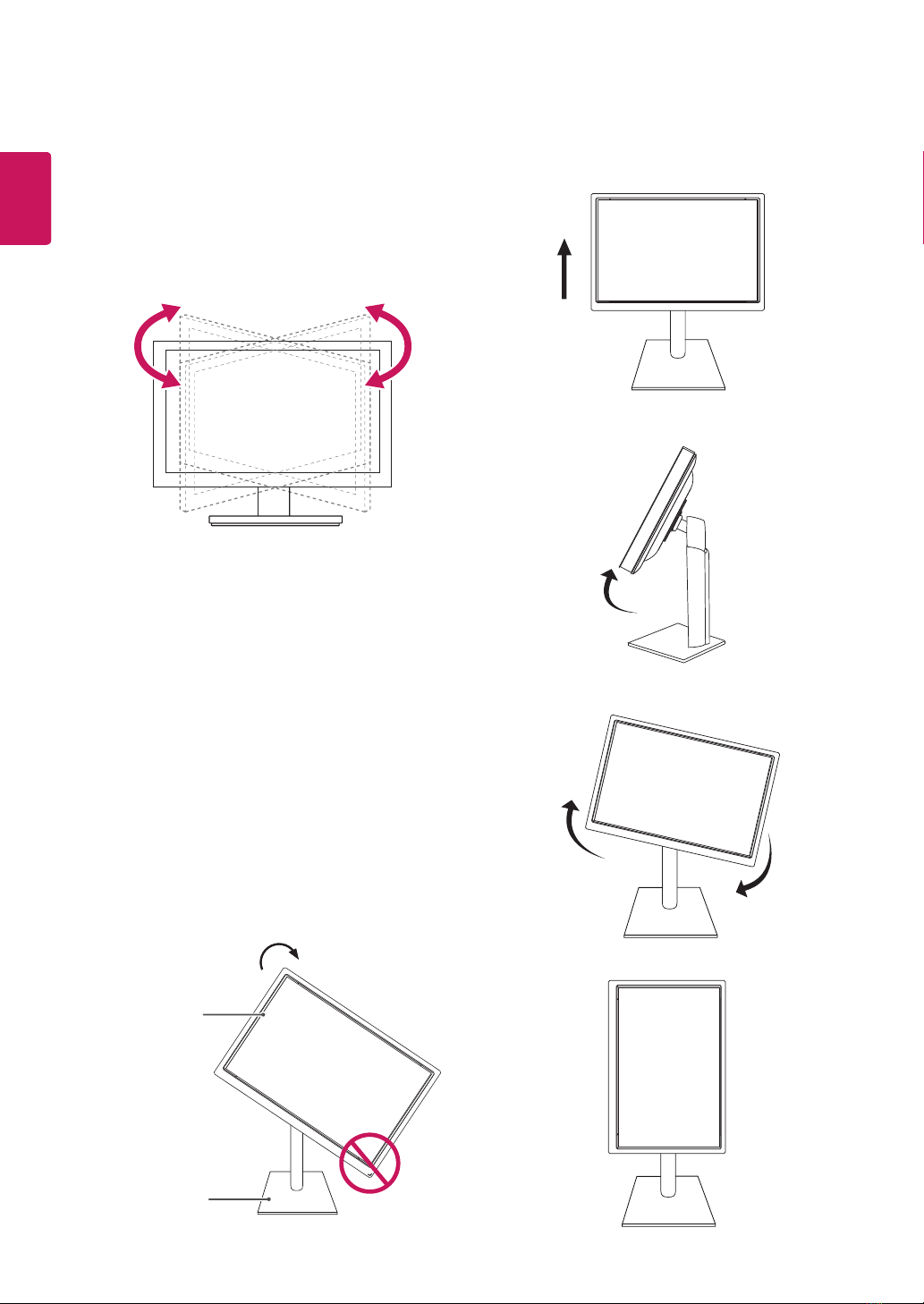

Swivel stand

yImage shown may differ from your Monitor

set.

1Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

1Lift the monitor to its highest height to utilize

the Pivot function.

Using the Pivot function

The pivot function allows you to rotate the screen

90 degrees clockwise.

2Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3Be careful with the cables when rotating the

screen.
