Please read this manual carefully before operating your set and retain it for future reference.

24CK560N

www.lg.com

OWNER’S MANUAL

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per LG 24CK560N-3A

o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation

ENGLISH

ON CLEANING

Recommended Cleaning Chemicals

•Isopropanol 70%

•Ethanol 70%

•Cidex®OPA

•0.9% NaCl solution

How to Use Cleaner

•Prior to cleaning, turn off the monitor and remove the power cable.

•Soak a soft cloth in a recommended cleaner, then lightly rub the screen with no more than 1 N of force.

•The cleaner could cause serious damage if it leaks inside the monitor while cleaning.

•The display could be damaged, so only clean the parts of the monitor other than the screen's LCD panel.

•Do not use benzene, thinner, acids or alkaline cleaners or other such solvents.

•Cleaning guidelines for displays must only be carried out by medical professionals (doctors or nurses) and

must not be handled by patients.

TABLE OF CONTENTS

ON CLEANING..............................................................................2

LICENSE .......................................................................................3

IMPORTANT NOTES ON INSTALLING AN OPERATING SYSTEM.....3

ASSEMBLY AND PREPARING........................................................4

USING THE MONITOR.................................................................17

USER SETTINGS .........................................................................20

TROUBLESHOOTING ..................................................................26

PRODUCT SPECIFICATION..........................................................28

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface,

and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing Administrator, Inc. in the United States and other

countries.

IMPORTANT NOTES ON INSTALLING AN

OPERATING SYSTEM

This product does not provide an operating system to run the product.

Please note that LG Electronics does not sell an operating system such asWindows, and users are required to

purchase and install an operating system to run the product. For more information on purchasing Windows

operating systems, please contact Microsoft directly.

Due to the characteristics of the product, onlyWindows 10 IoT Enterprise LTSB 2016 (RS1) is available for

installation. LG Electronics will not be liable for any issues caused by installing and using an operating system

other than Windows 10 IoT Enterprise LTSB 2016 (RS1).

How to install Windows 10 IoT Enterprise LTSB 2016

(RS1)

Follow the steps below to installWindows when you purchase and installWindows 10 IoT Enterprise LTSB 2016

(RS1).

For more information on installing Windows, refer to the manual or guide provided withWindows.

1 2 3

Install Windows Install Drivers Update Windows Complete Installing

Windows

ENGLISH

ASSEMBLY AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the product.

Note that the product and related components may look different from those shown here.

CD (Owner's Manual)/Regulatory Manual/

Cards Power Cord AC/DC Adaptor Side Door Cable Holder

Stand Body/Stand Base

ENGLISH

CAUTION

•Always use genuine LG components to ensure safety and product performance.

•The product warranty will not cover damage or injury caused by the use of unauthorized components.

•It is recommend that use the supplied components.

•If you use generic cables not certified by LG, the screen may not display or there may be image noises.

•Need to use the authorized components about the below accessories. Unauthorized components may be

cause of the damage and malfunction of the product.

Component Standard

Power Cord US – Approved Medical grade regulation

Others – Approved country safety regulation

•The AC/DC adaptors and etc. except the upper components need to be used only supplied by manufacturer.

NOTE

•The components may look different from those illustrated here.

•Without prior notice, all product information and specifications contained in this manual are subject to

change to improve the performance of the product.

•To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer

from which you purchased the product.

•The power cord provided may differ depending upon the region.

•Some games (online, 3D, 2D) may not be supported, and some high-resolution videos (including Full HD and

some HD videos) may stutter during playback.

Supported Drivers

(Only )

•You can download and install the latest version from the LGE website (www.lg.com).

ENGLISH

Product and Button Description

Power

Indicator

Power

Button

Front Adjust Button Functions Information

Button Description

(Menu) If the menu is inactive Activates the main menu.

If the menu is active Exits the OSD menu when the button is pressed.

If the menu is inactive Adjusts the volume level of the monitor.

If the menu is active Left directional key.

If the menu is inactive Adjusts the volume level of the monitor.

If the menu is active Right directional key.

If the menu is inactive Change the input signals.The input signal (HDMI/PC)

will be changed sequentially.

* When the input signal is changed to PC, the PC is

turned on. (Depending on the PC setting)

If the menu is active Selects and confirms menus or options.

Down directional key.

Up directional key.

(Power button) HDMI input Turn the monitor power on/off.

PC input Turn the PC power on/off.

Power Indicator

Mode LED Color

PC On White

PC Sleep Blinking

PC Off Off

ENGLISH

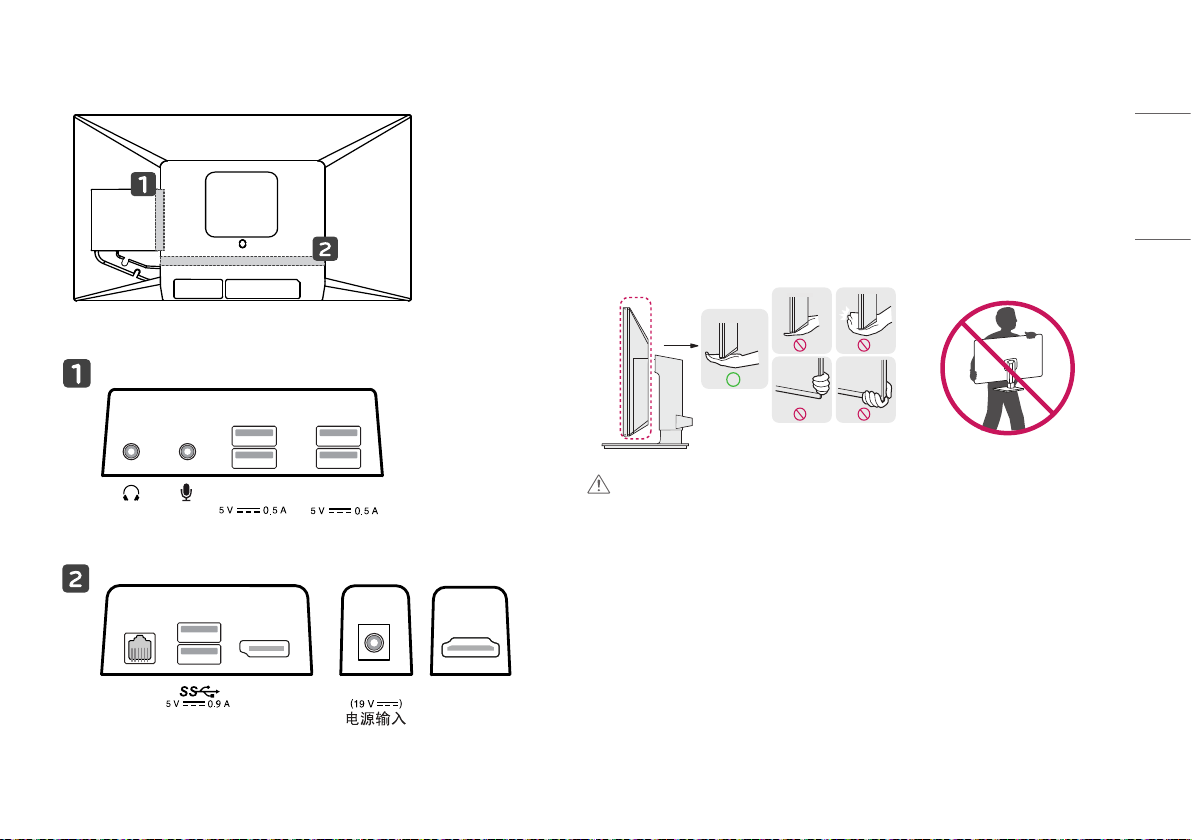

Connectors

LAN DP OUT DC-IN HDMI IN

USB IN USB IN

LAN DP OUT DC-IN HDMI IN

USB IN USB IN

LAN DP OUT DC-IN HDMI IN

USB IN USB IN

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or

damaged and to ensure safe transportation, regardless of its shape or size.

•Place the monitor in the original box or packing material before attempting to move it.

•Before moving or lifting the monitor, disconnect the power cord and all other cables.

•Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.

•When holding the monitor, the screen should face away from you to prevent it from being scratched.

•When transporting the monitor, do not expose the monitor to shock or excessive vibration.

•When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

CAUTION

•Avoid touching the monitor screen as much as possible.

-This may result in damage to the screen or some of the pixels used to create images.

•If you use the monitor panel without the stand base, its button may cause the monitor to become unstable

and fall, resulting in damage to the monitor or human injury. In addition, this may cause the button to

malfunction.

ENGLISH

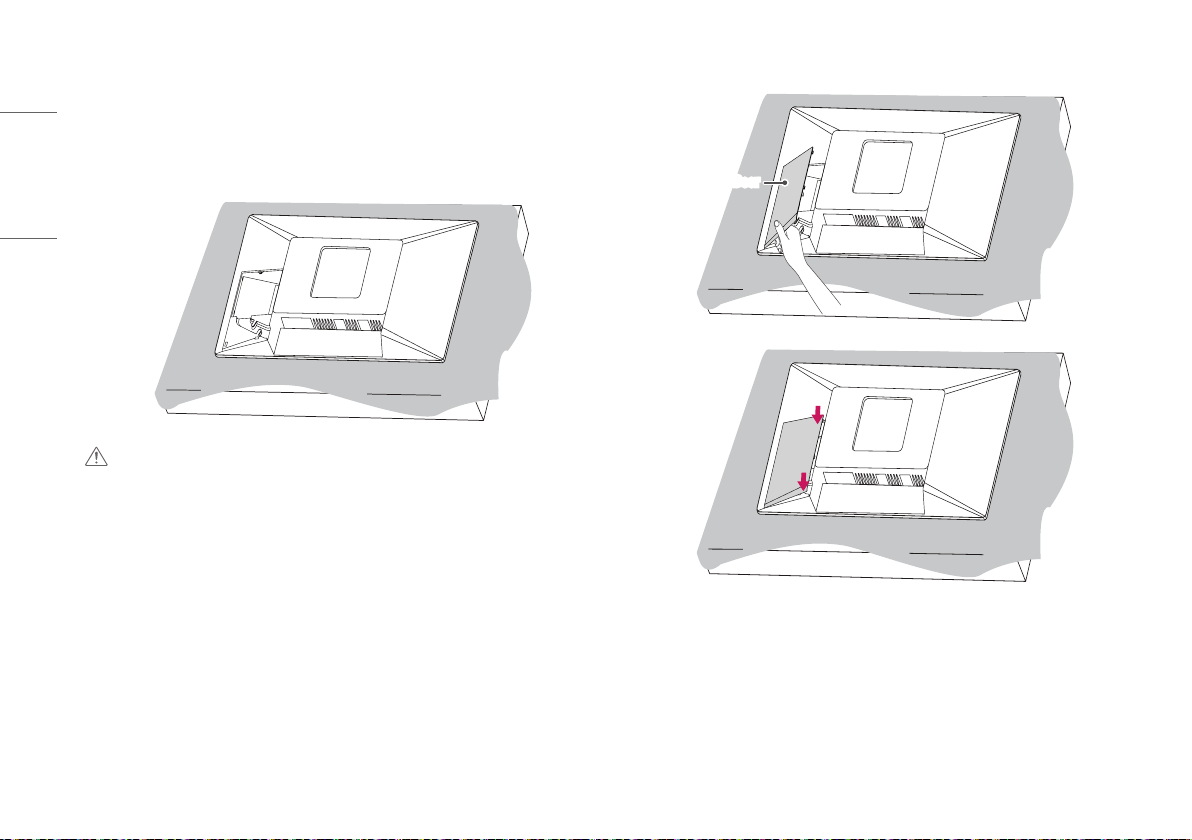

Installing the Monitor

Assemble the Stand

•Note that the product may look different from the illustrations in this user manual.

CAUTION

•To protect the screen from scratches, cover the surface with a soft cloth.

Side Door

ENGLISH

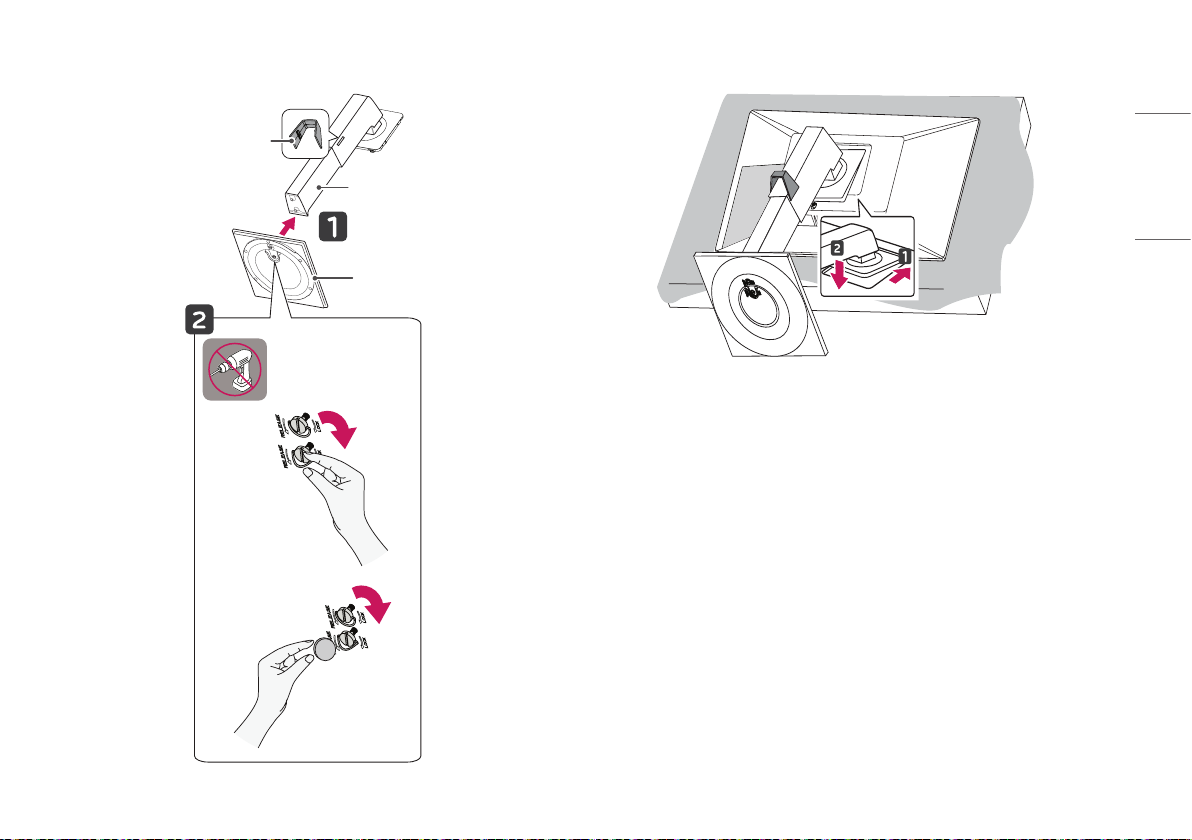

Stand Base

Stand Body

Cable Holder

* Assemble the Cable Holder.

ENGLISH

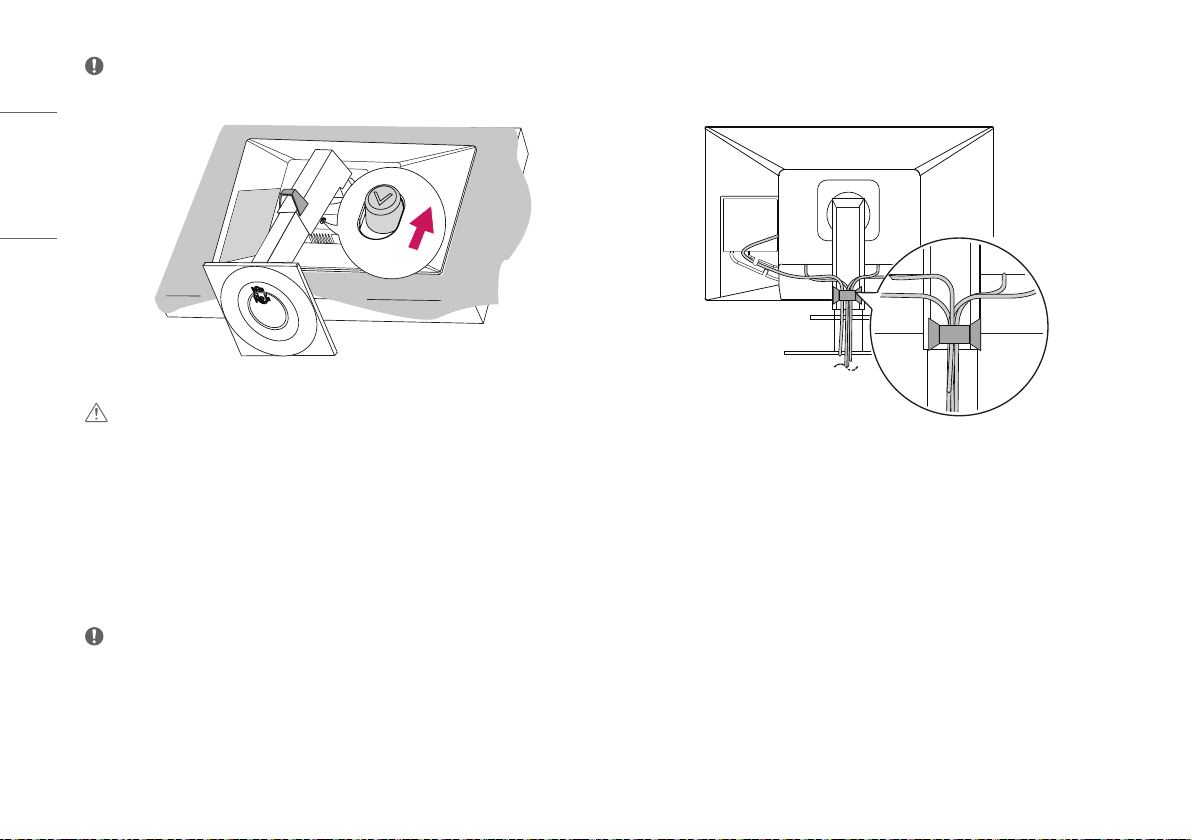

NOTE

•Press the stand until the button rises to maximum height.

CAUTION

•Illustrations in this document represent typical procedures, so they may look different from the actual

product.

•Do not use foreign substances (oil, lubricants) when assembling the product. (This may damage the product)

•Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this

way will not be covered by the product warranty.

•Do not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off

the stand and could result in personal injury.

•When lifting or moving the monitor, do not touch the monitor screen.The force applied to the monitor screen

may cause damage to it.

NOTE

•The stand can be disassembled by following the assembly steps in the opposite order.

Tidying up Cables

Arrange the cables using cable holders as shown in the illustration.
