LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for

dual-mode source devices are all registered trademarks of the Video Electronics Stan-

dards Association.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

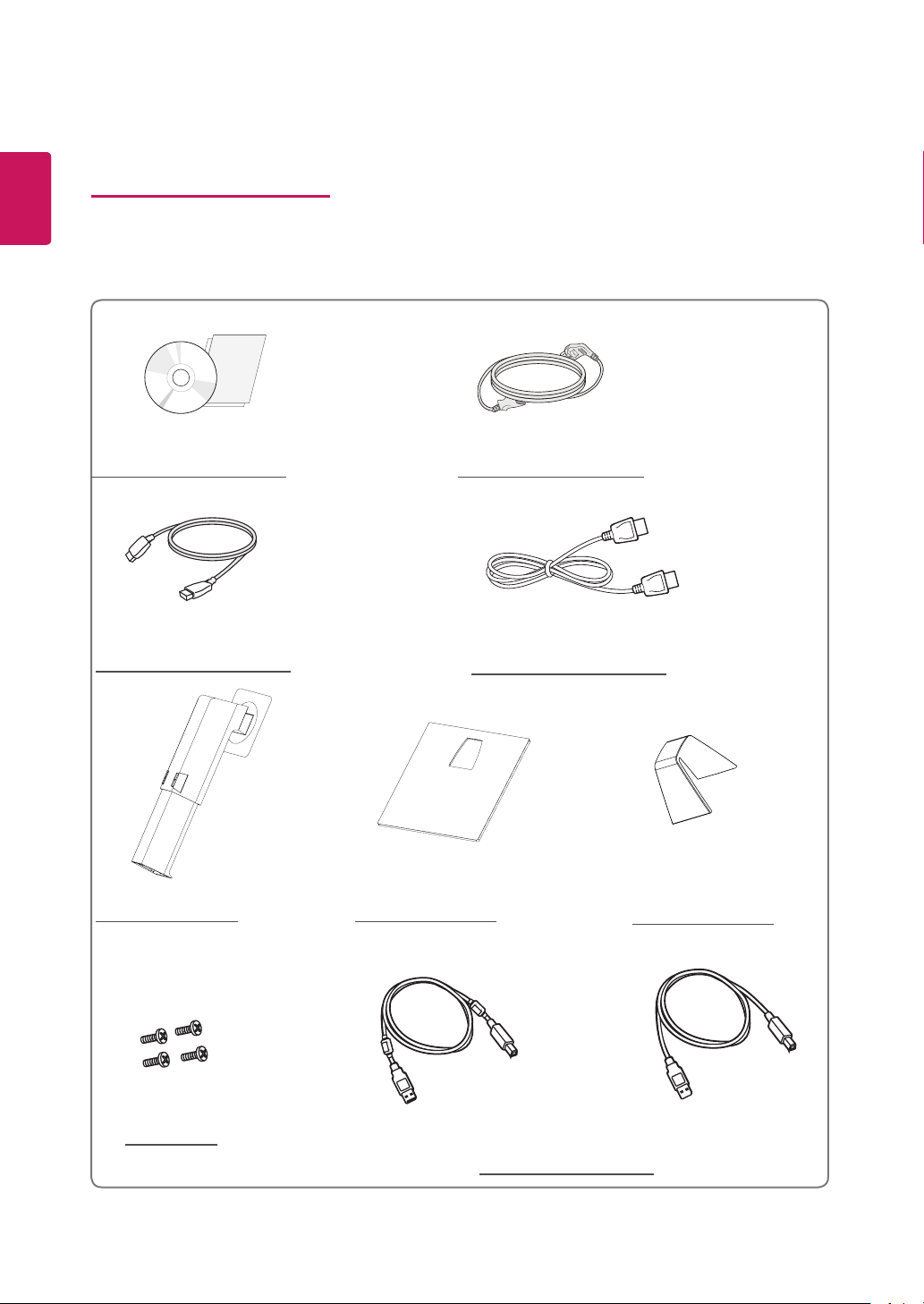

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

CD(Owner's Manual) /

Card

Stand BaseStand Body

4 Screws

HDMI Cable

( This cable is not included

in all countries. )

DisplayPort Cable

( This cable is not included

in all countries. )

( Depending on the country )

Power Cord

Cable Holder

A-B Type USB 3.0 Cable

( This cable is not included in all

countries. )

ENG

ENGLISH

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 24GM79G

Monitor Driver Recommended O

OnScreen Control Recommended O

ENG

ENGLISH

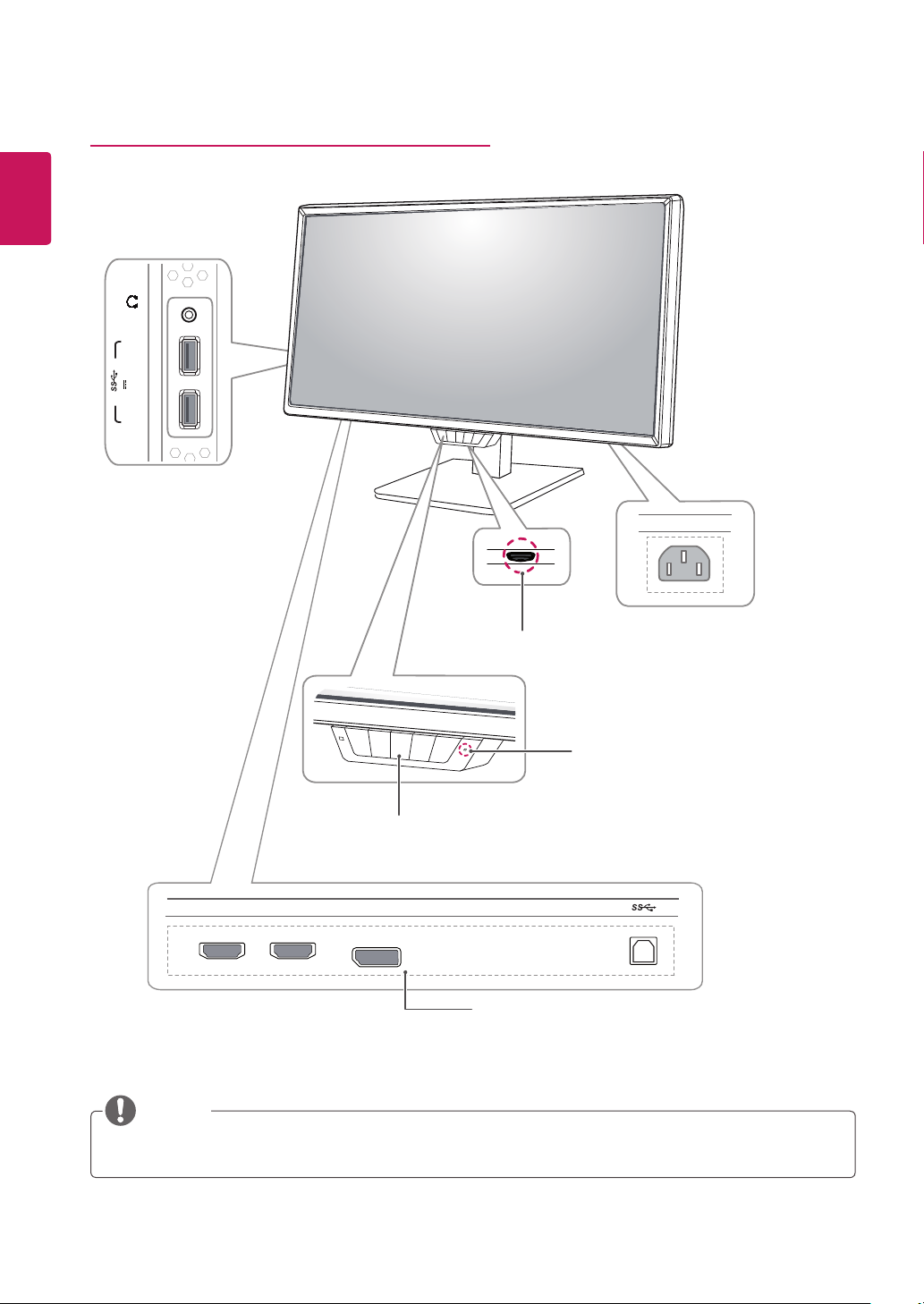

Component and Button Description

AC-IN电源输入

2H/P

FPS1 FPS2 RTS Custom

(Game)

DP INHDMI IN1 HDMI IN 2

5 V 0.9 A

Custom

Power LED

yOn: power on

yOff: power off

Joystick Button

Front Side Buttons

Input Connector

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

How to Use the Joystick Button

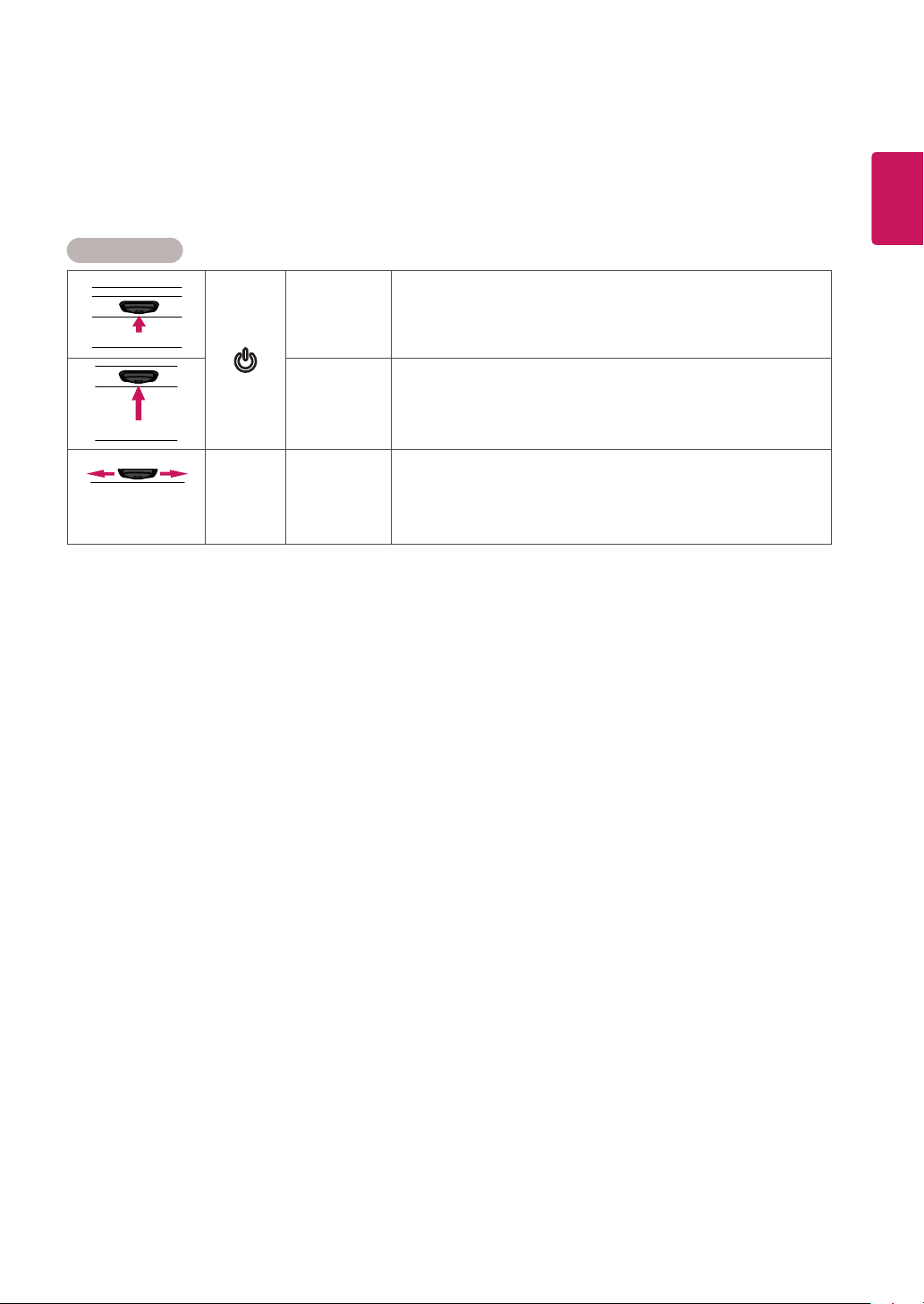

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

ENG

ENGLISH

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied to

the monitor screen may cause damage to it.

yDo not apply foreign substances (oils, lubricants,

etc.) to the screw parts when assembling the

product. (Doing so may damage the product.)

yApplying excessive force when tightening screws

may cause damage to the monitor. Damage

caused in this way will not be covered by the

product warranty.

CAUTION

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

ENG

ENGLISH

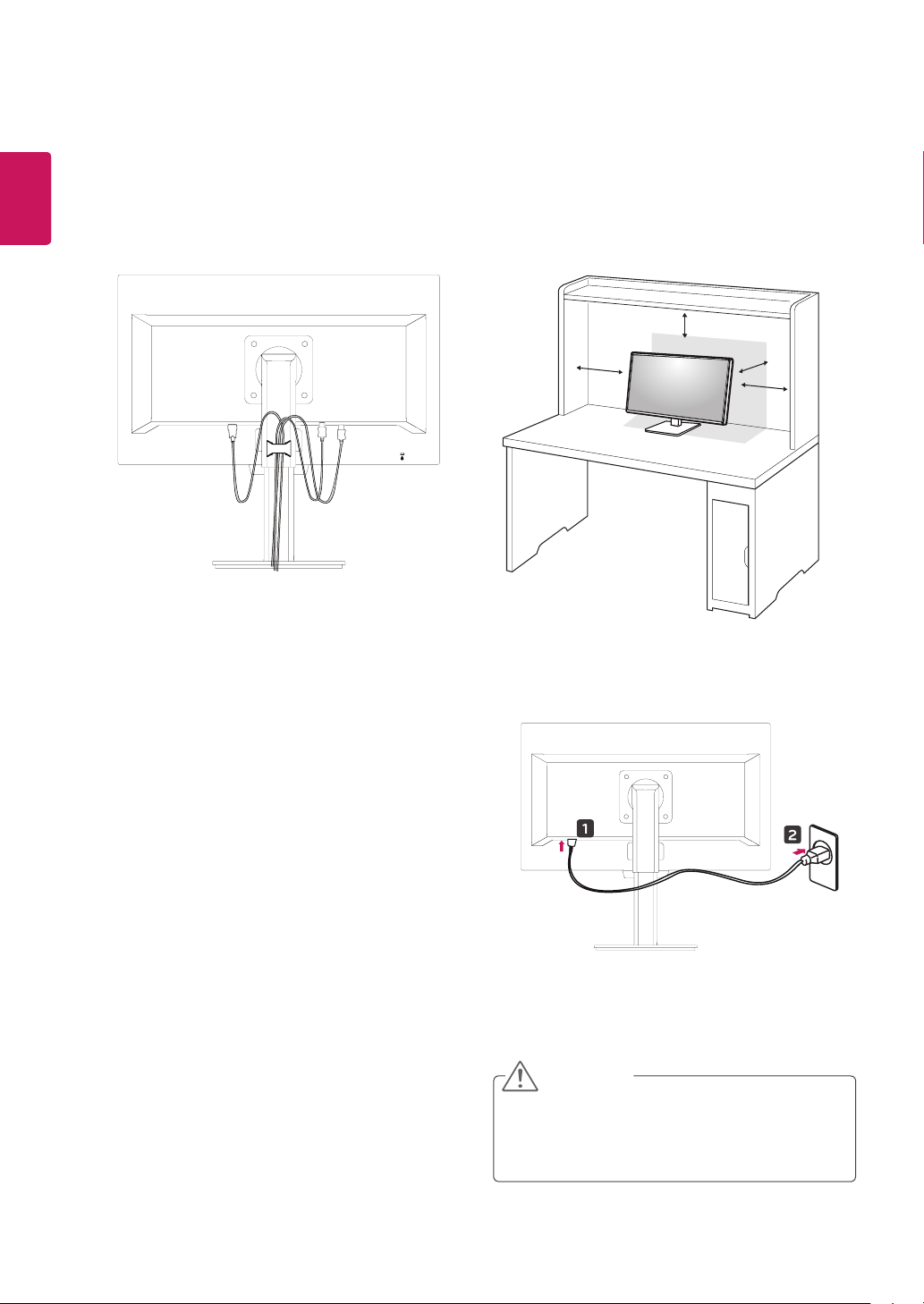

Using the cable holder

Arrange the cables using the cable holder as shown in

the illustration.

Installing onto a table

1Lift the monitor and place it on the table in an

upright position.

Place at least 100 mm(3.94 inches) away from the

wall to ensure sufficient ventilation.

2Connect the Power cord to the monitor, then plug

the power cord into the wall outlet.

100 mm

(3.94 inches) 100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

yUnplug the power cord prior to moving or install-

ing the monitor. There is risk of electric shock.

CAUTION

3Press the joystick button on the bottom of the

monitor to turn on the monitor.
