LG 27HJ713C Manuale utente
www.lg.com
Copyright 2019 LG Electronics Inc. All Rights Reserved.
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it
for future reference.
OWNER’S MANUAL
IPS LED
MONITOR
(LED MONITOR*)
27HJ713C
ENGLISH
2
TABLE OF CONTENTS
ON CLEANING ------------------------ 3
LICENSE ------------------------------- 4
OPEN SOURCE SOFTWARE NOTICE
INFORMATION------------------------ 4
ASSEMBLY AND PREPARING-------- 5
USING THE MONITOR--------------- 20
USER SETTINGS --------------------- 24
TROUBLESHOOTING ---------------- 39
PRODUCT SPECIFICATIONS -------- 41
ENGLISH
3
ON CLEANING
Recommended Cleaning Chemicals
•Isopropanol 100%
•Ethanol 70%
•Cidex® OPA
•0.9% NaCl solution
How to Use Cleaner
•Prior to cleaning, turn off the monitor and remove the power cable.
•Soak a soft cloth in a recommended cleaner, then lightly rub the screen with no more than 1 N of force.
•The cleaner could cause serious damage if it leaks inside the monitor while cleaning.
•Do not clean the screen’s LCD panel as it may be damaged. Clean the other parts of the monitor.
•Do not use benzene, thinner, acids or alkaline cleaners or other such solvents.
•Cleaning guidelines for displays must only be carried out by medical professionals (doctors or nurses) and must not
be handled by patients.
ENGLISH
4
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
in the United States and other countries.
VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for
dual-mode source devices are all registered trademarks of the Video Electronics
Standards Association.
The SuperSpeed USB Trident logo is a registered trademark of USB Implementers
Forum, Inc.
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping, and handling) upon email request to opensourc[email protected].
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in
receipt of this information.
ENGLISH
5
ASSEMBLY AND PREPARING
Product Composition
Please check whether all the components are included in the box before using the product. If there are any missing
components, contact the retailer where you purchased the product. Note that the product and related components
may look different from those shown here.
CD (Owner’s Manual/Software)/
Regulatory Manual/Cards Power Cord AC/DC Adaptor
or
HDMI Cable A-B type USB 3.0 Cable
DisplayPort Cable Stand Body Stand Base
X 2
Cable Holder
ENGLISH
6
CAUTION
•Always use genuine LG components to ensure safety and product performance.
•The product warranty will not cover damage or injury caused by the use of unauthorized components.
•It is recommend that use the supplied components.
•If you use generic cables not certified by LG, the screen may not display or there may be image noises.
NOTE
•The components may look different from those illustrated here.
•Without prior notice, all product information and specifications contained in this manual are subject to change to
improve the performance of the product.
•To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from
which you purchased the product.
•The power cord provided may differ depending upon the region.
Supported Drivers and Software
Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product
package.
Drivers and Software Installation Priority 27HJ713C
Monitor Driver Recommended O
OnScreen Control Optional O
Dual Controller Optional O
True Color Pro Optional O
•Required and Recommended: You can download and install the latest version from the enclosed CD or from the LGE
website (www.lg.com).
•Optional: You can download and install the latest version from the LGE website (www.lg.com).
ENGLISH
7
Component and Button Description
Joystick Button
Power LED
•On: Power is on
•Off: Power is off
ENGLISH
8
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Power on Press the joystick button once with your finger to turn on
the monitor.
Power off Press and hold the joystick button once with your finger
to turn off the monitor.
/ Volume Control You can control the volume by moving the joystick button
left/right.
NOTE
•The joystick button is located at the bottom of the monitor.
ENGLISH
9

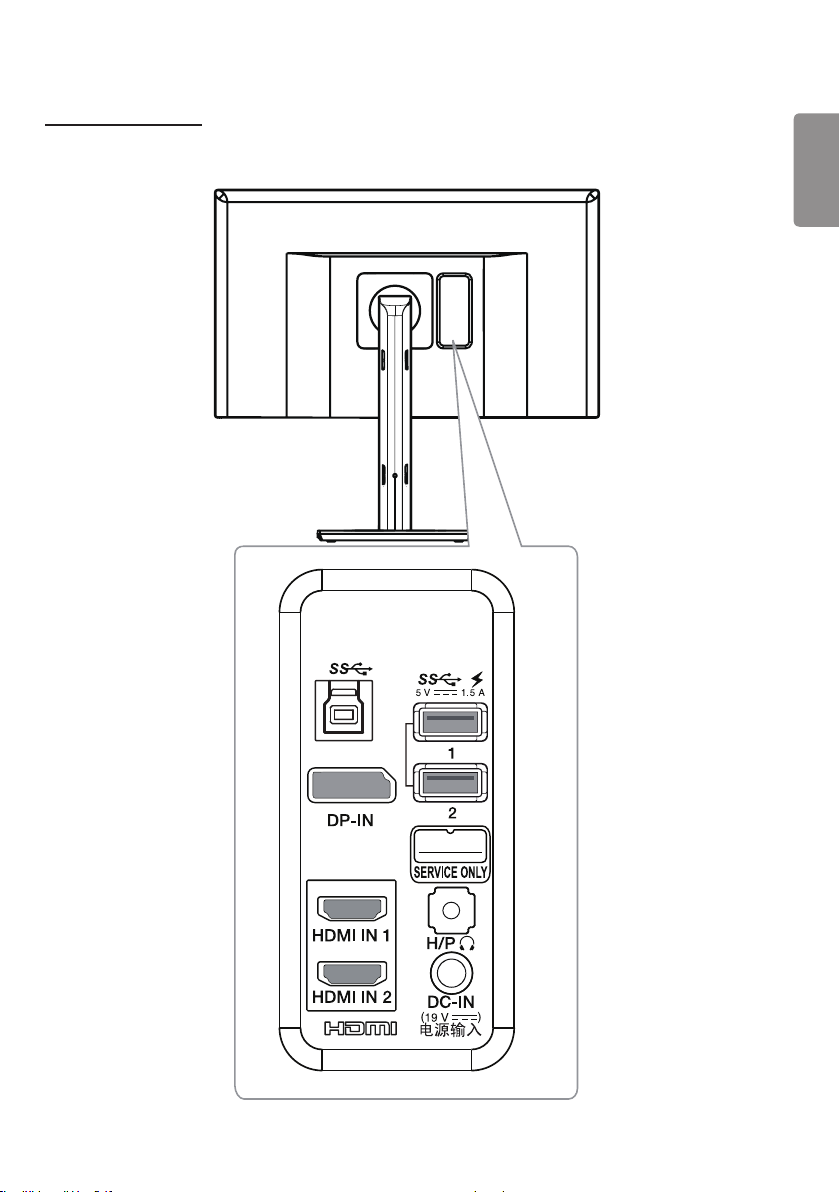

Input Connector
DO NOT USE
ENGLISH
10
Moving and Lifting the
Monitor
When moving or lifting the monitor, follow
these instructions to prevent the monitor from
being scratched or damaged and to ensure safe
transportation regardless of its shape or size.
•It is advisable to place the monitor in the original box
or packing material before attempting to move it.
•Before moving or lifting the monitor, disconnect the
power cord and all cables.
•Hold the bottom and side of the monitor frame firmly.
Do not hold the panel itself.
•When holding the monitor, the screen should face
away from you to prevent it being scratched.
•When moving the monitor, avoid any strong shock or
vibrations to the product.
•When moving the monitor, keep it upright, never turn
the monitor on its side or tilt it sideways.
CAUTION
•As far as possible, avoid touching the monitor screen.
- This may result in damage to the screen or some of
the pixels used to create images.
•If you use the monitor panel without the stand base,
its joystick button may cause the monitor to become
unstable and fall, resulting in damage to the monitor
or human injury. In addition, this may cause the
joystick button to malfunction.
