LG 27MK600M Manuale utente

www.lg.com

Please read this manual carefully before operating

your set and retain it for future reference.

*LG LED Monitors are LCD Monitors with LED Backlighting.

LED LCD MONITOR MODEL

OWNER'S MANUAL

LED LCD Monitor

(LED Monitor*)

24MK600M

22MK600M

27MK600M

27MK60TM

ENGLISH

CONTENTS

LICENSE ---------------------------- 3

ASSEMBLING AND PREPARING - 4

-Product Components-------------------------- 4

-Supported Drivers and Software ----------- 5

-Component and Button Description ------- 6

How to Use the Joystick Button

Input Connector

-Moving and Lifting the Monitor-------------- 8

-Setting up the Monitor set ------------------- 9

Assembling the Stand

Mounting on a table

Mounting on a wall

USING THE MONITOR SET------ 14

-Connecting to a PC ---------------------------14

D-SUB connection

HDMI connection

-Connecting to AV Devices ------------------15

HDMI connection

-Connecting Peripherals----------------------15

Connecting Headphones

CUSTOMIZING SETTINGS ------ 16

TROUBLESHOOTING ------------ 21

SPECIFICATIONS-------------- 22

-Preset Modes (Resolution) -----------------28

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit

www.lg.com

for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To disable this setting, change the option to `Off' in the OSD "Automatic Standby" menu.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

27MK600M

22MK600M

24MK600M 27MK60TM

CD / Card HDMI Cable D-SUB Cable

( Depending on the country )

( Depending on the country ) ( Depending on the country )

( Depending on the country )

AC-DC AdapterPower Cord

AC-DC Adapter

Stand Body Stand Base Screw Cover

2 Screws3 Screws

ENG

ENGLISH

CAUTION

NOTE

Supported Drivers and Software

You can download and install the latest version from the LGE website (

www.lg.com

Drivers and Software Installation Priority 22MK600M

24MK600M

27MK600M

27MK60TM

Monitor Driver Recommended O

OnScreen Control Recommended O

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

ENG

ENGLISH

Component and Button Description

Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control

You can control the volume by moving the joystick button left/right.

(for HDMI only)

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

Connection panel

Input Connector

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

yIf you use the monitor panel without the

stand base, its joystick button may cause

the monitor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

ENG

ENGLISH

Setting up the Monitor set

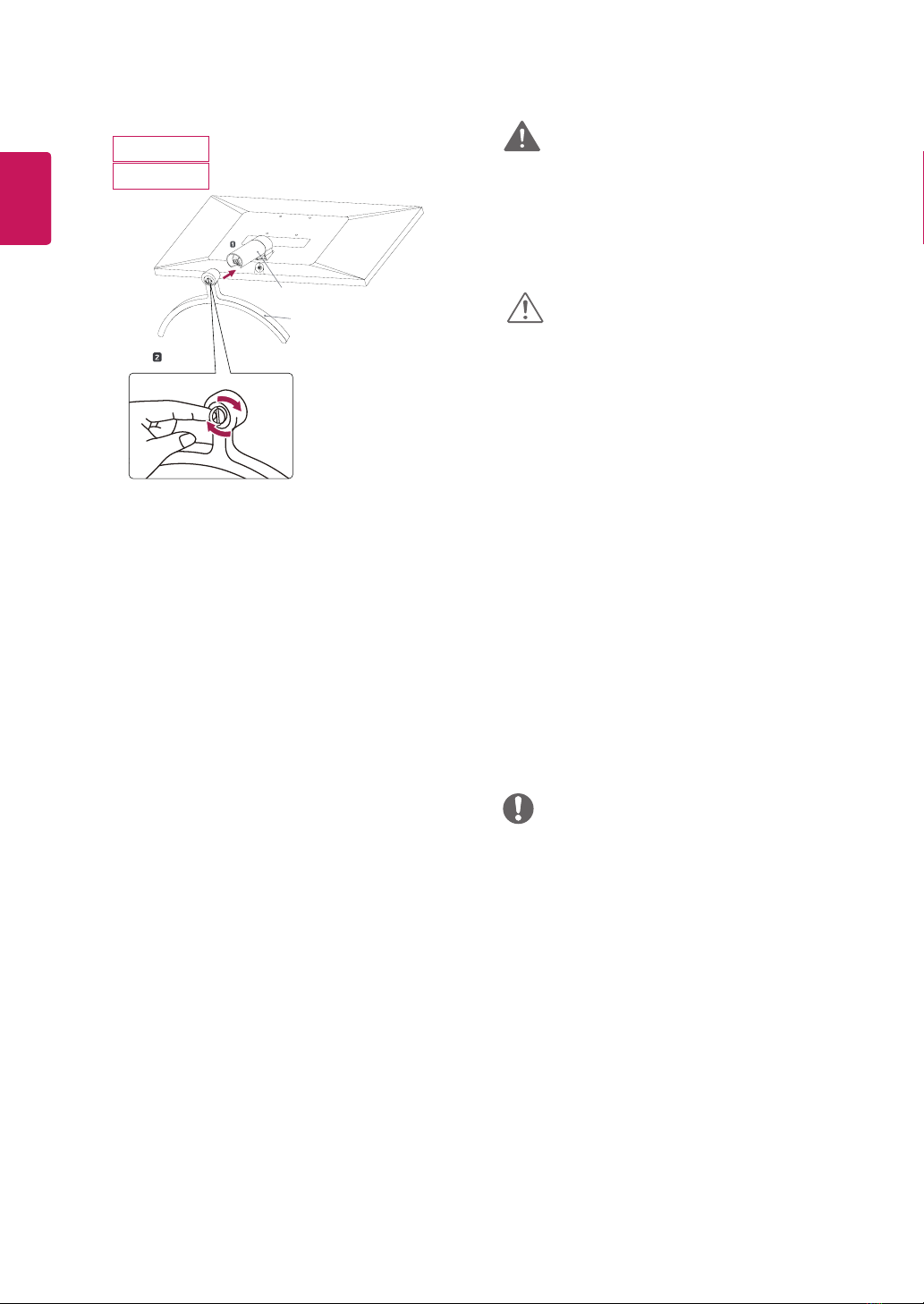

Assembling the Stand

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

22MK600M

24MK600M

22MK600M

24MK600M

Stand Base

Stand Body

Screw Cover

ENG

ENGLISH

yTo avoid injury to the fingers and foot when

Assembling the Stand Body and Base, you

should hold the Base for better stability.

yIllustrations in this document represent typical

procedures, so they may look different from

the actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage to

it.

yDo not apply foreign substances (oils,

lubricants, etc.) to the screw parts when

assembling the product. (Doing so may

damage the product.)

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be

covered by the product warranty.

CAUTION

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

WARNING

27MK600M

27MK60TM

Stand Base

Stand Body
