LG 29UC97 Manuale utente

www.lg.com

29UC97

Please read the safety information carefully

before using the product.

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

* LG LED Monitors are LCD Monitors with LED Backlighting.

ENGLISH

2TABLE OF CONTENTS

TABLE OF CONTENTS

3LICENSE

4ASSEMBLING AND

PREPARING

4 Product Composition

5 Product and Button Description

5 - How to Use the Joystick Button

6 - Input Connector

7 Moving and Lifting the Monitor

8 Installing the Monitor

8 - Assembling the Stand

9 - Installing on a Table

10 - Tidying up Cables

10 - Adjusting the Angle

11 - Using the Kensington Lock

12 USING THE MONITOR

12 Connecting to a PC

12 - HDMI Connection

13 - DisplayPort Connection

13 - Thunderbolt ( ) Connection

14 Connecting AV Devices

14 - HDMI Connection

14 Connecting Peripherals

14 - USB Cable connection - PC

15 - Connecting Headphones

16 INSTALLING THE LG

MONITOR SOFTWARE

18 USER SETTINGS

18 Activating the Main Menu

18 - Main Menu Features

19 User Settings

19 - Menu Settings

20 - Ratio

21 - PBP

22 - Picture Mode

23 - Picture Adjust

25 - Sound

26 - General

27 - Reset

28 TROUBLESHOOTING

30 PRODUCT SPECIFICATION

31 Factory Support Mode

(Preset Mode, HDMI/DisplayPort/

Thunderbolt PC)

31 HDMI Timing (Video)

31 Power LED

32 PROPER POSTURE

32 Proper Posture for Using the Monitor

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort

compliance logo for dual-mode source devices are all registered trademarks of

the Video Electronics Standards Association.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered

trademarks of Waves Audio Ltd.

ENGLISH

4ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are

any missing components, contact the retailer where you purchased the product. Note that the product and

related components may look different from those shown here.

CD (Owner's Manual /

Software / Guides) /

Cards

Power cord AC/DC Adapter HDMI cable

Cable Tie Stand Body Stand Base 4 Screws

(M4 x 10)

Screw Cover

yAlways use genuine LG components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of unauthorized components.

yIt is recommend that you use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noise.

CAUTION

yThe components may look different from those illustrated here.

yWithout prior notice, all product information and specifications contained in this manual are subject to

change to improve the performance of the product.

yTo purchase optional accessories, visit an electronics store or an online shopping site, or contact the

retailer from which you purchased the product.

yThe power cord provided may differ depending upon the region.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Product and Button Description

Joystick Button /

Power LED

yOn Power on

yOff Power off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left or right

with your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

yBefore turning on the monitor, please make sure that the DC switch on the rear of product is On.

NOTE

ENGLISH

6ASSEMBLING AND PREPARING

Input Connector

DC-IN

(19 V )

DP IN

HDMI IN 1

HDMI IN 2

H/P

DC-IN

(19 V )

DP-IN

HDMI IN 1

HDMI IN 2

H/P

USB UP

USB IN 2

5 V 1.1 A

USB IN 1

5 V 1.1 A

DC switch

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the

Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation, regardless of its shape or size.

yPlace the monitor in the original box or pack-

ing material before attempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all other cables.

yHold the bottom and side of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face toward you to prevent it from being

scratched.

yWhen transporting the monitor, do not expose

the monitor to shock or excessive vibration.

yWhen moving the monitor, keep it upright and

never turn the monitor on its side or tilt it side-

ways.

yAvoid touching the monitor screen as much as

possible.

- This may result in damage to the screen or

some of the pixels used to create images.

yIf you use the monitor panel without the stand

base, its joystick button may cause the moni-

tor to become unstable and fall, resulting in

damage to the monitor or human injury. In

addition, this may cause the joystick button to

malfunction.

CAUTION

ENGLISH

8ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the Stand

yTo protect the screen, place the screen face

down on the screen pad which is inside the

box.

CAUTION

Stand Hinge

Screw Cover

Stand Body

Stand Base

ENGLISH

ASSEMBLING AND PREPARING

yIllustrations in this document represent typi-

cal procedures, so they may look different

from the actual product.

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be cov-

ered by the product warranty.

yBe careful not to hurt your hand on the edges

of the screw covers.

yDo not carry the monitor upside down by just

holding the base. This may cause the moni-

tor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage to

it.

CAUTION

yYou can disassemble the stand in the

reverse order of the assembly.

NOTE

Installing on a Table

1 Lift the monitor and place it on the table in an

upright position. Place the monitor at least

10 cm away from the wall to ensure sufficient

ventilation.

10 cm

2 Connect the power adapter to the monitor and

then plug the power cord into the wall outlet.

3 Press the joystick button on the bottom of the

monitor to turn on the monitor.

yUnplug the power cord before moving or

installing the monitor. There is risk of electric

shock.

CAUTION

ENGLISH

10 ASSEMBLING AND PREPARING

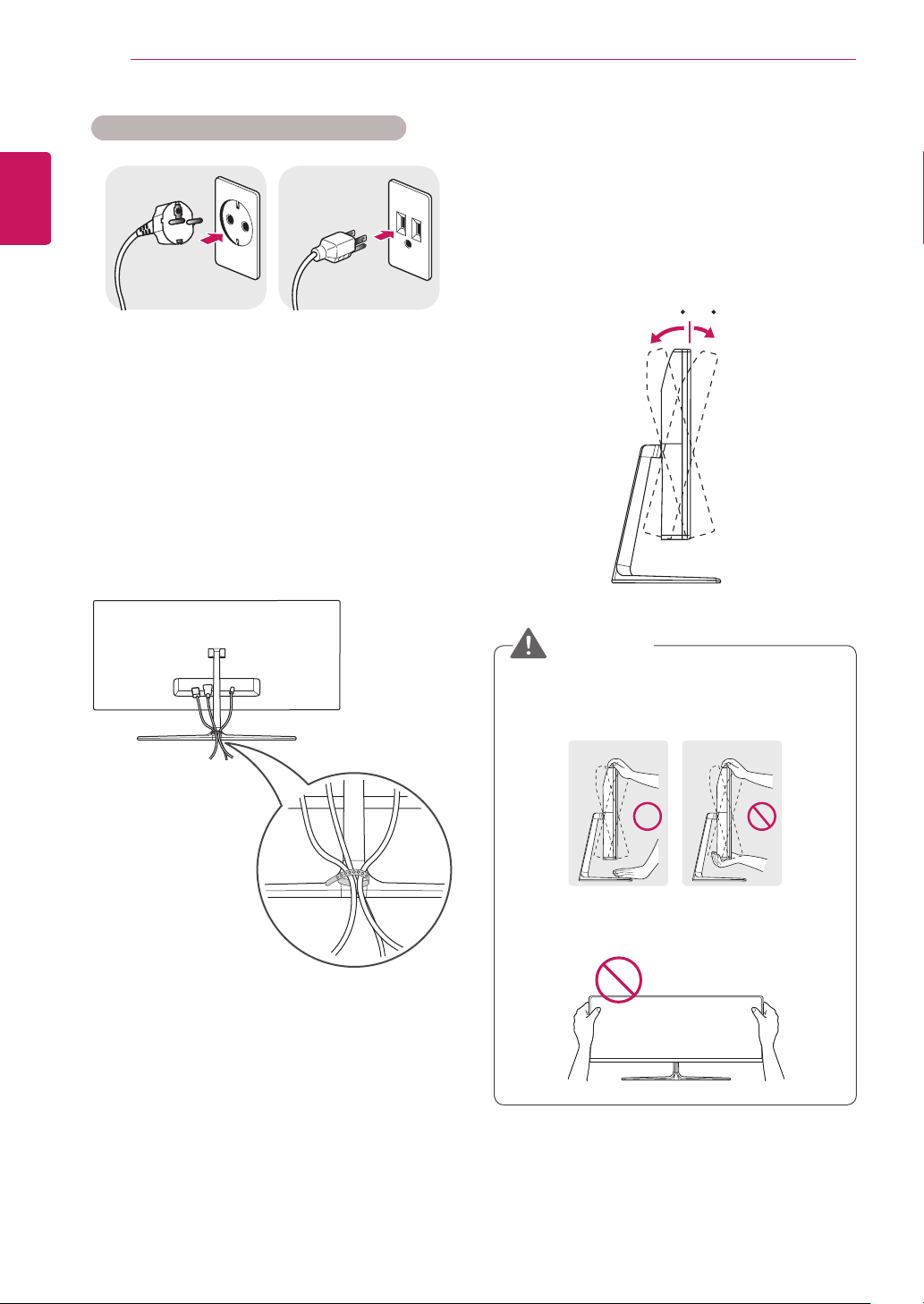

Adjusting the Angle

1 Place the monitor mounted on the stand base

in an upright position.

2 Adjust the angle of the screen. The angle of

the screen can be adjusted forward or back-

ward from -5° to 15° for a comfortable

viewing experience.

Front

Rear

-515

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

-515

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

-515

WARNING

Cautions When Connecting Power Cord

100-240 V ~

yBe sure to use the power cord that is provided

in the product package and connect it to a

grounded power outlet.

yIf you need another power cord, please con-

tact your local dealer or the nearest retail

store.

Tidying up Cables

Arrange the cables using the cable tie as shown in

the illustration.
