LG 34UM95-PD Manuale utente

www.lg.com

Owner's Manual

IPS LED MONITOR

(LED MONITOR)

34UM95-PD

34UM95-PE

Please read the safety information carefully

before using the product.

IPS LED Monitor (LED Monitor) Model List

ENGLISH

2TABLE OF CONTENTS

TABLE OF CONTENTS

3LICENSE

4ASSEMBLING AND

PREPARING

4 Product Composition

5 Product and Button Description

5 - How to Use the Joystick Button

6 - Input Connector

7 Moving and Lifting the

Monitor

8 Installing the Monitor

8 - Assembling the Stand

9 - Detaching the Stand

10 - Installing on a Table

11 - Adjusting the Angle

11 - Tidying up Cables

12 - Installing the Wall Mount Plate

12 - Installing on the Wall

14 - Using the Kensington Lock

15 USING THE MONITOR

15 Connecting to a PC

15 - HDMI Connection

16 - DisplayPort Connection

16 - Thunderbolt ( ) Connection

17 Connecting AV Devices

17 - HDMI Connection

17 Connecting Peripherals

17 - USB Cable connection - PC

18 - Connecting Headphones

19 INSTALLING THE LG

MONITOR SOFTWARE

22 USER SETTINGS

22 Activating the Main Menu

22 - Main Menu Features

23 User Settings

23 - Menu Settings

24 - Ratio

25 - Function

26 - PBP

27 - Picture

28 - Color

29 - Settings

30 - Reset

31 - Reader

32 TROUBLESHOOTING

34 PRODUCT SPECIFICATION

35 Factory Support Mode

(Preset Mode, HDMI/DisplayPort/

Thunderbolt PC)

35 HDMI Timing (Video)

35 Power LED

36 PROPER POSTURE

36 Proper Posture for Using the Monitor

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort

compliance logo for dual-mode source devices are all registered trademarks of

the Video Electronics Standards Association.

ENGLISH

4ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are

any missing components, contact the retailer where you purchased the product. Note that the product and

related components may look different from those shown here.

CD (Owner's Manual /

Software) / Guides /

Cards

Power cord AC/DC Adapter HDMI cable

Stand Base Screw Cover Two Screws

(M4 x 10)

DisplayPort Cable

(Depending on country)

Clear sheet

yAlways use genuine LG components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of unauthorized components.

yIt is recommend that use the supplied components.

CAUTION

yThe components may look different from those illustrated here.

yWithout prior notice, all product information and specifications contained in this manual are subject to

change to improve the performance of the product.

yTo purchase optional accessories, visit an electronics store or an online shopping site, or contact the

retailer from which you purchased the product.

yThe power cord provided may differ depending upon the region.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Product and Button Description

Joystick

Button

Power indicator

yOn Power on

yOff Power off

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

yBefore turning on the monitor, please make sure that the DC switch on the rear side of product is On.

(Only 34UM95-PE)

NOTE

ENGLISH

6ASSEMBLING AND PREPARING

Input Connector

34UM95-PE

34UM95-PD

DC-IN

(19 V )

DP IN

HDMI IN 1

H/P

USB UP USB IN 1

5 V 1.1 A

USB IN 2

5 V 0.5 A

USB IN 3

5 V 0.5 A

HDMI

HDMI IN 2

HDMI

DC-IN

(19 V )

DP IN

HDMI IN 1

H/P

USB UP USB IN 1

5 V 1.1 A

USB IN 2

5 V 0.5 A

USB IN 3

5 V 0.5 A

OFF

DC Switch

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the

Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation, regardless of its shape or size.

yPlace the monitor in the original box or pack-

ing material before attempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all other cables.

yHold the bottom and side of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face toward you to prevent it from being

scratched.

yWhen transporting the monitor, do not expose

the monitor to shock or excessive vibration.

yWhen moving the monitor, keep it upright and

never turn the monitor on its side or tilt it side-

ways.

yAvoid touching the monitor screen as much as

possible.

- This may result in damage to the screen or

some of the pixels used to create images.

yIf you use the monitor panel without the stand

base, its joystick button may cause the moni-

tor to become unstable and fall, resulting in

damage to the monitor or human injury. In

addition, this may cause the joystick button to

malfunction.

CAUTION

ENGLISH

8ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the Stand

1 Place the screen face down.

Stand Hinge

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2 Mount the stand base onto the stand hinge

as shown in the illustration. Fix two screws

into the back of the stand base and close the

screw cover.

Stand Base

120 mm

Screw Cover

100 mm

yThe stand height is adjustable by 20 mm

yWhen tightening the screws after mounting

the stand base onto the stand hinge, be sure

to hold the stand base with your hand. Other-

wise, the product may fall, causing personal

injury or damage to the product.

yBe careful not to hurt your hand on the edges

of the screw covers.

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be cov-

ered by the product warranty.

yIf you use the monitor panel without the

stand base, its joystick button may cause the

monitor to become unstable and fall, result-

ing in damage to the monitor or human injury.

In addition, this may cause the joystick button

to malfunction.

CAUTION

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand

1 Place the screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2 Detach the screw cover from the stand base

as shown in the illustration and then remove

the two screws on the back to detach the

stand base from the hinge.

Screw Cover

Stand Base

yIllustrations in this document represent typical

procedures, so they may look different from

the actual product.

yDo not carry the monitor upside down by just

holding the base. This may cause the monitor

to fall off the stand and could result in personal

injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied to

the monitor screen may cause damage to it.

yIf you use the monitor panel without the stand

base, its joystick button may cause the moni-

tor to become unstable and fall, resulting in

damage to the monitor or human injury. In

addition, this may cause the joystick button to

malfunction.

yWhen removing the screws to detach the

stand base from the hinge, be sure to hold

the stand base with your hand. Otherwise, the

product may fall, causing personal injury or

damage to the product.

CAUTION

ENGLISH

10 ASSEMBLING AND PREPARING

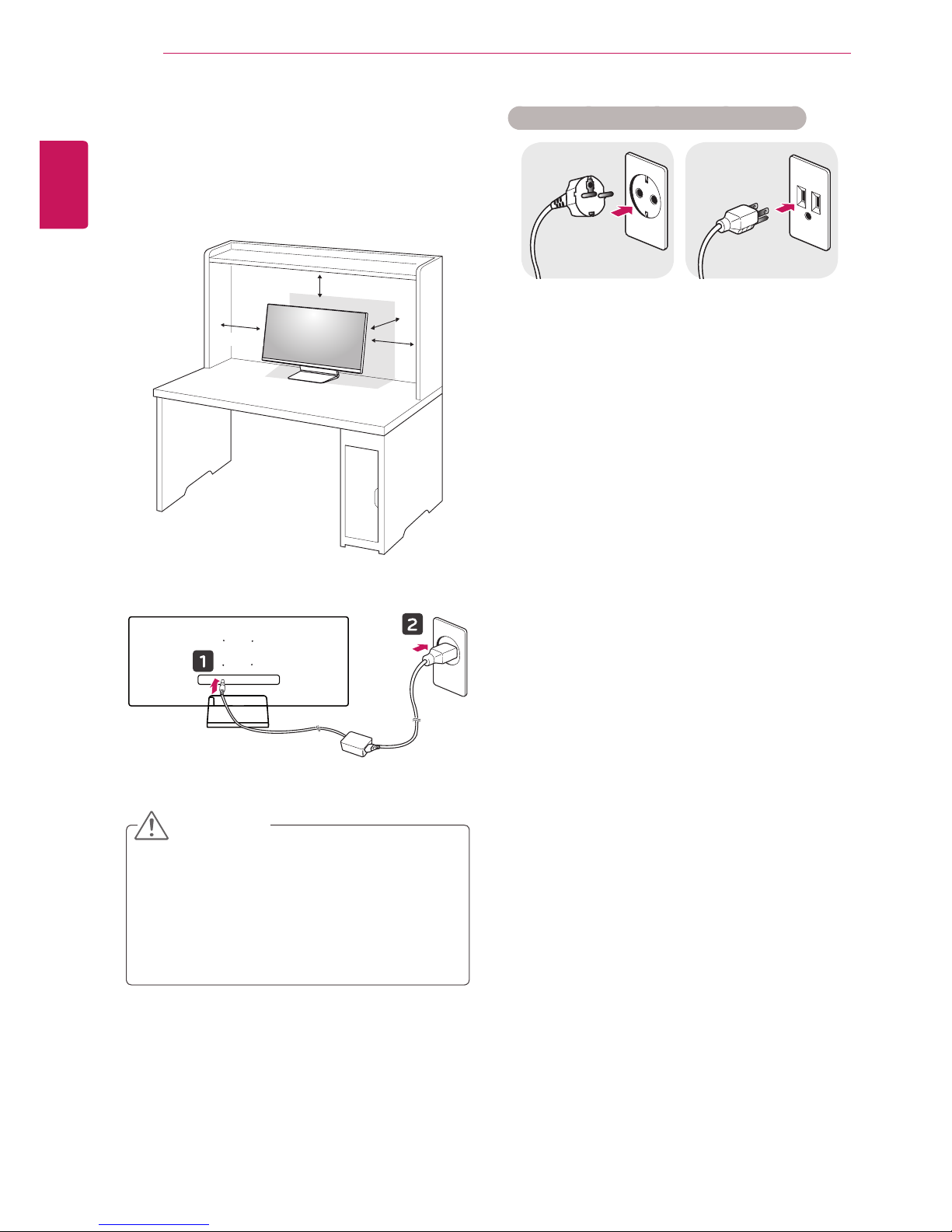

Installing on a Table

1 Lift the monitor and place it on the table in an

upright position. Place the monitor at least

10 cm away from the wall to ensure sufficient

ventilation.

10 cm

2 Connect the power adapter to the monitor and

then plug the power cord into the wall outlet.

3 Press the joystick button on the bottom of the

monitor to turn on the monitor.

yUnplug the power cord before moving or

installing the monitor. There is risk of electric

shock.

yBefore turning on the monitor, please make

sure that the DC switch on the rear side of

product is On. (Only 34UM95-PE)

CAUTION

Cautions When Connecting Power Cord

220 V 110 V

yMake sure to use the power cord that is pro-

vided in the product package and connect it to

a grounded power outlet.

yIf you need another power cord, please con-

tact your local dealer or the nearest retail

store.
