LG ColorPrime 27EA83-D Manuale utente
www.lg.com
OWNER'S MANUAL
IPS LED MONITOR
(LED LCD MONITOR)
27EA83
27EA83R
Please read the safety information carefully before using the product.
IPS LED Monitor (LED LCD Monitor) Model List
ENGLISH
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
2
ENG
ENGLISH
Contents
CONTENTS
3LICENSE
4ASSEMBLING AND
PREPARING
4Product composition
4Separate purchase
5Component and Button Description
6Moving and Lifting the Monitor
6Installing the Monitor
6- Assembling the stand base
7- Detaching the stand base
7- Installing onto a table
8- Adjusting the stand height
8- Adjusting the angle
9- Tidying cables
9- Pivot feature
10 - Using the Kensington lock
11 - Installing the wall mount plate
11 - Installing to a wall
13 Assembling and disassembling to mount
the adapter
13 - Assembly order to mount the adapter
13 - Disassembly order to mount the adapter
14 USING THE MONITOR
14 Connecting to a PC
14 - DVI connection
15 - Display port connection
15 - HDMI connection
16 Connecting to AV Devices
16 - USB 3.0 cable-PC connection
16 - Headphone port connection
17 INSTALLING TUSB3410
DRIVER
18 INSTALLING TRUE COLOR
PRO/FINDER
20 INSTALLING SCREEN SPLIT
22 CUSTOMIZING SETTINGS
22 Activating the Main Menu
23 CUSTOMIZING SETTINGS
23 - Menu Settings
24 - Ratio Settings
25 - ECO Settings
26 - Color Mode Settings
27 - PIP settings
28 - Picture
29 - Color
30 - Settings
31 TROUBLESHOOTING
33 SPECIFICATIONS
34 Preset Mode, PC
34 HDMI
34 Power Indicator
35 PROPER POSTURE
35 Proper Posture for Using the Monitor
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
HDMI, the HDMI logo and High-Definition Multimedia Interface are all trade-
marks or registered trademarks of HDMI Licensing LLC.
VESA, VESA logo, Display Port Compliance Logo and Display Port
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
yNote that the components may look different from those shown here.
yWithout prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
ySeparate purchase are not included for all models. To purchase optional accessories, visit an elec-
tronics store or online shopping site or contact the retail store where you purchased the product.
NOTE

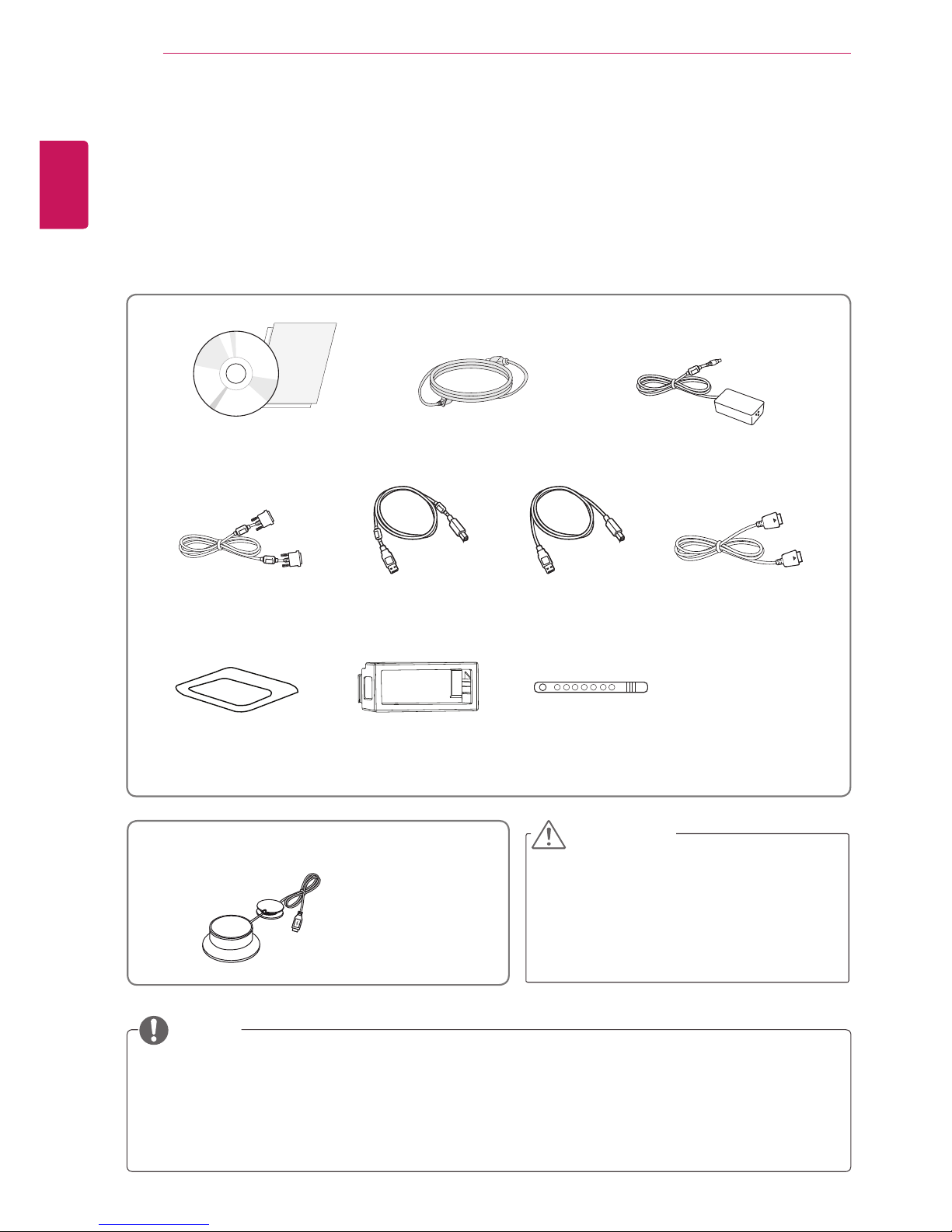

Product composition
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
yAlways use genuine components to en-
sure safety and product performance.
yThe product warranty will not cover dam-
age or injury caused by the use of coun-
terfeit components.
CAUTION
Power Cord
A-B Type USB 3.0 Cable Display Port Cable
Stand Base Adapter Management
Cover
AC/DC Adapter
DVI-D Dual Cable
User Manual/Card
Cable tie
or
Calibrator
(ACB8300)
Separate purchase
5
ENG
ENGLISH
ASSEMBLING AND PREPARING

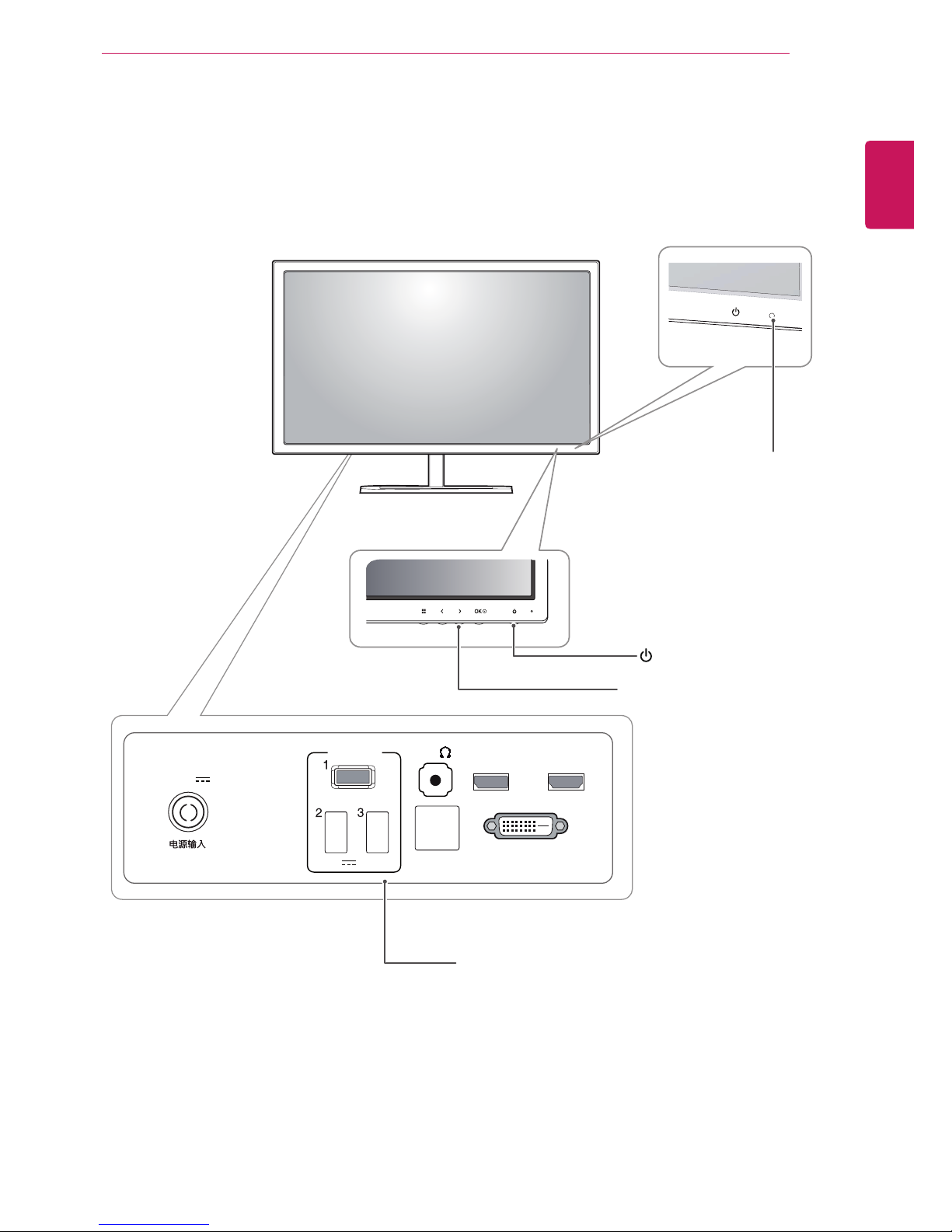

Component and Button Description
DVI-D IN
HDMI IN
DP IN
H/P
USB UP
(CALIBRATOR)
USB IN
5 V 0.9 A
DC-IN
(19.5 V )
Power Indicator
yOn: power is on
yOff: power is off
Touch buttons on the bottom of
the monitor
Input Connector
(Power Button)
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

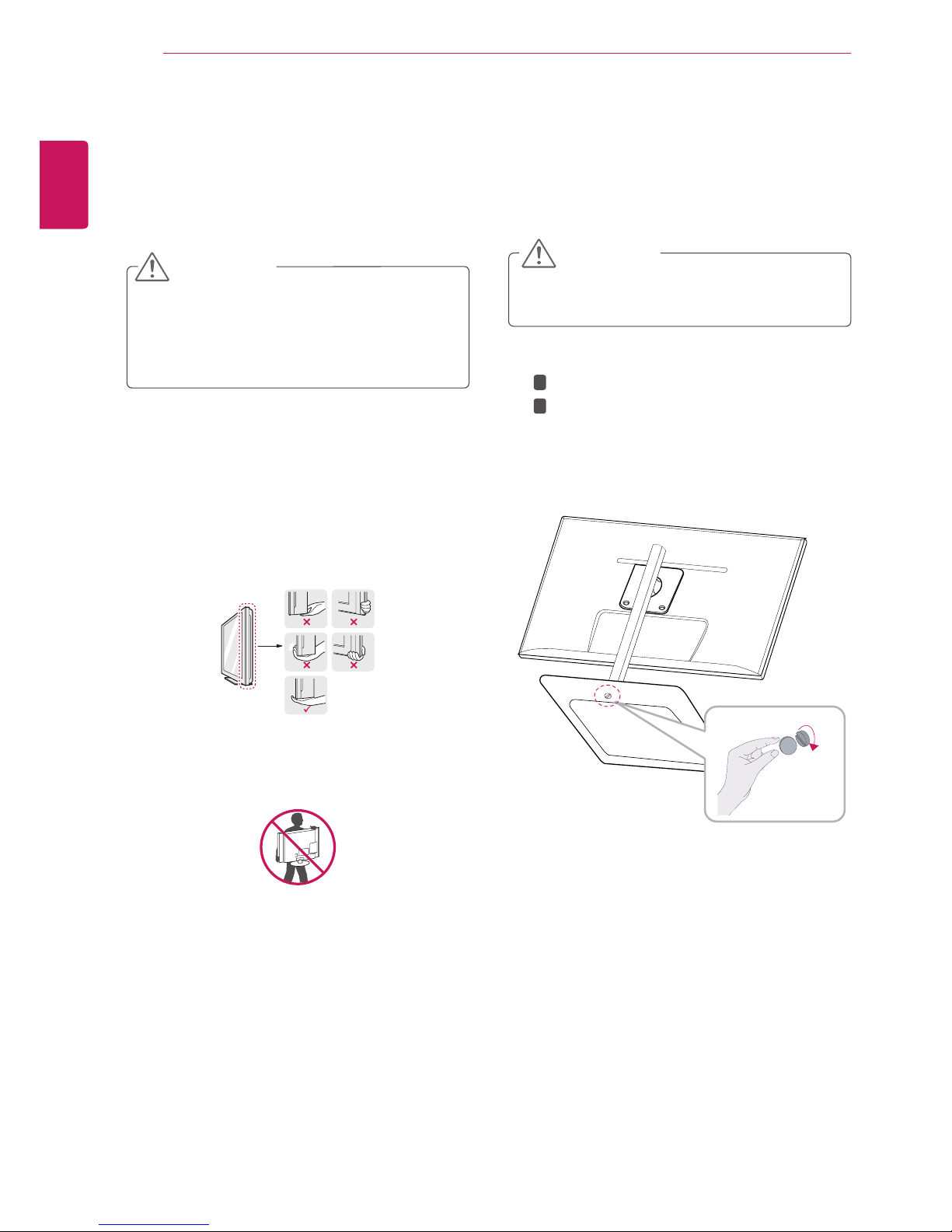

Installing the Monitor
Assembling the stand base
1Place the screen face down.
yTo protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
yAs far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
CAUTION
yIt is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
yBefore moving or lifting the monitor, discon-
nect the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
yWhen holding the monitor, the screen should
face away from you to prevent it being
scratched.
yWhen transporting the monitor, do not ex-
pose the monitor to jolts or excessive vibra-
tion.
yWhen moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
Attach the stand base to the stand body.
Tighten the screw to the right using a coin.
1
2
7
ENG
ENGLISH
ASSEMBLING AND PREPARING

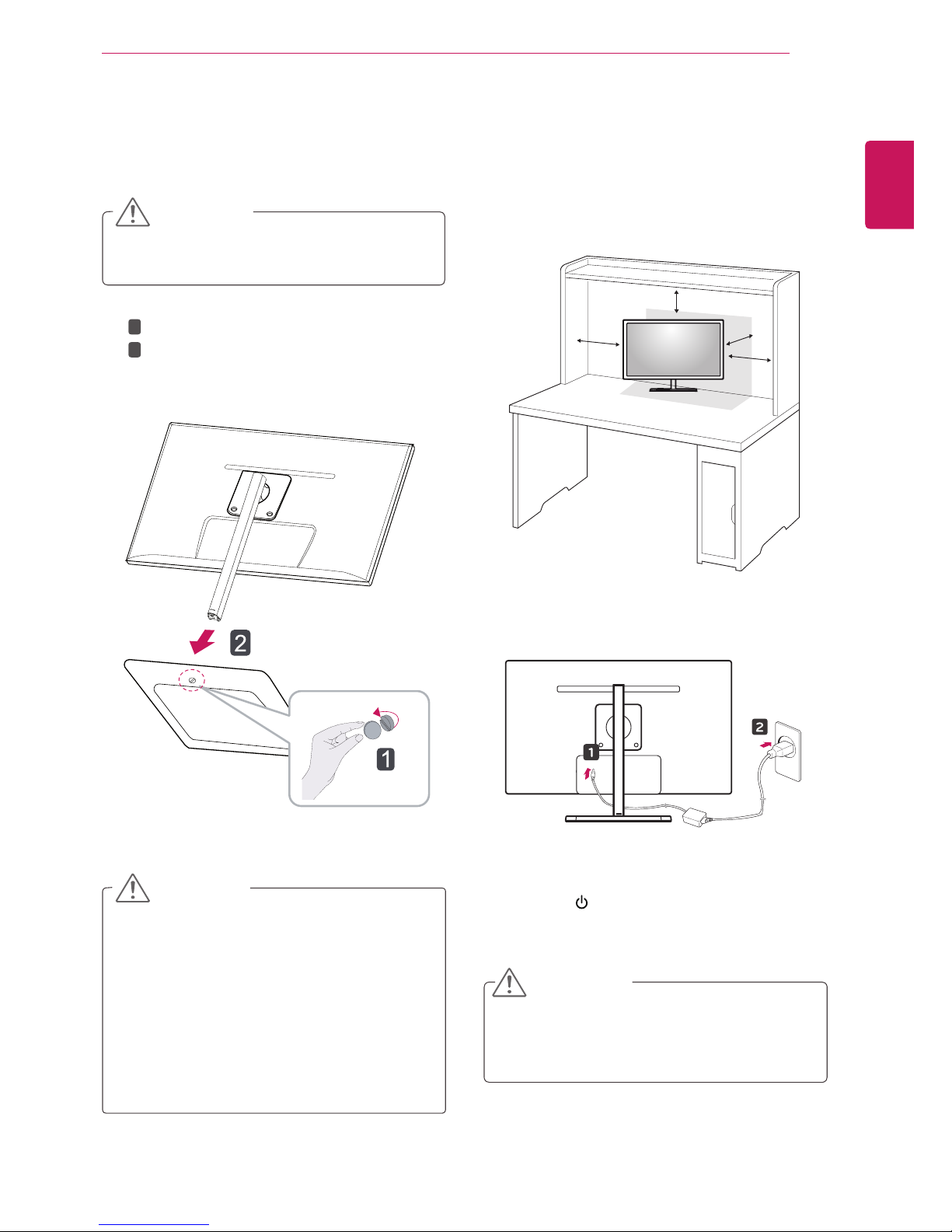

Detaching the stand base
1Place the screen face down.
2
yTo protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
Turn the screw to the left using a coin.
Detach the stand base.
1
2
Installing onto a table
1Lift the monitor and place it on the table in an
upright position.
Place at least 10 cm away from the wall to
ensure sufficient ventilation.
2Connect the adapter to the monitor, then plug
the power cord into the power outlet.
3Press the (Power) button on the bottom of
the monitor to turn it on.
10 cm
10 cm
10 cm
10 cm
yDisconnect the power cord first, and then
move or install the Monitor set. There is risk
of electric shock.
CAUTION
yThe components in the illustrations may dif-
fer from the actual product.
yDo not carry the monitor upside down, as this
may cause it to fall off its stand and result in
damage or injury.
yTo avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
CAUTION
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
-515
-515
-515

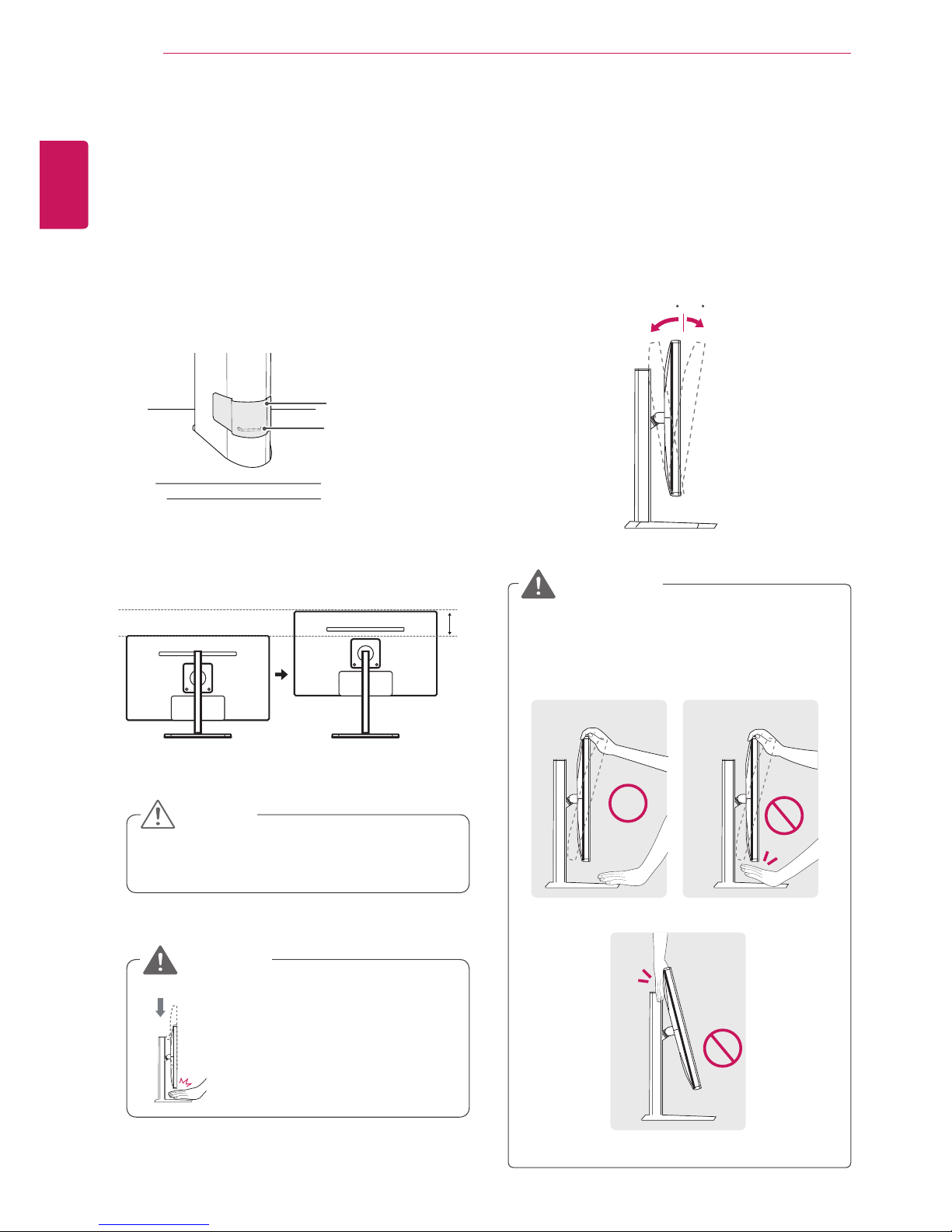

Adjusting the angle
1Place the monitor in an upright position, mount-
ed on the stand base.
2Adjust the angle of the screen. The angle of
the screen can be adjusted forwards or back-
wards from -5° to 15° for a comfortable viewing
experience.
yTo avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
WARNING
Front SideRear Side
yOnce the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the stand height
1Place the monitor mounted on the stand base
in an upright position.
2Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
3The height can be adjusted up to 110.0 mm.
yDo not put your fingers or
hand between the screen
and the base (chassis) when
adjusting the screen's height.
Tape
Locking Pin
Stand Body
CAUTION
WARNING
110.0 mm
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
-515

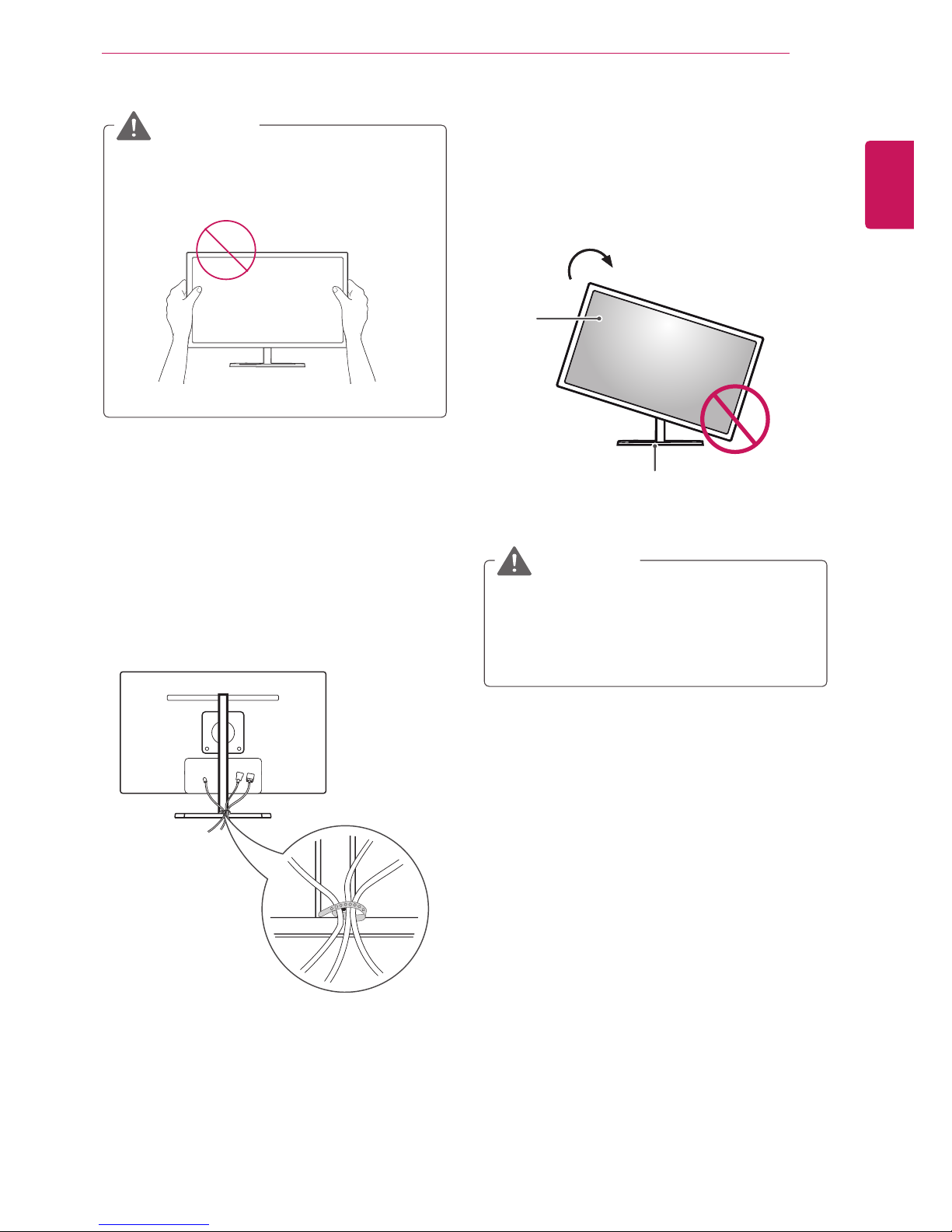

yBe careful not to touch or press the screen
area when adjusting the angle of the monitor.
WARNING
yTo avoid scratching the stand base, make
sure that when rotating the monitor using
the pivot feature, the stand does not make
contact with the monitor.
WARNING
Pivot feature
The pivot feature allows the monitor to rotate 90
clockwise.
Tidying cables
Gather and bind the cables with the supplied cable
tie.
Head
Stand
