This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential e shock or fire hazards.
In order to allow the proper operation of all safeguards incorporated in this
display, observe the following basic rules for its installation, use, and
servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
During a lightning storm or when the display is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
A3
Connecting the Display
Using the Computer
1. Connect the signal cable. When attached, tighten the thumbscrews to secure
the connection.
2. Connect the power cord into a proper power outlet that is easily accessible and
close to the display.
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector
on the supplied cable to a 15 pin 2 row connector.
Wall-outlet type*
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display
may differ from the view as shown.
PC-outlet type*
PC
MAC
Power Cord Signal Cable
Analog signal
D-sub*
*
Varies according to model.
A4
Control Panel Functions
Front Panel Controls
Buttons
Use these buttons to choose or adjust items in
the On Screen Display.
MENU Button
Use this button to enter or exit the On Screen
Display.
Use this button to turn the display on or off.
This Indicator lights up green when the display
operates normally. If the display is in DPM (Energy
Saving) mode, this indicator color changes to amber.
Power Button
Power (DPMS)
Indicator
Use this button to enter a selection in the On Screen
Display.
SELECT Button
Control Function
A5
Control Panel Functions
Control Direct Access Function
Bring up Contrast and Brightness adjustment.
100
100
PROCESSING
AUTO CONFIGURATION
When adjusting your display settings, always press the AUTO
button before entering the On Screen Display(OSD). This will
automatically adjust your display image to the ideal settings for
the current screen resolution size (display mode).
The best display mode is 1280x1024.
AUTO adjustment function
CONTROLS LOCKED
CONTROLS UNLOCKED
This function allows you to secure the current control settings,
so that they cannot be inadvertently changed. Press and hold
the MENU button and button for 3 seconds: the message
“CONTROLS LOCKED” appears.
You can unlock the OSD controls at any time by pushing the
MENU button and button for 3 seconds:
the message “CONTROLS UNLOCKED” will appear.
CONTROLS LOCKED/UNLOCKED
:
MENU and
A6
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system. A
short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the SELECT Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the SELECT Button.
Exit the OSD by Pressing the MENU Button.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
SELECT
SELECT
MENU
MENU
A7
NOTE
The order of icons may differ depending on the model (A7~A9).
*
This function is available for designated models only.
On Screen Display(OSD) Selection and Adjustment
To adjust the brightness and
contrast of the screen
BRIGHTNESS
CONTRAST
COLOR
POSITION
TRACKING
SETUP
Main menu Sub menu Reference
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
PRESET
9300K
6500K
R/G/B(User Color)
GAMMA
To adjust the position of the
screen
To customize the color of the
screen
To customize the screen status
for a user's operating environment
To improve the clarity and
stability of the screen
: Adjustable
BRIGHTNESS
CONTRAST
V POSITION
H POSITION
CLOCK
PHASE
LANGUAGE
*
IMAGE SIZE
*
OSD POSITION
*
FACTORY RESET
*
A8
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.

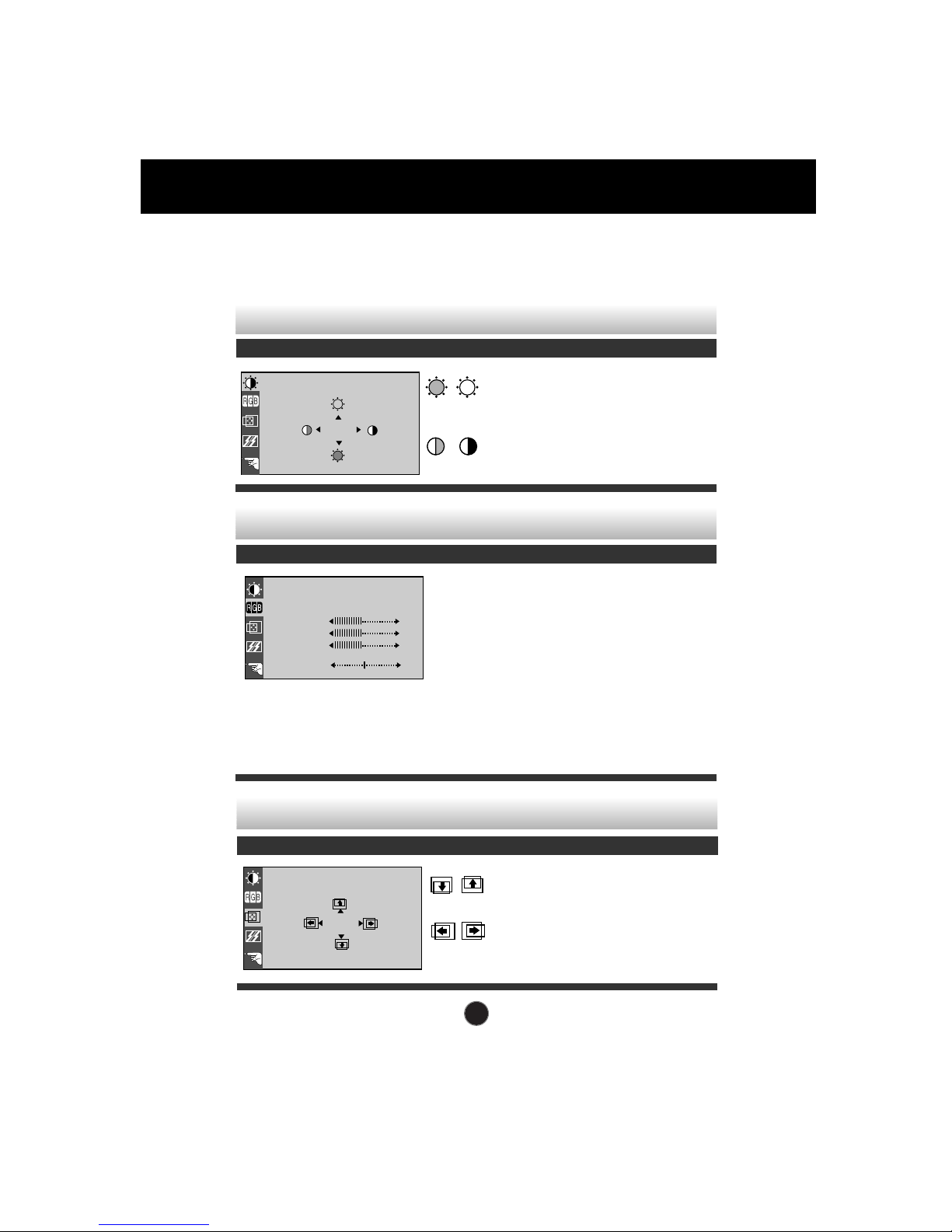

OSD Adjust Description
BRIGHTNESS
To adjust the brightness of the screen.
CONTRAST
To adjust the contrast of the screen.
Vertical Position
To move image up and down.
Horizontal Position
To move image left and right.
To adjust the brightness and contrast of the screen
To adjust the position of the screen
OSD Adjust Description
BRIGHTNESS / CONTRAST
88
100
PRESET
RED
GREEN
BLUE
GAMMA
9300K/6500K
Select the screen color.
• 9300K: Slightly bluish white.
• 6500K: Slightly reddish white.
Set your own color levels.
Set your own gamma value. (-50~50)
On the monitor, high gamma values
display whitish images and low gamma
values display high contrast images.
To customize the color of the screen
OSD Adjust Description
COLOR
PRESET 9300K 6500K
RED
GREEN
BLUE
GAMMA
POSITION
61
39
A9
On Screen Display(OSD) Selection and Adjustment

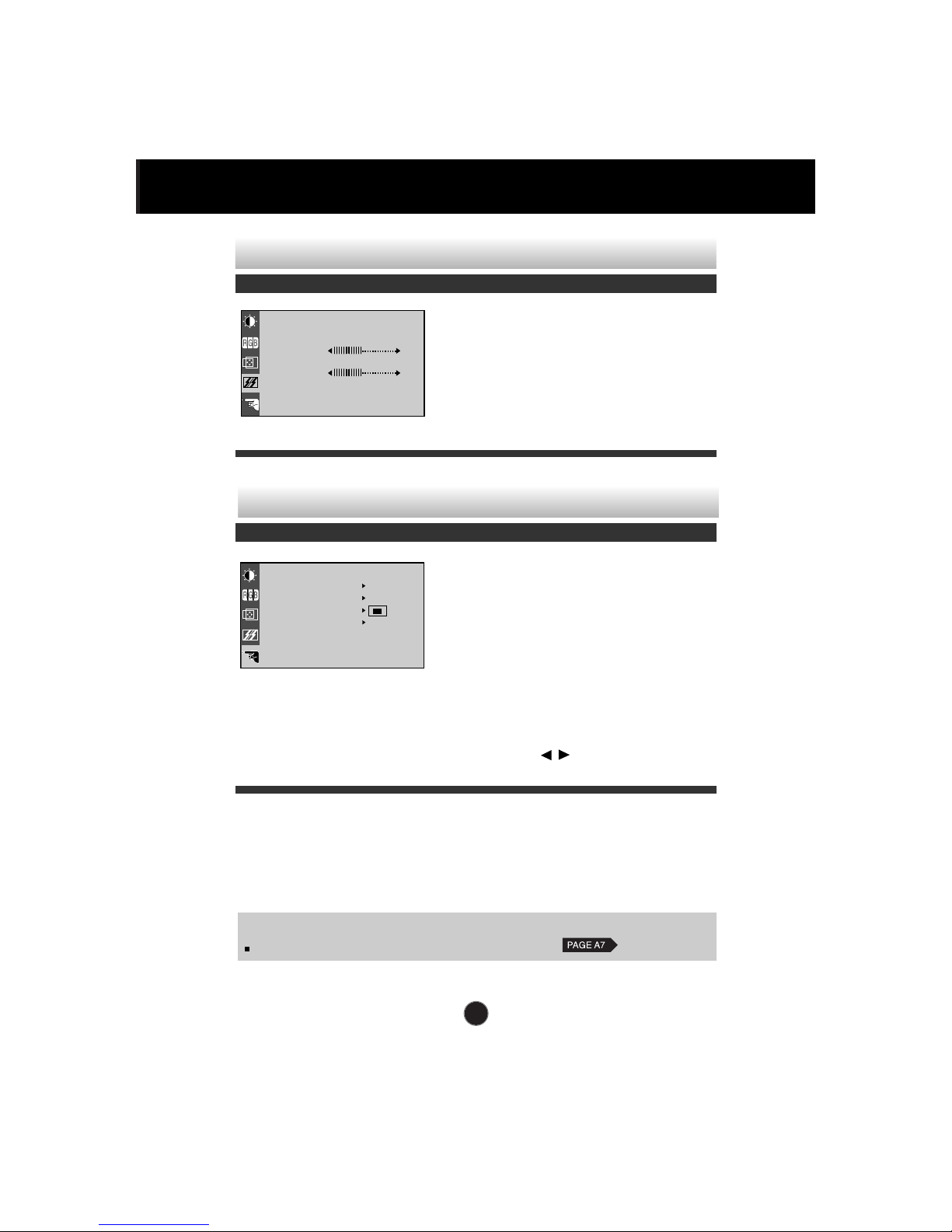

To improve the clarity and stability of the screen
OSD Adjust Description
TRACKING
CLOCK
PHASE
To minimize any vertical bars or
stripes visible on the screen
background.The horizontal screen
size will also change.
To adjust the focus of the display.
This item allows you to remove any
horizontal noise and clear or sharpen
the image of characters.
CLOCK
PHASE
LANGUAGE ENGLISH
FULL
SETUP
IMAGE SIZE
OSD POSITION
1024x768@60Hz
PRESET MODE
NO
FACTORY RESET
To customize the screen status for a user's operating environment
OSD Adjust Description
To choose the language in which the
control names are displayed.
This function displays the image in its
original size or enlarged size so as to
fit in the full screen of the LCD panel.
To adjust position of the OSD window
on the screen.
Return to all factory default settings
except "LANGUAGE".
If you don’t want to reset the monitor,
use the button to select NO and
then press the SELECT button.
LANGUAGE*
IMAGE SIZE*
OSD POSITION*
FACTORY
RESET*
NOTE
*
This function is available for designated models only.
A10
Troubleshooting
No image appears
Check the following before calling for service.
No image appears
Is the power cord of the
display connected?
Is the power indicator
light on?
Is the power on and the
power indicator green?
Is the power indicator
amber?
Do you see an "INPUT
SIGNAL OUT OF
RANGE" message on
the screen?
Do you see a "NO
SIGNAL "message on
the screen?
Do you see a "CONTROLS LOCKED" message on the screen?
Check and see if the power cord is connected
properly to the power outlet.
Press the Power button.
Adjust the brightness and the contrast.
If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard
to bring up the screen.
Make sure if the power is on.
Try to turn on the PC.
This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.
This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.
You can secure the current control settings,
so that they cannot be inadvertently
changed. You can unlock the OSD controls
at any time by pushing the MENU button
and button for 3 seconds: the message
“CONTROLS UNLOCKED”will appear.
Do you see
“CONTROLS LOCKED”
when you push MENU
button?
Altri manuali per Flatron L1710S
2
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali LG Monitor
LG
LG 32QN55T Manuale utente
LG
LG 32GP850-B.AAU Manuale utente
LG
LG SXS Refrigerator Manuale utente
LG
LG 34UC98-W.AUS Manuale utente
LG
LG 40WP95C Manuale utente
LG
LG 29WQ500 Manuale utente
LG
LG UltraWide 38CK900G Manuale utente
LG
LG 32GK850G Manuale utente
LG
LG One:Quick Flex 43HT3WJ Manuale utente
LG
LG L1920P Manuale utente
LG
LG 27HJ712C Manuale utente
LG
LG 24EN43TS Manuale utente
LG
LG E2040S Manuale utente
LG
LG 34GK950F-B Manuale utente
LG
LG Philips LP141WP1-TLA1 Manuale utente
LG
LG Flatron F900P Manuale utente
LG
LG 43UD79-B Manuale utente
LG
LG Flatron L4200A Manuale utente
LG
LG 27QN880 Manuale utente
LG
LG W1954TEV Manuale utente
