Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
L1510BF
User’s Guide
1
This unit has been engineered and manufactured to ensure your personal safety,
however improper use may result in potential electrical shock or fire hazards. In
order to allow the proper operation of all safeguards incorporated in this display,
observe the following basic rules for its installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display:
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Important Precautions
2
Important Precautions
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
Do not shock or scratch the front and sides of the screen with metallic objects.
Otherwise, it may cause damage to the screen.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
3
Connecting the Display
Before setting up the product, please make sure the power to the product,
PC, and other attached devices is turned off.

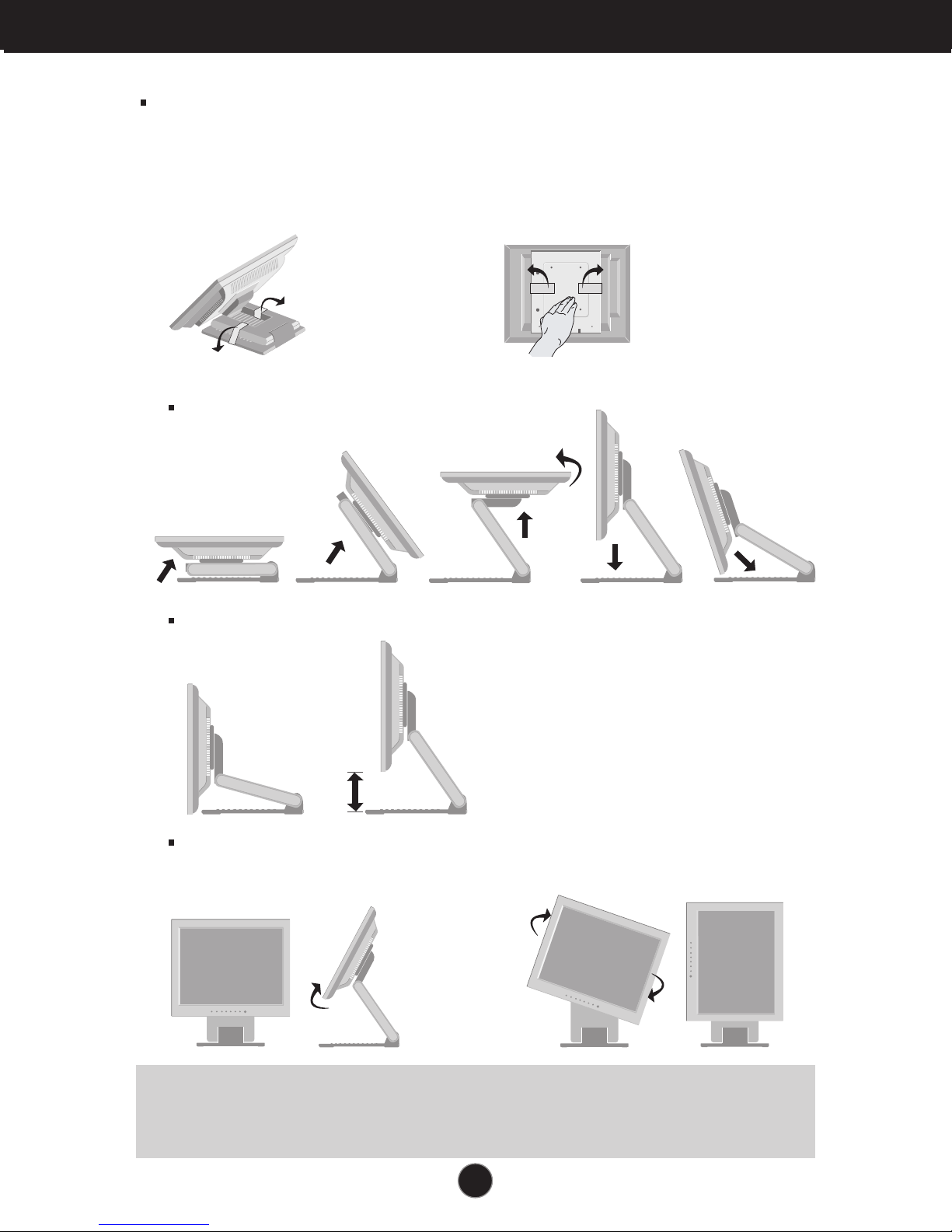

Positioning your display
1. Remove the tape.
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the product should not exceed 5 degrees.
Height Range : maximun 3.39inch (86.1mm)
Landscape & Portrait : You can rotate the panel 90o clockwise.
(* For detailed information, please refer to the Pivot Sofeware CD provided.)
2. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -24˚~145˚
145˚ -24˚
* Make sure not to
touch the floor
when the head
rotates to use the
Pivot function.
<Image 1>
Put the set as the
picture below
<Image 1> to
remove the tape.
Do not remove the tape
with the set up side
down as the <Image 2>
The base part may
spring up to injure your
hand.
<Image 2>
4

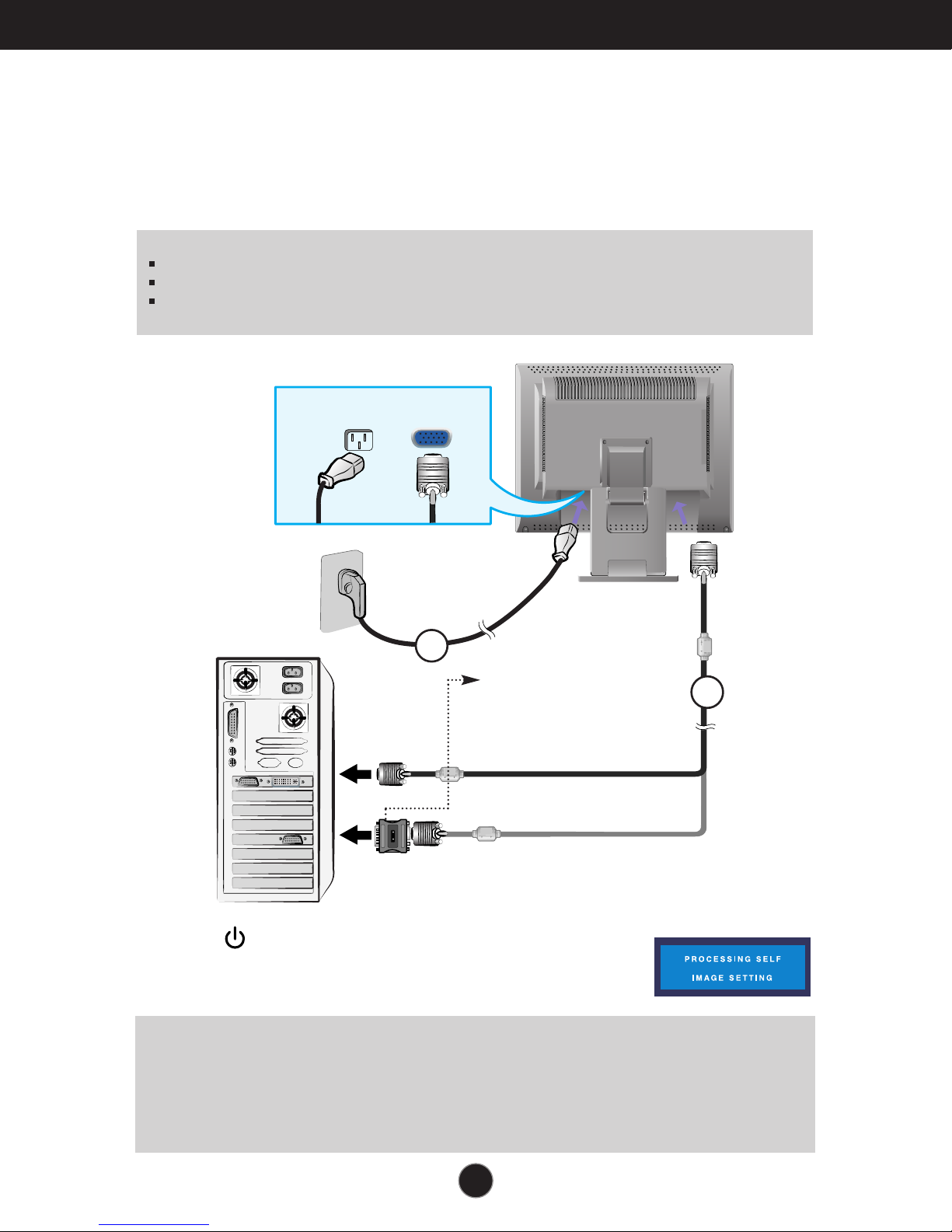

Connecting the Display
Using the Computer
1. Connect the signal cable. When attached, tighten the thumbscrews to secure
the connection.
2. Connect the power cord into a proper power outlet that is easily accessible and
close to the display.
3. Press button on the front switch panel to turn the
power on. When product power is turned on, the 'Self
Image Setting Function' is executed automatically.
Wall-outlet type
PC
MAC
Power Cord Signal Cable
Analog signal
D-sub
V
according to model.
1
2
Mac adapter
For Apple Macintosh use, a
separate plug adapter is needed
to change the 15 pin high density
(3 row) D-sub VGA connector on
thesupplied cable to a 15 pin 2
row connector.
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to
maintain standard compliance for the product.
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When
the user connects the monitor for the first time, this function automatically adjusts the display to optimal
settings for individual input signals.
‘AUTO/SELECT’ Function? When you encounter problems such as blurry screen, blurred letters,
screen flicker or tilted screen while using the device or after changing screen resolution, press the
AUTO/SELECT function button to improve resolution.
5
Connecting the Display

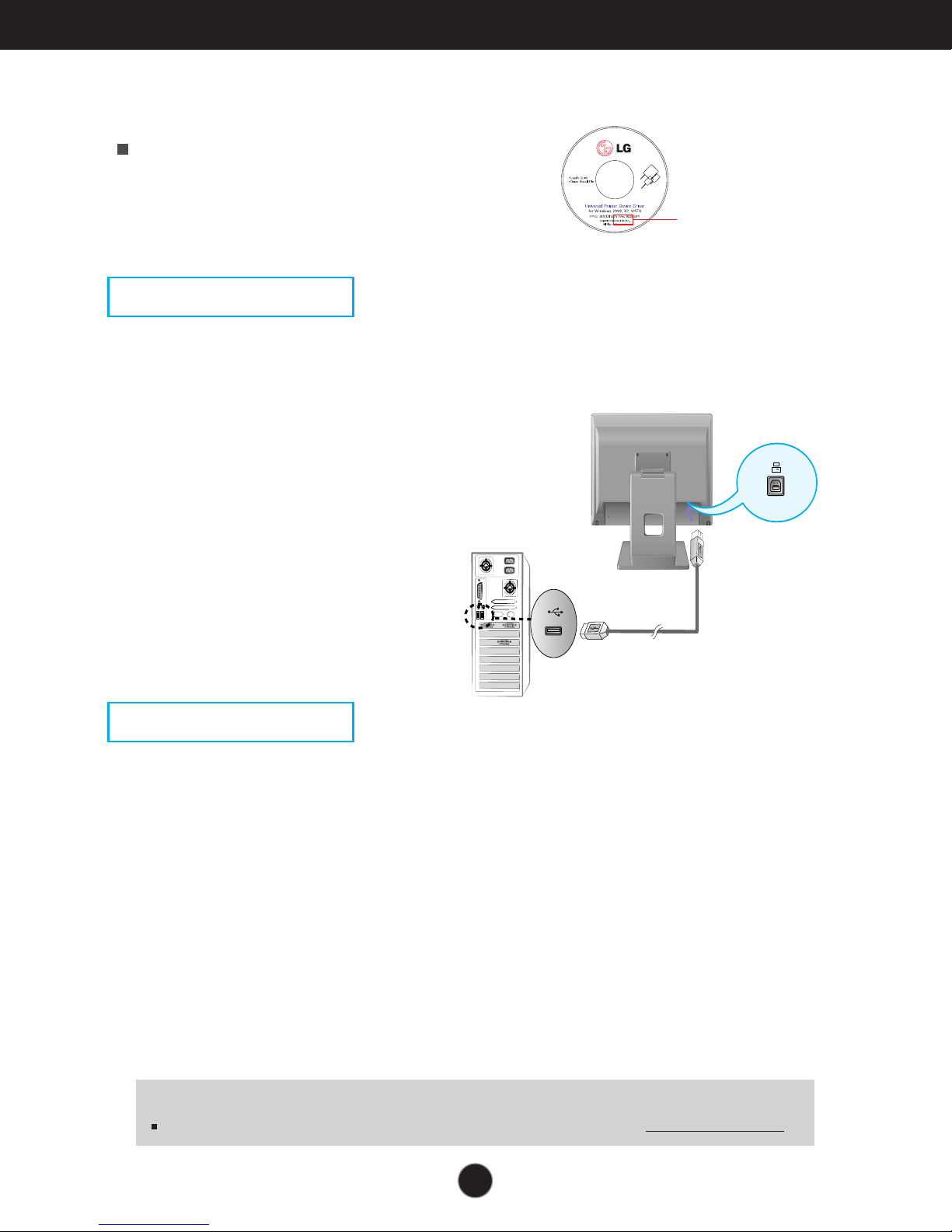

To Use Touch Screen
Select and Install the driver CD provided.
Make sure you have
the driver installation
CD bundled with the
product!
ITM driver
1) Connect the USB cable for touch screen
before installing the driver.
2) Insert the driver installation CD for the ITM
touch screen.
3) See the touch screen software installation
CD for more information and assistance.
* The software drivers support the following
Microsoft Windows operating systems:
Windows 2000, XP, VISTA.
<Connecting the USB cable for touch screen>
1) Connect the USB cable for touch screen before installing the driver.
2) Insert the Hantouch touch screen driver installation CD.
3) Open the "My Computer -> LG Driver -> Drivers" folder, then select the driver
appropriate for your OS.
4) For more information, see the installation manual in the touch screen software installation
CD bundled with the product.
* The software drivers support the following Microsoft Windows operating systems:
Windows 2000, XP, VISTA.
For more information about installation for other OS, see the driver installation CD.
* Your purchased product and its
accessories may look different from
the items illustrated in this manual.
Hantouch driver
NOTE
When you lose Driver CD or want to update the program, please refer to http://www.lge.com.
6
Control Panel Functions
LightView

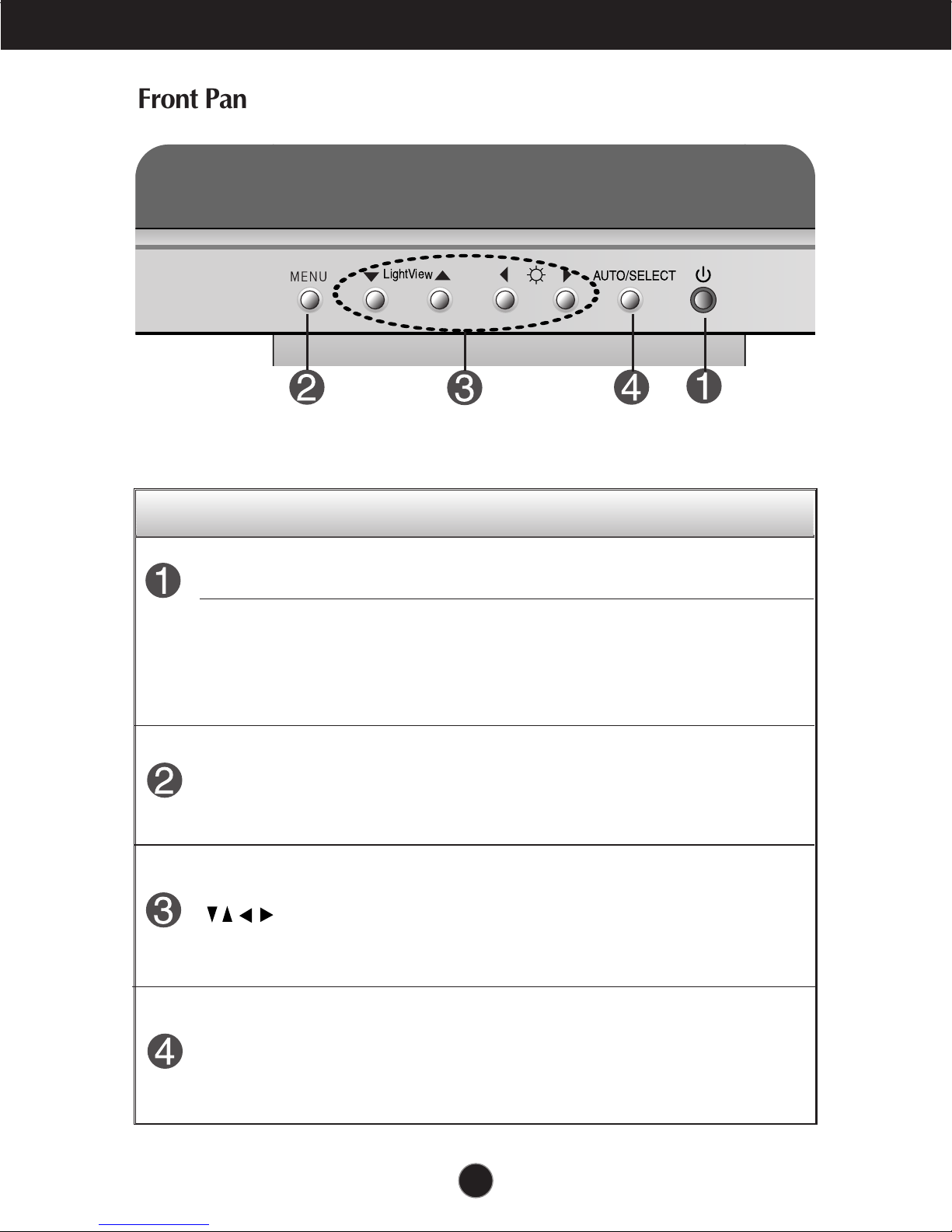

Front Panel Controls
Buttons
Use these buttons to choose or adjust items in the On
Screen Display.
MENU Button
Use this button to enter or exit the On Screen Display.
Use this button to turn the display on or off.
This Indicator lights up green when the display
operates normally(On Mode). If the display is in Sleep
Mode (Energy Saving) mode, this indicator color
changes to amber.
Power Button
Power Indicator
Use this button to enter a selection in the On Screen
Display.
AUTO/SELECT
Button
Control Function
7
Control Panel Functions

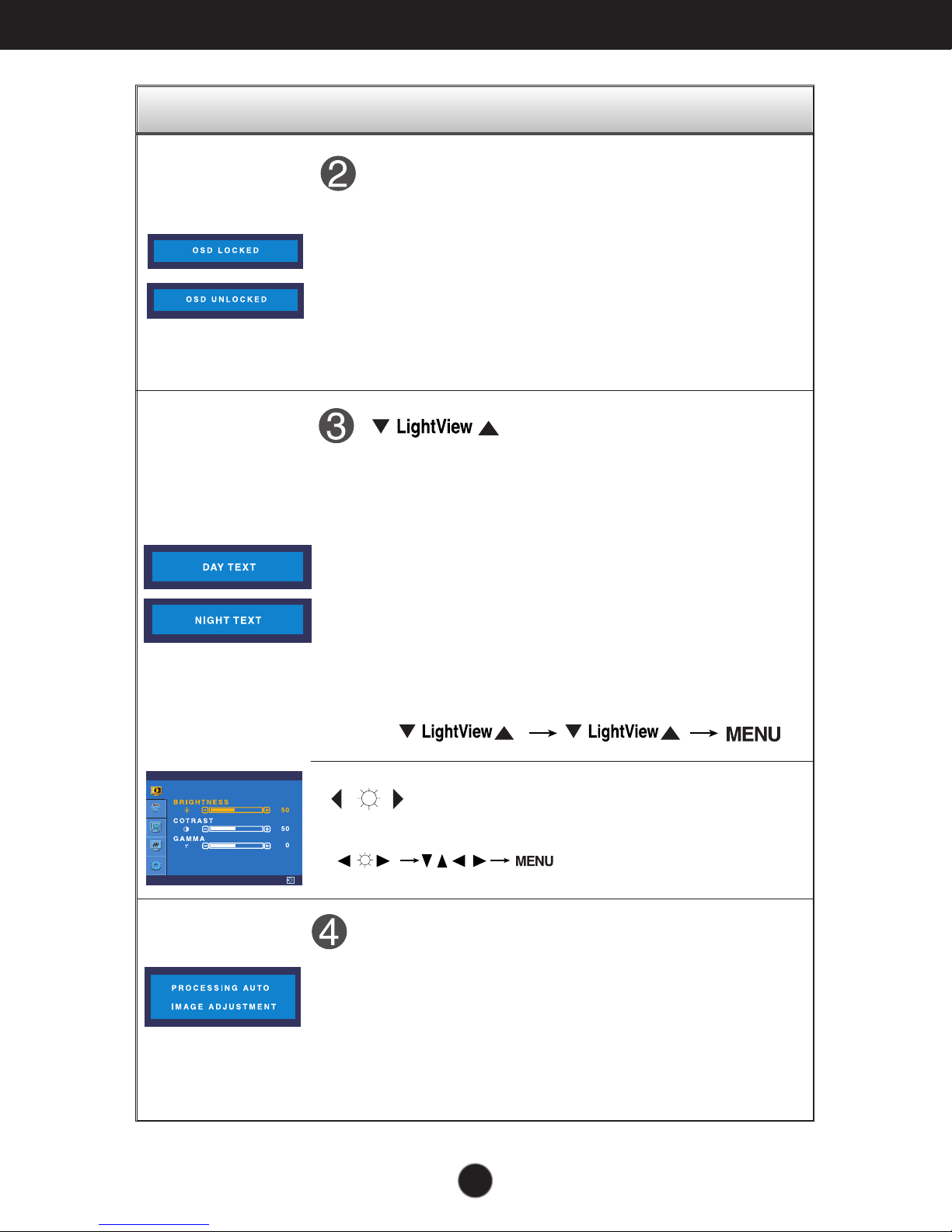

Control Direct Access Function
When adjusting your display settings, always press the
AUTO/SELECT button before entering the On Screen
Display(OSD). This will automatically adjust your display
image to the ideal settings for the current screen resolution
size (display mode).
The best display mode is 1024x768.
AUTO IMAGE ADJUSTMENT
Bring up Contrast and Brightness adjustment.
:
MENU
This function allows you to secure the current control settings,
so that they cannot be inadvertently changed. Press and hold
the MENU button for several seconds: the message
“OSD LOCKED”appears.
You can unlock the OSD controls at any time by pushing the
MENU button for several seconds:
the message “OSD UNLOCKED”will appear.
This feature lets you easily select the best desired
image condition optimized to the environment
(ambient illumination, image types etc).
• DAY : Bright ambient illumination
• NIGHT : Dark ambient illumination
• TEXT : For text images (Word processing etc.)
• MOVIE : For animation images in videos
or movies
• PHOTO : For pictures or drawings
•
NORMAL
: This is under normal operating
conditions
DAY
NIGHT
OSD LOCKED/UNLOCKED
8
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the AUTO/ SELECT Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the MENU Button.
Exit the OSD by pressing the MENU Button.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
AUTO/SELECT
MENU
MENU MENU
9
NOTE
The order of icons may differ depending on the model (9~11).
On Screen Display(OSD) Selection and Adjustment
To adjust the brightness, contrast
and gamma of the screen
COLOR
POSITION
TRACKING
SETUP
Main menu Sub menu Reference
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
PRESET
6500K
9300K
RED
GREEN
BLUE
To adjust the position of the
screen
To customize the color of the
screen
To customize the screen status
for a user's operating environment
To improve the clarity and
stability of the screen
: Adjustable
BRIGHTNESS
CONTRAST
GAMMA
HORIZONTAL
VERTICAL
CLOCK
PHASE
LANGUAGE
OSD
POSITION
WHITE BALANCE
POWER INDICATOR
FACTORY RESET
HORIZONTAL
VERTICAL
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali LG Monitor
LG
LG 55WV70MS Guida rapida
LG
LG 32SQ780S-W.AAU Manuale utente
LG
LG Flatron W1943CM Manuale utente
LG
LG 27BK550Y-B.AAU Manuale utente
LG
LG Flatron F700P Manuale utente
LG
LG UltraGear 27GR93U Manuale utente
LG
LG 47VT30 Manuale utente
LG
LG 38WQ88C Manuale utente
LG
LG 27BN85U Manuale utente
LG
LG MT-42PZ40B Manuale utente
