LG L1982U Manuale utente
EUT Type: 19” LCD Monitor
FCC ID: BEJL1982UQ
Test Report No.: GETEC-E3-07-019
FCC Class B Class II Permissive Change
APPENDIX H
: USER’S MANUAL
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the future and give the information to your dealer
hen you ask for service.
L1982U
User’s Guide
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential electrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this display, observe the following basic rules for its
installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
During a lightning storm or when the display is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this monitor contains a small amount of mercury.
Do not dispose of this monitor with general household waste.
Disposal of this monitor must be carried out in accordance to the regulations of
your local authority.
Connecting the Display
A3
4. Place the monitor upright and adjust the stand base
angle as desired. Adjust the stand base angle holding
the monitor head part with both hands.
This illustration depicts the general model of connection. Your monitor may
differ from the items shown in the picture.
Do not touch or apply force to the monitor screen while expanding or
folding the stand base.
Before setting up the monitor, ensure that the power to the monitor, the
computer system, and other attached devices is turned off.
Set up the stand unfolded for the esktop use or set up the stand folded for
the wall-mound use.
Unfolding the stand base
1. Place the monitor with its front facing downward on a soft cloth.
. Hold the Stand base following the order in the picture and unfold smoothly as if
you are pulling it.
3e cautious to not to pull the Stand base more than a right angle to avoid
monitor breakage.
o not hold the stand base as shown in
the picture.
A4
Connecting the Display
1. Face the front of the monitor and push the monitor backwards, following the
sequence shown in the picture.
Folding the stand base
Height range
Height Range : maximum 2.36 inch (60 mm)
60 mm
A5
DC-IND-SUDVI-D
1
2
PC
PC
3
Connecting the Display

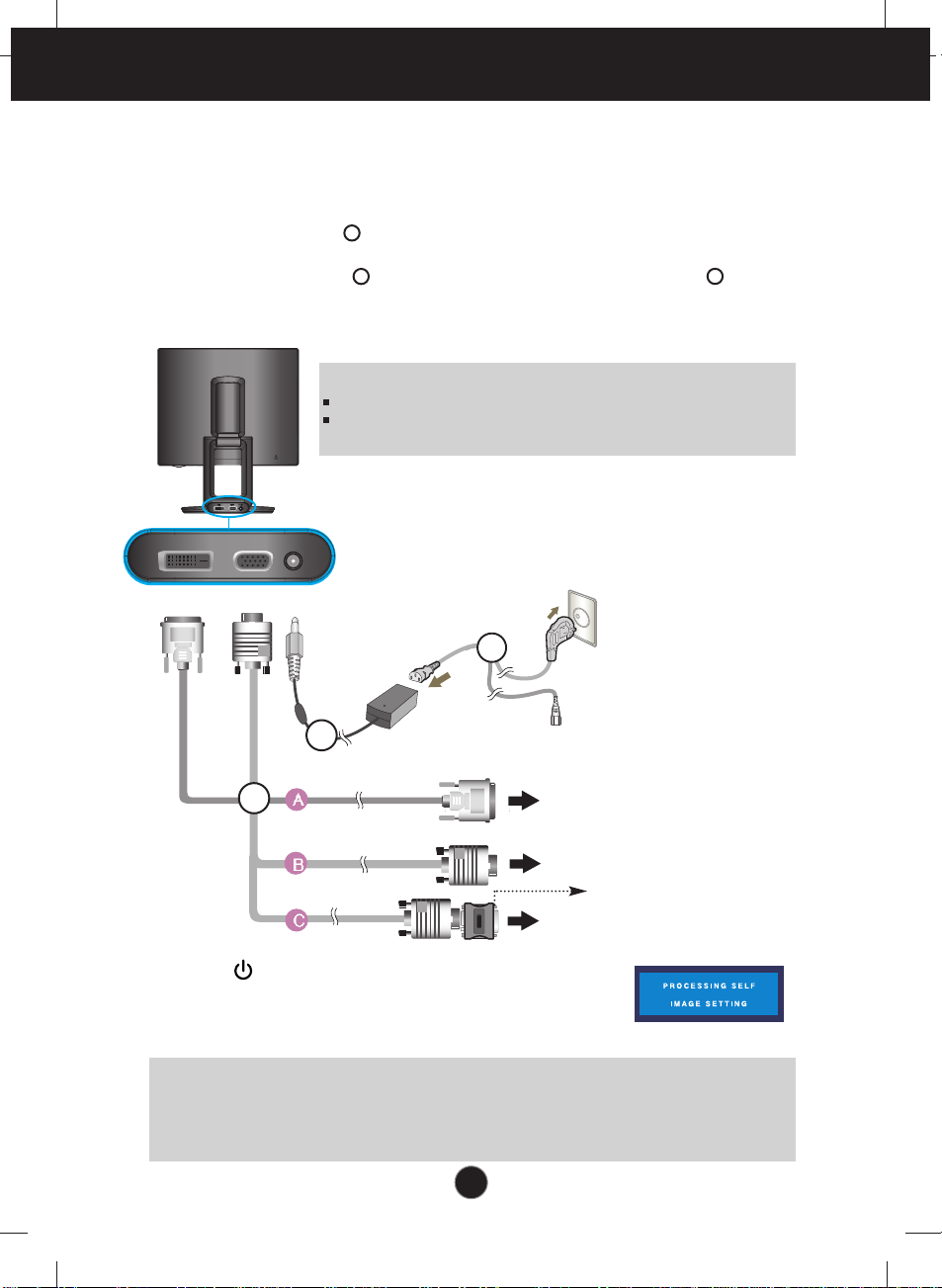

Connecting with the PC
1. Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
. Connect the signal cable . When attached, tighten the thumbscrews to secure the
connection.
3. Connect the power cable with the AC-DC adapter (AC-DC power supply) , and
then plug the cable in the outlet.
Wall-outlet type
PC-outlet type
Mac adapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin high
density (3 row) D-sub V A connector on the
supplied cable to a 15 pin 2 row connector.
4. Press button on the front switch panel to turn
the power on. When monitor power is turned on, the
'Self Image Setting Function' is executed
automatically. (Only Analog Mode)
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user
connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual
input signals. If you want to adjust the monitor while in use, or wish to manually run this function once again, push
the ‘AUTO/SET’ button on the front panel of the monitor. Otherwise, you may execute the ‘ Factory reset’ option on
the OSD adjustment menu. However, be aware that this option initializes all the menu items except ‘Language’.
1
32
MAC
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view
as shown.
DVI-D Cable
(This feature is not available in all countries.)
A6
Using the Auto Pivot, Auto Mirror function
Notice
Forte Manager soft ware requires Microsoft Explorer 6.0 or later.
When the Auto Mirror function is engaged, the direction of the OSD
(On Screen Display) menu will not be changed if rotated by 180°. (See the below figure.)
The response time (speed) for the Auto Pivot and Auto Mirror function can vary
depending on the video card and the PC performance, and these functions are not
supported in the DOS mode.
This model supports Auto Pivot (automatic rotation) and Auto Mirror
(automatic up/down reversal) functions.
To use this function, install the provided Forte Manager software first and then,
perform Automatic setting.(Manual is the default setting when you purchase the product.)
- Refer to the installation guide included in the C for more details on the installation method.
- For the automatic setting, select Forte Manager -> Option -> Pivot -> Enable AutoPivot.
Auto Pivot
Screen rotation : You can rotate the monitor screen part clockwise by 180 .
<When rotated by 90 ><When rotated by 180 >
❉
Caution : e careful that your hands are not pressed down when rotating
the screen.
<Pushing the screen
part backwards>
<Rotating clockwise>
Refer to the next page about Auto Mirror function.
This rear view represents a general model, your display may differ from the view as shown.
Tilt the screen
part while rotating
it so that the monitor
does not touch
the floor.
Do not hold the
screen area as
shown in the picture
when rotating it,
otherwise you
fingers might get
hurt or get stuck.
A7
Using the Auto Pivot, Auto Mirror function
Auto Mirror
Screen switch : The monitor screen part is automatically mirrored when you switch it
forward/backward as shown in the figure.
Tip
If you activate the Auto Pivot or Auto Mirror function while the screen is almost on
a level, the screen display may not work properly.
In this case, set the screen up straight and adjust to the proper angle.
It is recommended that in order to maintain an ergonomic and comfortable
viewing position, the forward tilt angle of the monitor should not exceed
5 degrees.
❉
Caution : e careful that your hands are not pressed down when rotating
the screen.
This rear view represents a general model, your display may differ from the view as shown.
<When rotated by 180 >
<Pushing the screen
part backwards>
<Rotating clockwise>
Tilt the screen
part while rotating
it so that the monitor
does not touch
the floor.
Do not hold the
screen area as
shown in the picture
when rotating it,
otherwise you
fingers might get
hurt or get stuck.
A8
Control Panel Functions
MENU Button
Use this button to enter or exit the On Screen Display.
Control Function
OS LOCKE /UNLOCKE
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OS LOCKE " should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OS UNLOCKE " should appear.
- +
Buttons
Use these buttons to select or adjust functions in the On
Screen Display.
For more information, refer to page A16.
Use this button to make D-Sub or DVI connector active.
This feature is used when two computers are connected
to the display. The default setting is D-Sub.
+
Button
(SOURCE Hot key)
-
Button
( )
Front Panel Controls
Bottom
