LG M198WDP Manuale utente

Please read this manual carefully before operating

your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote

this information to your dealer when you require

service.

OWNER’S MANUAL

MM1199WWDDPP

MM2222WWDDPP

Trade Mark of the DVB Digital Video

Broadcasting Project (1991 to 1996)

IIDD NNuummbbeerr((ss))::5576 : M19 WDP

5577 : M22 WDP

PREPARATION

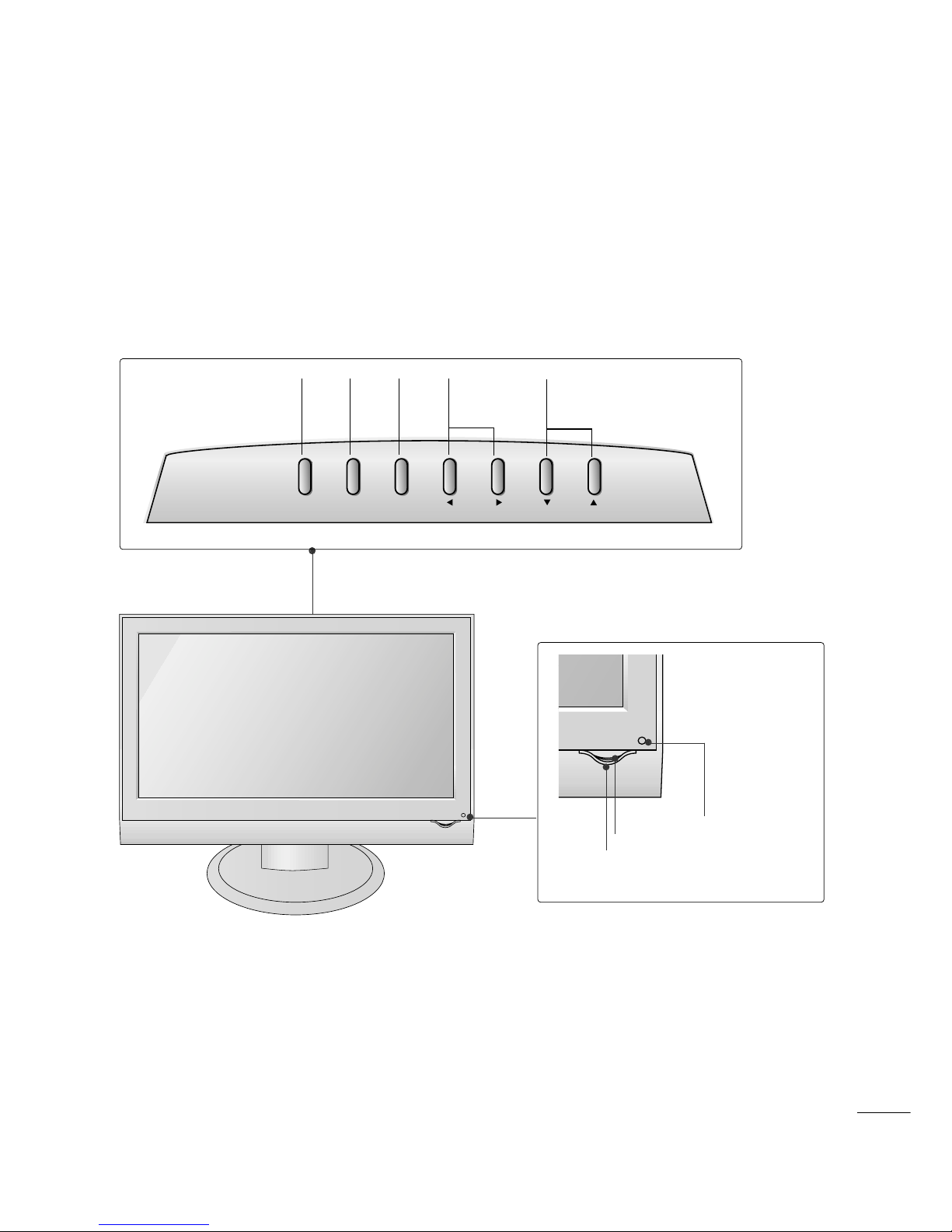

FRONT PANEL CONTROLS

■

This is a simplified representation of the front panel. The image shown may be somewhat different from your

set.

• Remote Control Sensor

• Power Indicator

• Power Sensor

INPUT MENU VOL PROK

PROGRAMME

Buttons

VOL ME

Buttons

MEN

Button

INP T

Button

PREPARATION

BACK PANEL INFORMATION

PCMCIA (Personal Computer Memory Card

International Association) Card Slot

(This feature is not available in all countries.)

Power Cord Socket

This set operates on AC power. The voltage is

indicated on the Specifications page. Never

attempt to operate the set on DC power.

HDMI/DVI Input

Connect a HDMI signal to HDMI IN.

Or DVI (VIDEO) signal to HDMI/DVI port with

DVI to HDMI cable.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

Antenna Input

Connect over-the-air signals to this jack.

Component Input

Connect a component video/audio device to

these jacks.

RGB/DVI Audio Input

Connect the monitor output from a PC to the

appropriate input port.

Euro Scart Socket (AV1/AV2)

Connect scart socket input or output from an

external device to these jacks.

RGB(PC) IN

Connect the output from a PC.

SERVICE ONLY PORT

■

This is a simplified representation of the back panel. The image shown may be somewhat different from your

set.

AC IN

AUDIO IN

(RGB/DVI)

VIDEO

COMPONENT IN

AUDIO

EJECTPCMCIA

CARD SLOT

RS-232C IN

(CONTROL & SERVICE)

SERVICE

ONLY

RGB (PC) IN

HDMI/DVI IN

AV 1

V 1

AV 2

V 2

ANTENNA IN

3 7 54

PREPARATION

STAND INSTALLATION

■

The image shown may be somewhat different from your set.

Carefully place the product screen side down on a

cushioned surface that will protect product and

screen from damage.

Hold the hhiinnggee bbooddyyand pull it upward. Hinge Body

Insert the ssttaanndd bbooddyyinto the product until you

hear a clicking sound.

Stand Body

Assemble the parts of the ssttaanndd bbooddyywith

ssttaanndd bbaasseeof the product.

Stand Base

PREPARATION

DETACHING STAND

Place the set screen side down on a cushion or

soft cloth.

Pull cover base backward while pressing button

on stand body.

Hold cover base and pull while shaking it back-

ward to separate from stand body. 4Hold the stand and pull it upward.

5Pull stand body to separate from set while

pressing both latches.

■

The image shown may be somewhat different from your set.

PREPARATION

BACK COVER FOR WIRE ARRANGEMENT

Connect the cables as necessary.

To connect additional equipment, see the EExxtteerrnnaall EEqquuiippmmeennttSSeettuupp section.

Install the CCAABBLLEE MMAANNAAGGEEMMEENNTTas shown.

First, press the cable management. Hold the CCAABBLLEE MMAANNAAGGEEMMEENNTTwith both hands and pull it upward.

NOTE

GGDo not hold the CCAABBLLEE MMAANNAAGGEEMMEENNTT when moving the product.

- If the product is dropped, you may be injured or the product may be broken.

How to remove the c ble m n gement

■

The image shown may be somewhat different from your set.

PREPARATION

WALL MO NT: HORIZONTAL INSTALLATION

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4 inches on each side and from the wall.

For proper ventilation, allow a clearance of 4 inches on each side and from the wall. Detailed installation

instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

4 inches

4 inches 4 inches

4 inches

4 inches4 inches

4 inches

PREPARATION

POSITIONING YO R DISPLAY

■

The image shown may be somewhat different from your set.

Adjust the position of the panel in various ways for maximum comfort.

•• TTiilltt rraannggee

LOCATION

Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken

not to expose the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is

placed in a position to allow a free flow of air. Do not cover the ventilation openings on the back cover.

If you intend to mount the set to a wall, attach VESA standard mounting interface (optional parts) to the

back of the set.

When you install the set using the wall mounting bracket (optional parts), attach it carefully so it will not

drop.

~ 3

WWaarrnniinngg::

When adjusting the angle of the screen,do not put your

finger(s)in between the head of the monitor and the stand

body.You can hurt your finger(s).

PREPARATION

KENSINGTON SEC RITY SYSTEM

- The product is equipped with a Kensington Security System connector on the back panel. Connect the

Kensington Security System cable as shown below.

- For detailed installation and use of the Kensington Security System, refer to the user’s guide provided with

the Kensington Security System.

For further information, contact hhttttpp::////wwwwww..kkeennssiinnggttoonn..ccoomm, the internet homepage of the

Kensington company. Kensington sells security systems for expensive electronic equipment such as note-

book PCs and LCD projectors.

NOTE

- The Kensington Security System is an optional accessory.

NOTES

a. If the product feels cold to the touch, there may be a small “flicker” when it is turned on.

This is normal, there is nothing wrong with product.

b. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots.

However, they have no adverse effect on the monitor's performance.

c. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary distortion effects on the screen.

PREPARATION

AV 3

L/MONO

AUDIO

VIDEO

S-VIDEO

AUDIO

VIDEO

AV 1 AV 2

ANTENNA

EJECT

HDMI/DVI IN 1 HDMI IN 2

PCMCIA

CARD SLOT

RS-232C IN

AV 3

L/MONO

AUDIO

VIDEO

S-VIDEO

AUDIO

VIDEO

AV 1 AV 2

ANTENNA

EJECT

HDMI/DVI IN 1 HDMI IN 2

PCMCIA

CARD SLOT

RS-232C IN

■For optimum picture quality, adjust antenna direction.

■An antenna cable and converter are not supplied.

■To prevent equipment damage, never plug in any power cords until you have finished connecting all equipment.

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

Single-family Dwellings /Houses

(Connect to wall jack for out oor antenna)

Outdoor

Antenna

(VHF, UHF)

Wall

Antenna

Socket

RF Coaxial Wire (75 ohm)

ANTENNA CONNECTION

Antenna

UHF

Signal

Amplifier

VHF

■In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown above.

■If signal needs to be split for two TVs, use an antenna signal splitter for connection.
