Make sure to read the Safety Precautions before

using the product.

Keep the User's Guide(CD) in an accessib e p ace

for furture reference.

See the abe attached on the product and give the

information to your dea er when you ask for service.

OWNER’S MANUAL

MM223377WWDD

Trade Mark of the DVB Digita Video

Broadcasting Project (1991 to 1996)

IIDD NNuummbbeerr((ss))::6247

PREPARATION

FRONT PANEL CONTROLS

■

This is a simp ified representation of the front pane . The image shown may be somewhat different from your

set.

INPUT MENU VOL PROK

PROGRAMME

Buttons

VOLUME

Buttons

Button

INPUT

Button

Power

Button

Headp one

Button

PREPARATION

BACK PANEL INFORMATION

■

This is a simp ified representation of the back pane . The image shown may be somewhat different from your set.

AV 1 AV 2

AC IN

AUDIO IN

(RGB/DVI) OPTICAL

DIGITAL

AUDIO OUT

VIDEO

COMPONENT

IN AV-IN 3

VIDEO AUDIO

(MONO)

S-VIDEO

AUDIO

RS-232C IN

(CONTROL & SERVICE)

SERVICE

ONLY

RGB IN (PC)

DVI-D

HDMI

AV 1

V 1

AV 2

V 2

AC IN

ANTENNA

10 11 12

98 1413

6 74 5

PCMCIA (Personal Computer Memory Card

International Association) Card Slot

(T is feature is not available in all countries.)

Power Cord Socket

T is set operates on AC power. T e voltage is indicat-

ed on t e Specifications page. Never attempt to

operate t e set on DC power.

HDMI Input

Connect a HDMI signal to HDMI IN.

Or DVI (VIDEO) signal to HDMI IN wit DVI to HDMI

cable.

RGB/DVI Audio Input

Connect t e audio from a PC.

Optical Digital Audio Out

Connect digital audio from various types of eguip-

ment

RGB INPUT (PC)

Connect t e output from a PC.

Audio/Video Input

Connect audio/video output from an external device

to t ese jacks.

SERVICE ONLY PORT

DVI-D Input

Connect t e output from a PC.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to t e RS-232C port on a PC.

Component Input

Connect a component video/audio device to t ese

jacks.

S-Video Input

Connect S-Video out from an S-VIDEO device.

Euro Scart Socket (AV1/AV2)

Connect scart socket input or output from an exter-

nal device to t ese jacks.

Antenna Input

Connect over-t e-air signals to t is jack.

PREPARATION

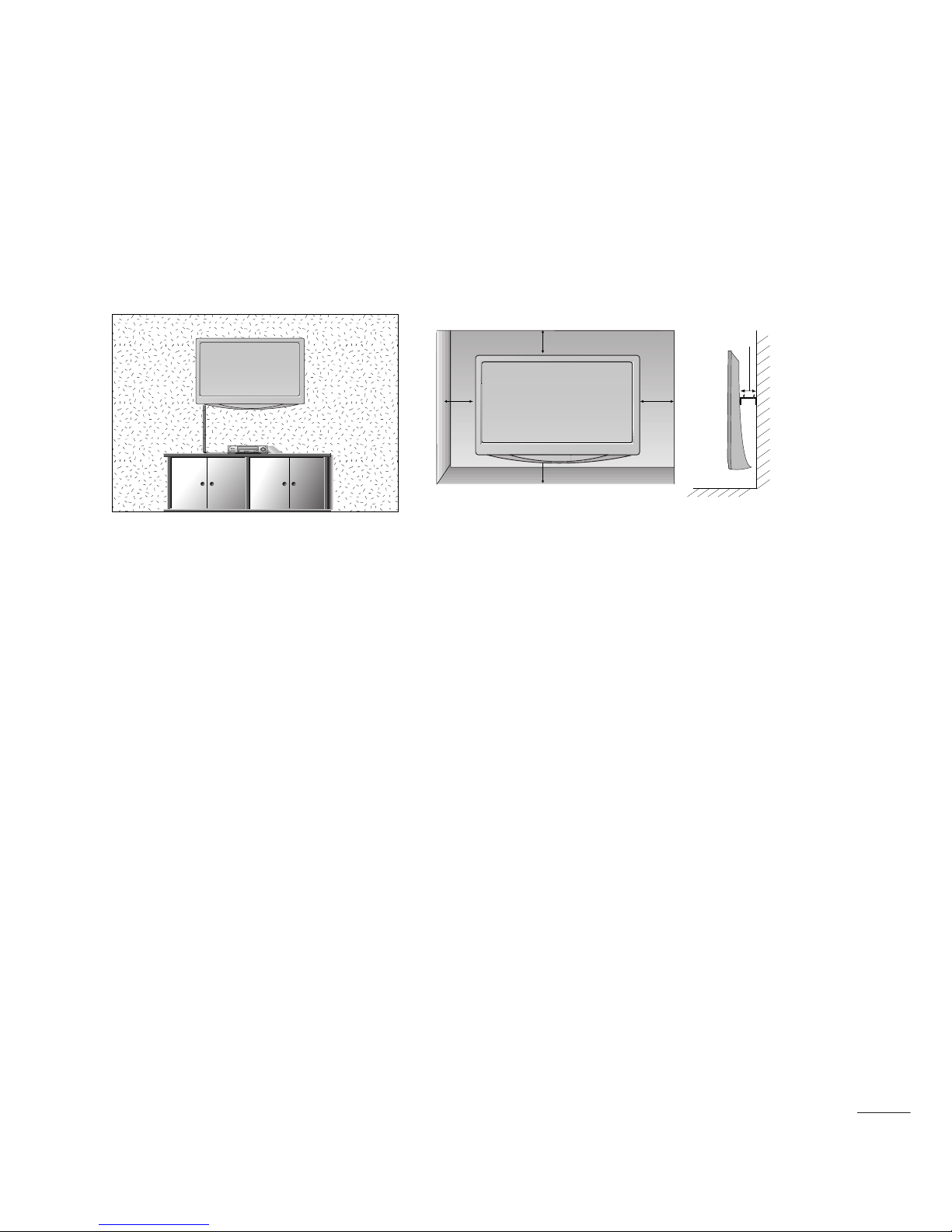

WALL MOUNT: HORIZONTAL INSTALLATION

For proper ventilation, allow a clearance o 4 inches on each side and rom the wall. Detailed installation

instructions are available rom your dealer, see the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

4 inches

4 inches 4 inches

4 inches

LOCATION

Position your set so that no bright light or sunlight alls directly onto the screen. Care should be taken not to

expose the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is placed in a posi-

tion to allow a ree low o air. Do not cover the ventilation openings on the back cover.

I you intend to mount the set to a wall, attach Wall mounting inter ace (optional parts) to the back o the set.

When you install the set using the wall mounting inter ace (optional parts), attach it care ully so it will not drop.

- Be sure to use screws and a wall mount that meet VESA standards.

- Using screws longer than those recommended might damage the product.

- Using screws that do not meet VESA standards might either damage the product or result in it coming away rom

the wall. We will not be held responsible or any damage resulting rom ailure to ollow these instructions.

< Screw Mounting Inter ace Dimension >

75mm x 75mm hole spacing

PREPARATION

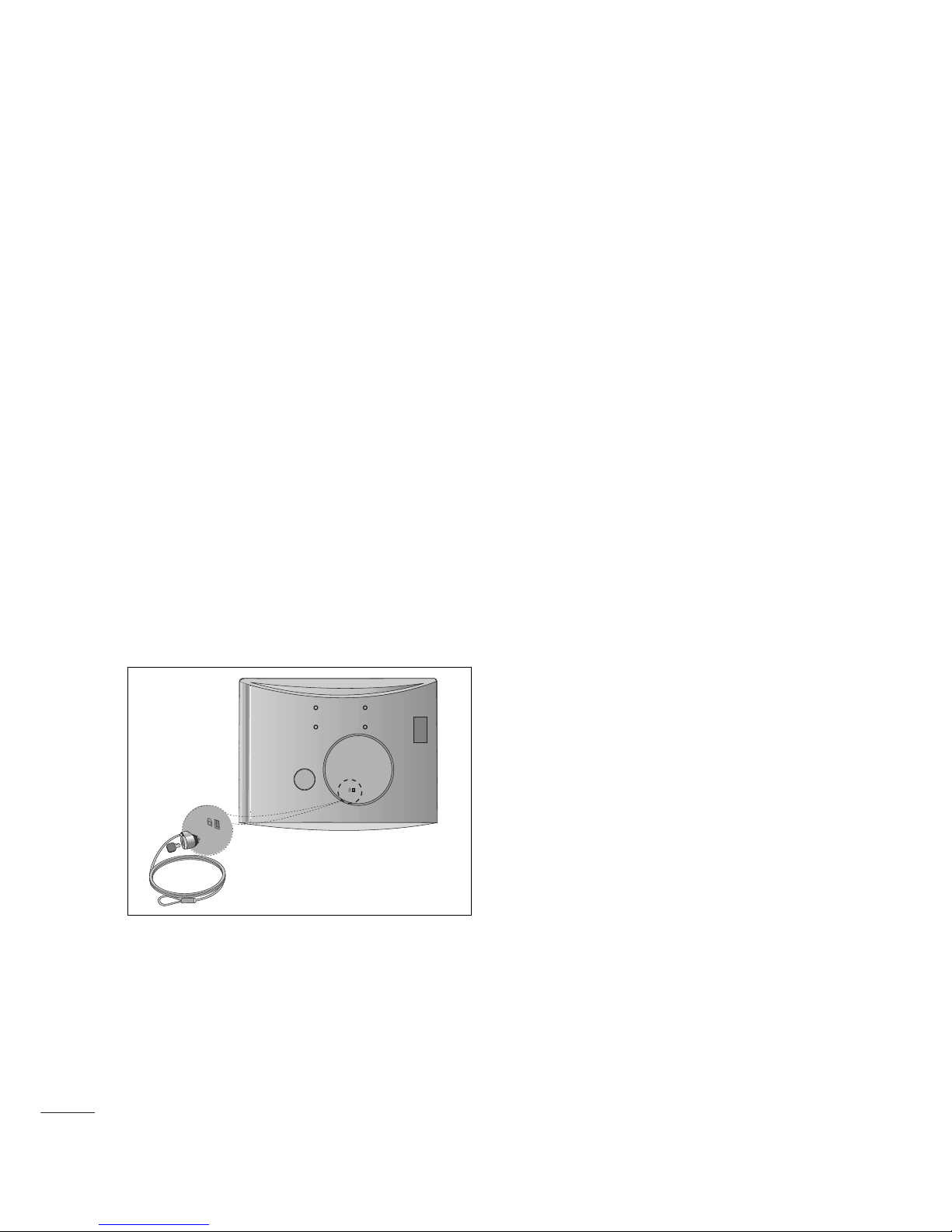

KENSINGTON SECURITY SYSTEM

- T e product is equipped wit a Kensington Security System connector on t e back panel. Connect t e

Kensington Security System cable as s own below.

- For detailed installation and use of t e Kensington Security System, refer to t e user’s guide provided wit

t e Kensington Security System.

For furt er information, contact ttttpp::////wwwwww..kkeennssiinnggttoonn..ccoomm, t e internet omepage of t e

Kensington company. Kensington sells security systems for expensive electronic equipment suc as note-

book PCs and LCD projectors.

NOTE

- T e Kensington Security System is an optional accessory.

NOTES

a. If t e product feels cold to t e touc , t ere may be a small “flicker” w en it is turned on.

T is is normal, t ere is not ing wrong wit product.

b. Some minute dot defects may be visible on t e screen, appearing as tiny red, green, or blue spots.

However, t ey ave no adverse effect on t e monitor's performance.

c. Avoid touc ing t e LCD screen or olding your finger(s) against it for long periods of time.

Doing so may produce some temporary distortion effects on t e screen.

PREPARATION

AV 3

L/MONO

AUDIO

VIDEO

S-VIDEO

AUDIO

VIDEO

AV 1 AV 2

ANTENNA

EJECT

HDMI/DVI IN 1 HDMI IN 2

PCMCIA

CARD SLOT

RS-232C IN

AV 3

L/MONO

AUDIO

VIDEO

S-VIDEO

AUDIO

VIDEO

AV 1 AV 2

ANTENNA

EJECT

HDMI/DVI IN 1 HDMI IN 2

PCMCIA

CARD SLOT

RS-232C IN

■For optimum picture qua ity, adjust antenna direction.

■An antenna cab e and converter are not supp ied.

■To prevent equipment damage, never p ug in any power cords unti you have finished connecting a equipment.

Multi-family Dwellings/A artments

(Connect to wall antenna socket)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Outdoor

Antenna

(VHF, UHF)

Wall

Antenna

Socket

RF Coaxial Wire (75 ohm)

ANTENNA CONNECTION

Antenna

UHF

Signal

Am lifier

VHF

■In poor signa areas, to get better picture qua ity, insta a signa amp ifier to the antenna as shown above.

■If signa needs to be sp it for two TVs, use an antenna signa sp itter for connection.

EXTERNAL EQUIPMENT SETUP

Connect the SET-TOP outputs to the CCOOMMPPOONNEENNTT IINN

VVIIDDEEOOsockets (YP

BPR) on the set.

Connect the audio cab e from the SET-TOP to CCOOMMPPOO--

NNEENNTT IINNAAUUDDIIOOsockets of the set.

Press the IINNPPUUTTbutton to se ect Component.

HD RECEIVER SETUP

■To prevent t e equipment damage, never plug in any power cords until you ave finis ed connecting all equipment.

■

T e image s own may be somew at different from your set.

When connecting with a com onent cable

Signa

480i/576i

480p/576p

720p/1080i

1080p

Component

Yes

HDMI

Yes

VIDEO

COMPONENT

AUDIO

EXTERNAL EQUIPMENT SETUP

When connecting with a HDMI

Connect the HDMI output of the digita set-top box to the

HHDDMMII IINNjack on the set.

Connect the digita set-top box to HHDDMMII IINN jack on

the set.

Connect the audio output of the digita set-top box to

the AAUUDDIIOO IINN ((RRGGBB//DDVVII)) jack on the set.

Turn on the digita set-top box. (Refer to the owner’s

manua for the digita set-top box.)

When connecting with a HDMI to DVI cable

HDMI

DVI OUTPUT

AUDIO

AUDIO IN

(RGB/DVI)

HDMI

NOTE

GGHDMI Input does not support PC mode. If it is connected PC, the screen may not be disp ayed proper y.

EXTERNAL EQUIPMENT SETUP

DVD SETUP

When connecting with a com onent cable

Com onent In ut orts

To get better picture quality, connect a DVD player to t e component input ports as s own below.

Component ports on the set

BPR

Video output ports

on DVD p ayer

B-Y

R-Y

Connect the video output sockets (YPBPR) of the DVD to

the CCOOMMPPOONNEENNTT IINN VVIIDDEEOO sockets (YP

BPR) of the

set.

Connect the audio cab e from the DVD to CCOOMMPPOONNEENNTT

IINN AAUUDDIIOO sockets of the set.

Press the IINNPPUUTTbutton to se ect Component.

Press the PPLLAAYYbutton on the DVD.

The DVD p ayback picture appears on the screen.

VIDEO

COMPONENT

AUDIO

EXTERNAL EQUIPMENT SETUP

When connecting with a Euro Scart

Connect the Euro scart socket of the DVD to the Euro scart

socket of the set.

Press the IINNPPUUTTbutton to se ect AV 1 .

If connected to AAVV22 Euro scart socket, se ect AAVV22 input

source.

Press the PPLLAAYYbutton on the DVD.

The DVD p ayback picture appears on the screen.

When connecting HDMI cable

Connect the HDMI output of the DVD to the

HHDDMMII IINN jack on the set.

GGSet can receive the video and audio signa simu taneous y by using a HDMI cab e.

GGIf the DVD p ayer does not support Auto HDMI, you need to set the DVD output reso ution appropriate y.

NOTE

GGSigna type RGB, i.e. the signa s red, green and b ue can on y be se ected for the Euro scart and the AV 1 can be

received. These signa s are transmitted, for examp e, by a paid TV decoder, game machine or photo CD unit, etc.

GGP ease use shie ded scart cab e.

AUDIO

(L)

(R)

AUDIO/

VIDEO

AV 1 AV 2

HDMI

AV 1 AV 2
