LG M4714C-BA - - 47" LCD Flat Panel Display Manuale utente

Make sure to read the

Safety Precautions

before using the product.

Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your dealer when you ask

for service.

M4714C

User’s Guide

Sellers or users should understand that this device is for public use,

not home use.

First, check if the following parts are all present.

Stand (1)

Screws (4)

Parts

1. Take the parts for the stand out of the box and assemble them as

shown in the picture.

2. Place a soft cloth on the table and put the product with the screen

facing downward.

Connect the stand as shown in the following picture.

cable management (1)

- Only on some models.

3. Use the screws to secure the stand on the rear side of the product as shown

in the diagram.

Connecting

the stand

Connecting the Speakers

Mount the product onto the speaker by using a screw as shown in the following

connect the speaker cable.

- Only on some models.

When the speaker is installed.

*Connect the input terminal with a proper color match.

Remove the paper.

Cable holder

After installing your speakers, use holders and cable ties to organize the speaker cables.

* This feature is not available in all model.

Cable tie

* This feature is not available in all model.

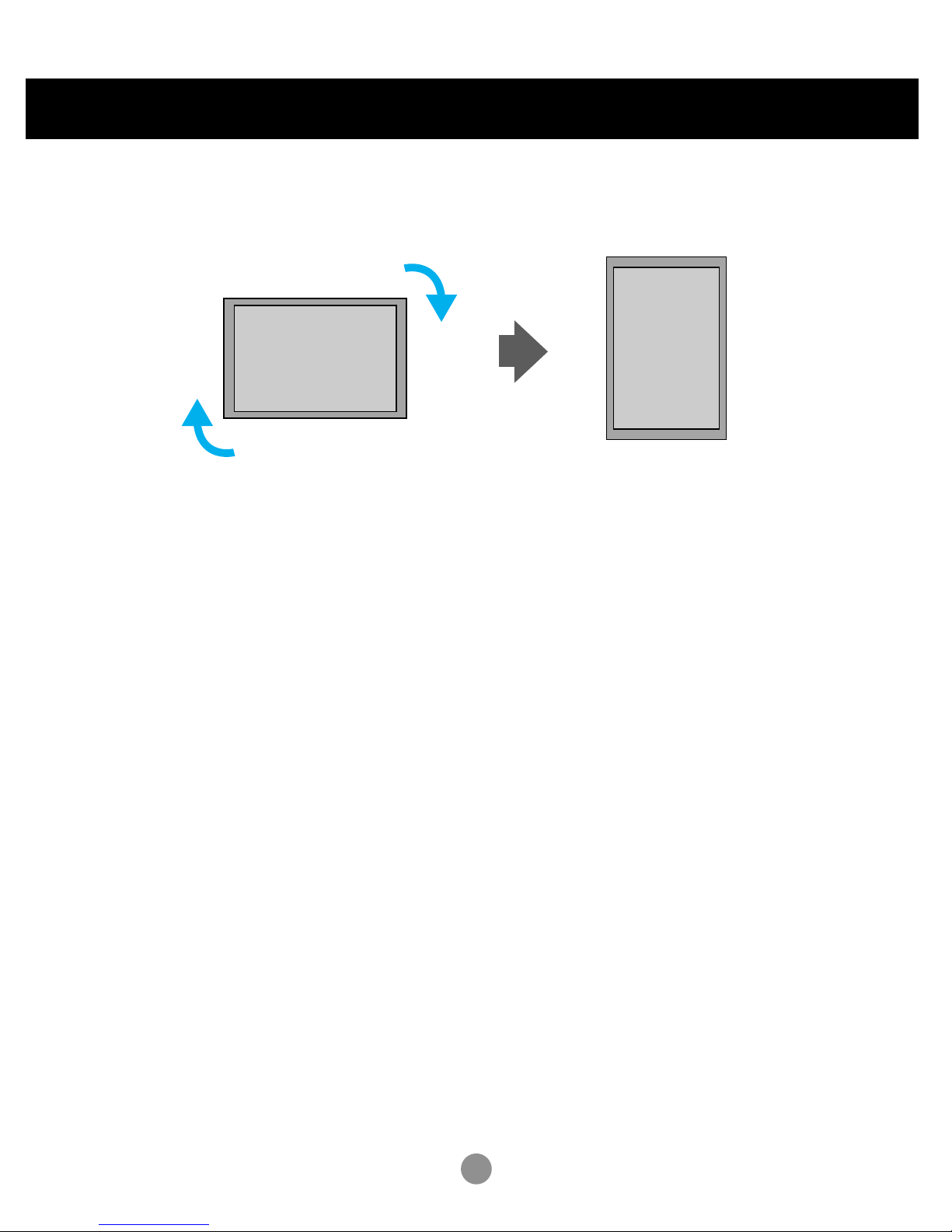

To install Portrait

- Only on some models.

"When installing Portrait, rotate it clockwise based on its front."

Using the Remote Control

Name of the Remote Control Buttons

1 2 3

4 5 6

7 8

•

AV Button

•

Sleep Button

When watching AV, RGB PC,HDMI/DVI

Component1, Component2

The product will be automatically turned

off after a certain period of time.

Press this button repetitively to

select an appropriate time duration

•

PSM Button

- Toggles through preset video

settings.

•

Menu Button

•

Check Button

•

Volume Button

Volume up and down

•

Mute button

There is not a function

which is supported

•

UP and Down buttons

Bring up and down direction

adjustment.

•

ARC button

Aspect Ratio Correction. Toggles

through aspect ratio options.

•

Auto Button

Automatic adjustment function

(Operational for the analog signal only)

•

Exit Button

There is not a function

which is supported

There is not a function

which is supported

There is not a function

which is supported

•

Power On/Off Button

•

Input Select Button

(See next page)

Using the Remote Control

•

AV Button

1 2 3

4 5 6

7 8

If you press the button once,

the following Input Signal

Window will appear. Select

the signal type you want

using the button.

•

Input Select Button

1. Slide off the battery cover.

2. Insert the batteries with correct polarity (+/-).

3. Close the battery cover.

• Dispose of used batteries in the recycle bin to prevent

environmental pollution.

Inserting batteries into remote control.

AAA Type

Input

Component1

Component2

RGB PC

HDMI/DVI

AV Component1

Component2 RGB PC

HDMI/DVI

Toggles through video

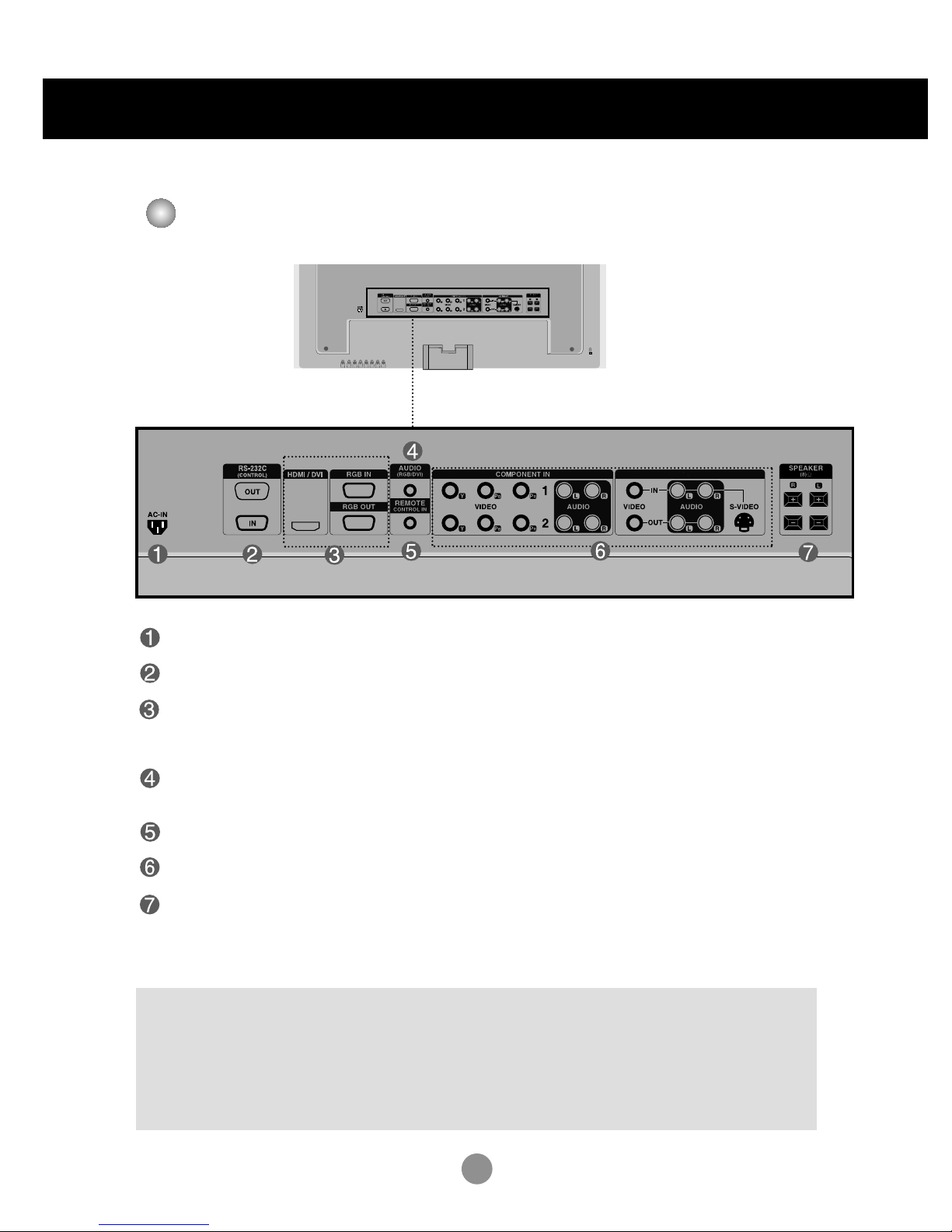

Name and Function of the Parts

Rear View

*LINE OUT

A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that

the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of

PC sound card has only Speaker Out, reduce the PC volume.

If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out using

the card jumper of the program (Refer to the Sound Card Manual).

* The product image in the user’s guide could be different from the actual image.

Power Connector : Connect the power cord

RS-232C Serial Ports

RGB PC, HDMI/DVI Ports

-HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content

Protection). Some devices require HDCP in order to display HD signals.

PC Sound Jack

: Connect the audio cable to the *LINE OUT jack of the PC sound card.

Wired Remote Control Port

AV Ports

Speaker Ports

AV IN/OUT

First of all, see if the computer, product and the peripherals are turned off.

Then, connect the signal input cable.

When connecting with the D-Sub signal input cable.

When connecting with the HDMI to DVI signal input cable (not included).

MAC

Macintosh Adapter (not included)

Use the standard Macintosh adapter since an incompatible

adapter is available in the market. (Different signaling system)

Rear side of the product.

Connecting to External Devices

Connect the power cord.

When Connecting to your PC

PC/

MAC

Rear side of the product.

Connect the Audio cable.

(not included)

* User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain

standard compliance for the product.

Select an input signal.

Press the INPUT button on the remote control to select the input signal.

Or, press the SOURCE button on the back of the product.

INPUT SET

•

How to connect to two computers.

Connect the signal cables (HDMI to DVI and D-Sub) to each computer.

Press the INPUT button on the remote control to select the computer to use.

•

Directly connect to a grounded power outlet on the wall or a power bar with a ground

wire.

Note

Turn on power by pressing the power button on the product.

Turn on the PC.

ON/OFF

AUTO/SET

SOURCE

Power button

SOURCE AUTO/SET

When connecting with a D-Sub signal input cable.

•Select RGB PC : 15-pin

D-Sub

analog signal.

When connecting with a HDMI to DVI signal input cable.

•Select HDMI/DVI :

HDMI to DVI

Digital signal.

Connecting to External Devices

Input

Component1

Component2

RGB PC

HDMI/DVI

Input

Component1

Component2

RGB PC

HDMI/DVI

Use this function when displaying ANALOG RGB inputs of a PC to the other product.

RGB IN

RGB OUT

RGB IN

RGB OUT

RGB IN

RGB OUT

RGB IN

RGB OUT

Product 1

•

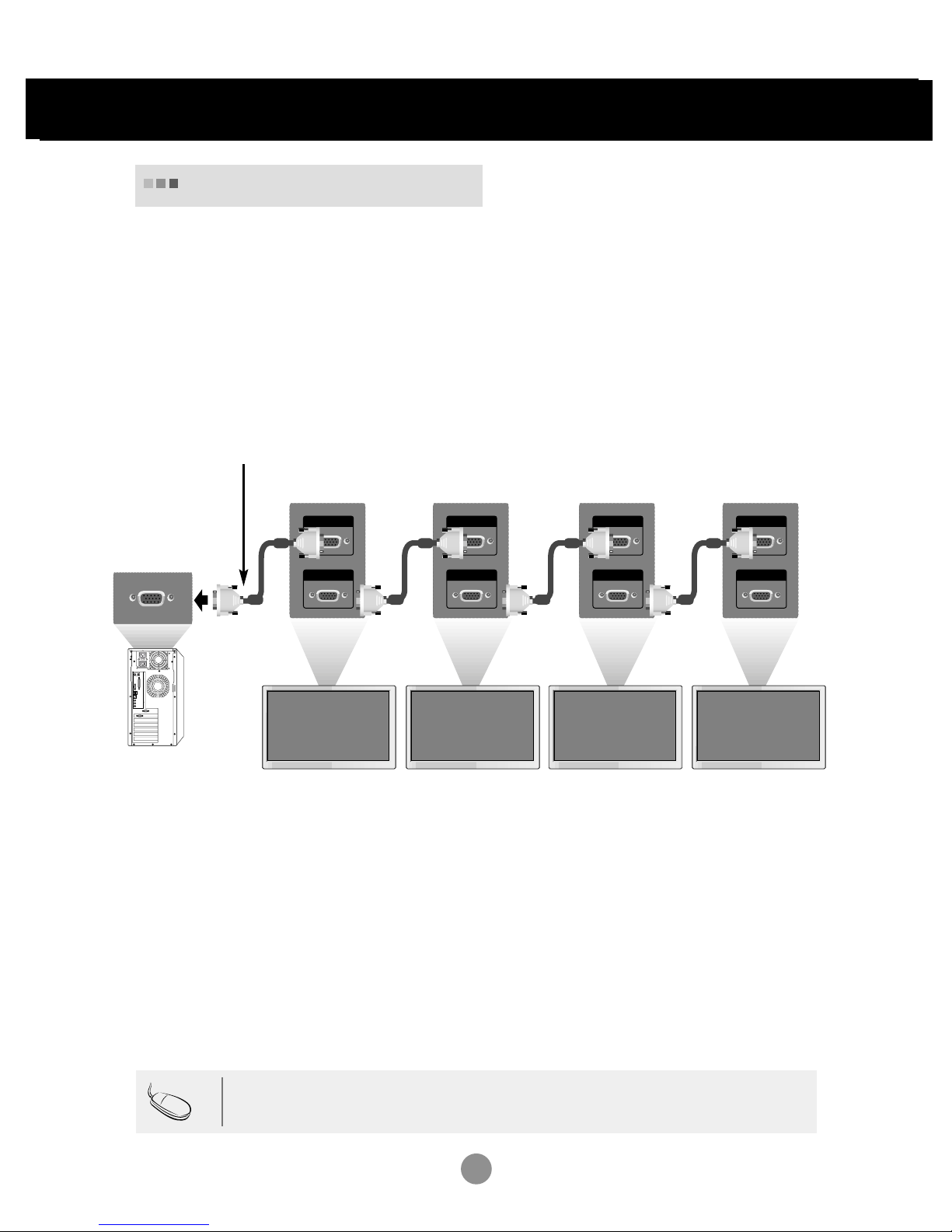

To use different products connected to each other

Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT

connector of product 1 and connect the other end to the RGB IN connector of other

products.

Daisy Chain Monitors

Product 2 Product 3 Product 4

15-pin D-Sub Signal Cable

Connecting to External Devices

•When multi-connecting in/out cascade format, no loss cables are recommended.

We recommend that you should use cable distributor.

Note
