LG M5201CCBA Manuale utente

Make sure to read the

Safety Precautions

before using the product.

Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your dealer when you ask

for service.

M5201C

User’s Guide

Temporary noise is normal when powering ON or OFF this device.

Using the Remote Control

Name of the Remote Control Buttons

1 2 3

4 5 6

7 8

•

AV Button

•

Sleep Button

When watching AV/S-Video/RGB/HDMI

Component1/ Component2

The product will be automatically turned

off after a certain period of time.

Press this button repetitively to

select an appropriate time duration

•

PSM Button

- Automatically adjusts the image.

Press this button repetitively to set

the intended screen.

•

Menu Button

•

Check Button

•

Volume Button

•

Mute button

There is not a function

which is supported

•

UP and Down buttons

Bring up and down direction

adjustment.

•

ARC button

To select the image size of the

screen.

•

Auto Button

Automatic adjustment function

(Operational for the analog signal only)

•

Exit Button

There is not a function

which is supported

There is not a function

which is supported

There is not a function

which is supported

•

Power On/Off Button

•

Input Select Button

(See next page)

Input

Using the Remote Control

AV Component1

Component2 RGB

HDMI/DVI

•

AV Button

Each time you press the Input

button it will change to

1 2 3

4 5 6

7 8

If you press the button once,

the following Input Signal

Window will appear. Select

the signal type you want

using the button.

•

Input Select Button

1. Take out the battery cap.

2. Insert the batteries with correct polarity (+/-).

3. Close the battery cap.

• Dispose of used batteries in the recycle bin to prevent

environmental pollution.

Inserting batteries into remote control.

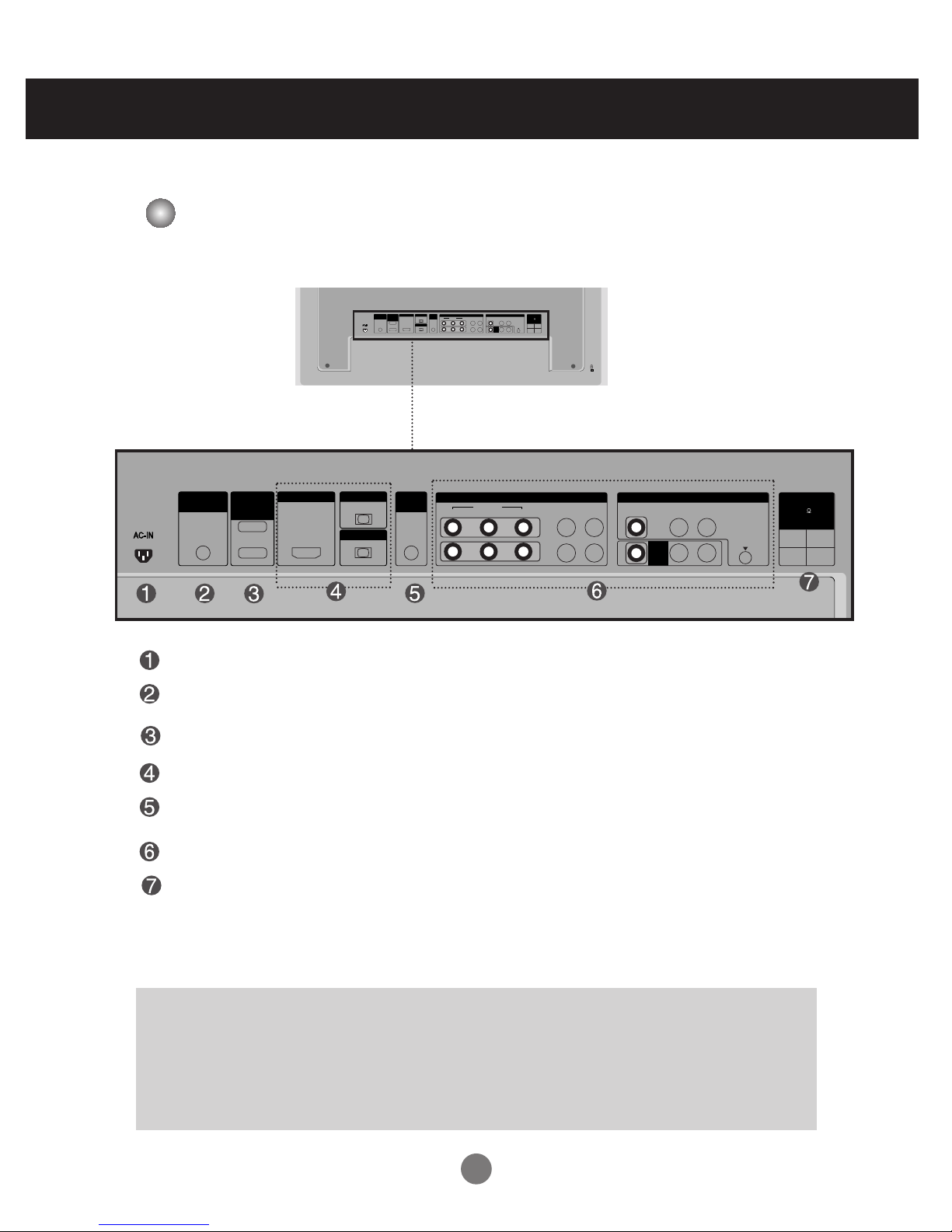

Name and Function of the Parts

Rear View

Power Connector : Connect the power cord

Wired Remote Control Port

RS-232C Serial Ports

RGB, HDMI/DVI Ports

PC Sound Jack

: Connect the audio cable to the *LINE OUT jack of the PC sound card.

AV Ports

Speaker Ports

OUT

VIDEO

L-AUDIO-R

VIDEO

RGB IN

RGB OUT

HDMI/DVIIN

L-AUDIO-R

COMPONENT IN

OUT

AVIN SPEAKER

(8)

(R) (L)

REMOTE

CONTROL IN

RS-232C

(CONTROL&

SERVICE)

AUDIO

(RGB/DVI)

S-VIDEO

*LINE OUT

A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that

the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of

PC sound card has only Speaker Out, reduce the PC volume.

If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out using

the card jumper of the program (Refer to the Sound Card Manual).

OUT

VIDEO

L-AUDIO-R

VIDEO

RGB IN

RGB OUT

HDMI/DVI IN

L-AUDIO-R

COMPONENT IN

OUT

AV IN SPEAKER

(8)

(R) (L)

REMOTE

CONTROL IN

RS-232C

(CONTROL&

SERVICE)

AUDIO

(RGB/DVI)

S-VIDEO ++

* The product image in the user’s guide could be different from the actual image.

RGB IN

HDMI/DVI IN

First of all, see if the computer, product and the peripherals are turned off.

Then, connect the signal input cable.

When connecting with the D-Sub signal input cable.

When connecting with the HDMI to DVI signal input cable (not included).

MAC

Macintosh Adapter (not included)

Use the standard Macintosh adapter since an incompatible

adapter is available in the market. (Different signaling system)

OUT

VIDEO

L-AUDIO-R

VIDEO

RGB IN

RGB OUT

HDMI/DVI IN

L-AUDIO-R

COMPONENT IN

OUT

AV IN SPEAKER

(8)

(R) (L)

REMOTE

CONTROL IN

RS-232C

(CONTROL&

SERVICE)

AUDIO

(RGB/DVI)

S-VIDEO

Rear side of the product.

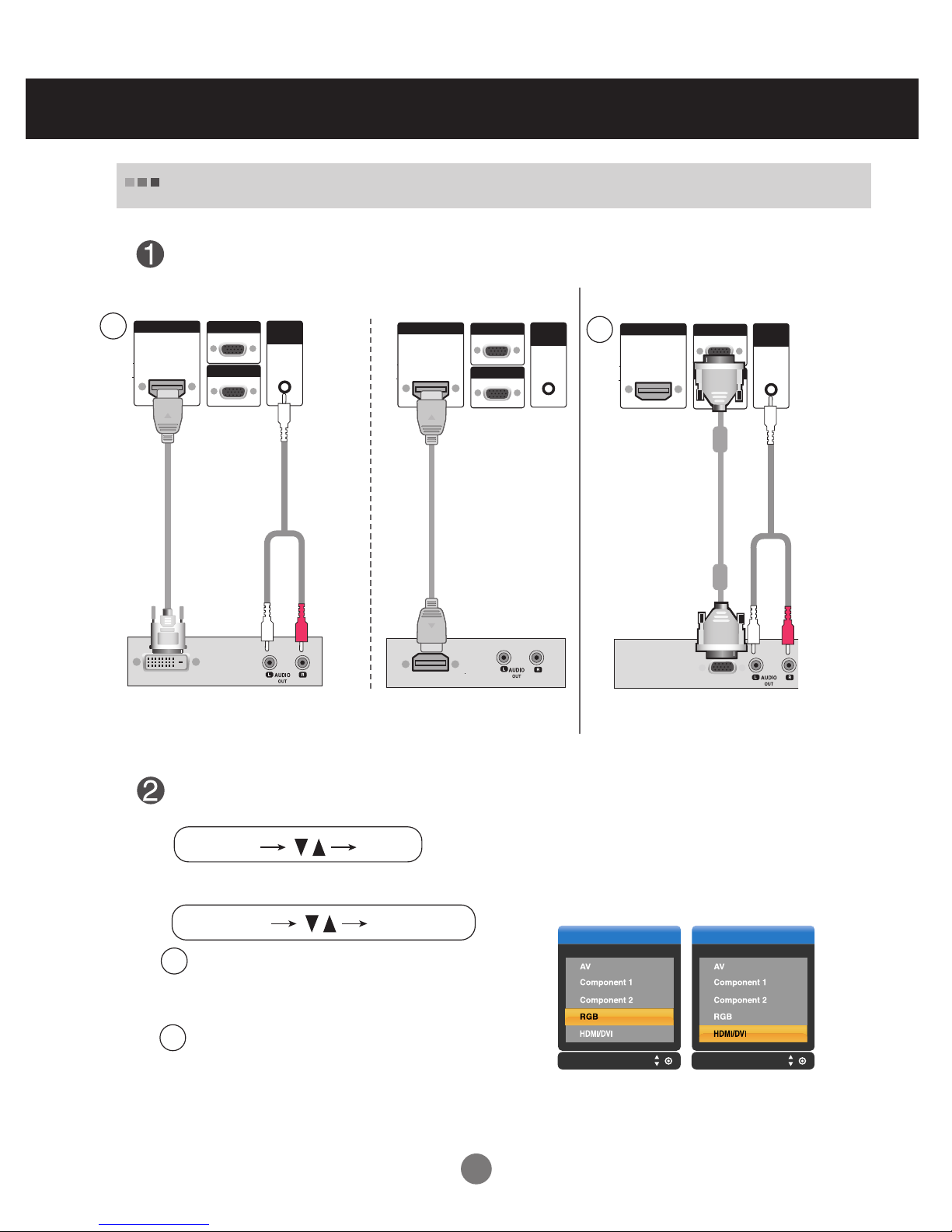

Connecting to External Devices

Connect the power cord.

When Connecting to your PC

PC/

MAC

Rear side of the product.

AUDIO

(RGB/DVI)

Rear side of the product.

Connect the Audio cable.

(not included)

Select an input signal.

Press the INPUT button on the remote control to select the input signal.

Or, press the SOURCE button on the bottom of the product.

INPUT SET

•

How to connect to two computers.

Connect the signal cables (HDMI to DVI and D-Sub) to each computer.

Press the INPUT button on the remote control to select the computer to use.

•

Directly connect to a grounded power outlet on the wall or a power bar with a ground

wire.

Note

Turn on power by pressing the power button on the product.

Turn on the PC.

ON/OFF

AUTO/

SET

SOURCE

Power button

Input Input

SOURCE AUTO/SET

When connecting with a D-Sub signal input cable.

•Select RGB : 15-pin

D-Sub

analog signal.

When connecting with a HDMI to DVI signal input cable.

•Select HDMI/DVI :

HDMI to DVI

Digital signal.

Connecting to External Devices

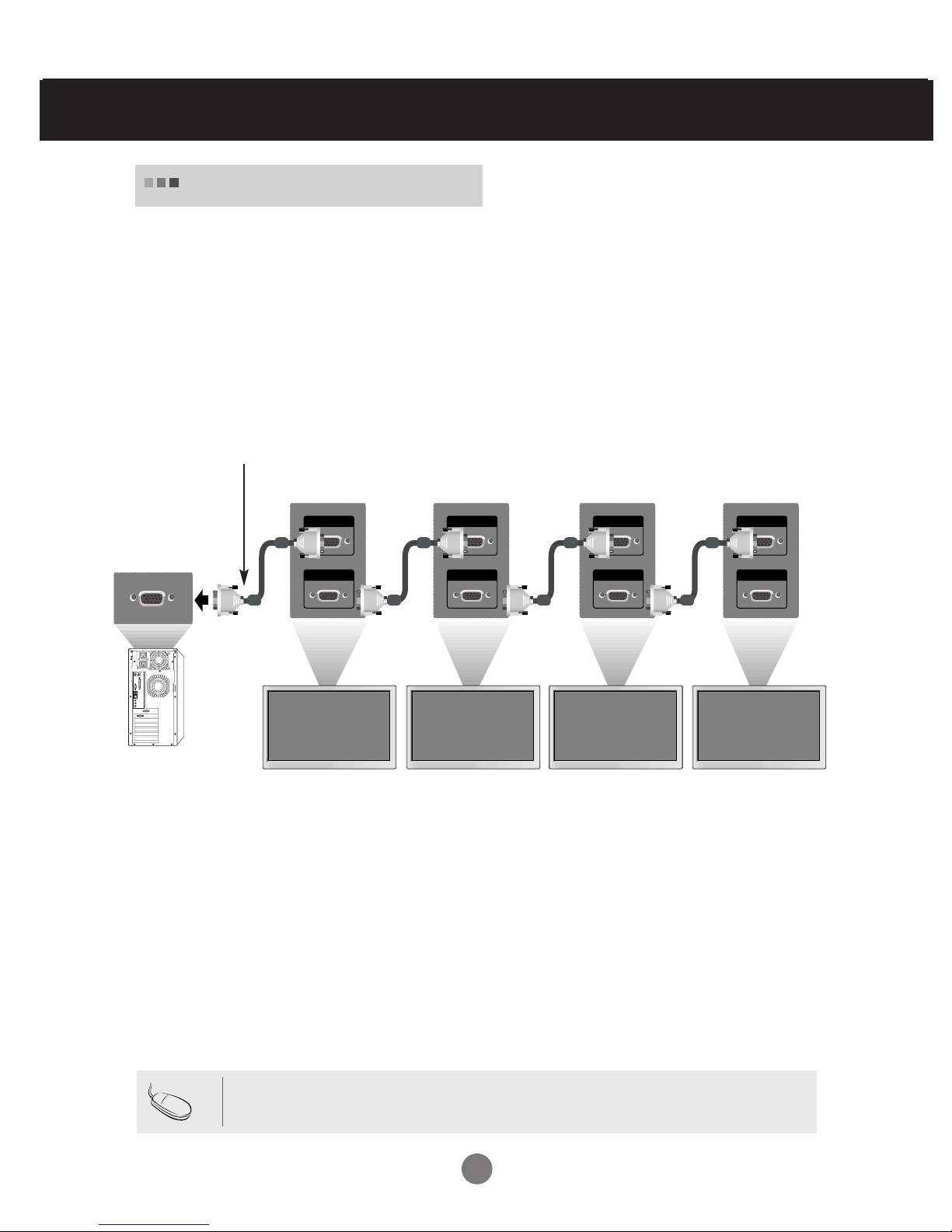

Use this function when displaying ANALOG RGB inputs of a PC to the other product.

RGB IN

RGB OUT

RGB IN

RGB OUT

RGB IN

RGB OUT

RGB IN

RGB OUT

Product 1

•

To use different products connected to each other

Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT

connector of product 1 and connect the other end to the RGB IN connector of other

products.

Watching RGB Outputs

Product 2 Product 3 Product 4

15-pin D-Sub Signal Cable

Connecting to External Devices

•When multi-connecting in/out cascade format, no loss cables are recommended.

We recommend that you should use cable distributor.

Note

Connecting to External Devices

When connecting with an BNC cable.

•

Select AV.

When connecting with an S-Video cable.

•

Select AV.

L-AUDIO-R

VIDEO

OUT

AV IN

S-VIDEO

When connecting with a S-Video cable.

•

Connect to the S-Video input terminal to

watch high image quality movies.

Connect the video cable as shown in the below figure and then connect the power

cord (See page 4).

When connecting with a BNC cable.

•

Connect the input terminal with a

proper color match.

BNC Cable

(not included)

Product

VCR/DVD Receiver

Input

When watching VCR / DVD

Select an input signal.

Press the INPUT button on the remote control to select the input signal.

Or, press the SOURCE button on the bottom of the product.

INPUT SET

SOURCE AUTO/SET

•When the BNC cable is connected simultaneously with S-Video cable, S-Video input has a priority.

Note

Audio Cable

(not included)

L-AUDIO-R

VIDEO

OUT

AV IN

S-VIDEO

S-Video Cable

(not included)

Audio Cable

(not included)

Product

VCR/DVD Receiver

•

Select Component 1

•

Select Component 2

VIDEO

RL-AUDIO-R

COMPONENT IN

Connect the video/audio cable as shown in the below figure and then, connect the

power cord (See page 4).

•

Connect the input terminal with a proper color match.

BNC Cable

(not included)

Product

HDTV Receiver

Input Input

When watching HDTV/DVD(480p/576p/720p/1080p/1080i/480i/576i)

Select an input signal.

Press the INPUT button on the remote control to select the input signal.

Or, press the SOURCE button on the bottom of the product.

INPUT SET

SOURCE AUTO/SET

Audio Cable

(not included)

VIDEO

L-AUDIO-R

COMPONENT IN

Product

HDTV Receiver

BNC Cable

(not included)

Audio Cable

(not included)

Connecting to External Devices

RGB IN

RGB OUT

HDMI/DVI IN AUDIO

(RGB/DVI)

RGB IN

RGB OUT

HDMI/DVI IN AUDIO

(RGB/DVI)

Connect the video/audio cable as shown in the below figure and then connect the

power cord (See page 4).

RCA-PC

Audio Cable

Product

VCR/DVD/Set-top Box

HDMI to DVI

Signal Cable

(not included)

Input Input

When watching

HDMI/DVI/RGB

from the VCR/DVD/Set-top Box

(480p/576p/720p/1080p/1080i)

VCR/DVD/Set-top Box

Product

Select an input signal.

Press the INPUT button on the remote control to select the input signal.

Or, press the SOURCE button on the bottom of the product.

INPUT SET

SOURCE AUTO/SET

HDMI Signal Cable

(not included)

Connecting to External Devices

RGB IN

RGB OUT

HDMI/DVI IN AUDIO

(RGB/DVI)

VCR/DVD/Set-top Box

Product

D-Sub Signal

Cable

RCA-PC

Audio Cable

When connecting with a HDMI to DVI signal input cable.

When connecting with a HDMI signal input cable.

•Select HDMI/DVI

When connecting with a D-Sub signal input cable.

•Select RGB
