LG PL-D860 Manuale utente

www.lg.com

Please read the Safety Precautions carefully before using this product.

After reading this manual, please keep it in an easily accessible location for future reference.

PL-D860

User Manual

Dual Digital

Pillar

P/No: MFL69559222 (1610-REV00)

Printed in Korea

*MFL69559222*

ENGLISH

SAFETY PRECAUTIONS

WARNING

• Follow the instructions in the manual to properly install this product.

-Failure to follow the instructions in the manual can result in personal injury or product damage.

• After the product is installed, do not stand on or lean against the product.

-This may cause the product to fall and cause injury.

• Protect the product from severe impact after installation.

-This may cause the product to fall and cause injury.

• Always use the product on a flat surface.

-If used on an uneven or unsteady surface, the product may fall and cause injury.

• Do not attach other objects to the stand aside from displays.

-The objects may fall and cause personal injury or damage.

• Once displays have been installed, only use them indoors.

-If used outdoors, moisture may enter the units and result in fire, electric shock or product malfunction.

• Do not modify or alter the product.

CAUTION

• Before moving the product, disconnect the power cord from any power outlets.

-Moving the product while the power cord is connected may result in electric shock or fire.

• Do not clean the product with a wet towel, and do not place a heater or humidifier beneath it.

-If moisture, steam or heat enters the product, this may cause fire, electric shock or product malfunction.

• Wear work gloves when installing the product. Do not use your bare hands.

-Not wearing gloves may expose you to risk of injury.

ENGLISH

ASSEMBLY AND PREPARATION

CAUTION

• Be careful when installing and using the product to prevent product damage or safety hazards.

• If the instructions in the manual are unclear, stop the installation process and contact the service center.

• Check that the accessories provided with the product are all included before beginning installation. LG Electronics is

not liable for any damage or loss of the accessories after the package has been opened.

• Make sure that the accessories are kept out of reach of children to prevent accidents, such as choking due to

swallowing small parts.

• Make sure that the screws are fastened tight.

• Applying excessive force to the screws may cause damage to the wall, affect product performance or cause product

damage.

• Make sure that the installed display does not exceed the specified load and that no external force is applied to it.

• In order to prevent any accidents, take caution when handling tools during the installation.

NOTE

• Save the content you intend to use to your monitor set before installing the Dual Digital Pillar.

ENGLISH

Accessories

Accessories are subject to change without prior notice to improve the performance of the product, and new accessories

may be added as well.

The illustrations in this manual may differ from the actual product and accessories.

User Manual Stand base x 1

Power strip bracket x 1 Double-sided tape x 1 Side cover x 2 Pillar x 1

Pillar screw

(M8 x L50) x 2

Angle bracket screw

(M8 x L15) x 4

Power strip bracket screw x 2

Stand Bracket screw x 4

Top cover screw x 2

(M4 x L12)

Fastening bracket screw

(M8 x L15) x 8

Side cover screw

(M4 x L12) x 20

Stand Bracket x 1 Short Fastening bracket x 2 Long Fastening bracket x 2

Rubber x 20 Top cover x 1

Required Tools

Wrench, Screwdriver, Ladder

ENGLISH

Assembly

The images may differ from the actual product.

WARNING

• For safety, at least two people must work together to install the product.

• Make sure to use gloves or other protective equipment during assembly for safety.

1 Place the stand base on a flat surface.

2 Place the pillar on the stand base, aligning it with the grooves in the base.

pillar

Stand base grooves

ENGLISH

NOTE

• Locate the “LONG HOOK” label in place as shown in the image.

ENGLISH

3 After placing the pillar in the indentation of the stand base, fix it in place using the two screws (M8 x L50)

provided.

4 Fasten the four angle bracket screws (M8 X L15) provided to the stand base.

ENGLISH

5 Position the power strip bracket inside the lower side of the pillar and attach it to the pillar using the two screws

(M4 X L12) provided.

NOTE

• The shape of the power strip may differ by region.

• Make sure the power cord of the power strip points toward the floor.

• Fix the power strip bracket in such a way that it does not protrude from one side of the pillar.

If the power strip bracket protrudes from the pillar, it may bump against the monitor.

ENGLISH

6 Stick double-sided tape on a power strip and fix it on the power strip bracket.

7 Put the power cord of the power strip into the hole in the stand base.

NOTE

• Cut the double-sided tape to fit the size of the power strip.

ENGLISH

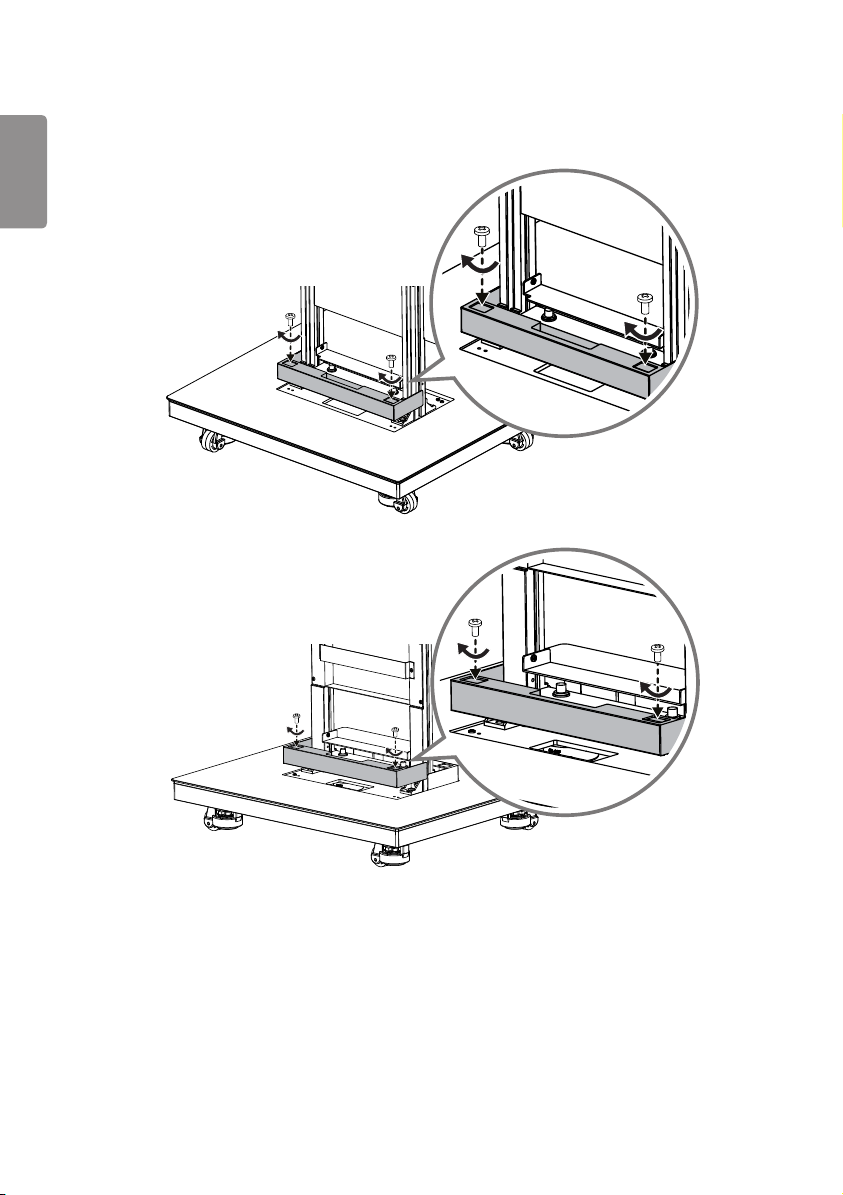

8 Use the four screws (M4 x L12) provided to assemble the stand bracket onto the front and rear side of the stand

base.
