1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sufcient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The device shall not be exposed to water
(dripping or splashing) and no objects lled with
liquids, such as vases, shall be placed on the device.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the device.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from over heating.
The openings shall never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
Getting Started 3
Getting Started
1
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case
of an emergency, the Power Plug must remain readily
accessible.
Check the specication page of this owner’s manual
to be certain of the current requirements.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could result
in electric shock or re. Periodically examine the
cord of your device, and if its appearance indicates
damage or deterioration, unplug it, discontinue use of
the device, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits
the device.
NOTICE: For safety marking information including
product identication and power supply ratings,
please refer to the main label on the bottom or the
other surface of the product.
This device is equipped with a portable battery or
accumulator.
How to Safely remove the batteries or the battery
pack from the equipment:
To Remove the old batteries or battery pack, follow
the assembly steps in reverse order. To prevent
contamination of the environment and bring on
possible threat to human and/or animal health, the
old batteries or the battery pack must be put in
an appropriate container at designated collection
points. Do not dispose of batteries or battery pack
together with other waste. It is recommended that
you use local, free reimbursement systems batteries
or battery packs, (may not be available in your area).
The batteries or the battery pack should not be
exposed to excessive heat such as sunshine, re or
the like.
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Getting Started4
Getting Started
1
Symbols
~Refers to alternating current (AC).
0Refers to direct current (DC).
Refers to class II equipment.
1Refers to stand-by.
!Refers to “ON” (power).
Refers to dangerous voltage.
Table of Contents 5
1
2
3
4
5
Table of Contents
1 Getting Started
2 Safety Information
6 Unique features
6 – Auto power down
6 – Portable In
6 Introduction
6 – Symbols used in this manual
6 Accessories
7 Remote control
8 Front panel
8 Rear panel
9 Installing the sound bar
10 Mounting the main unit on a wall
2 Connecting
12 Wireless subwoofer connection
13 Connecting to your TV
13 – Using an OPTICAL cable
14 Optional equipment connection
14 – OPTICAL IN connection
14 – PORT. IN connection
3 Operating
15 Operations
15 – Night mode
15 – Turn off the sound temporarily
15 – Using your TV remote control
16 – AUTO POWER On/Off
16 – Auto function change
17 Using BLUETOOTH®technology
17 – Listening to music stored on the
BLUETOOTH devices
18 Sound adjustment
18 – Setting the surround mode
18 – Adjust the woofer level settings
4 Troubleshooting
19 Troubleshooting
20 NOTES to use wireless
5 Appendix
21 Trademarks and licenses
22 Specifications
23 Maintenance
23 – Handling the unit
Getting Started6
Getting Started
1
Unique features
Auto power down
This unit supports turning off by itself for energy
consumption saving.
Portable In
Listen to music from your portable device. (MP3
player, Notebook, Smart phone, etc..)
Introduction
Symbols used in this manual
, Note
Indicates special notes and operating features.
> Caution
Indicates cautions for preventing possible damages
from abuse.
Accessories
Please check and identify the supplied accessories.
Remote control (1) Batteries (2)
Wall Bracket Install
guide (1) Wall bracket (1)
Optical cable (1)
Getting Started 7
Getting Started
1
Remote control
Replacement of battery
Remove the battery cover on the rear of the Remote
Control, and insert the (size AAA) battery with
and matched correctly.
• • • • • • • • • • • • • • a• • • • • • • • • • • • •

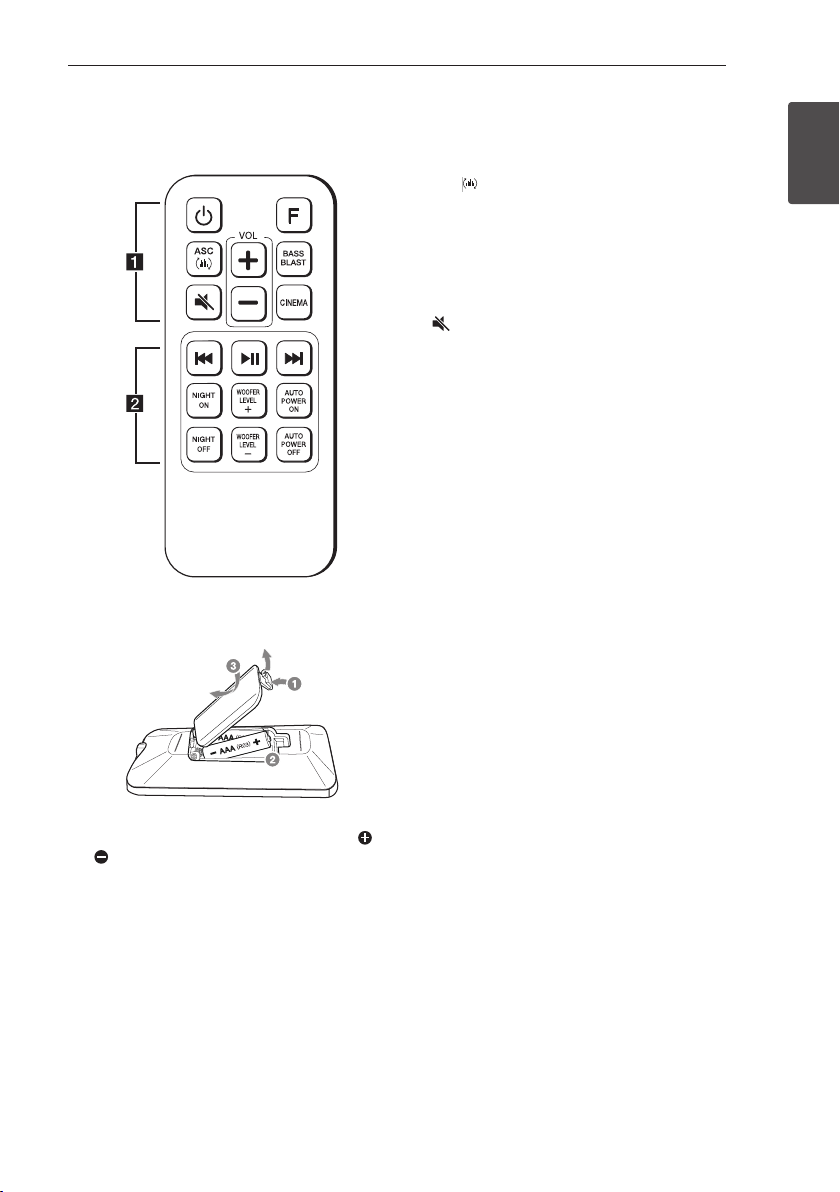

1 (Power) : Switches the unit ON or OFF
F: Selects the function and the input source.
ASC :Analyzes the property of input sound and
provides the sound optimized for the content in
real time.
BASS BLAST : Selects reinforced bass sound.
CINEMA : Selects cinematic surround sound.
VOL o/p: Adjusts speaker volume.
(Mute) : Mutes the sound.
• • • • • • • • • • • • • • b• • • • • • • • • • • • •
C/V (Skip) : Skips Fast backward or Forward.
dM (Play/Pause) : Starts playback. / Pauses playback.
NIGHT ON/OFF :
- Turns on or off Night mode.
- Controls this unit using TV remote. (Refer to the
page 16)
WOOFER LEVEL o/p: Adjusts sound level of
subwoofer.
AUTO POWER ON/OFF: Turns on or off AUTO
POWER function. (Refer to the page 16.)
Getting Started8
Getting Started
1
A1/! (Standby/On)
BF (Function)
Selects the function and input source.
Cp/o (Volume)
Adjusts volume level.
DStandby LED
It lights up in red on standby mode.
ERemote sensor
FFunction LED
yYou can check current function through
the LED.
yThis unit turns o LED If there is no key
input for 20 seconds. To display LED,
press any button.
yStandby LED quickly blinks when you
press any button, and slowly blinks in
Mute or Minimum volume status.
yBluetooth LED blinks when you select
Bluetooth function. If you connect a
Bluetooth device, the LED will turn on.
, Note
GSpeakers
Front panel
Rear panel
APORT. IN : Portable input BOPTICAL IN : Optical input
B
A
ABC
D E F
GG
Getting Started 9
Getting Started
1
Installing the sound bar
You can hear the sound by connecting the unit to
another device: TV, Blu-ray disc player, DVD player, etc.
Place the unit in front of the TV and connect it to the
device you want. (Refer to pages 13 - 14.)
yFor best performance of wireless
connection such as Bluetooth or wireless
subwoofer, do not install the unit on
Metallic furniture because wireless
connection communicates through a
module positioned on the bottom of the
unit.
yBe careful not to make scratches on the
surface of the Unit or Sub-Woofer when
installing or moving them.
> Caution
Getting Started10
Getting Started
1
Mounting the main unit
on a wall
You can mount the main unit on a wall.
Because it is difcult to make a connection after
installing this unit, you should connect the cables
before installation.
> Caution
Prepare screws and brackets.
Unit
Wall bracket
Wall Bracket Install
guide

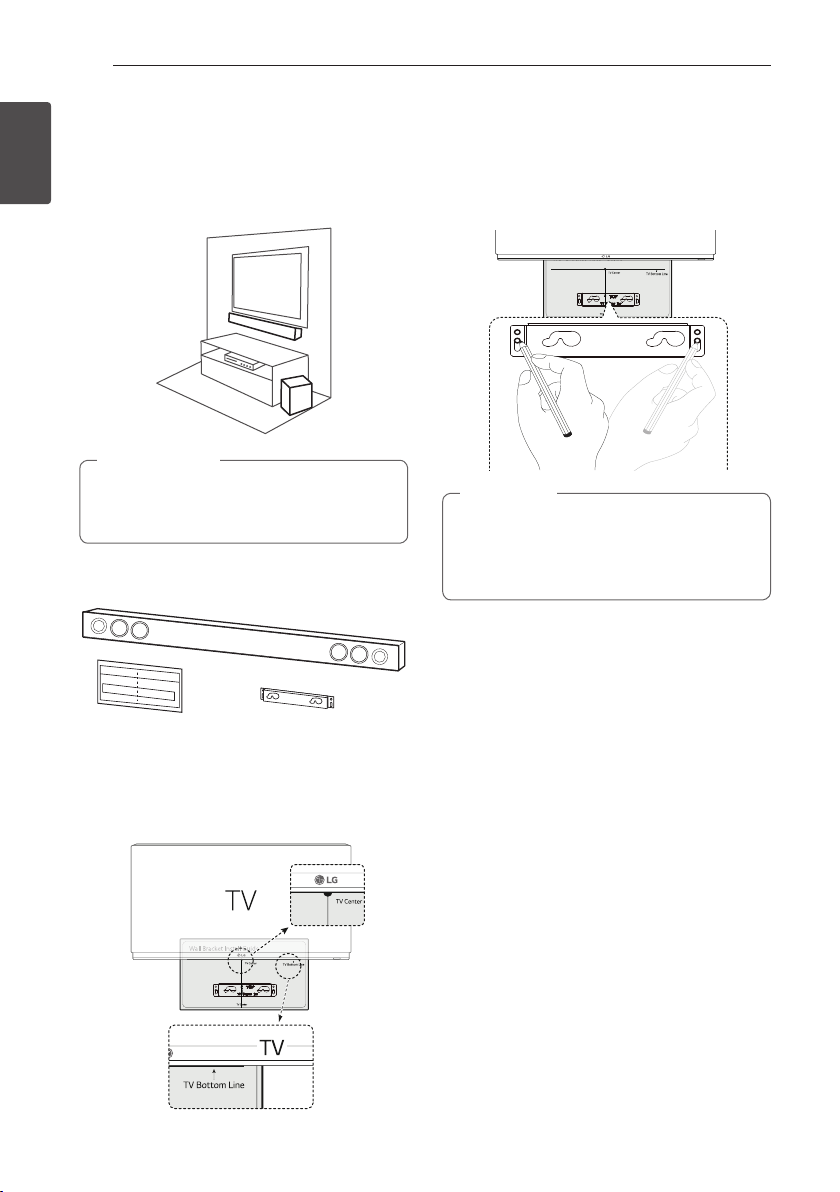

1. Match the TV’s BOTTOM EDGE of Wall Bracket
Install guide with the bottom of TV and attach to
the position.
2. When you mount it on a wall (concrete), use the
wall plugs (Not supplied). You will need to drill
some holes. A guide sheet (Wall Bracket Install
guide) is supplied showing you where to drill. Use
the sheet to check the points where you should
drill.
Screws and Wall Plugs are not supplied for
mounting the unit. We recommend the Hilti
(HUD-1 6 x 30) for the mounting. Please
purchase it locally.
, Note
