LG ET96 Series Manuale utente

INSTALLATION MANUAL

LED TV*

OLED TV

UT34**

UT78**

UT76**

UT66**

UT64**

US34**

LT66**

ET96**

www.lg.com

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it

for future reference.

*MFL71684511*

(2210-REV00)

ENGLISH

Table of contents

4 Location and Function of Controls

4 Parts and Button

4 Basic functions

4 LED Clock Connection

5 First Use Wizard

6 Basic Settings

6 - Language & Location

7 - Network Settings

8 - Portal Settings

9 - Voice Service Coverage

10 Data Cloning

10 Solution Settings

10 - Language & Location selection

11 - Automatically for Setup

15 - Manually for Setup

18 Installation Menu Settings

19 Installation Menu

19 Introduction

20 LG Hotel Mode

20 - Hotel Mode Operation

20 - Power On Status

21 - Volume

21 - Key Management

22 - Limited Mode

22 - DTV Programme Update

23 - Power On Default

23 - Aux Source Setting

23 - Power Management

23 - Radio Video Blank

23 - Factory Reset

24 Network

24 - MAC Address

24 - Network Settings

25 - LG Connect

25 - IP Stream Control

25 - Wake On LAN

25 - VLAN ID

26 - Server Settings

26 - PingTest

27 Pro:Centric

27 - Mode

27 - WORF

27 - Room Number Setting

27 - MediaType

28 - Receive Data

28 - Native EPG

29 General

29 - Configuration Setup

35 - External Speaker

35 - Audio Line Out

35 - Set ID Setup

35 - Power Saving

36 - HCEC Setup

37 - Clock Setup

37 - Password Change

38 - Lock Mode

38 - Crestron

38 - Welcome Video Mode

38 - Developer Mode

39 - Pillow Speaker

40 Portal Settings

40 - Portal Mode

40 - Auto Start

40 - PreLoaded App

41 - Website Shortcut

41 - Input Shortcut

42 - Hotel Directory

42 - Portal Editor

42 - Portal Manager

44 Media Share

44 - SmartShare

44 - Screen Share

44 - Media Renderer

44 - DIAL

44 - TV Name

45 - SoftAP

46 - Beacon

47 TV Manager

47 - Diagnostics

52 - USB Download Menu

57 CONTENT MANAGER

57 - Web Login

57 - Content Manager

61 - Group Manager 2.0

ENGLISH

63 IR Codes

64 External control device Setup

64 RS-232C Setup

64 Phone jackType

64 Type of Connector : D-Sub 9-Pin Male

65 RS-232C Configurations

65 Communication Parameters

65 IR OUT Using Guide

65 - Suitable / Not Recommend remote-controller data

format

65 - IR Receiver specifications

66 Command Reference List

67 Transmission / Receiving Protocol

ENGLISH

Location and Function of Controls

Parts and Button

Basic functions

Power On (Press)

Power O1(Press and Hold)

Menu Control (Press2)

Menu Selection (Press and Hold3)

1 All running apps will close.

2 You can access and adjust the menu by pressing the button when

TV is on.

3 You can use the function when you access menu control.

LED Clock Connection

(Depending on model)

ThisTV can be connected to a LED Clock via the CLOCK port.

CLOCK

LED Clock

(*Not Provided)

ENGLISH

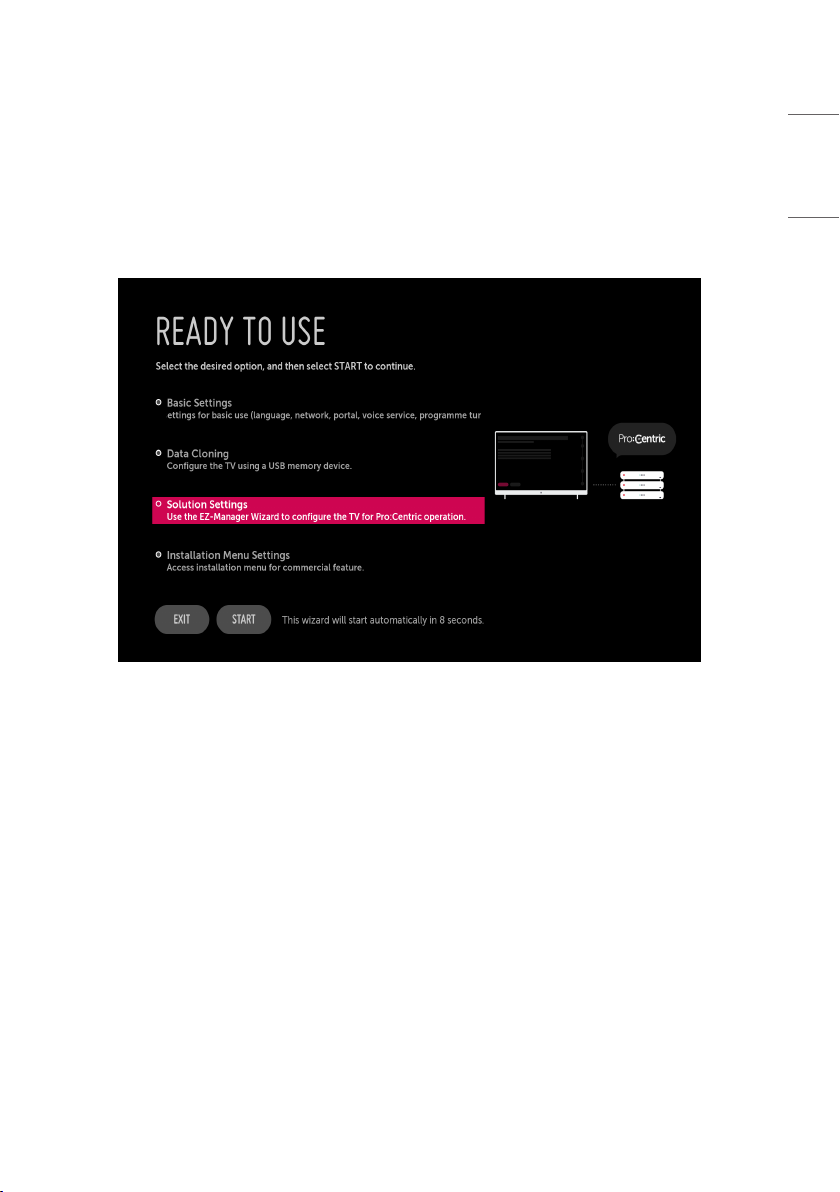

First Use Wizard

* Images shown may differ from your TV.

(Depending on model)

•There are four options - Basic Settings, Data Cloning, Solution Settings, and Installation Menu Settings. Each menu can access by START

button.

ENGLISH

Basic Settings

(Depending on model)

This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting.There

are four steps for it.

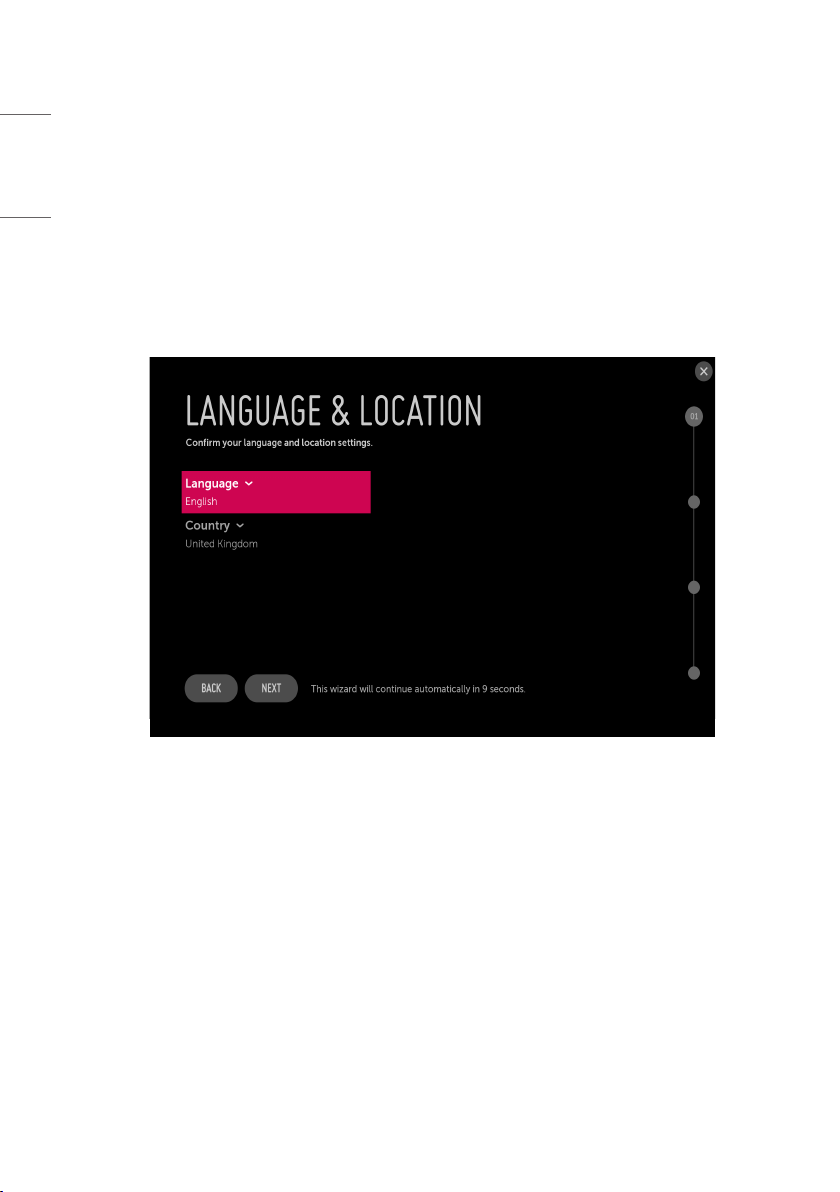

Language & Location

(Depending on model)

•Select the Language and Country. Some countries need to select the Time Zone.

ENGLISH

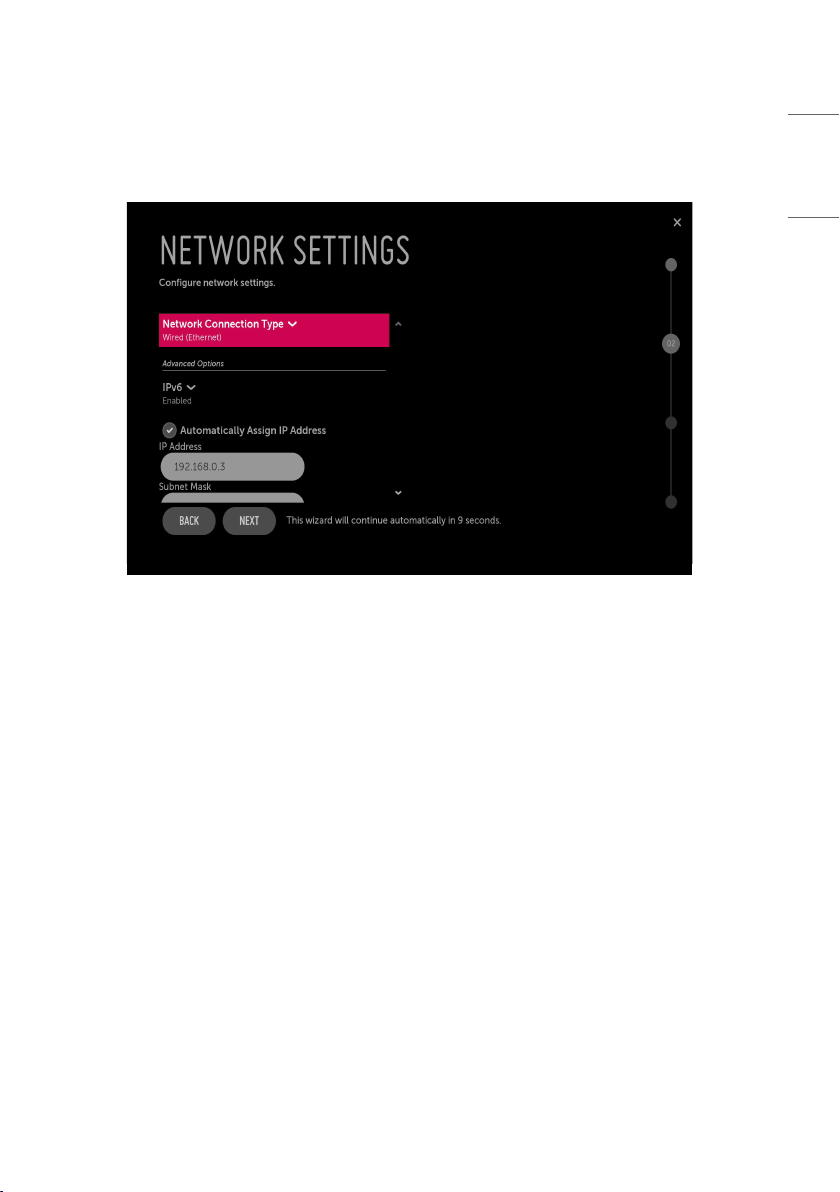

Network Settings

(Depending on model)

•Set Network connection. You can connect easily to wired/wireless network. (“Network Settings”on page 24)

ENGLISH

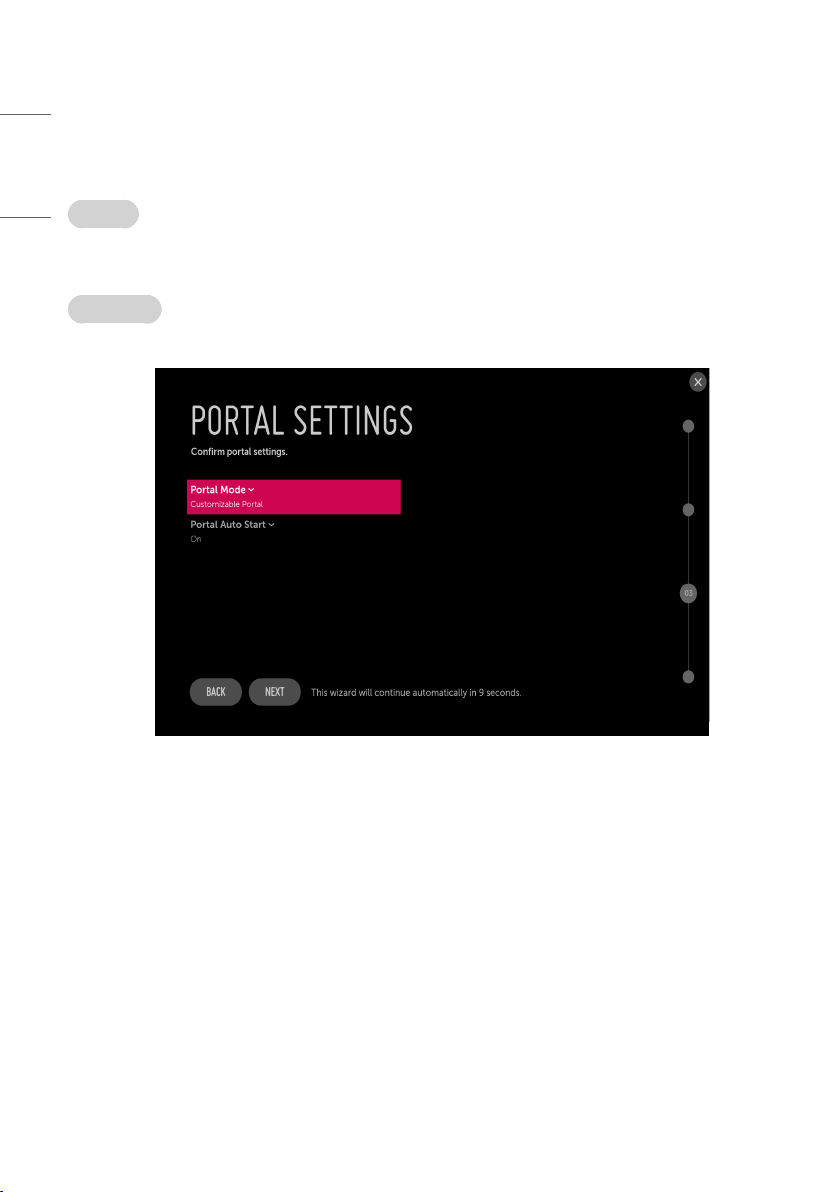

Portal Settings

(Depending on model)

•Set the Portal Mode and Portal Auto Start.

Portal Mode

(Depending on model)

•You can select‘Default Portal’(Use webOS default portal),‘Customizable Portal’(Use editable Portal), or‘None’(Do not use portal).

Portal Auto Start

•You can select‘On’or‘Off’. If you select‘On’, Portal (Home Launcher) will be execute automatically afterTV on.

ENGLISH

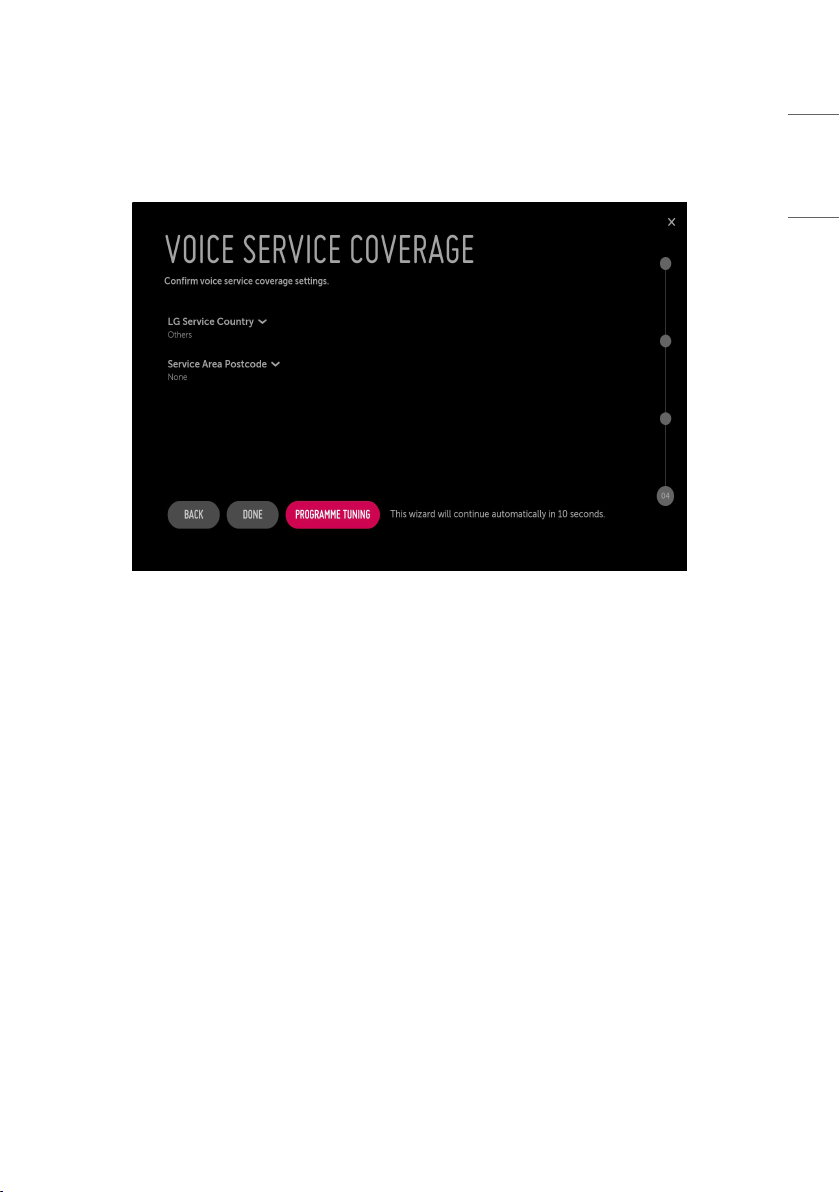

Voice Service Coverage

(Depending on model)

•Set the voice service coverage. You can set LG Service Country and Service Area Postcode(Depending on model) for voice service.

ENGLISH

Data Cloning

(Depending on model)

Access Data cloning menu ofTV Manager application for applying cloning le.

Solution Settings

(Depending on model)

The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”and IP Server

Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP on server search page. IfTV

doesn’t contact the Server,TV will search the pre-dened programme earlier than all programmes. (Only DVB-C)

The frequencies of pre-dened programmes are below.

•Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.

•Philippines 6 Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.

•Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.

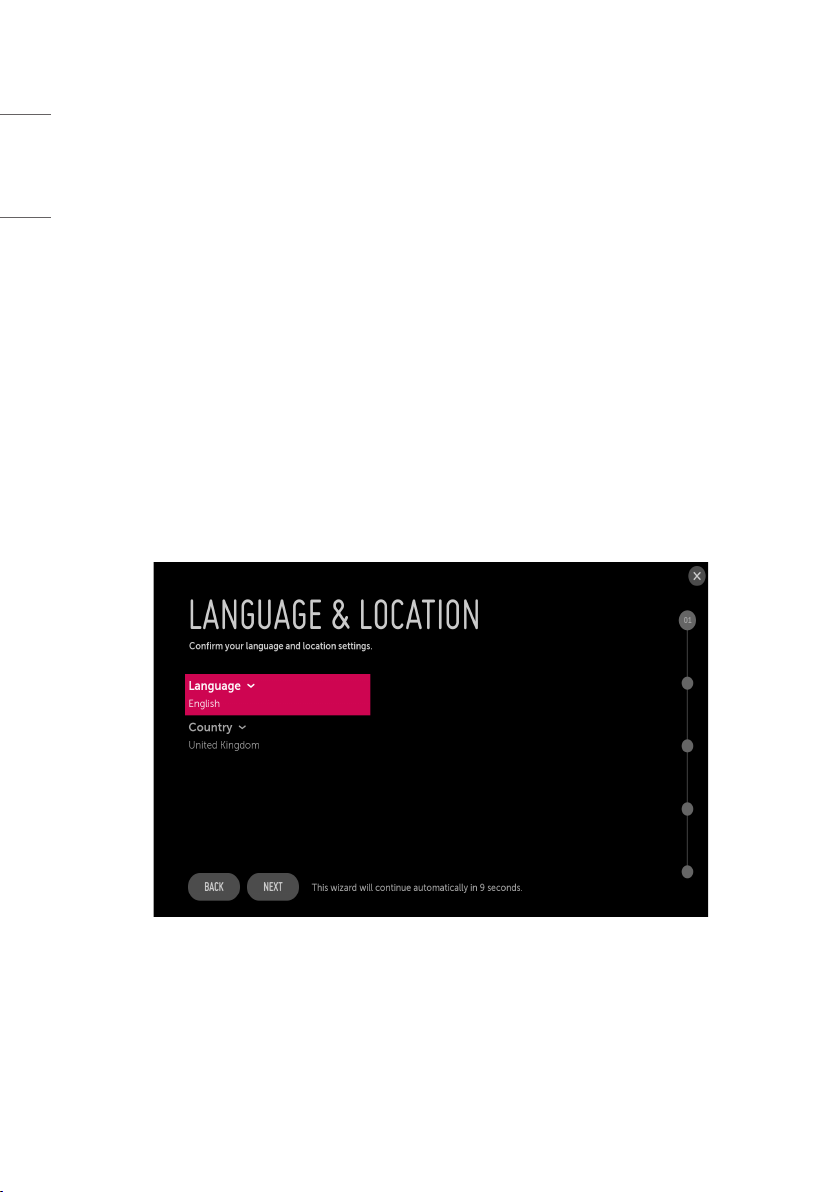

Language & Location selection

(Depending on model)

•Please select the Language and Country. Some countries need to select the Time Zone.
